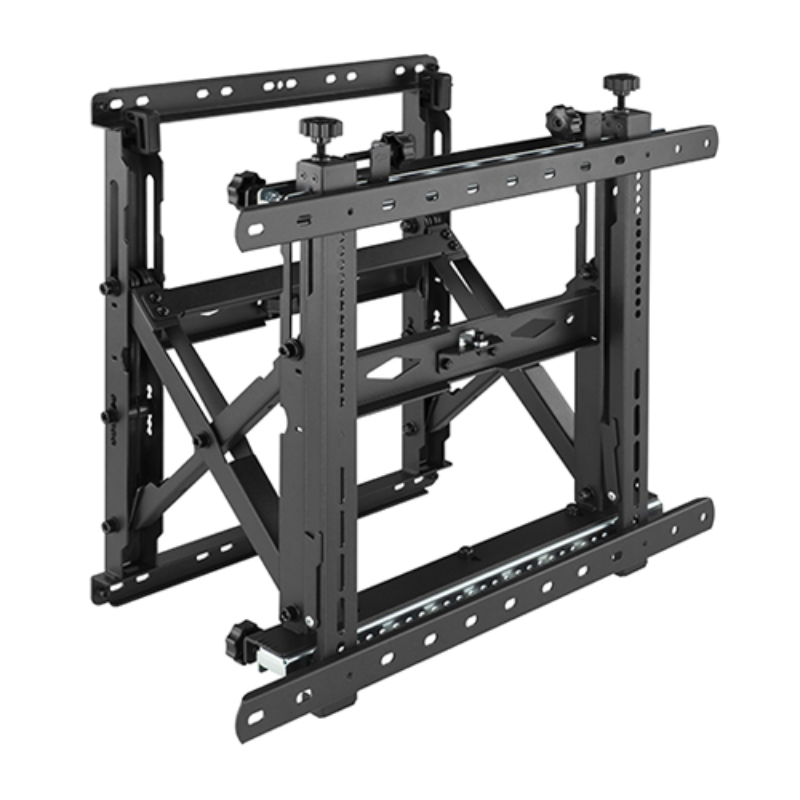

Lumi LVW13‑46T – Premium Video Wall Mount

Name: Lumi LVW13‑46T – Premium Video Wall Mount
SKU: 6095
Availability: InStock

•Professional video wall mount with versatile and universal compatibility.
•Load capacity of 70kg/154lbs and max. VESA 600×400 hole pattern.
•Extends 325mm from the wall and retracts to 120mm.
•Push Pull Funtionality With 4 Corner Adjustment With lateral Sift And 6 Micro Adjustment toolless micro-adjustments
•A robust structure loaded with time-saving features like toolless micro-adjustments and easy access to the display for quick serviceability.

The LVW13-46T Optimal Full Service Video Wall Mount is easy to configure, quick to install and a snap to maintain. A robust structure loaded with time-saving features like toolless micro-adjustments and easy access to the display for quick serviceability. Support portrait or landscape viewing for different viewing experiences. It couldn’t be simpler. It couldn’t be more optimal!

Specification

Product Category:	Video Wall Mount
Rank:	Premium
Material:	Steel,Plastic
Metal Sheet Thickness:	Wall Plate THK=2.5mm pickling sheet,Bracket Arm THK=2mm cold-rolled sheet
Surface Finish:	Powder Coating
Color:	Fine Texture Black
Color(Accessory):	Fine Texture Black
Dimensions:	640x120~325x544mm (25.2"x4.7"~12.8"x21.4")
Fit Screen Size:	45"-70"
VESA Compatible:	200x200,300x200,400x200,300x300,400x300,400x400,600x400
Max. Mounting Hole:	604x405
Weight Capacity(Per Screen):	70kg (154lbs)

Screen Qty:	1
Strength Tested:	4 Times Approved
Profile:	120~325mm (4.7"~12.8")
Fine Adjustment(Depth/Height):	13.5mm/13mm (0.53"/0.51")

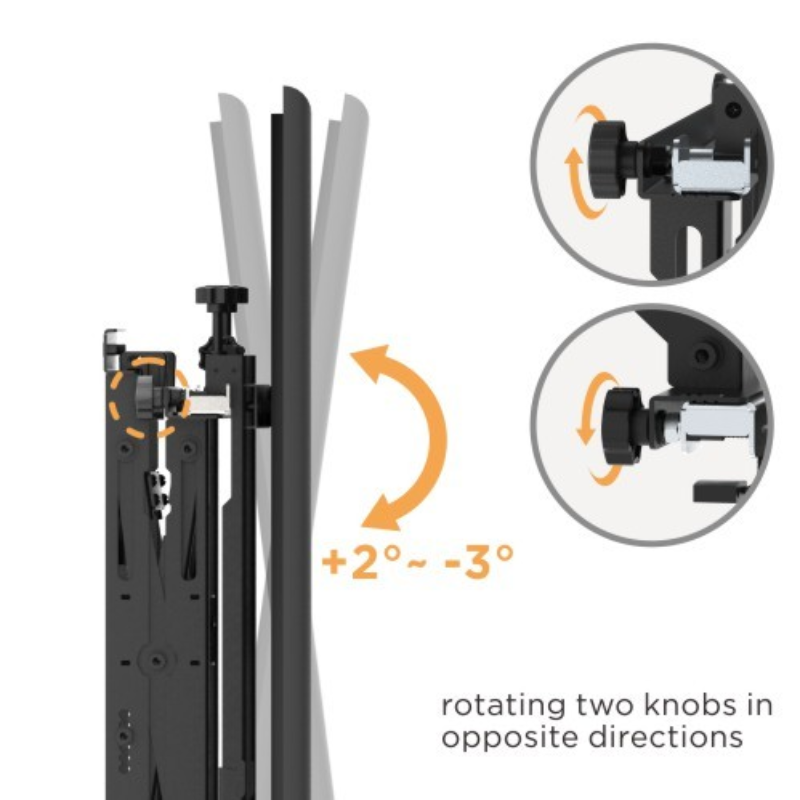

Tilt Range:	+2°~-3°
Installation:	Solid Wall
Direction Indicator:	Yes
Cable Management:	No
Anti-theft:	Yes
Bubble Level:	No
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag

Features

Innovative Quick-Release: for easy installation
Effortless Micro-Adjustments: allow seamless display alignment
Anti-theft Design: provide better protection
Portrait or Landscape Viewing: one solution fits any installation
Modular System: changes the configuration or adds to your design at any time
Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
Kickstand Design: allows space for cable management and maintenance
