Sale!

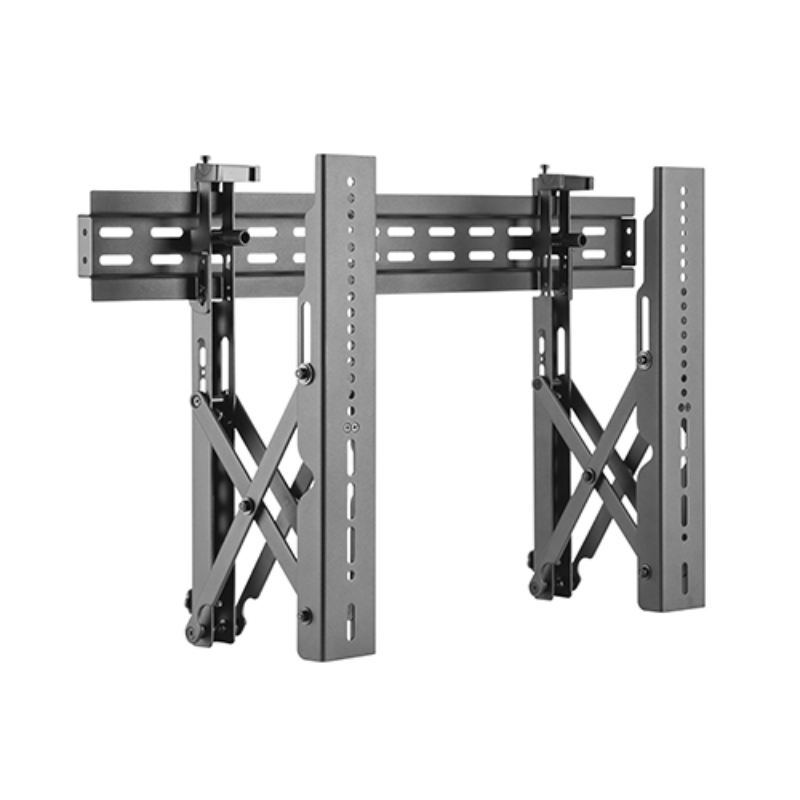

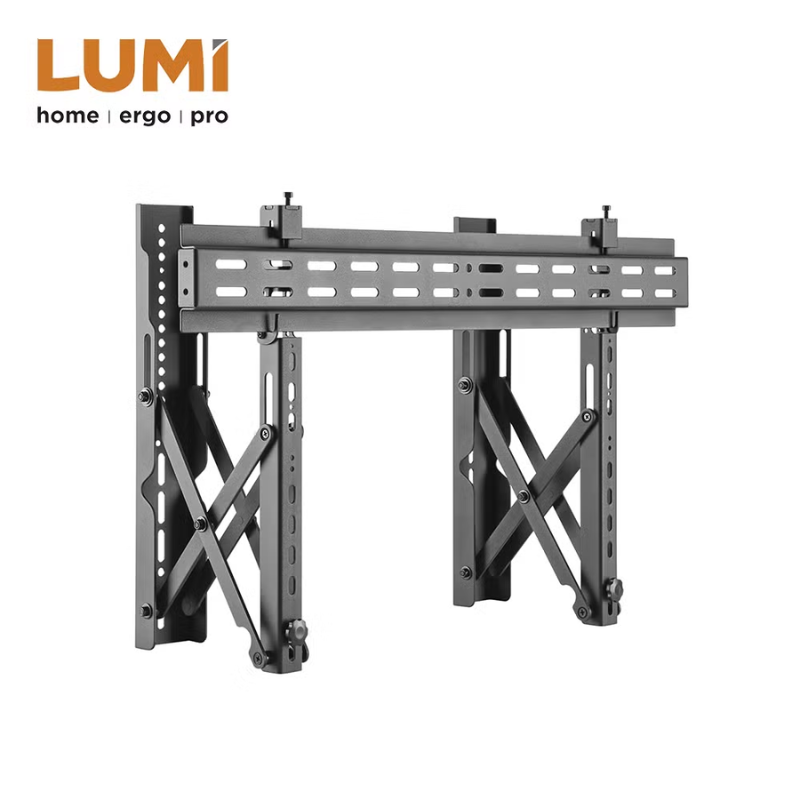

Lumi LVW02‑46T – Basic Pop‑Out Video Wall Mount
Lumi LVW02‑46T – Basic Pop‑Out Video Wall Mount - Image 2
Lumi LVW02‑46T – Basic Pop‑Out Video Wall Mount - Image 3
Lumi LVW02‑46T – Basic Pop‑Out Video Wall Mount - Image 4
,

Lumi LVW02‑46T – Basic Pop‑Out Video Wall Mount

•Professional video wall mount with versatile and universal compatibility.
•Load capacity of 45kg/99lbs and max. VESA 600×400 hole pattern.
•Extends 202mm from the wall and retracts to 60mm.
•Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level.

LVW02-46T is a professional video wall mount designed to offer the ultimate in versatility and universal compatibility with load capacity of 45kg/99lbs and max. VESA 600×400 hole pattern. This mount extends out 202mm from wall by a press with pop-out function and places 60mm to wall when retracted with quick lock mechanism. Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock). To customize multiple screen display solution, please use with connect plates.

Specification

Product Category: Video Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2.5mm cold-rolled sheet
Surface Finish: Powder Coating
Color: Fine Texture Black
Color(Accessory): Fine Texture Black

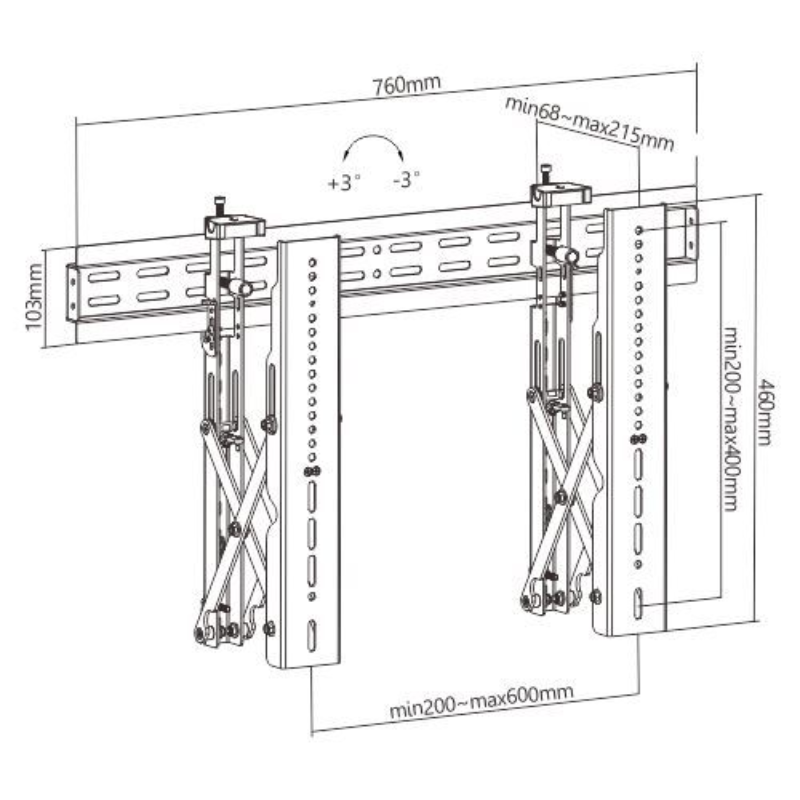

Dimensions: 760x465x215mm (29.9"x18.3"x8.5")
Fit Screen Size: 37"-70"
VESA Compatible: 200x200,400x200,300x300,400x400,600x400



Max. Mounting Hole: 600x400
Weight Capacity(Per Screen): 45kg (99lbs)
Screen Qty: 1
Strength Tested: 4 Times Approved
Profile: 68~215mm (2.7"~8.5")
Screen Level: +3°~-3°
Installation: Solid Wall
Cable Management: No
Anti-theft: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag



Features

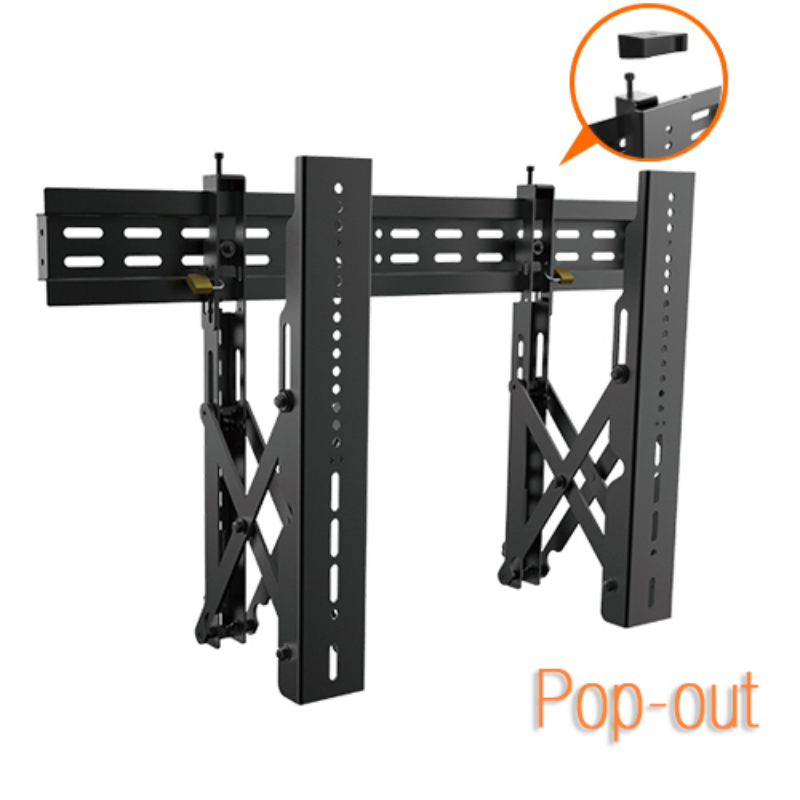

  • Pop-Out Extension: provides quick access for installation and maintenance
  • Leveling adjustments: allow TV to be perfectly positioned after hanging
  • Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
  • Lateral Shift Brackets: enable width adjustment and fast alignment
  • Connecting wall plates make it easy to create longer menu boards
  • Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs


What’s in the Box ?

  • 1 × LVW02‑46T video wall mount assembly (wall plate + bracket arms)

  • Lateral shift bracket set for precise panel side-to-side alignment

  • Hex keys and standard mounting hardware (bolts, washers)

  • Quick-lock pop-out latch components

  • User manual including installation instructions, safety, and load guidelines
