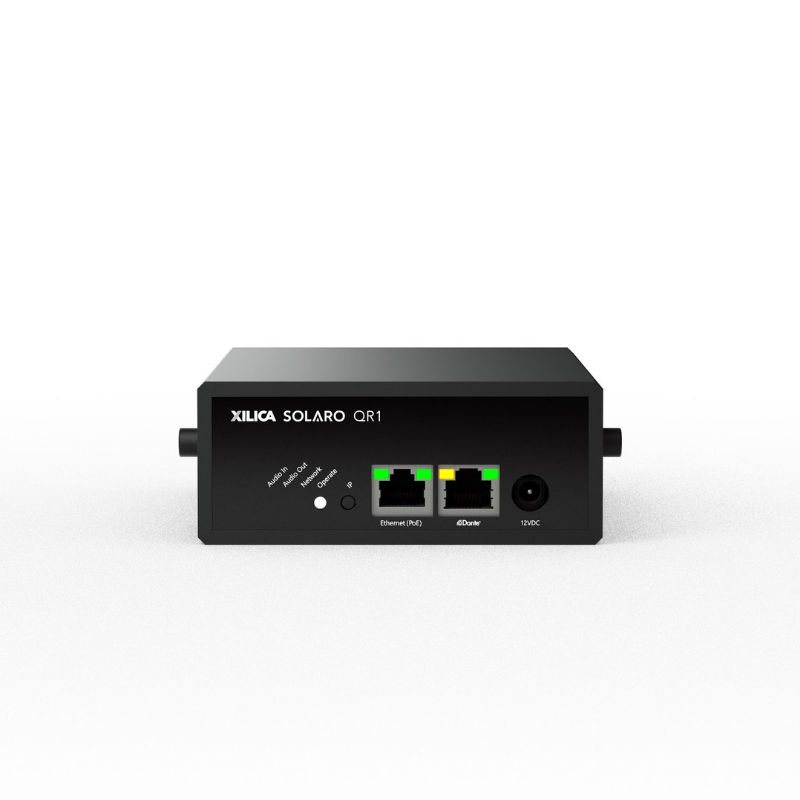

Xilica Solaro QR1 8x4 – Modular DSP + Controller with Dante, 8x4 I/O

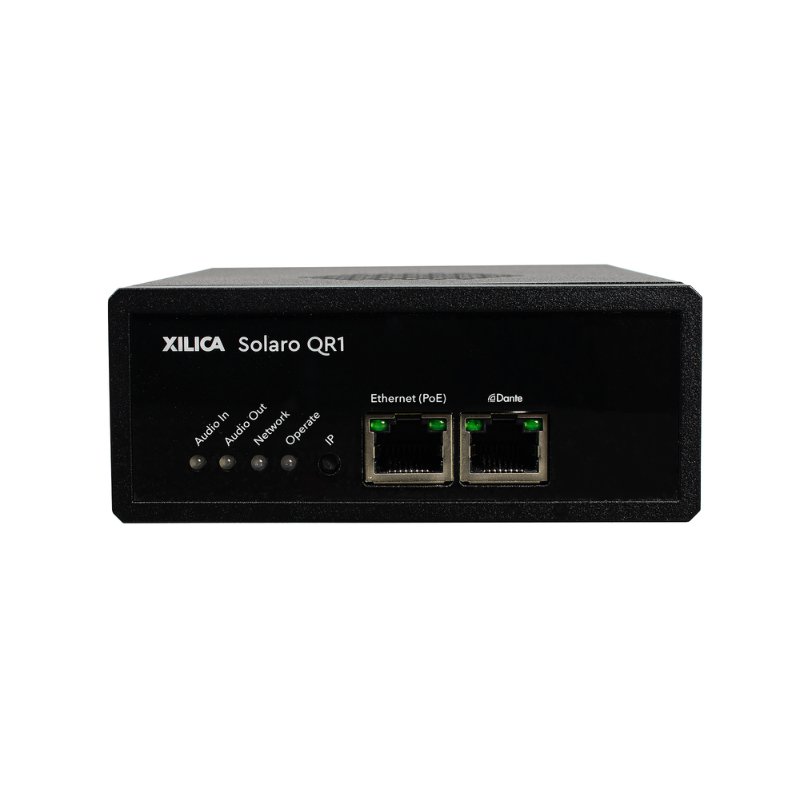

Xilica Solaro QR1 8x4 – Modular DSP + Controller with Dante, 8x4 I/O - Image 2

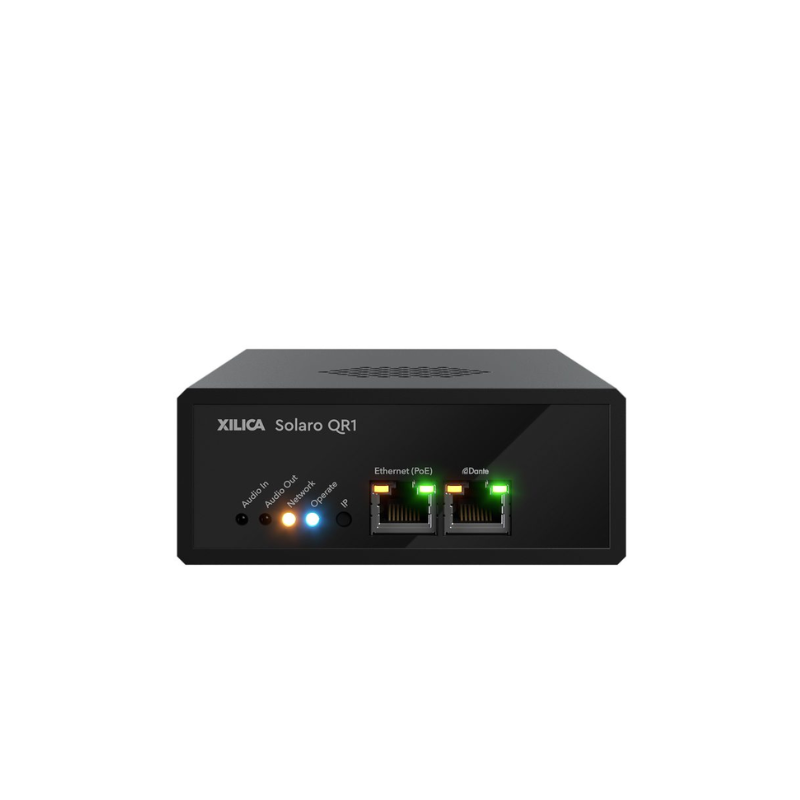

Xilica Solaro QR1 8x4 – Modular DSP + Controller with Dante, 8x4 I/O - Image 3

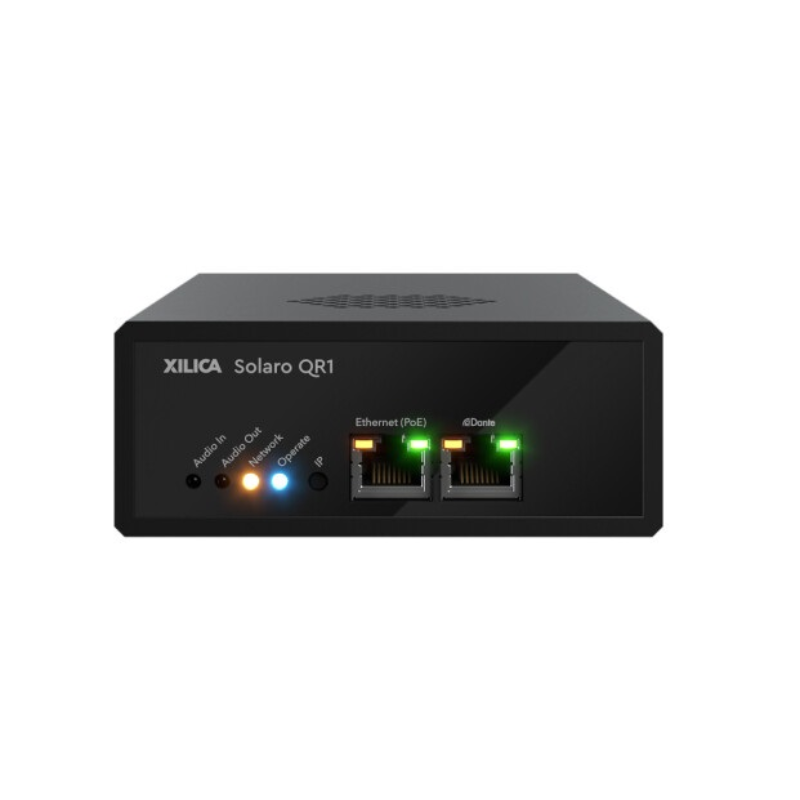

Xilica Solaro QR1 8x4 – Modular DSP + Controller with Dante, 8x4 I/O - Image 4
Xilica Solaro QR1 8x4 – Modular DSP + Controller with Dante, 8x4 I/O - Image 5

Xilica Solaro QR1 8×4 – Modular DSP + Controller with Dante, 8×4 I/O

The Xilica DSP Solaro QR1 offers advanced DSP capabilities, flexible routing, extensive input/output options, intuitive control, and a variety of DSP algorithms. It integrates with networked audio systems and enables remote monitoring and control for versatile audio installations.

However you choose to deploy processing, Solaro provides a right-size for your room.

Locate processing in-room, or centralize in an IT datacenter to cost-optimize the implementation of multiple rooms. Solaro offers footprints that handle both with ease, incorporating the industry’s smallest-form-factor processor1 and a rack-mounted enterprise core. Mount under a table, behind a display, or in a drop-ceiling with the PoE-powered Solaro QR1. Or cater to high-channel-count and distributed applications with the Solaro.

The Xilica Solaro QR1 8×4 is a powerful and compact modular DSP with integrated 8×4 analog I/O and 4×4 Dante networking. It features a Linux-based dual-core DSP engine, 8 customizable card slots, and advanced signal processing, making it ideal for scalable, professional AV installations. Its quarter-rack design allows easy mounting behind displays, under tables, or in AV cabinets, ensuring maximum flexibility for integrators.

  • Preconfigured with 8×4 analog I/O

  • 4×4 Dante (AES67 compliant) built-in

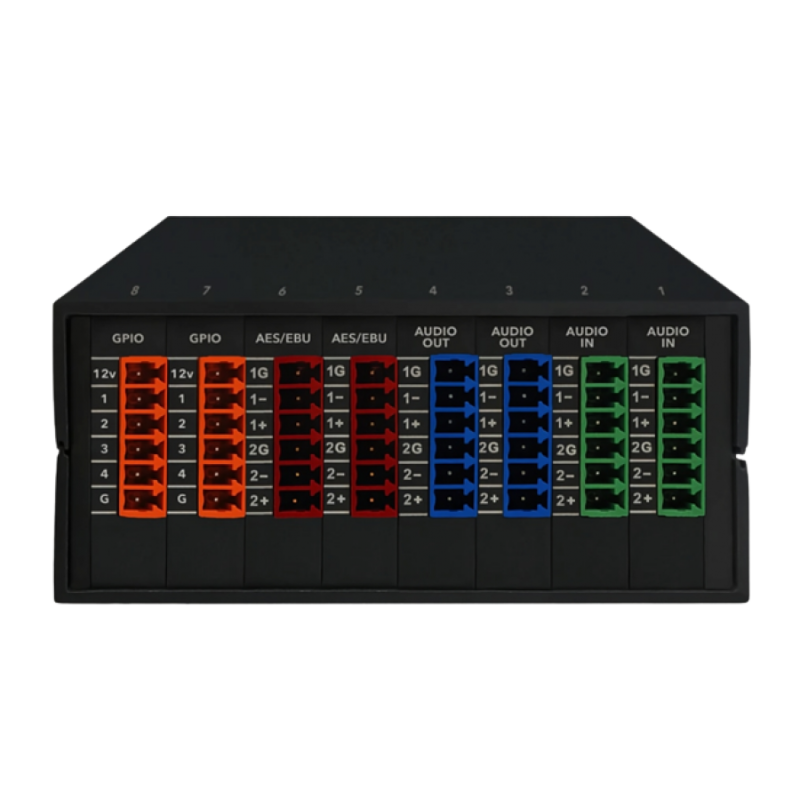

  • Eight modular card slots for full customization

  • Linux-based DSP with 40-bit floating-point processing

  • License-based HearClear AEC for crystal-clear audio

  • USB audio support (via optional card) for UC integration

  • Control via Lua scripting, API, and 3rd-party systems

  • Compact, quarter-rack design – surface or rack mountable

  • Ideal for classrooms, boardrooms, and hybrid collaboration spaces

Specifications

General Specifications

Parameter Details
Product Type Modular DSP + Controller
Model Solaro QR1 8x4
Form Factor Quarter-rack
Dimensions (H x W x D) 1.65″ x 4.25″ x 6.00″ (43 x 108 x 152 mm)
Weight Approx. 1 kg
Mounting Options Surface or rack mount (brackets included)
Power Options PoE (IEEE 802.3af) or 12V DC external power
Power Consumption Approx. 13W
Heat Dissipation Approx. 44 BTU/hr
Operating Temperature 0°C to 40°C
Humidity Range Up to 98% non-condensing
Max Operating Altitude Up to 2000 meters
Warranty 5-Year Limited Warranty

DSP & Audio Performance :



Parameter Details
DSP Platform Dual-core Linux-based
Processing Precision 40-bit floating-point
Sampling Rate 48 kHz
Converters 32-bit A/D and D/A
Dynamic Range 110 dB
THD+N 0.002%
Propagation Delay Approx. 4 ms
Crosstalk <110 dB @ 1 kHz

Networking & I/O :



Parameter Details
Network Audio Dante 4x4 bidirectional
AES67 Support Yes
Ethernet Ports 2 x RJ45 (1 Gbps)
USB Audio Support 2x2 USB (via optional card)
I/O Configuration 8 Analog Inputs / 4 Analog Outputs
Card Slots Available 8 total (preloaded with analog cards)

Advanced Features :



Parameter Details
Acoustic Echo Cancellation HearClear AEC (license-activated)
AEC Capacity 8 channels @250ms OR 16 channels @100ms
Control Engine Built-in Lua scripting
API Integration Yes (for 3rd-party control systems)
Compatible Devices XTouch panels, Lucia, iOS/Android apps, Crestron, AMX

What's in The Box?

  • Xilica Solaro QR1 8x4 DSP Unit

  • 12V DC External Power Adapter

  • Surface Mounting Brackets (2 pcs)

  • USB Drive with Configuration Software & User Manuals

  • Quick Start Guide (Printed)

Additional Resources

Data-Sheet :

https://cdn.xilica.com/datasheet/X21_Spec_SolaroFR1_XBrand.pdf
