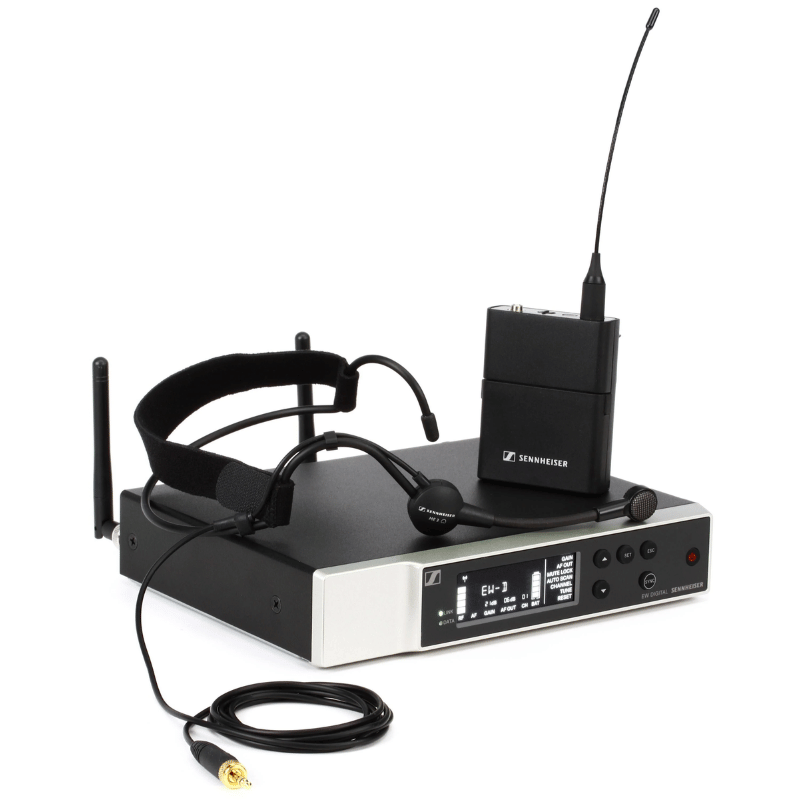

Sennheiser EW‑D ME3 Wireless Headworn Microphone System

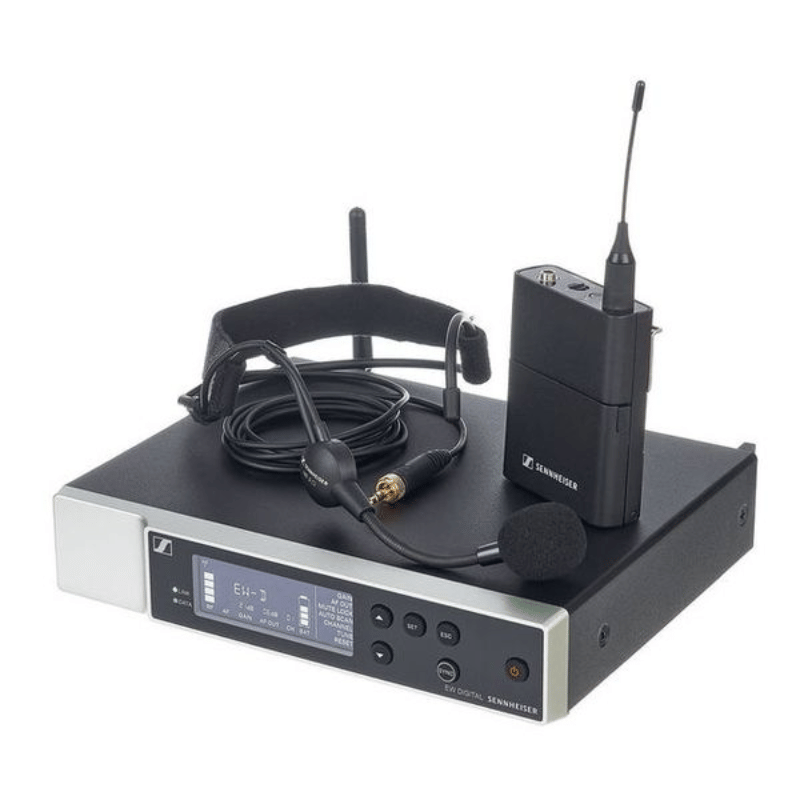

Sennheiser EW‑D ME3 Wireless Headworn Microphone System - Image 2

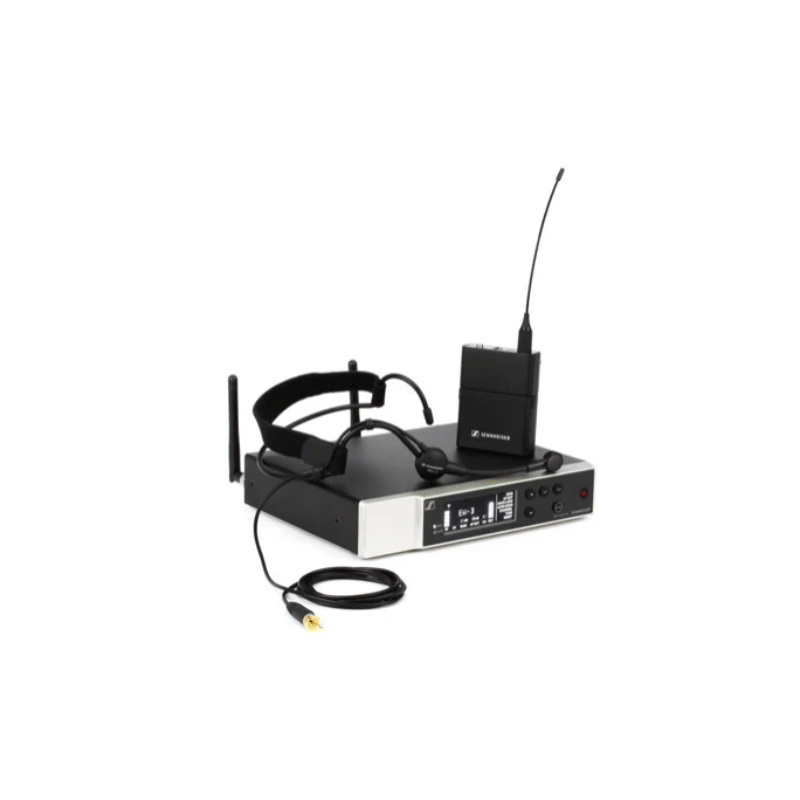

Sennheiser EW‑D ME3 Wireless Headworn Microphone System - Image 3
Sennheiser EW‑D ME3 Wireless Headworn Microphone System - Image 4

Sennheiser EW‑D ME3 Wireless Headworn Microphone System

•All-in-one digital wireless headworn set
•Sennheiser ME 3 cardioid headset microphone
•Smart Assist App for easy setup
•Bluetooth Low Energy connectivity
•Auto scan for reliable connections
•134 dB audio input dynamic range,56 MHz tuning bandwidth
•Up to 90 channels
•2,240 selectable frequencies

Overview of Sennheiser EW‑D ME3 :

The Sennheiser EW-D ME3 is a next-generation digital wireless headworn microphone system, designed for fitness instructors, speakers, presenters, and performers who demand freedom of movement with crystal-clear vocal transmission.

It features the robust ME 3 cardioid headset mic, offering excellent noise rejection and comfort for active use. The system leverages Sennheiser’s Evolution Wireless Digital (EW-D) platform, delivering 24-bit digital audio, low latency, reliable UHF transmission, and smart Bluetooth-based control through the Smart Assist App.

With easy auto-frequency setup, scalable connectivity, and professional-grade sound quality, the EW-D ME3 is perfect for both stage and classroom applications.

  • High-performance ME 3 cardioid headset – stable, sweat-resistant, ideal for active use

  • Crystal-clear 24-bit digital transmission with ultra-low 1.9 ms latency

  • Smart Assist App for mobile configuration over Bluetooth

  • Up to 2,240 selectable frequencies within wide UHF range

  • Up to 8 hours runtime with rechargeable battery (BA 70)

  • Expandable and scalable for multi-channel environments

Specifications

Microphone (ME 3 Headset) :



Feature Details
Microphone Type Condenser
Pick-up Pattern Cardioid
Frequency Response 50 Hz – 18 kHz
Max SPL 150 dB SPL
Connector Type 3.5 mm locking TRS mini-jack
Weight Approx. 28 g
Application Speech, fitness, presentations, stage performance

Bodypack Transmitter (EW-D SK) :



Feature Details
Power Supply 2 × AA batteries (1.5 V) or BA 70 battery pack
Operating Time Up to 8 hours (BA 70), ~6–8 hrs with AA
Frequency Range Varies by region (e.g., R1-9: 520–576 MHz)
Input Voltage Range 2.0 – 4.35 V
Dimensions Approx. 63 × 80 × 20 mm
Weight Approx. 120 g (incl. battery)
Transmission Power 10 mW (audio link), BLE: max. 10 mW EIRP
Connectivity 3.5 mm TRS mic input

Digital Receiver (EW-D EM) :



Feature Details
Transmission Type Digital UHF (24-bit audio)
Frequency Response 20 Hz – 20 kHz (–3 dB @ 3 dBfs)
Latency 1.9 ms
Total Harmonic Distortion (THD) ≤ –60 dB @ 1 kHz
Signal-to-Noise Ratio ≥ 134 dB
Dimensions 212 × 44 × 189 mm
Weight Approx. 1000 g
Outputs Balanced XLR, unbalanced ¼” (6.3 mm) jack
Power Supply 12 V DC / ≤ 300 mA
Antennas Detachable BNC-type antennas
Control App Sennheiser Smart Assist (via BLE)

System Wireless Specs :



Feature Details
Frequency Ranges 470.2 – 526 MHz, 520 – 576 MHz, etc. (region-specific)
Operating Range Up to 100 meters (line-of-sight)
Channel Bandwidth 56 MHz
Switching Bandwidth Up to 88 MHz depending on variant

Environmental & Build :



Feature Details
Operating Temperature –10 °C to +55 °C
Relative Humidity 5% to 95% (non-condensing)
System Latency 1.9 ms
Housing Rugged metal receiver, plastic beltpack

What's in The Box?

  • 1 × EW-D SK bodypack transmitter

  • 1 × EW-D EM rack-mount receiver

  • 1 × ME 3 headset microphone

  • 2 × Detachable antennas

  • 1 × Power supply with adapters

  • 1 × Rack mounting kit

  • 2 × AA batteries

  • 1 × Quick guide/documentation

Additional Resources

Quick-Guide :

https://www.sennheiser.com/globalassets/digizuite/40937-en-ew-d_quick_guide_03_2024.pdf
