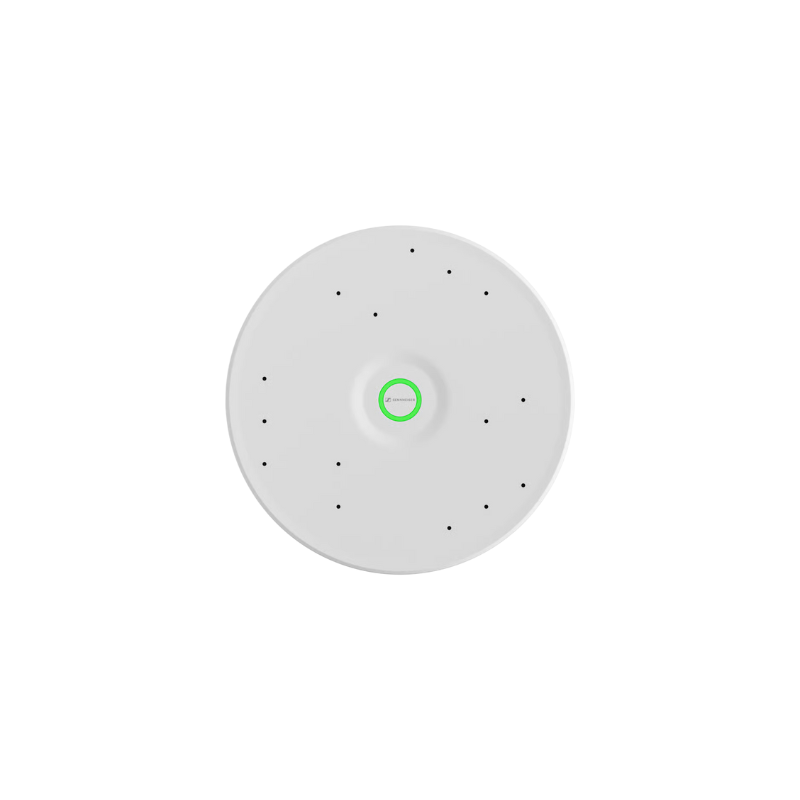

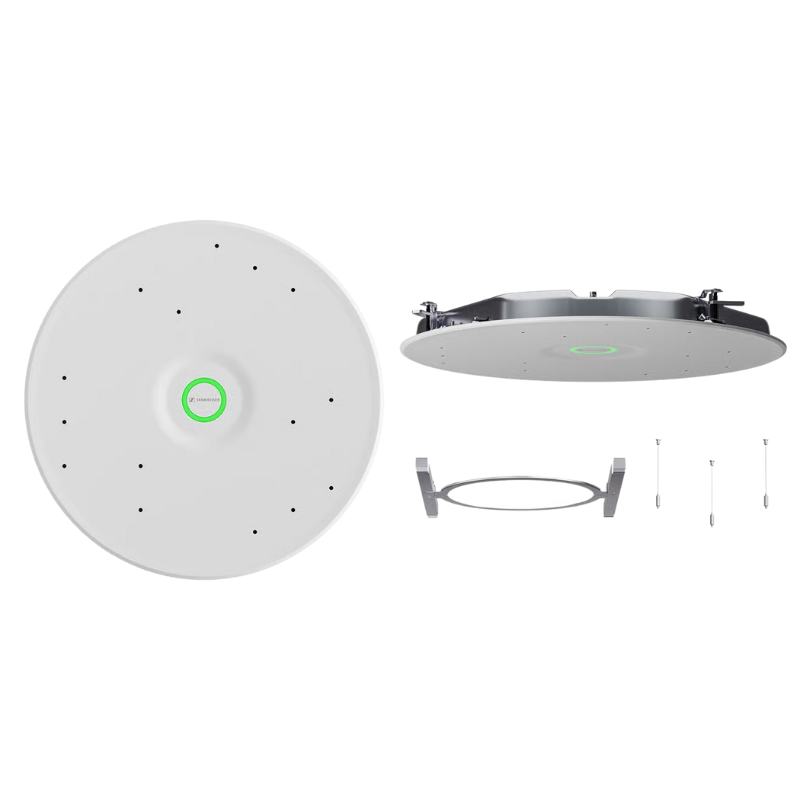

Sennheiser Ceiling Mic TCCM (TeamConnect Ceiling 2)

•Coverage of up to 40 m² ( 430 square Feet)
•Patented Automatic Dynamic Beamforming
•28 electret condenser capsules, made in Germany
•Dante or analog output
•Power-over-Ethernet (PoE)
•Certified for MS Teams, Zoom, DingTalk and Tencent
•Exclusion and Priority Zones
•Camera control via Talker Position Data
•Cable-free tables and flexible furniture arrangement

The Sennheiser Ceiling Mic TCCM (TeamConnect Ceiling 2) is a state-of-the-art ceiling-mounted microphone designed for medium to large conference rooms, classrooms, and boardrooms. Equipped with 28 high-performance microphone capsules, it uses dynamic beamforming to automatically locate and focus on the active speaker’s voice—delivering crystal-clear audio across the room.

The mic fits seamlessly into a standard 600 × 600 mm ceiling tile and supports multiple mounting styles. With Power over Ethernet (PoE), analog and Dante digital outputs, and remote configuration via Sennheiser Control Cockpit, it offers unmatched flexibility and integration with enterprise AV systems.

Certified for Microsoft Teams, Zoom, DingTalk, and Tencent, the TCCM ensures reliable performance for hybrid meetings and remote collaborations.

Specifications

Features :



Feature Details
Model Name TeamConnect Ceiling 2 (TCCM)
Microphone Type Ceiling array with 28 condenser capsules
Beamforming Dynamic beamforming with TruVoicelift
Coverage Area Up to 80 m²
Frequency Response 160 Hz – 18 kHz
Max SPL 104 dB SPL
Dynamic Range 93 dB(A)
SNR / Noise Floor 83 dB(A) / 11 dB(A)
Latency Approx. 4 ms
Connectivity Dante (2 × RJ-45), Analog (3-pin Phoenix)
Power PoE (IEEE 802.3af Class 3)
Control & Management Sennheiser Control Cockpit, open API, web GUI
Certifications UL 62368, UL 2043, Microsoft Teams, Zoom, DingTalk, Tencent

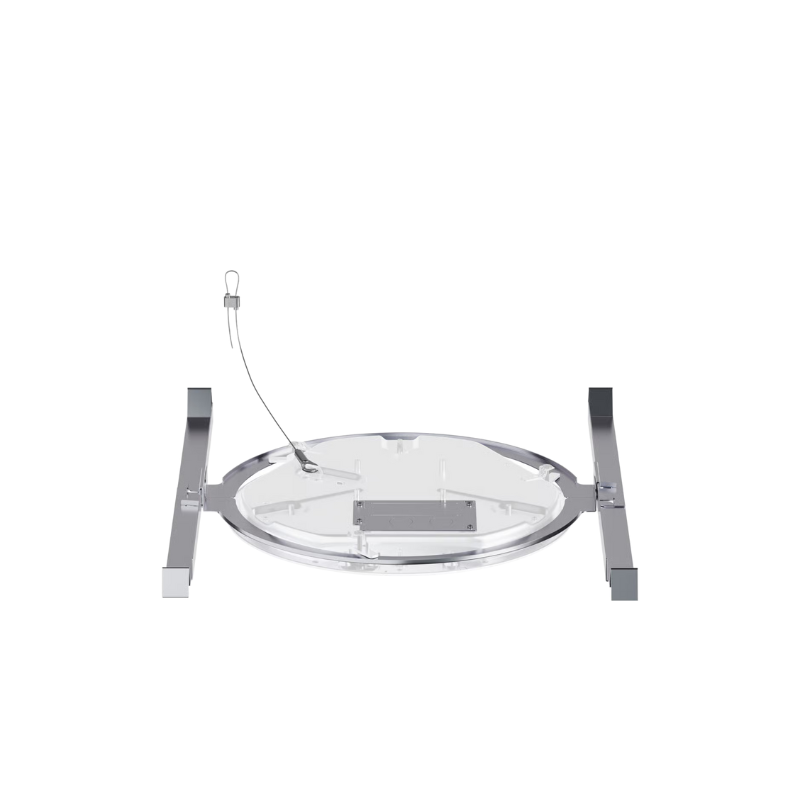

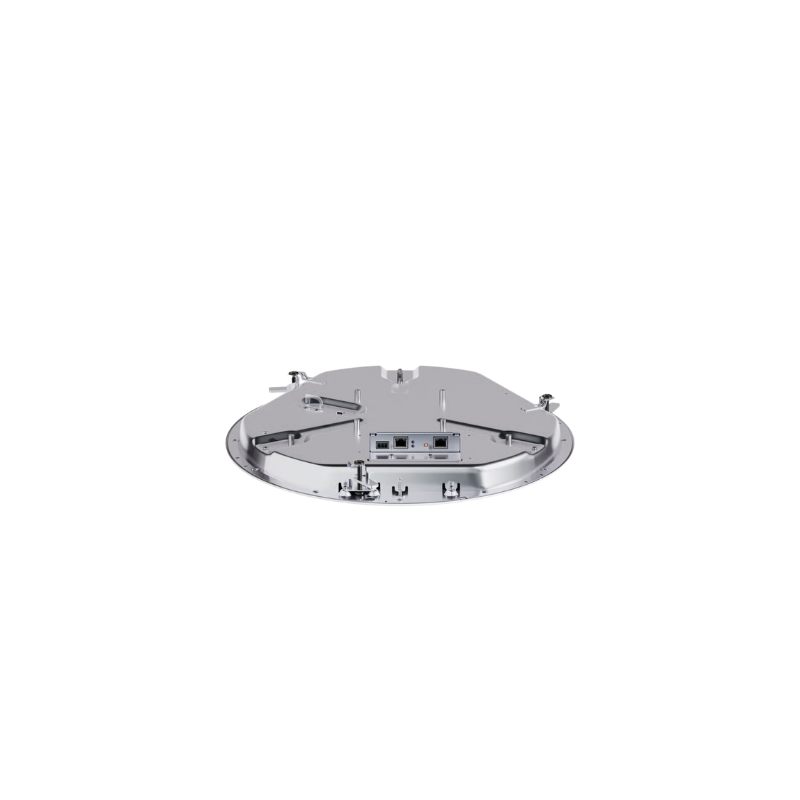

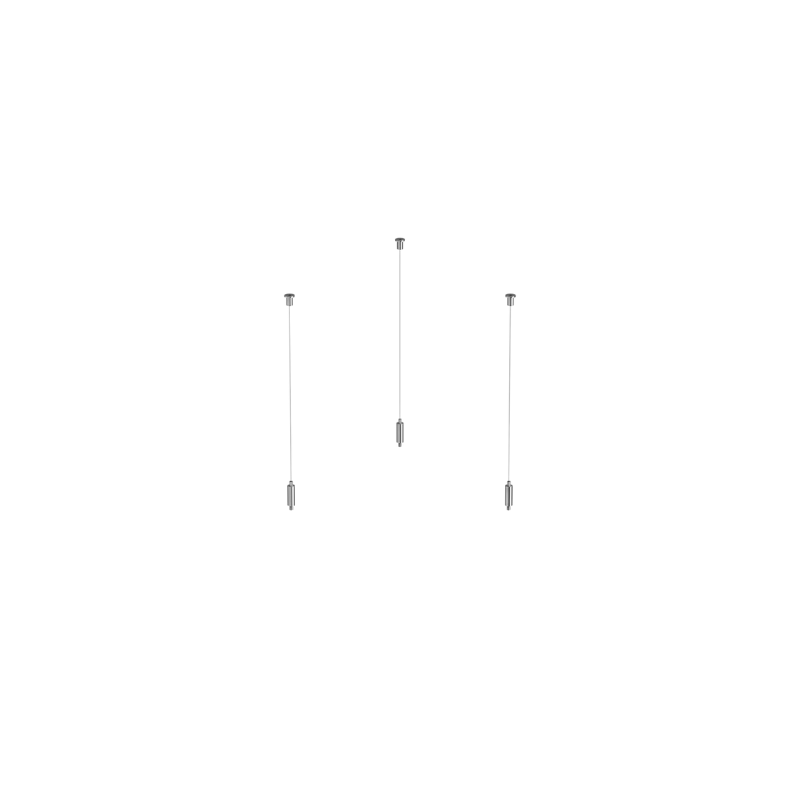

Mounting Flush-mount, surface-mount, suspension, VESA compatible
Operating Temperature 0 °C to +40 °C
Humidity Tolerance Up to 95% (non-condensing)
Dimensions (L × W × H) 590 × 590 × 43 mm
Weight 5.67 kg
Finish Matte Black

Audio Specifications :



Feature Details
Microphone Type Ceiling array with 28 condenser capsules
Beamforming Dynamic beamforming with TruVoicelift
Frequency Response 160 Hz – 18 kHz
Maximum SPL 104 dB SPL
Dynamic Range 93 dB(A)
Signal-to-Noise Ratio 83 dB(A)
Noise Floor 11 dB(A)
Latency Approx. 4 ms
Coverage Area Up to 80 m² (861 sq. ft)

Connectivity & Power :



Feature Details
Network Audio Dante (2 × RJ-45)
Analog Output Balanced Line Out via 3-pin Phoenix connector
Power Supply PoE (IEEE 802.3af Class 3)

Control & Configuration :



Feature Details
Remote Management Sennheiser Control Cockpit
Interface Options Web GUI, Open API
Integration Compatible with 3rd-party control systems
