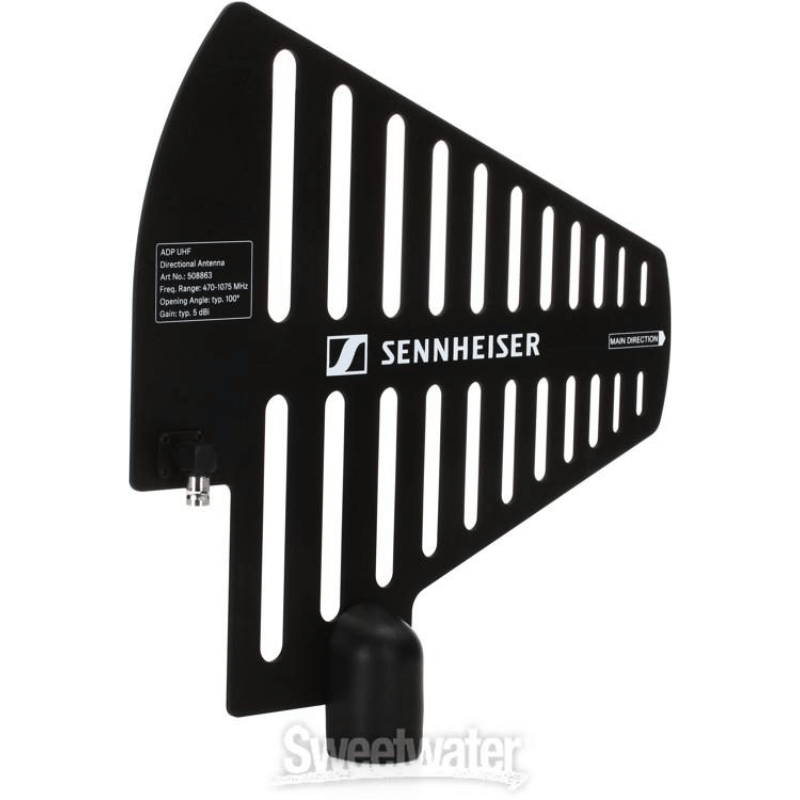

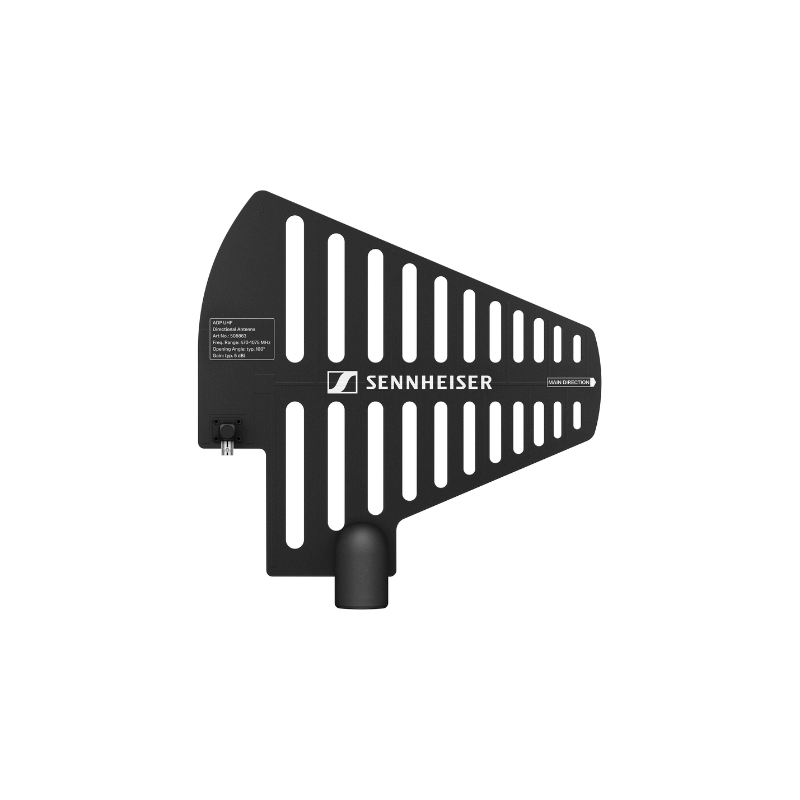

Sennheiser ADP UHF External Antenna for Wireless Microphone Systems

Passive external directional antenna.

Overview of  Sennheiser ADP UHF External Antenna  :

The ADP UHF is a passive, directional, external paddle antenna designed to enhance wireless microphone system performance. With its wide UHF coverage and integrated mounting threads, it’s ideal for booth setups, stage racks, and remote antenna installations.

  • Broad 470–1075 MHz coverage for UHF wireless systems

  • 5 dBi gain in a directional paddle design

  • Robust build with angled paddle and strong metal body

  • Optimized to work with passive or active antenna splitters/boosters

  • Easy installation on mic stands with dual thread mounts



Specifications

Antenna Characteristics :



Feature Details
Frequency Range 470 – 1075 MHz
Gain Typically 5 dBi
Apex Angle (–3 dB) Approx. 100°
Front-to-Back Ratio Greater than 14 dB
Polar Pattern Directional paddle-style

Connectivity & Mounting :



Feature Details
Connector BNC female (passive; no DC path)
Mounting Threads 3/8″ and 5/8″ for microphone antenna stands

Physical & Environmental Specs :



Feature Details
Dimensions 319 × 310 mm
Weight Approx. 1.1 kg
Operating Temperature −10 °C to +55 °C
Storage Temperature −20 °C to +85 °C
Humidity Up to 95% non‑condensing
Impedance 50 Ω

What's in The Box?

  • 1 × ADP UHF passive directional antenna

  • User documentation/manual
