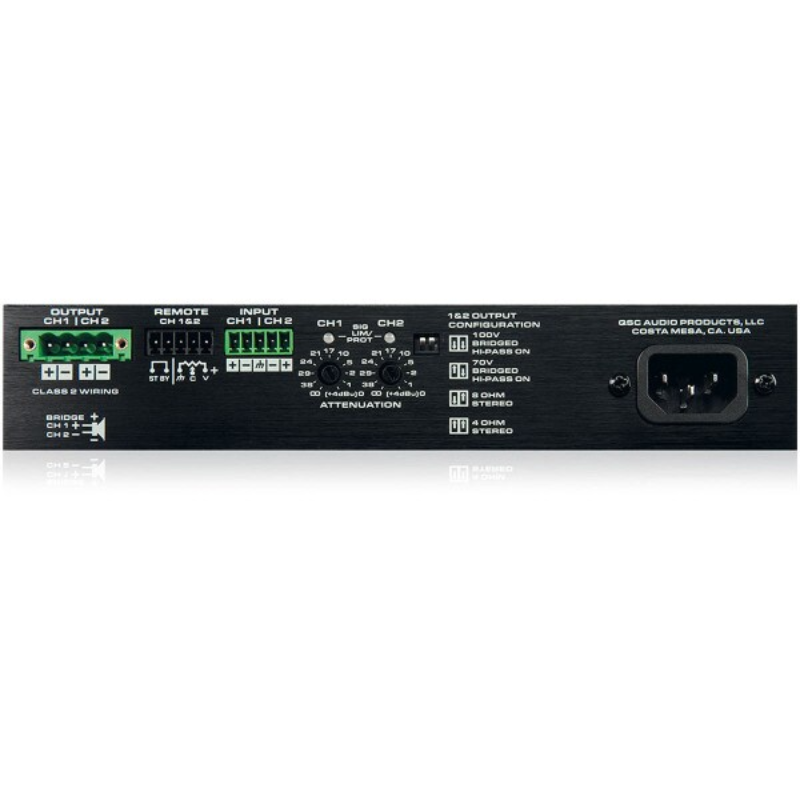

QSC SPA2-60 – 2-Channel Power Amplifier, 60W per Channel (Low-Z)
QSC SPA2-60 – 2-Channel Power Amplifier, 60W per Channel (Low-Z) - Image 2
QSC SPA2-60 – 2-Channel Power Amplifier, 60W per Channel (Low-Z) - Image 3
QSC SPA2-60 – 2-Channel Power Amplifier, 60W per Channel (Low-Z) - Image 4
,

QSC SPA2-60 – 2-Channel Power Amplifier, 60W per Channel (Low-Z)

1/2 RU 2 Channel ENERGY STAR amplifier / Stereo operation 60 watts into 8 Ω & 4 Ω, Bridged operation 200 watts into 8Ω & 4Ω, and 250 watts into 70v and 100v / 100-240 VAC Operation.

The QSC SPA2-60 is a space-efficient and energy-conscious 2-channel power amplifier that delivers 60 watts per channel at 4 or 8 ohms, making it perfect for low-impedance commercial audio systems. It’s ideal for conference rooms, classrooms, hospitality setups, and small-scale distributed audio environments.

Designed with Class-D amplification technology, the SPA2-60 ensures efficient operation with minimal heat output, allowing for fanless, silent performance. Its half-rack chassis design fits easily in confined spaces and can be rack-mounted or wall-mounted using optional accessories.

With the option to operate in bridge mode, the SPA2-60 can also provide up to 120 watts on a single channel, offering flexibility for higher output needs. Auto-standby functionality helps reduce power consumption, making it an eco-friendly choice for always-on installations.

Built with QSC’s industry-leading quality, the SPA2-60 is a reliable solution for installations where compact size, quiet operation, and solid performance are required.

Specifications

Specification Details
Channels 2
Power Output per Channel 60 W RMS into 4 Ω or 8 Ω
Bridged Output 200 W into 4 Ω/8 Ω; 250 W into 70 V or 100 V
Amplifier Class Class‑D
Frequency Response 20 Hz – 20 kHz ±0.1 dB
Signal‑to‑Noise Ratio
Input Sensitivity 1.23 V RMS (+4 dBu)
Input Impedance
Maximum Input Level +24 dBu / 12.3 V
High‑pass Filter Switchable 80 Hz (active when bridged in 70 V/100 V mode)
Cooling Convection-cooled (no fan)
Rack Size 1 U, half‑rack width (1.7″ × 8.7″ × 9.5″)
Weight ~1.6 kg net (approx. 3.5 lb)
Power Consumption ~5 W idle; <1 W in standby
Auto‑Ramp Standby Engages after ~25–28 minutes inactivity
Mounting Options Rack, wall, under-table (with included brackets)
Approvals ENERGY STAR, CE, UL, RoHS, FCC Class B

Features

  • Efficient Class‑D design, ENERGY STAR certified for low power use

  • Auto‑Ramp circuitry enables silent, fast power‑up and power‑down after inactivity

  • Bridgeable output modes: supports stereo or mono bridge with up to 250 W in high‑voltage mode

  • Fanless convection cooling ensures quiet operation ideal for background music zones

  • Compact half‑rack 1 U enclosure, with mounting hardware for flexible installation

  • Built-in protection, including thermal, overload, and short‑circuit safeguard

  • Switchable 80 Hz high‑pass filter during bridge high‑voltage mode

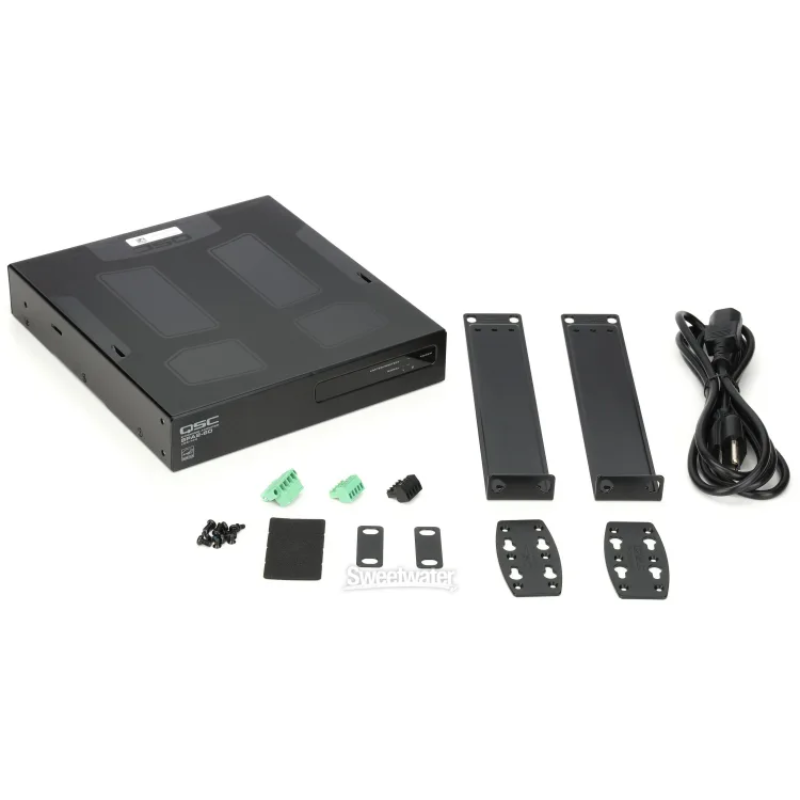

What’s in the Box ?

  • QSC SPA2‑60 amplifier unit

  • AC power cord

  • Connector kit (e.g. Euroblock inputs/outputs, remote)

  • Rack-mount ears and installation brackets

  • Quick-start guide, safety documentation, and warranty card

Additional Resources

Spec-Sheet :

Download
