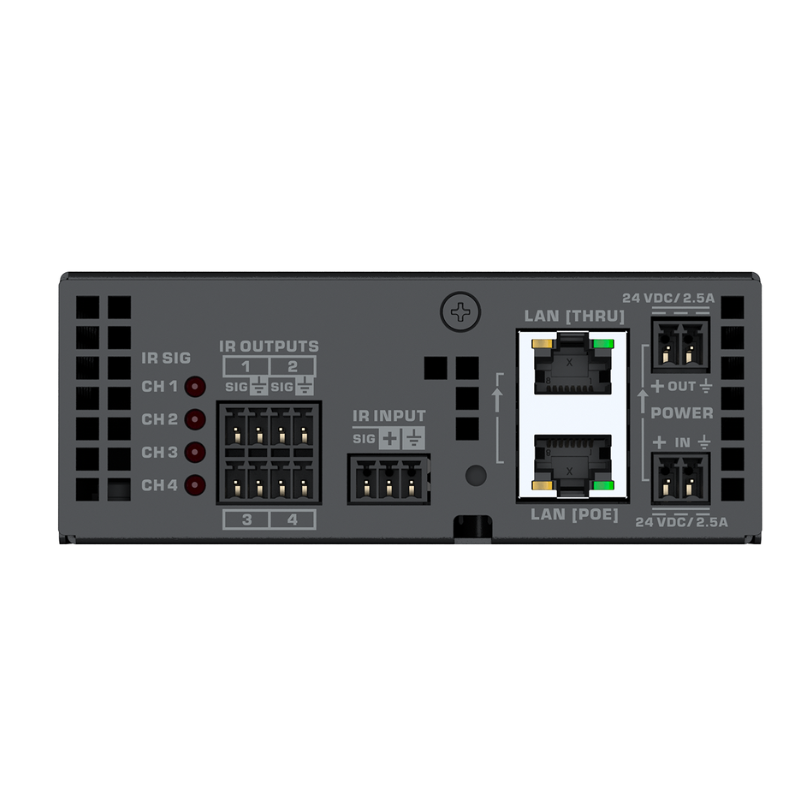

QSC QIO-IR1x4 – Network IR I/O Expander

Name: QSC QIO-IR1x4 – Network IR I/O Expander
SKU: 5022
Availability: InStock

Q-SYS peripheral providing control expansion with 1 IR receiver, 4 IR emitters. Up to 4 devices daisy-chainable. 1U-1/4W, powered over Ethernet or +24 VDC. Surface mountable, rack kit sold separately.

The QSC QIO-IR1x4 is a compact and intelligent IR (infrared) I/O expander designed for use within the Q-SYS Ecosystem, enabling seamless integration and control of IR-enabled third-party devices such as TVs, projectors, media players, and more. It features 1 IR input (receiver) and 4 IR outputs (emitters), allowing it to receive IR signals and transmit commands over the network through Q-SYS control scripts or user interfaces.

Designed for ease of deployment, the QIO-IR1x4 communicates over standard Ethernet and supports Power-over-Ethernet (PoE), eliminating the need for additional power adapters. With a DIN-rail or surface-mountable form factor, it fits neatly in AV racks, control closets, or behind displays.

This IR expander simplifies centralized or distributed AV control across various applications like meeting rooms, classrooms, digital signage systems, and hospitality environments.

Specifications

Specifications	QIO-IR1x4
IR/Serial Output Ports
IR output or RS-232 (TX only)	Four (4) configurable ports
IR	Configurable carrier frequency and drive strength
RS232	Configurable baud rate
LED Indicators	IR transmit activity
IR Input Ports
IR Input Ports	One (1) port, bandwidth TBD
Other Connectors
External Power Supply	24 VDC nominal, 2.5 A on Euro connector with daisy-chain option (QIO-PSU sold separately)
LAN (PoE)	Gigabit LAN connection for Q-LAN, PoE
PoE Specification	IEEE 802.3af Type 1
LAN (Thru)	Ethernet daisy-chaining
General
Dimensions	5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm)
Weight	1.18 lb (0.54 kg)
Mounting Options	Surface- and wall-mountable (hardware included); Rack-mountable 1RU, quarter-rack width (QIO-RMK rack kit sold separately)
Environmental
Operating Temperature	0°C to +50°C
Humidity	0%–85% through 30°C non-condensing
Storage Temperature	-20°C to +70°C
Compliance	FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS (2011/65/EU), WEEE (2012/19/EU), China RoHS (GB/T26572), EAC, UL, C-UL, NOM-019

Features & Benefits

The first native network IR connectivity solution for Q-SYS
One (1) IR receiver input and four (4) IR emitter outputs
Power over Ethernet (PoE) capable
Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
Surface- or rack-mountable (1RU, quarter width)
Includes surface mounting hardware

The first native IR connectivity solution for Q-SYS
The QIO-IR1x4 allows you to provide your Q-SYS system with greater flexibility to deploy IR control connectivity where it’s most convenient. The QIO-IR1x4 features one (1) IR receiver input and four (4) IR emitter outputs, enabling Q-SYS control for a broad range of professional/consumer devices including video displays, media players and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.
Expanded I/O customization
QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable)).

Graphic showcasing daisy-chained QIO Series devices over an office space

Simplicity & scalability
Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).
Designed for Q-SYS
The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future. Learn more about Q-SYS.

Diagram and line-drawing of a Q-SYS integrated a/v classroom with Q-SYS peripherals and hardware

What’s in the Box ?

QSC QIO-IR1x4 Network IR I/O Expander
Surface/wall-mount bracket and accessory hardware
Quick Start Guide & installation documentation
Warranty and compliance materials
(Rack kit QIO‑RMK, power supply QIO‑PSU sold separately)
