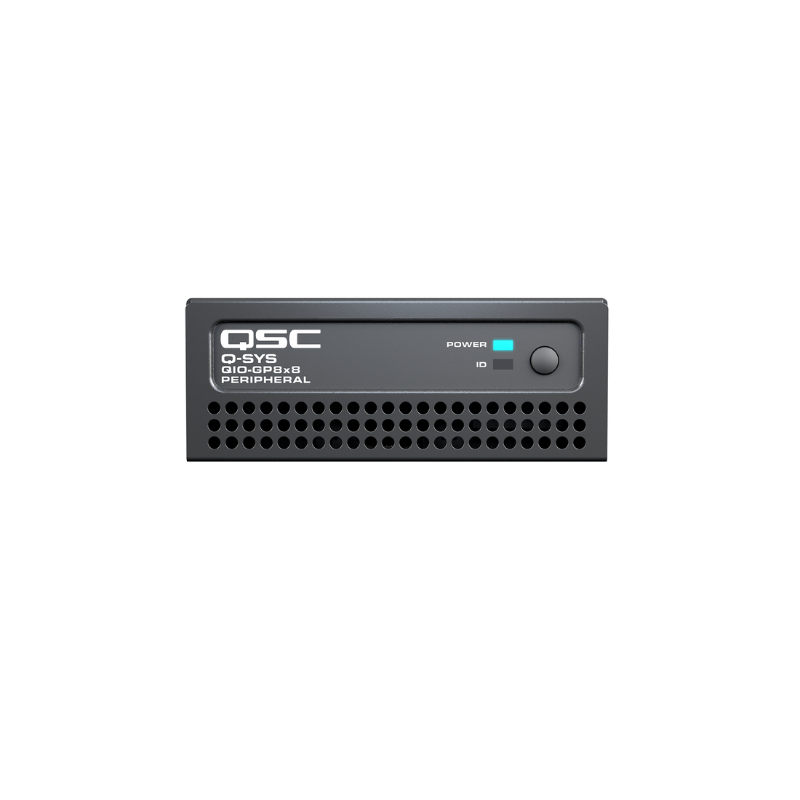

QSC QIO-GP8x8 – 8x8 GPIO Network I/O Expander

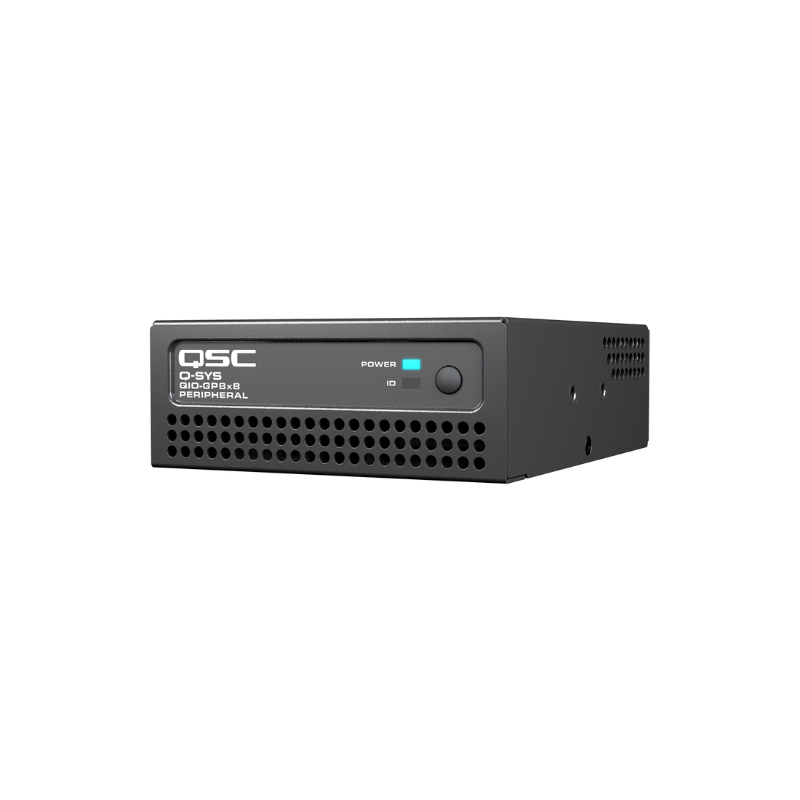

QSC QIO-GP8x8 – 8x8 GPIO Network I/O Expander - Image 2
QSC QIO-GP8x8 – 8x8 GPIO Network I/O Expander - Image 3
QSC QIO-GP8x8 – 8x8 GPIO Network I/O Expander - Image 4
,

QSC QIO-GP8x8 – 8×8 GPIO Network I/O Expander

•Eight (8) logic inputs and eight (8) logic outputs
•Daisy-chain up to four QIO expanders on a single network
Power over Ethernet (PoE) capable
•Native network GPIO connectivity solution for Q-SYS

The QSC QIO-GP8x8 is a network I/O expander offering 8 general-purpose inputs and 8 general-purpose outputs, designed to extend the control capabilities of Q-SYS systems. Built on a native Q-SYS Platform architecture, it allows for easy and flexible GPIO expansion over standard network infrastructure without the need for traditional analog wiring back to the Q-SYS Core.

Ideal for controlling and monitoring third-party devices such as contact closures, switch panels, relays, LED indicators, and sensors, the QIO-GP8x8 enables scalable integration in applications like room combining, automation systems, and building management systems.

With Power-over-Ethernet (PoE) support and DIN-rail mountability, this compact unit simplifies installation and networked control design, helping integrators deploy decentralized control logic more efficiently throughout a facility.

Specifications

Feature Specification
Brand QSC
Model QIO-GP8x8
Device Type Network GPIO Expander
Inputs (GPIO In) 8x General Purpose Inputs
Outputs (GPIO Out) 8x General Purpose Outputs (open collector type)
Connectivity 1x RJ45 Ethernet Port (Q-LAN)
PoE Support Yes (802.3af Class 1)
Mounting Options DIN-rail mountable, surface mount
Control Integration Native Q-SYS (via Q-SYS Designer Software)
Use Cases Room control, relay triggering, device status monitoring
Status Indicators Front-panel LED indicators for each I/O channel
Network Protocols Q-LAN
Operating Temperature 0°C to 50°C (32°F to 122°F)
Power Requirements PoE or external 12VDC (if PoE not available)
Compliance CE, FCC, RoHS

Features

  • Native network GPIO connectivity solution for Q-SYS
  • Eight (8) logic inputs and eight (8) logic outputs
  • Power over Ethernet (PoE) capable
  • Daisy-chain up to four QIO expanders on a single network run (with local daisy-chained DC power)
  • Simple drag-and-drop integration and comprehensive management via Q-SYS Designer Software and Q-SYS Reflect
  • Surface- or rack-mountable (1RU, quarter width)
  • Includes surface mounting hardware
  • Network GPIO connectivity where you need it
    The QIO-GP8x8 allows you to provide your Q-SYS system with greater flexibility to deploy GPIO control connectivity where it’s most convenient. The QIO-GP8x8 provides eight (8) logic inputs and eight (8) logic outputs to provide further GPIO expansion to systems needing to interface with occupancy sensors, push buttons, LED indicators, buzzers and more. Additionally, each of the QIO Series I/O expanders features a compact form factor that can be rack- or surface-mounted.
  • Expanded I/O customization
    QIO Series is intended to present a simpler way to add network I/O connectivity to Q-SYS systems, decoupling the physical location of the I/O from processing hardware to support distributed or centralized processing architectures. Additionally, QIO Series lets you customize your I/O configuration, and compliments the strengths of newer Q-SYS Core models that were designed with fewer onboard I/O options (Core Nano, Core 8 Flex, or NV-32-H (Core Capable)).
Graphic showcasing daisy-chained QIO Series devices over an office space
  • Simplicity & scalability
    Daisy-chain up to four of the QIO Series devices on a single network run (with local daisy-chained DC power) to consume fewer network ports, avoid rack clutter, and allow for quicker future expansion without pulling additional network cables. Alternatively, QIO Series are also PoE-capable, providing simple single cable connectivity (when devices aren’t daisy-chained).
  • Designed for Q-SYS
    The QIO Series deliver native network I/O customization to Q-SYS, a cloud-manageable audio, video and control platform, built to deliver scalable, flexible AV solutions into the future.  Learn more about Q-SYS.

Diagram and line-drawing of a Q-SYS integrated a/v classroom with Q-SYS peripherals and hardware

What’s in the Box ?

  • QSC QIO‑GP8x8 I/O Expander

  • Surface-mount hardware (brackets and screws)

  • Quick Start Guide & installation documentation

  • Warranty and compliance materials

Additional Resources

User-Manual :

Download
