QSC CP12 – 1000W Active Loudspeaker, 12-Inch, Compact and Powerful

Name: QSC CP12 – 1000W Active Loudspeaker, 12-Inch, Compact and Powerful
SKU: 4966
Availability: InStock

1000W active portable loudspeaker system; 12-inch woofer; 1.0-inch compression driver; 75 degree conical waveguide; pole socket; selectable user contours.

For use as main or stage monitor

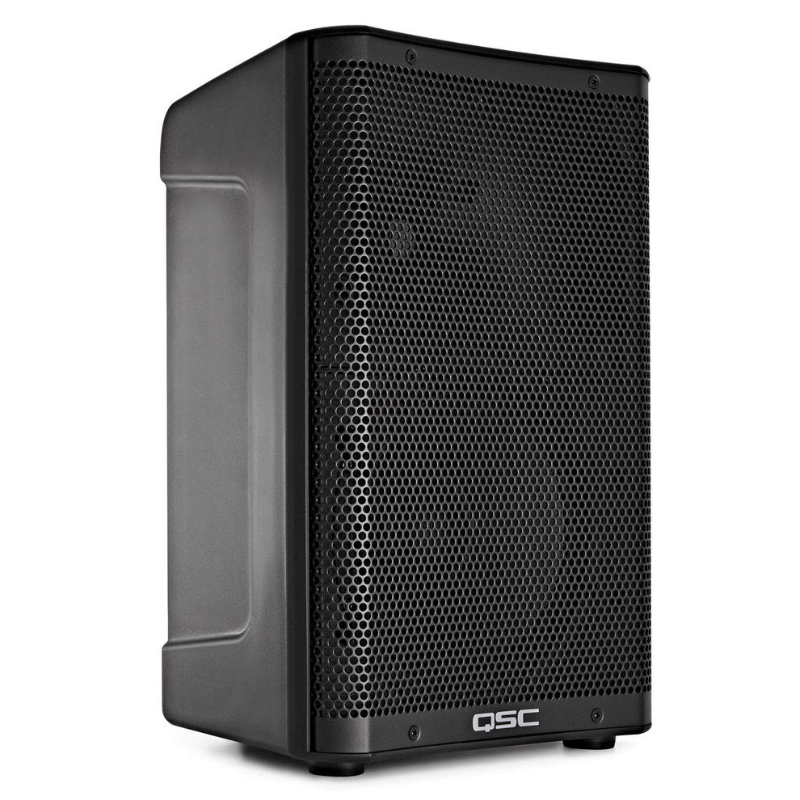

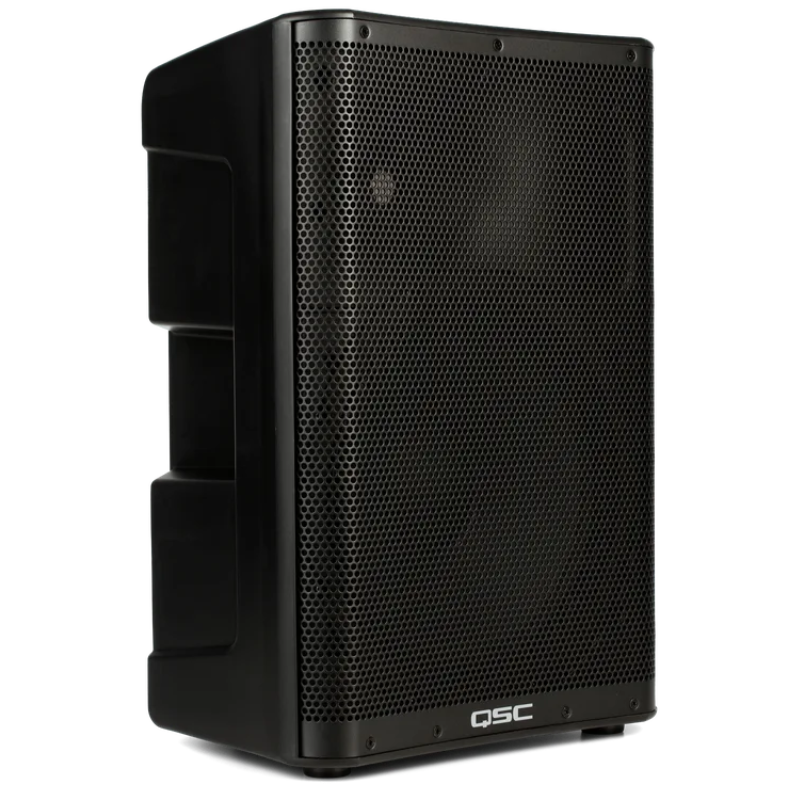

The QSC CP12 is a compact, high-performance 1000-watt active loudspeaker designed to deliver exceptional audio quality in a lightweight and portable form. With a 12-inch woofer and a 1.4-inch high-frequency driver, the CP12 offers full-range sound with clarity, depth, and consistent coverage—perfect for live performances, events, corporate AV, and fixed installations.

Its built-in 1000W Class-D amplifier ensures powerful output with efficient operation, while the two-channel mixer provides flexible connectivity for microphones, instruments, or audio sources. Preset contour settings allow you to quickly adapt to various use cases such as speech, music, or monitor applications.

The CP12 can be mounted on a wall, speaker pole, or used as a floor wedge monitor, thanks to its versatile design. Rugged construction, combined with a lightweight enclosure, makes it easy to transport and ideal for professionals on the move.

Whether you’re installing in a venue or using it as part of a mobile sound system, the QSC CP12 offers the legendary reliability and performance QSC is known for.

Specifications

Category	Details
Model	CP12
Configuration	Two-way active loudspeaker
LF Transducer	305 mm (12 in) cone
HF Transducer	35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB)	49 – 20 kHz
Frequency Range (-10 dB)	47 – 20 kHz
Nominal Coverage Angle	75° Axisymmetric
Maximum Rated SPL	126 dB
Amplifier Type	Class D
Amplifier Power (Peak)	800 W (LF), 200 W (HF)

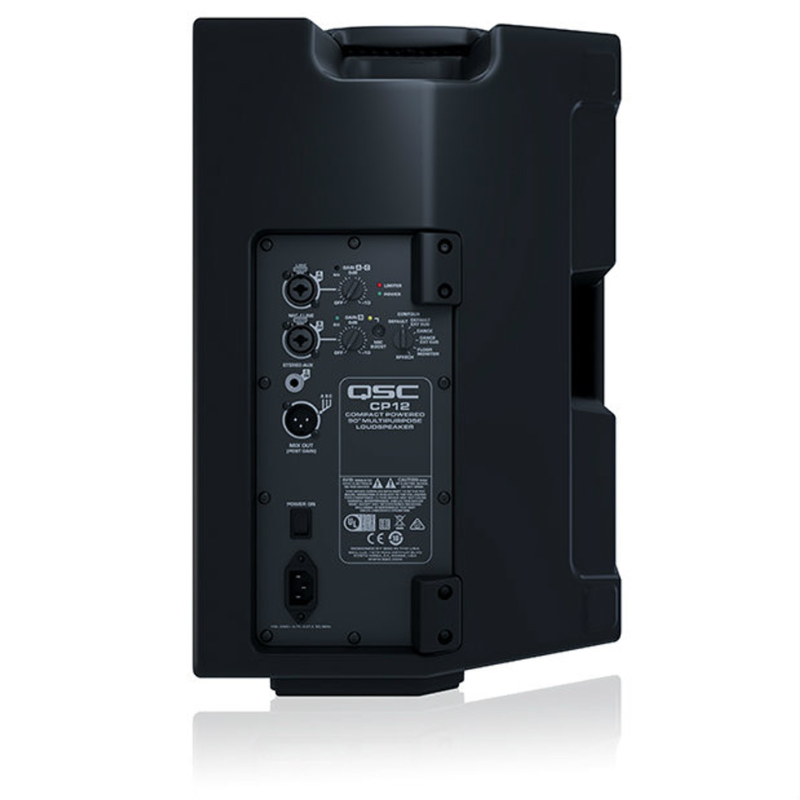

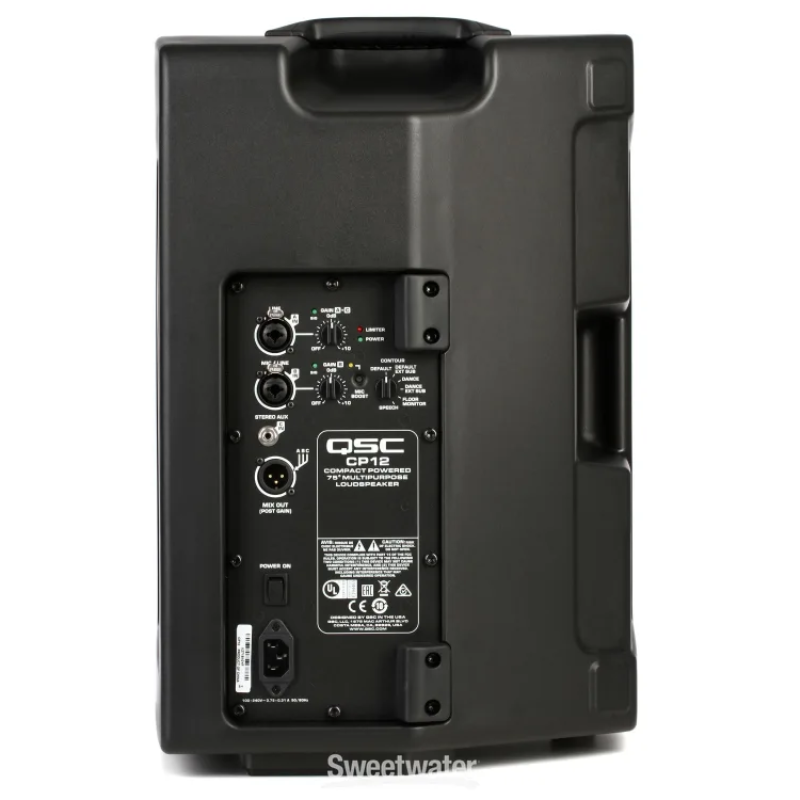

Controls	Power 2 × Gain Mic Boost Push Switch 6-way Contour Selection Switch
Indicators	Power LED 2 × Input Signal LED Input B Mic Selected LED Limiter Active LED
Connectors	2 × Locking XLR/F ¼” Combo (Line In & Mic/Line In) 1 × 3.5 mm TRS (Stereo In) 1 × XLR/M (Mix Out) 1 × IEC Power Connector
AC Power Input	Universal power supply 100–240 VAC, 50–60 Hz
AC Power Consumption (1/8th Power)	100 VAC, 0.75 A 240 VAC, 0.31 A
Enclosure Material	Polypropylene
Attachment Points	M8 Threaded Insert
Color	Black (RAL 9011)
Grille	18-gauge powder-coated steel
Speaker Dimensions (H × W × D)	516 × 350 × 323 mm (20.3 × 13.8 × 12.7 in)
Carton Dimensions (H × W × D)	430 × 430 × 604 mm (17 × 17 × 23.8 in)
Net Weight	13.7 kg (30.3 lb)
Shipping Weight	16.5 kg (36.4 lb)
Regulatory Compliance	EMC, UL, CB
Optional Accessories	CP12 Tote CP12 Outdoor Cover CP12 Yoke

Features

Compact and powerful performance
1000 Watt peak power Class-D amplifier module
Easily selected contours for commonly-used applications
Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
Directivity Matched Transition^® (DMT) for consistent frequency response across the entire coverage area
Light weight and highly portable
Professional appearance looks great in any application
Use for main PA, stage monitor, or instrument amplifier
35 mm pole socket
Optional yoke, tote, and outdoor cover accessories
Complete EASE and CAD information available online
6 Year Warranty when registered within 30 days of purchase
