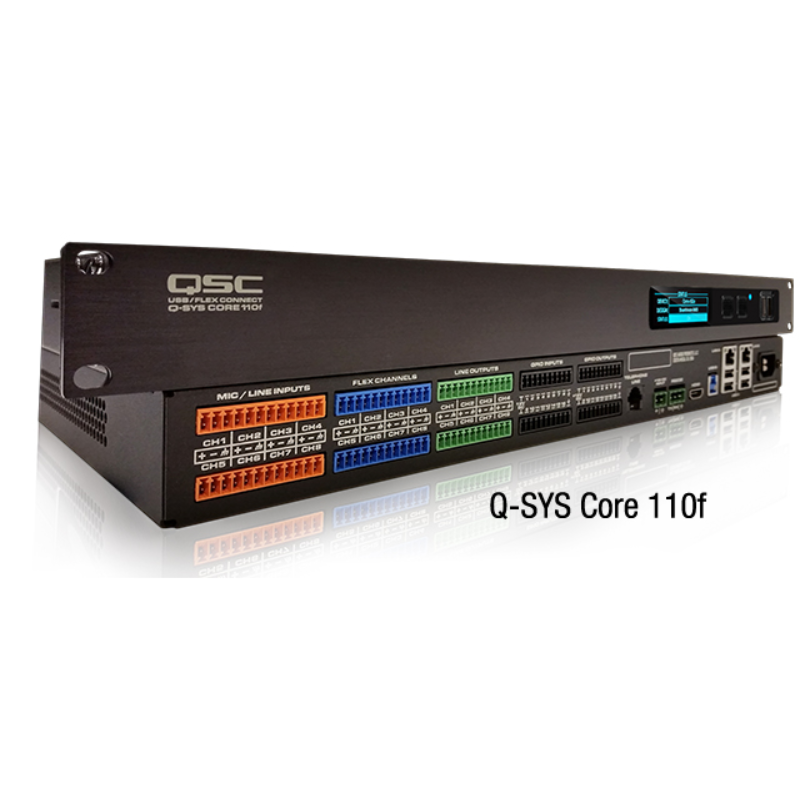

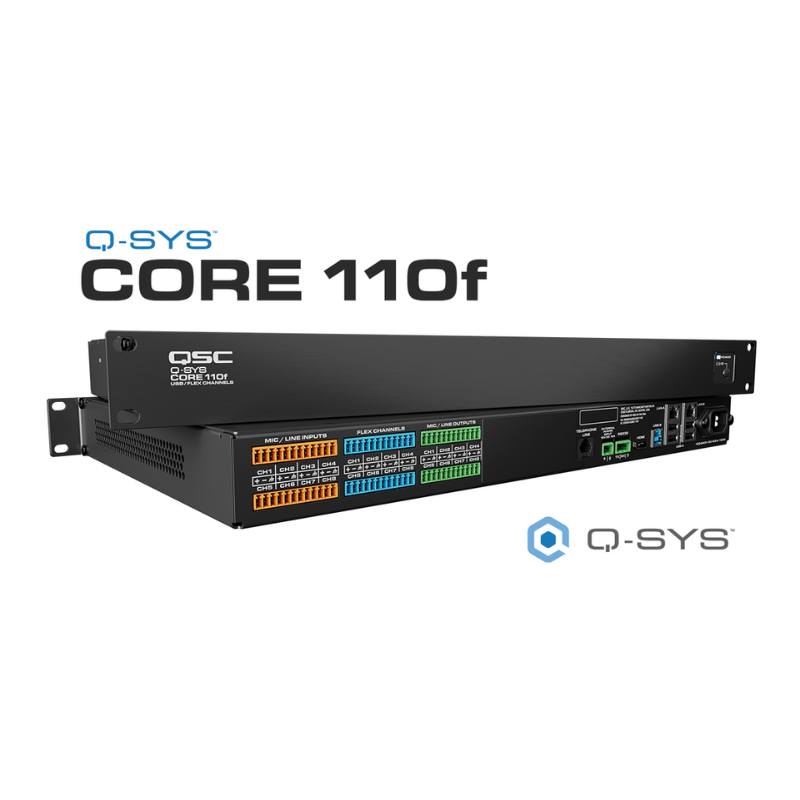

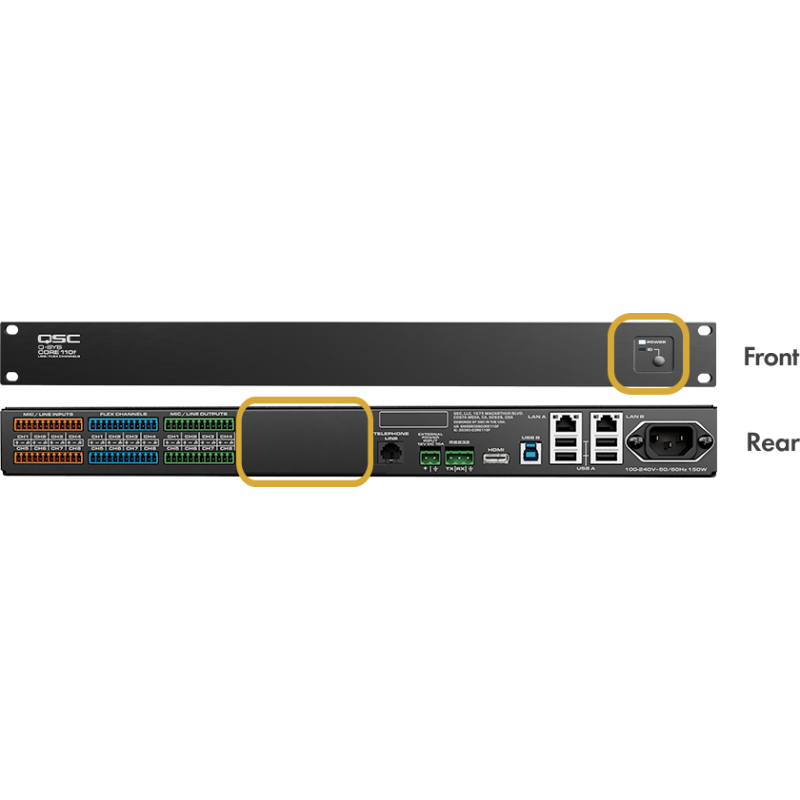

QSC Core 110f – DSP Processor & Controller, 24×24 Dante‑capable Network Audio Solution
QSC Core 110f – DSP Processor & Controller, 24×24 Dante‑capable Network Audio Solution - Image 2
QSC Core 110f – DSP Processor & Controller, 24×24 Dante‑capable Network Audio Solution - Image 3
QSC Core 110f – DSP Processor & Controller, 24×24 Dante‑capable Network Audio Solution - Image 4
,

QSC Core 110f – DSP Processor & Controller, 24×24 Dante‑capable Network Audio Solution

•24 channels of analog I/O, including 8 configurable Flex channels
•up to 32 x 32 Dante audio channels (8 x 8 included)
•16x AEC processors
•External USB audio device host
•Up to 4x VoIP instances
•USB AV bridging (16 x 16 audio + Q-SYS camera support)

The QSC Core 110f is a fully integrated DSP processor and control platform engineered for high-performance audio, video, and control (AV&C) applications. Part of the Q-SYS™ Ecosystem, the Core 110f is ideal for mid-sized conference rooms, auditoriums, houses of worship, and other networked environments requiring reliable and flexible AV system integration.

With 24 Dante™ channels (12 in, 12 out) and local I/O (8 Flex Channels, 8 AEC channels, and USB audio), the Core 110f delivers powerful routing, processing, and integration in one compact device. It supports third-party device control, network streaming, and scalable system management.

The Core 110f is powered by a real-time operating system, enabling advanced DSP functions such as AEC (Acoustic Echo Cancellation), VoIP integration, multi-channel USB audio, and user interface control. Designed to sit at the center of your AV infrastructure, it provides unmatched flexibility and performance in a single rack space.

Specifications

Feature Details
Model Core 110f
Input Frequency Response 20Hz to 20kHz @ +21 dBu: +0.05dB / -0.5dB
Input THD+N @ 1kHz @ +21 dBu Sensitivity & +21 dBu input: < 0.1% @ +21 dBu Sensitivity & +10 dBu input: < 0.0015% @ +10 dBu Sensitivity & +8 dBu input: < 0.0007% @ -10 dBu Sensitivity & -10.5 dBu input: < 0.0006% @ -39 dBu Sensitivity & -39.5 dBu input: < 0.007%
EIN (no weighting, 20Hz–20kHz) < -121dB
Input Crosstalk @1kHz >110dB Typical, 90dB Max
Input Dynamic Range @ +21 dBu Sensitivity: > 109.5dB @ +10 dBu Sensitivity: > 106.4dB @ -10 dBu Sensitivity: > 104.6dB @ -39 dBu Sensitivity: > 104.6dB
Input Common Mode Noise Rejection @ +21 dBu Sensitivity: — @ +10 dBu Sensitivity: 56.5 dB @ -10 dBu Sensitivity: 73.2 dB @ -39 dBu Sensitivity: 63.2 dB
Input Impedance (Balanced) 5kΩ Nominal
Input Sensitivity Range -39 dBu min to +21 dBu max (1 dB steps)
Phantom Power +48V DC, 10mA per input max
Sampling Rate 48kHz
A/D – D/A Converters 24-bit
Overall Dimensions Height: 44 mm (1.75 in) Width: 483 mm (19 in) Depth: 282.5 mm (11.12 in)
Device Weight 5 kg (11 lb)
Shipping Dimensions Height: 152 mm (6 in) Width: 584 mm (23 in) Depth: 356 mm (14 in)
Shipping Weight 5.6 kg (12.4 lb)
Output Frequency Response 20Hz to 20kHz @ all settings: +0.2/-0.5 dB
Output THD 0.003%, +10 dBu Max output level
Output Crosstalk @1kHz >100dB Typical, 90dB Max
Output Dynamic Range >108dB
Output Impedance (Balanced) 220Ω
Output Level Range -39 dBu min to +21 dBu max (1 dB steps)
USB B – Bit Depth 16-bit
USB B – Channels Up to 16 × 16
USB B – Sample Rate 48kHz
Power Consumption 60W Typical, 120W Max
Heat Load 205 BTU/hour
Compliance FCC Part 15B (USA), FCC Part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada), CE Marked (Europe), UL & C-UL Listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union), RoHS Directive (Europe)

Features

  • 128 networked audio channels (Q-LAN / AES67)
  • 24 channels of analog I/O, including 8 configurable Flex channels
  • 16x AEC processors
  • Supports up to 4x Q-SYS NM-T1 network microphones
  • Up to 32 x 32 Dante audio channels (8 x 8 included)
  • USB AV bridging (16 x 16 audio + Q-SYS camera support)
  • Full-featured Q-SYS Control engine (with optional feature license)
  • External USB audio device host
  • Up to 4x VoIP instances

Class leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.

8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.

Extend your network I/O connectivity with QIO Series: QIO Series lets you quickly add network I/O connectivity to your Q-SYS systems where it’s most convenient. Each of the six models supports a different, specific connectivity type, from mic/line audio I/O to control (IR, Serial, or GPIO). Learn more.

True IT Software Integration: The Q-SYS Operating System is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, as well as the latest software-based security  for your AV system like cryptographically signed firmware updates, encrypted data transport and storage.

Suite of Software-Based Conferencing Technology applications: Built by Q-SYS from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing, gating automixers and role-based access controls.

Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.

What’s in the Box ?

  • QSC Q‑SYS Core 110f v2 processing unit

  • IEC AC power cable

  • Mounting brackets and hardware

  • Quick‑start guide and safety/documentation pack

  • Product registration/warranty card (3-year limited warranty)
