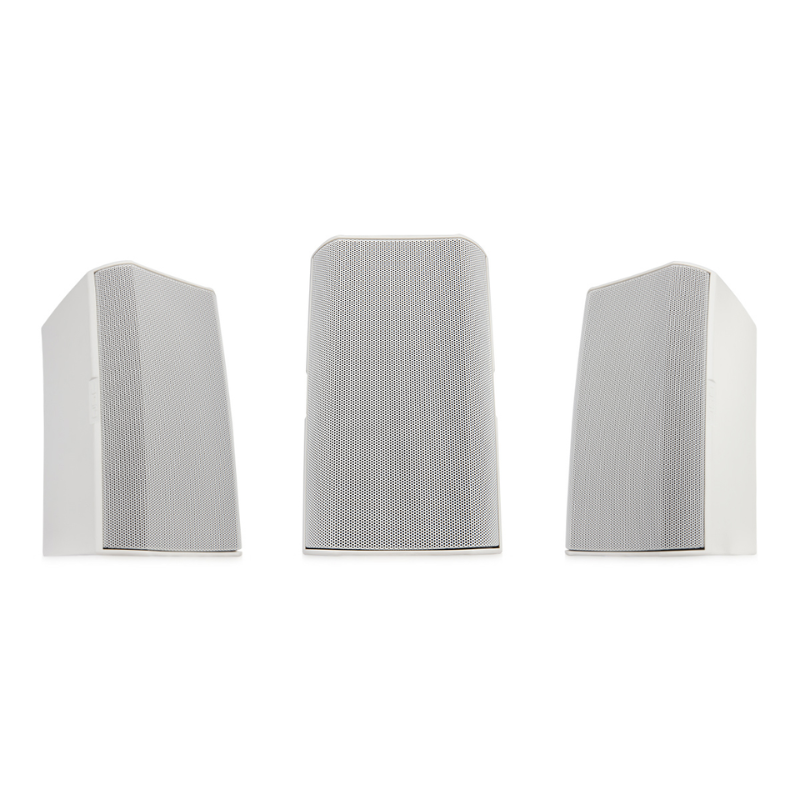

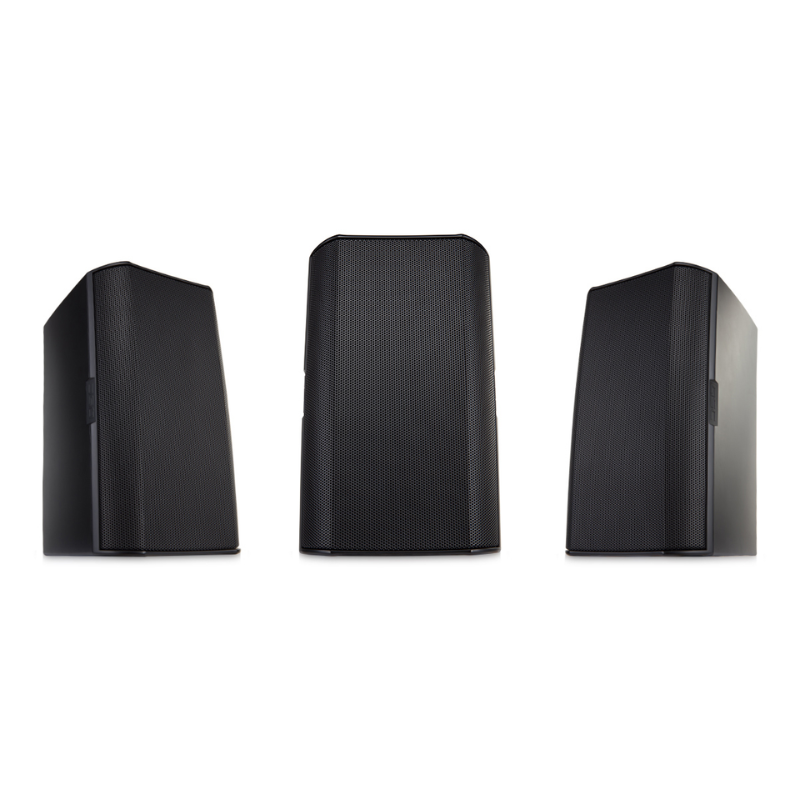

The QSC AD-S5T is a premium 60-watt 2-way surface-mount wall speaker designed for high-quality sound reinforcement in commercial and professional environments. Featuring a 5.25-inch weather-resistant woofer and a 1-inch titanium dome tweeter, it delivers clear, full-range audio with excellent speech intelligibility and music reproduction.
Built for versatility, the AD-S5T operates in both 8Ω low impedance and 70/100V distributed systems, making it ideal for scalable installations. Its DMT™ (Directivity Matched Transition) technology ensures even coverage across the listening area, while the rugged ABS enclosure with an IP54 rating makes it suitable for indoor and outdoor applications.
This speaker comes with the X-Mount bracket for flexible and secure installation in any orientation. It’s an excellent solution for venues requiring reliability, style, and sound quality — such as restaurants, corporate buildings, retail spaces, and hospitality environments.
| Feature | Specification |
|---|---|
| Brand | QSC |
| Model | AD-S5T |
| Speaker Type | 2-Way Wall-Mount Surface Speaker |
| Power Handling | 60 Watts (Continuous) |
| Transducers | 5.25″ Woofer, 1″ Titanium Dome Tweeter |
| Impedance | 8 Ohms or 70/100V Transformer |
| Frequency Response | 70 Hz – 20 kHz |
| Sensitivity (1W/1m) | 88 dB SPL |
| Maximum SPL | 106 dB (peak) |
| Coverage (Nominal) | 105° Horizontal × 60° Vertical |
| Crossover | 2.7 kHz |
| Enclosure Material | ABS, UV-treated, weather-resistant |
| IP Rating | IP54 (Indoor/Outdoor rated) |
| Mounting Hardware | X-Mount Bracket Included |
| Color Options | Black or White (paintable) |
| Input Connectors | Euroblock (4-pin) |
| Dimensions (H × W × D) | 278 × 176 × 180 mm (10.9 × 6.9 × 7.1 in) |
| Weight | Approx. 3.5 kg (7.7 lbs) |
