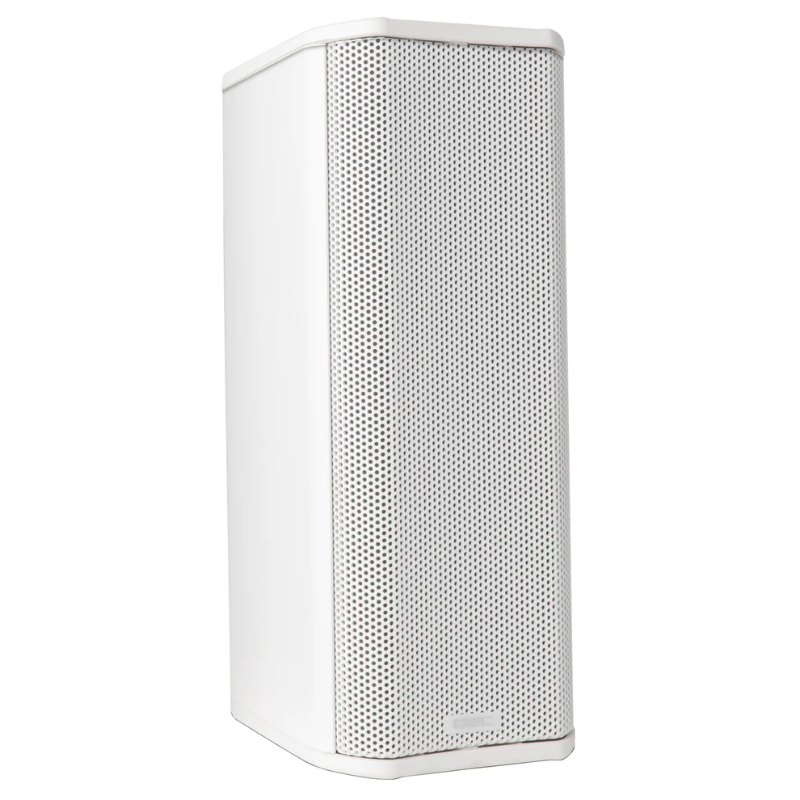

QSC AD-S402T Column Surface-Mount Loudspeaker

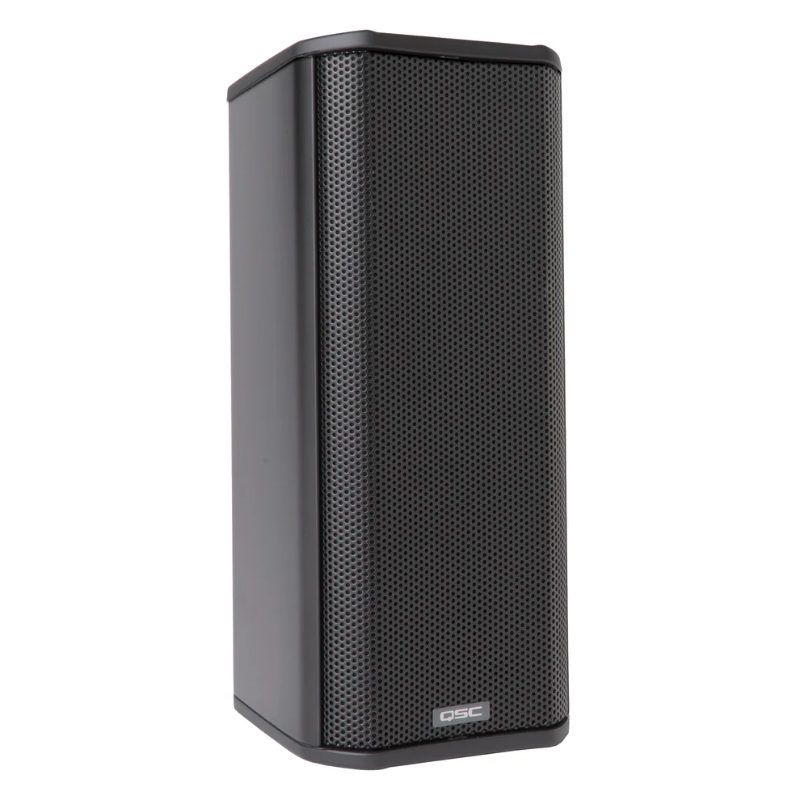

QSC AD-S402T Column Surface-Mount Loudspeaker - Image 2

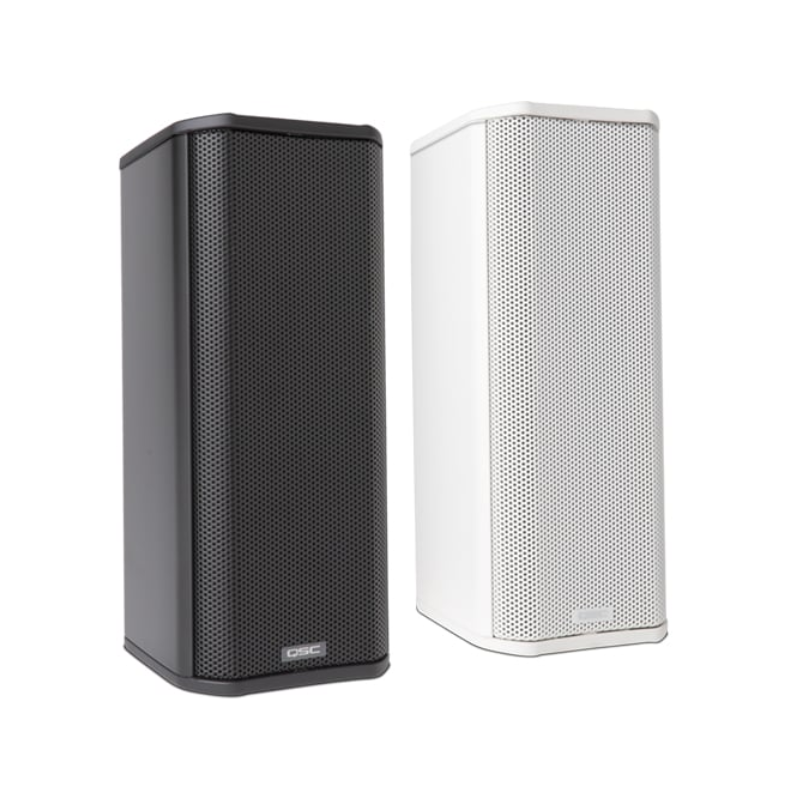

QSC AD-S402T Column Surface-Mount Loudspeaker - Image 3
,

QSC AD-S402T Column Surface-Mount Loudspeaker

•30 Watts at 16Ω nominal setting, 30/15/7.5 multi-tap 70V or 100V
•Extremely wide 110° coverage
•Frequency Range (-10 dB) 90 Hz – 17 kHz
•Nominal Sensitivity: 87 dB SPL @ 1 m (3.3 ft)
•Rated Maximum SPL 108 dB @ 1 m (3.3 ft), 60W tap

The AcousticDesign™ Series AD-S402T is a 4-driver column surface-mount loudspeaker. This premium full range system is capable of 70 V / 100 V or 16 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20° downward tilt.

Specification

System Details

AD-S402T-BK, AD-S402T-WH

LF Transducer

(x4) 2.75 in (69.8 mm) weather treated paper cone woofer

Effective frequency range 1, 2, 3, 8

110 Hz – 20 kHz

Rated noise power / voltage 6

60 W / 31 V (rms)

Sensitivity [dB]

Rated @1 W, 1m 2, 3, 4, 8 : 85

Coverage (‐6 dB) [°]
Horizontal x Vertical 9

Rated 2, 5, 8 : 150 x 35
500 Hz: 180 x 90,    1kHz: 180 x 80
2k Hz: 160 x 46,     4kHz: 180 x 28

Directivity factor 2, 5, 8

 11

Directivity index [dB] 2, 5, 8

10.5

Maximum SPL [dB]

Rated, 1m (continuous / peak) 7 : 105 / 111

Recommended amplifier

120 W

Transformer taps / impedance

Bypass: 16 Ω
7.5 W (70 V); 15 W (100 V) Tap: 666 Ω
15 W (70 V);  30 W (100 V) Tap: 333 Ω
30 W (70 V);  60 W (100 V) Tap: 167 Ω

Input connector type

Euroblock connector with parallel output

Enclosure material

Powder coated aluminum

Grille material

Powder coated aluminum

Ingress protection

IP-54

Operating environment

Designed for indoor or outdoor use

Operating temperature range

-4 to 122° F (-20 to 50° C)

Net weight

7.5 lb (3.4 kg)

Product dimensions (H x W x D)

12.89 x 5.17 x 4.97 in
(327.5 x 131.3 x 126.1 mm)

Shipping Weight

11 lb (5 kg)

Shipping Dimensions (H x W x D)

21.4 x 12.2 x 9.6 in
(544 x 310 x 244 mm)

Included accessories

Sealed input cover plate with gland nut
Quick Hang Pan/Tilt wall bracket
Shoulder eyebolt safety tether anchor

Safety Agency

UL1480A
Transformer UL registered per UL1876, ROHS, CE compliant

Features

  • Deliberately unobtrusive industrial design.
  • Available in white (RAL 9010) or black (RAL 9011).
  • Paintable enclosure and grille.
  • Complete EASE, CLF, CAD & BIM information.
  • Rugged aluminum construction.
  • UV Inhibitors in all white models.
  • IP-54 rating for dust and splash resistance.
  • Powder-coated grille and weather-treated cones.
  • Close to wall pan/tilt bracket included.
  • Low saturation 70 V / 100 V transformers.
  • 16 ohm low impedance bypass.
  • Screw-down Euro block connector with loop-through.
  • Sealable input weather cup – keeps moisture away from wiring.
  •
