The all-new AcousticDesign? Series AD-S162T is a 16-driver column surface-mount loudspeaker. This premium full-range system is capable of?70V/100V?or 8 ohm bypass loads, making it ideal for a wide variety of foreground and background applications with acoustically-challenged environments. Equipped with a unique pan/tilt mounting system, the column surface-mount loudspeakers offer multiple positioning locations allowing the loudspeaker to remain close to the wall while delivering up to -20? downward tilt.
Audio Products, Column Speaker

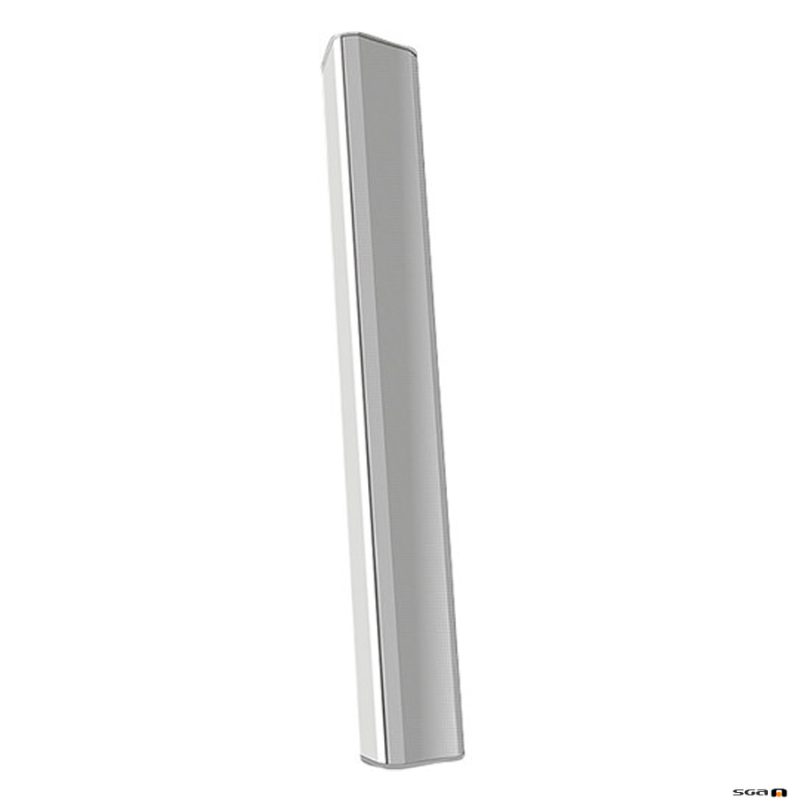

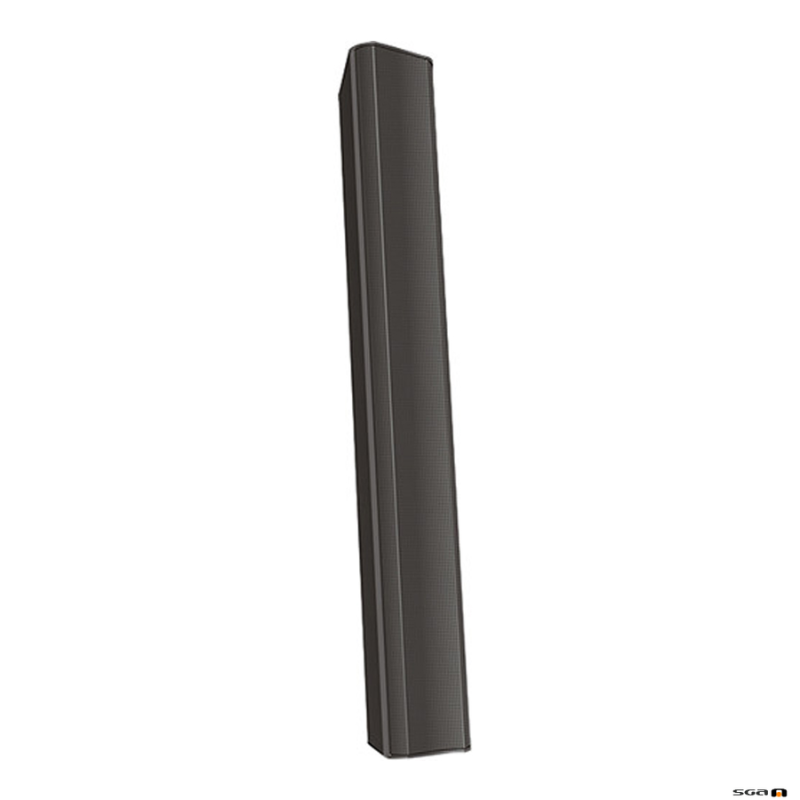

QSC AD-S162T Surface-Mount Loudspeaker

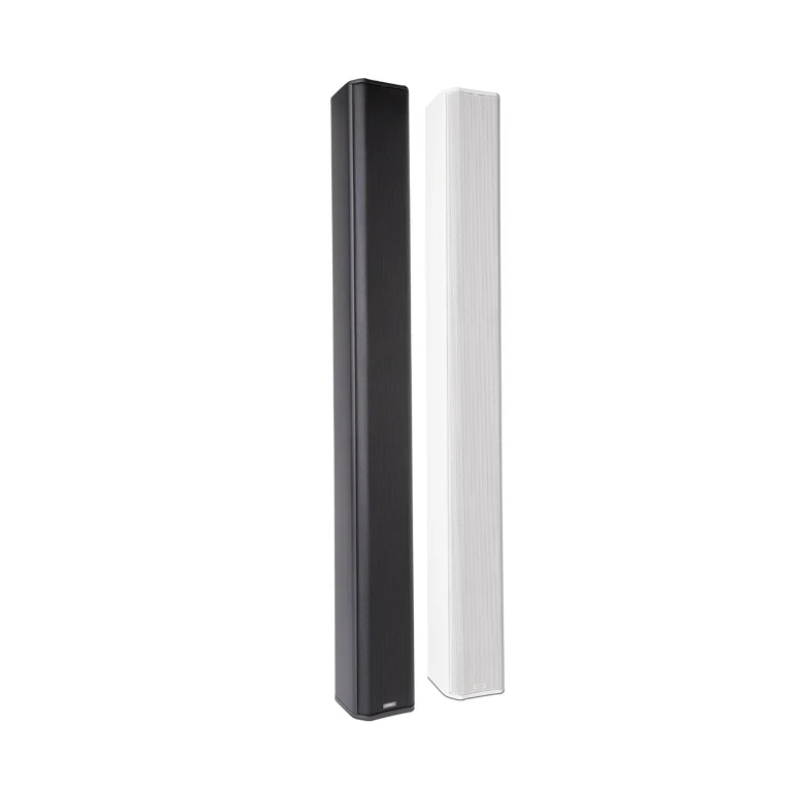

QSC AD-S162T 16 Element column speaker 70/100V/8? 150? x 15/30? coverage Inc. pan/tilt bracket. Black or White
Specification
|
System Details |
AD-S162T |
|
Transducer |
(x16) 2.75 in (69.8 mm) weather treated paper cone woofer |
|
Effective frequency range 1, 2, 3, 8 |
90 Hz – 17 kHz |
|
Rated noise power / voltage 6 |
200 watts / 40 volts (rms) |
|
Sensitivity [dB] |
Rated @1W, 1m 2, 3, 4, 8 : 89 (Narrow) 88 (Wide) |
|
Coverage (‐6 dB) [°] |
Rated 2, 5, 8 : 160 x 15 (Narrow) / 30 (Wide) 500Hz: 180 x 52 / 52, 1kHz: 180 x 26 / 28 2kHz: 160 x 18 / 28, 4kHz: 180 x 13 / 30 |
|
Declared values of SPL, 1/3rd |
500: TBD; 630: TBD; 800: TBD; 1000: TBD |
|
Directivity factor 2, 5, 8 |
TBD |
|
Directivity index [dB] 2, 5, 8 |
11 (Narrow) 13 (Wide) |
|
Maximum SPL [dB] |
Rated, 1m (continuous / peak) 7 : 112 / 118 (Narrow) EN54-24, 4m (low-Z / Highest-tap) 9 : TBD / TBD |
|
Recommended amplifier |
250 watts |
|
Transformer taps / impedance |
Bypass: 8Ω |
|
Input connector type |
Euroblock connector with parallel output |
|
Enclosure material |
Powder coated aluminum |
|
Grille material |
Powder coated aluminum |
|
Ingress protection |
IP-54 |
|
Operating environment |
Designed for indoor or outdoor use |
|
Operating temperature range |
-4 to 122° F (-20 to 50° C) |
|
Net weight |
26 lb (11.8 kg) |
|
Product dimensions (H x W x D) |
45.8 x 5.2 x 5-inch |
|
Shipping Weight |
32.7 lb (14.86 kg) |
|
Shipping Dimensions (H x W x D) |
12.3 x 9.9 x 54.5-inch |
|
Included accessories |
Sealed input cover plate with gland nut |
|
Safety Agency |
UL1480A |
Features
- Deliberately unobtrusive industrial design.
- Available in white (RAL 9010) or black (RAL 9011).
- Paintable enclosure and grill.
- Complete EASE, CLF, CAD & BIM information.
- Rugged aluminum construction.
- UV Inhibitors in all white models.
- IP-54 rating for dust and splash resistance.
- Powder-coated grills and weather-treated cones.
- Close to wall pan/tilt bracket included.
- Low saturation 70/100V transformers.
- 8 ohm low impedance bypass.
- Selectable broad/narrow beam contour
- Screw-down Euro block connector with loop-through.
- Sealable input weather cup – keeps moisture away from wiring.
