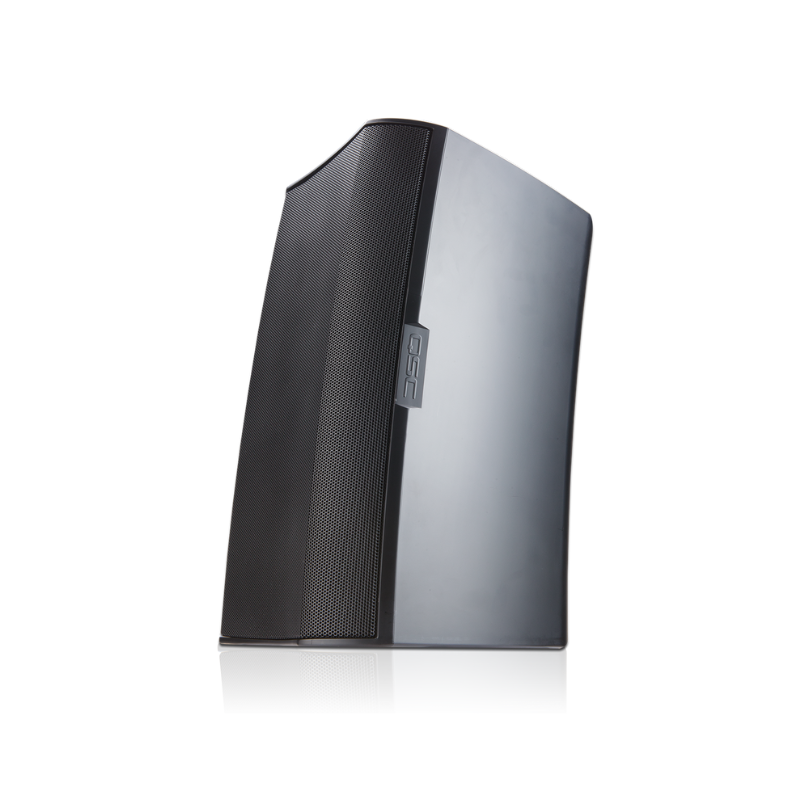

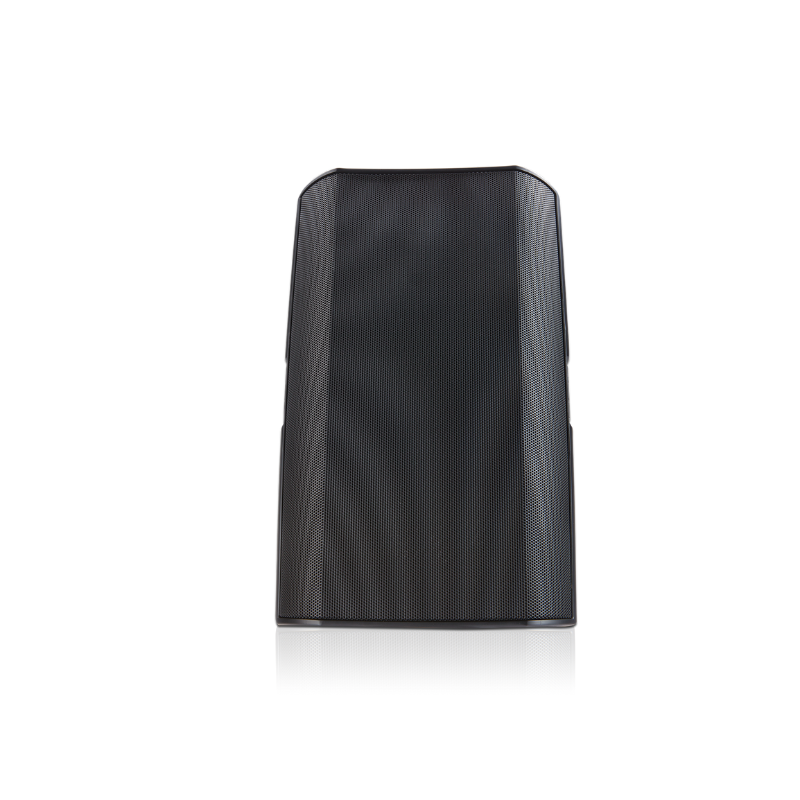

QSC AD-S10T 10-inch 2-way 90° conical DMT™
QSC AD-S10T 10-inch 2-way 90° conical DMT™ - Image 2
QSC AD-S10T 10-inch 2-way 90° conical DMT™ - Image 3
QSC AD-S10T 10-inch 2-way 90° conical DMT™ - Image 4
, ,

QSC AD-S10T 10-inch 2-way 90° conical DMT™

•60 Watts at 8Ω nominal setting, 100/50/25/12.5 multi-tap at 100V
•Frequency Range (-10 dB)1 50 Hz – 19 kHz
•Nominal Sensitivity: 116 dB SPL @ 1 m (3.3 ft)
•Rated Maximum SPL 122 dB @ 1 m (3.3 ft), 16W tap

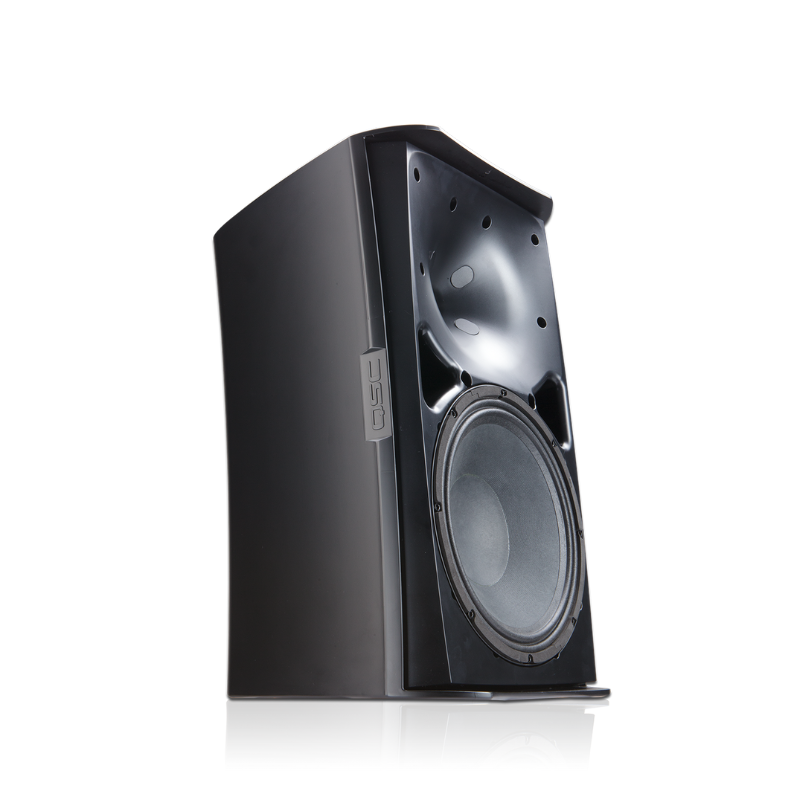

•10-inch weather treated woofer; 1.4-inch silk dome tweeter 90° conical DMT™ coverage
•Dimension 516 × 318 × 298 mm

An Outstanding Indoor/Outdoor Loudspeaker



Wherever you need it, the QSC AcousticDesign AD-S10T is there. This top-notch surface-mount speaker boasts a weather-treated 10-inch woofer and 1.4-inch compression driver, and QSC’s DMT technology ensures smooth uniform frequency response throughout its 90° conical coverage area. You also get advanced voicing filter sets using QSC Intrinsic Correction, which is available through Q-Sys processing and CXD amplifier platforms. This install speaker also features low-saturation, low-loss 70V/100V transformers with 8-ohm bypass. The AD-S10T meets IP-54 requirements for dust and splash resistance, its lightweight ABS enclosure offers excellent durability, and its sealed input panel cover and powder-coated grille yield you added weather resistance. Here at Sweetwater, we appreciate the rock-solid installation supplied by the AD-S10T’s X-Mount system. You can install and deploy this speaker at virtually any angle with zero slippage over time. You also get M10 fittings for optional yoke mounting or suspended installations. Anyone searching for a top-flight install loudspeaker for indoor or outdoor applications will be amazed by the AcousticDesign AD-S10T.

Specification

System Details AD-S10T
Effective frequency range1 50 Hz - 19 kHz
Rated noise power / voltage2 250 watts / 45 volts (rms)
Broadband sensitivity3 92 dB SPL
Coverage angle (-6 dB) 90° conical DMT™
Directivity factor (Q) 10
Directivity Index 10 dB
Maximum continuous SPL4 116 dB
Maximum peak SPL4 122 dB
Rated impedance 8 ohms
Recommended amplifier power
(loudspeaker "program" power)		 500 watts
Transformer taps 70 V: 100, 50, 25, 12.5 W and 8Ω bypass

100V: 100, 50, 25 W and 8Ω bypass
HF transducer 1-inch exit / 1.4-inch voice coil compression driver
LF transducer 10-inch weather resistant paper cone woofer

2.5-inch / 64 mm voice coil
Input connector type Euroblock connector with parallel output terminals
Enclosure material  Painted ABS polymer
Grille material  Powder coated aluminum
X-Mount material  Powder coated aluminum
Enclosure Details
Ingress protection  IP-54
Operating environment Designed for indoor and outdoor use
Testing The AD Series loudspeakers qualified for outdoor use using the following tests:


  • Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
  • Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
  • High and low temperature: tested to QSC internal standards between -20° and 50° C


Net weight 31 lb / 15 kg
Product dimensions
(HWD) inches		 20.3 × 12.5 × 11.7
Product dimensions
(HWD) mm		 516 × 318 × 298
Shipping weight 40.6 lb / 18.45 kg
Shipping dimensions
(HWD) inches		 31.7 × 16.1 × 16.1
Shipping dimensions
(HWD) mm		 805 × 409 × 409
Included accessories X-Mount mounting system, Euroblock connector,
input panel cover
Optional accessories YMS10T yoke mount, M10 Kit-C

1 Free-field, -10 dB from on-axis sensitivity
2IEC60268-1 noise signal for 2 hours
3On-Axis, free-field sensitivity, 2.83V, 1 m
4Calculated from rated noise voltage and sensitivity

Features

  • 10-inch weather treated woofer; 1.4-inch compression driver
  • 90° conical DMT™ coverage
  • 100 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
  • Maximum peak SPL 122 dB (8 ohm bypass)
  • Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area

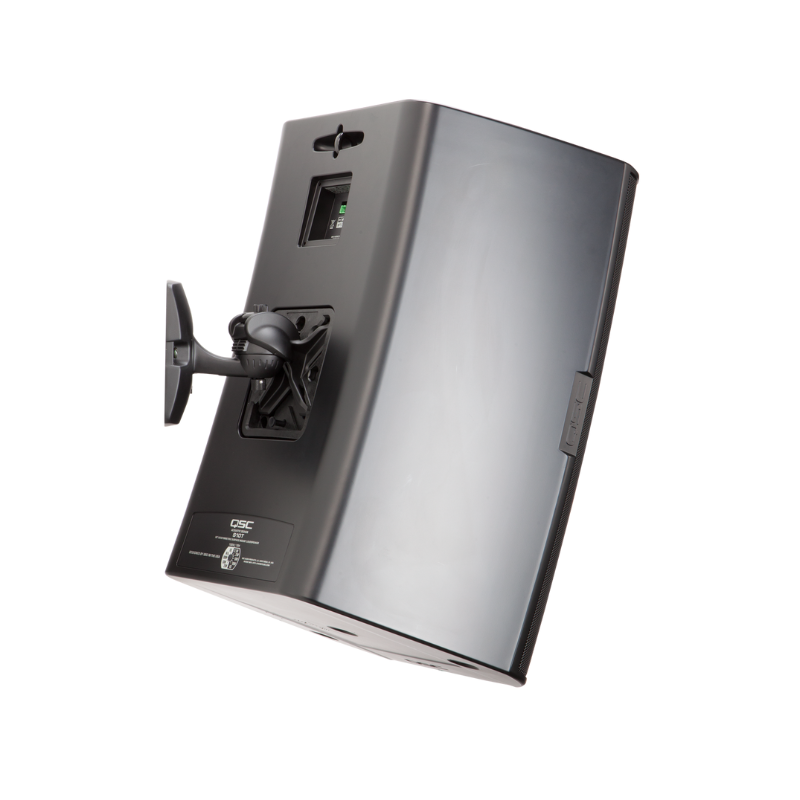

  • X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time Optional Yoke mount and M10 Kit-C for additional installation versatility
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance
  • Available in black (RAL 9011) or white (RAL 9010)
  • Complete EASE, CF2, CAD, and BIM information available online
