QSC AD-P6T – 60W Pendant Speaker, Full-Range, Indoor/Outdoor Use

Name: QSC AD-P6T – 60W Pendant Speaker, Full-Range, Indoor/Outdoor Use
SKU: 4962
Availability: InStock

•60 Watts at 16Ω nominal setting, 60/30/15/7.5 multi-tap 70V or 100V
•Extremely wide 135° coverage
•Frequency Range (-10 dB) 55 Hz – 20 kHz
•Nominal Sensitivity: 88 dB SPL @ 1 m (3.3 ft)
•Rated Maximum SPL 106 dB @ 1 m (3.3 ft), 60W tap

The QSC AD-P6T is a high-quality 60-watt pendant loudspeaker designed for open-ceiling environments where distributed audio is required with style and clarity. Featuring a 6.5-inch low-frequency transducer and a 0.75-inch compression driver, this speaker delivers full-range, consistent sound with wide dispersion, making it ideal for retail stores, restaurants, lobbies, convention centers, and other commercial spaces.

Built with both form and function in mind, the AD-P6T comes with an elegant enclosure that blends into modern architecture while ensuring high-performance sound delivery. It supports both 8-ohm direct and 70/100V distributed audio systems, with a multi-tap transformer for simple integration.

This speaker is rated for indoor and covered outdoor use, offering durability and audio quality in one compact solution. The included hanging hardware and Euroblock connector make installation efficient and secure.

The QSC AD-P6T is part of the AcousticDesign™ Series, known for consistent sonic characteristics across form factors—making it easy to mix ceiling, pendant, and surface-mount speakers within the same project.

Specifications

Category	Details
Effective Frequency Range	55 Hz – 20 kHz
Rated Noise Power / Voltage	60 W / 31 V (RMS)
Sensitivity (at 4m, 100V max tap)	88 dB
Rated Coverage (-6 dB)	135° conical DMT™
Directivity Factor (Q)	6.5
Directivity Index (DI)	8 dB
Maximum Continuous SPL	106 dB
Maximum Peak SPL	112 dB
Nominal Impedance	16 Ω
Recommended Amplifier Power	120 W
Transformer Taps / Impedance	• 16Ω (bypass) • 7.5W (70V); 15W (100V) → 667Ω • 15W (70V); 30W (100V) → 333Ω • 30W (70V); 60W (100V) → 167Ω • 60W (70V); N/A (100V) → 83Ω
LF Transducer	165 mm (6.5") weather-treated paper cone woofer
HF Transducer	19 mm (0.75") aluminum dome tweeter
Input Connector Type	Euroblock connector with parallel output
Enclosure Material	Impact-resistant ABS
Grille Material	Powder-coated steel
Ingress Protection	IP-34
Operating Environment	Indoor use
Operating Temperature Range	-20° to +50°C (-4° to +122°F)
Net Weight	4.1 kg (9 lb)
Product Dimensions (Ø × H)	Ø 287 × 323 mm (Ø 11.3 × 12.7 in)
Shipping Weight	5.4 kg (11.8 lb)
Shipping Dimensions (H × W × D)	343 × 406 × 356 mm (13.5 × 16 × 14 in)
Included Mounting Hardware	Two quick-link cable assemblies (3.25m / 128", 2mm thick), two slip-lock fasteners, locking Euroblock connector, sealable input cover & screws, snap-fit magnetic grille
Safety & Compliance	UL1480, Transformer UL registered per UL1876, RoHS, CE compliant Baffle meets UL94-V0 & UL94-5VB flammability rating In accordance with IEC60849 / EN60849

Features

Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
Directivity Matched Transition^® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
2x quick-link suspension cables and slip-lock fasteners provided
Advanced Intrinsic Correction™ voicings available via Q-SYS™
Low-saturation and low-loss 70/100V transformers with 16Ω bypass
Blemish-free removable logo
Sealable input cover to prevent moisture from entering the input terminal block

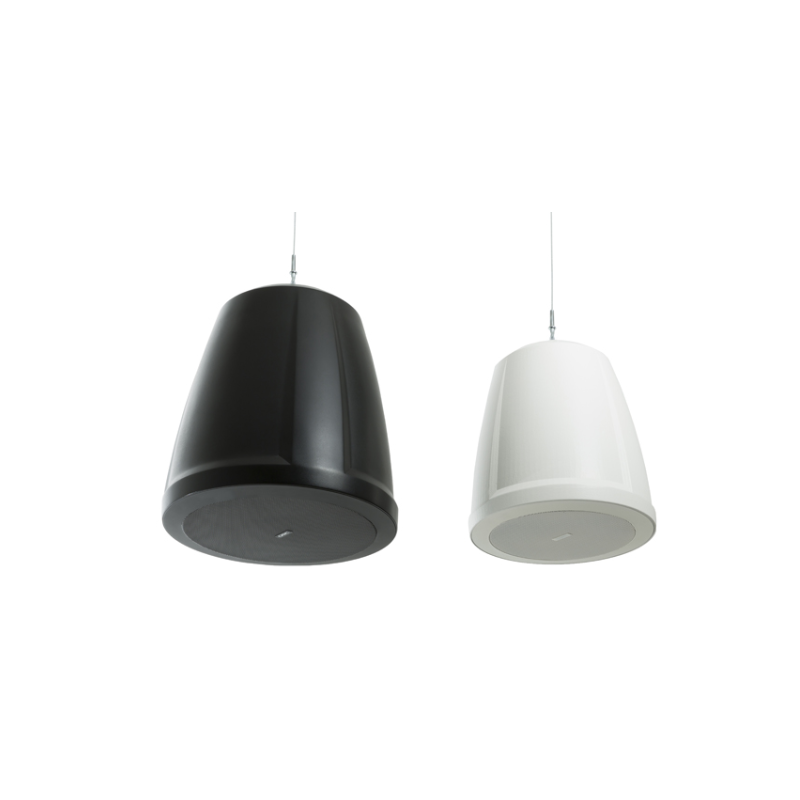

Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, & BIM information available online
