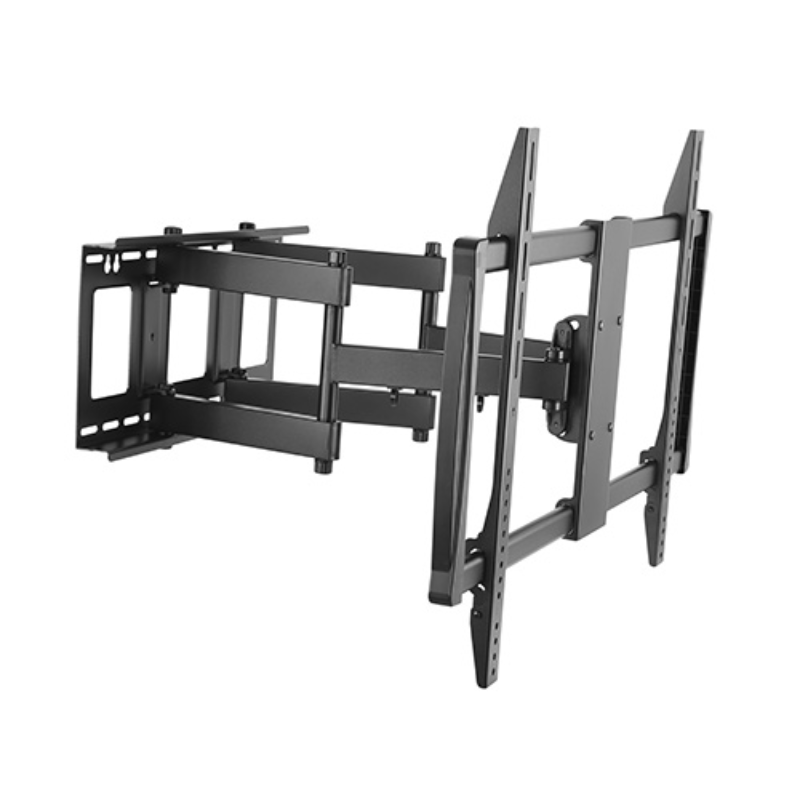

Lumi LPA37‑696 – Heavy‑Duty Full‑Motion Swivel Wall Mount

Name: Lumi LPA37‑696 – Heavy‑Duty Full‑Motion Swivel Wall Mount
SKU: 6064
Availability: InStock

•Fits 60″-100″ curved and flat panel TVs up to 80kgs/176lbs
•Full-motion design for maximum flexibility Vesa mount 800×400 to 900×600
•Arm can be stretched up to 625mm for full range of movement
•Post-installation level adjustment
•Tested for a minimum of four times its load capacity

The Lumi LPA37-696 is a full-motion swivel wall mount built to support large flat-panel displays up to 100 inches in size. Ideal for commercial and home entertainment setups, this mount offers robust construction and flexible motion for the best viewing angles.
With its dual-arm design, the LPA37-696 allows the TV to extend, retract, tilt, and swivel effortlessly. Its heavy-duty steel frame can handle weights up to 80 kg, making it suitable for most large-format TVs or digital signage screens. VESA compatibility and integrated cable management ensure easy installation and a clean, organized look.

Specification

Feature	Specification
Product Category	Full-motion TV Wall Mount
Rank	Standard
Material	Aluminum, Steel, Plastic
Metal Sheet Thickness	Wall Plate THK=2.5mm cold-rolled sheet (0.098")
Pipe Size	25x50mm (0.98"x2")
Surface Finish	Powder Coating
Color	Fine Texture Black

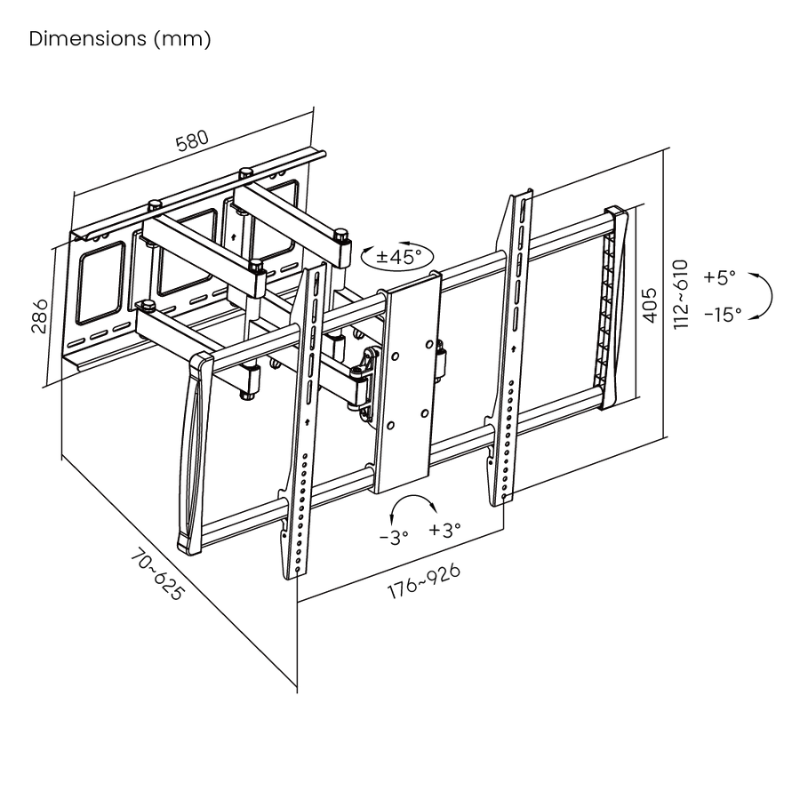

Dimensions	625x1050x630mm (24.6"x41.3"x24.8")
Fit Screen Size	60"-100"
Fit Curved TV	Yes
Mounting Hole Pattern	VESA & Universal
VESA Compatible	200x200, 400x200, 300x300, 400x400, 600x400, 800x400, 800x600, 900x600
Max. Mounting Hole	900x600
Weight Capacity	80kg (176lbs)
Strength Tested	4 Times Approved
Profile	70~625mm (2.8"~24.6")
Tilt Range	+5° ~ -15°
Swivel Range	+45° ~ -45°
Screen Level	+3° ~ -3°
Screen Freely Tilting	Yes
Installation	Solid Wall, Double Stud (406mm/450mm)
Panel Type	Detachable Panel
Wall Plate Type	Fixed Wall Plate
Cable Management	Yes
Anti-theft	No
Bubble Level	No
Accessory Kit Package	Compartment Polybag
Certification	UL

Features

Easy Assembly: Installation is as easy as 1-2-3
Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
Leveling adjustments: allow TV to be perfectly positioned after hanging
Cable Management: keeps everything organized
Keyhole Pattern: allows for easy installation
