Professional High Speed Robotics
With high-precision motors, the VC-A53 can run at up-to 225° per second for very fast movement between preset positions. The unit is also able to move at low speed to deliver smooth and judder-free tracking shots.
Networking Built-in
The VC-A53’s Ethernet port is truly multi-purpose. It supports power over Ethernet, video streaming in a variety of secure and broadcast standard formats, and IP control. Users can remotely control multiple units and manage their cameras facility-wide using the complimentary Lumens Deployment Tool 2.0

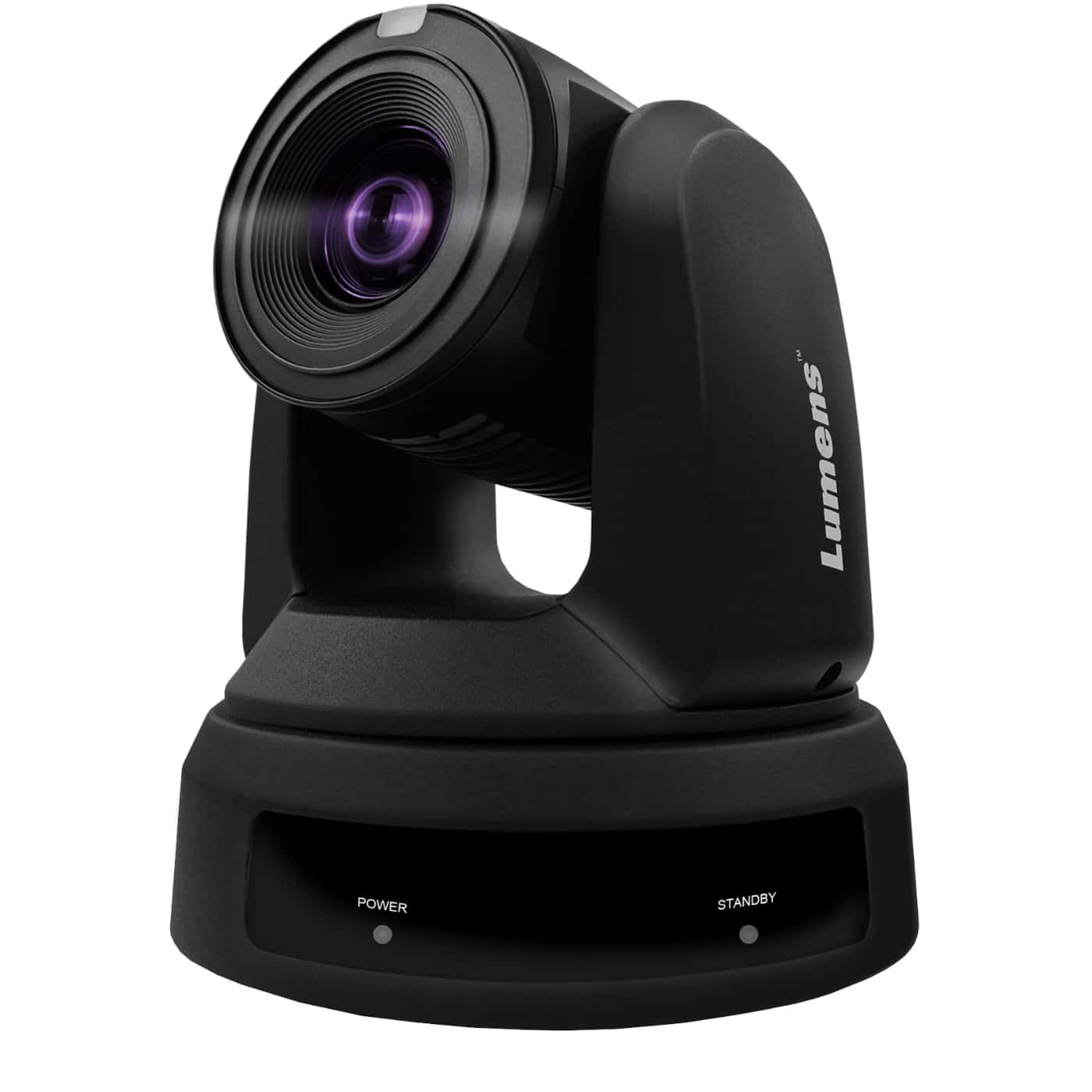

The Lumens VC-A53P is a high-performance PTZ camera featuring a 20X optical zoom and smooth, quiet pan-tilt-zoom functionality. It delivers Full HD 1080p60 video output, making it ideal for live broadcasting, lecture capture, video conferencing, and professional AV environments.
The camera supports simultaneous output over 3G-SDI, HDMI, and IP streaming with H.264 and H.265 compression. With excellent low-light performance and intelligent auto-focus, the VC-A53P provides clear, detailed video even in challenging conditions. It also supports Power over Ethernet (PoE+), simplifying installation with a single cable for power, video, and control.
Engineered for reliability and flexibility, the VC-A53P is widely used in education, corporate events, worship services, and studio production environments.
The camera supports simultaneous output over 3G-SDI, HDMI, and IP streaming with H.264 and H.265 compression. With excellent low-light performance and intelligent auto-focus, the VC-A53P provides clear, detailed video even in challenging conditions. It also supports Power over Ethernet (PoE+), simplifying installation with a single cable for power, video, and control.
Engineered for reliability and flexibility, the VC-A53P is widely used in education, corporate events, worship services, and studio production environments.
| Feature | Specification |
|---|---|
| Model / Part Number | VC-A53P |
| Camera Type | PTZ (Pan-Tilt-Zoom) Camera |
| Zoom | 20X Optical Zoom |
| Video Resolution | Full HD 1080p60 |
| Video Outputs | 3G-SDI, HDMI, IP Streaming |
| Streaming Protocols | RTSP, RTMP, HLS, MPEG-TS over UDP |
| Video Compression | H.264, H.265 |
| Image Sensor | 1/2.8″ CMOS, 2.38 Megapixels |
| Field of View (FOV) | 63° (wide) to 3.47° (telephoto) |
| Pan/Tilt Range | Pan: ±170°, Tilt: -30° to +90° |
| Control Interfaces | RS-232, RS-422, IP (VISCA over IP), IR Remote |
| Power Supply | DC 12V or PoE+ (IEEE 802.3at) |
| Mounting Options | Ceiling, Wall, or Tripod Mount (brackets optional) |

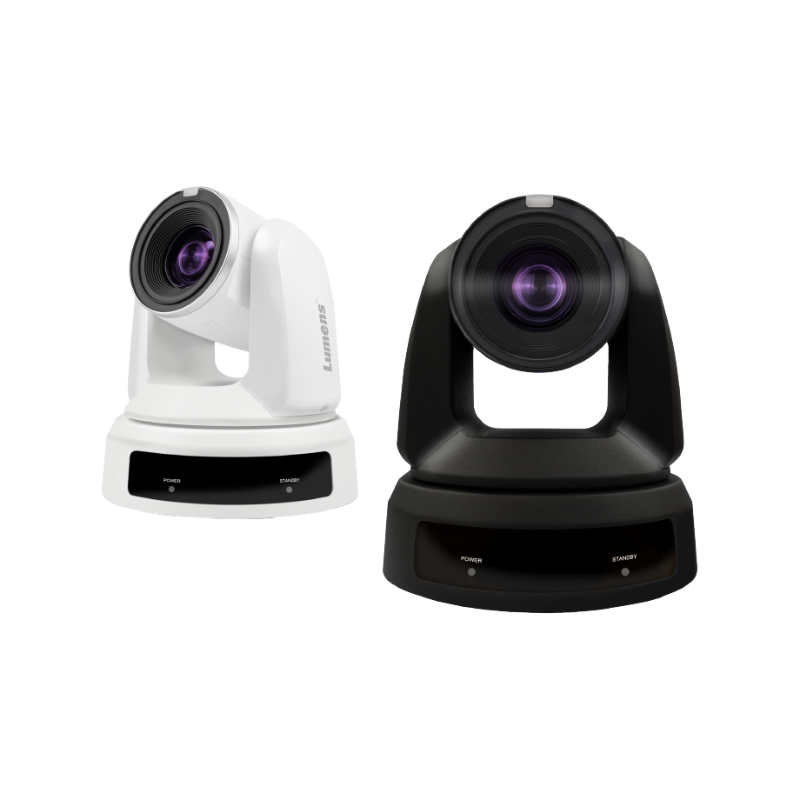

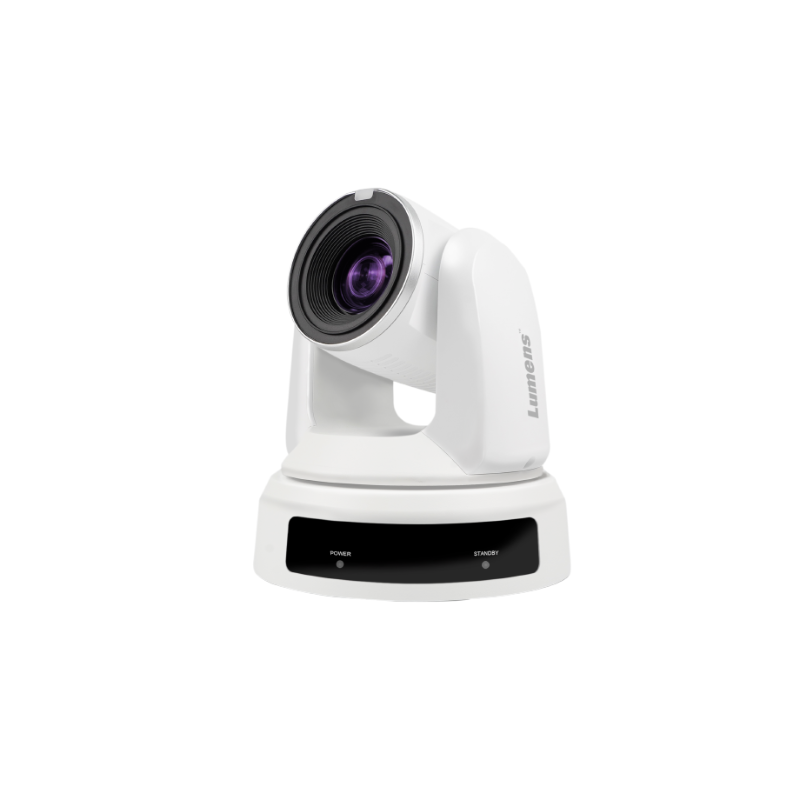

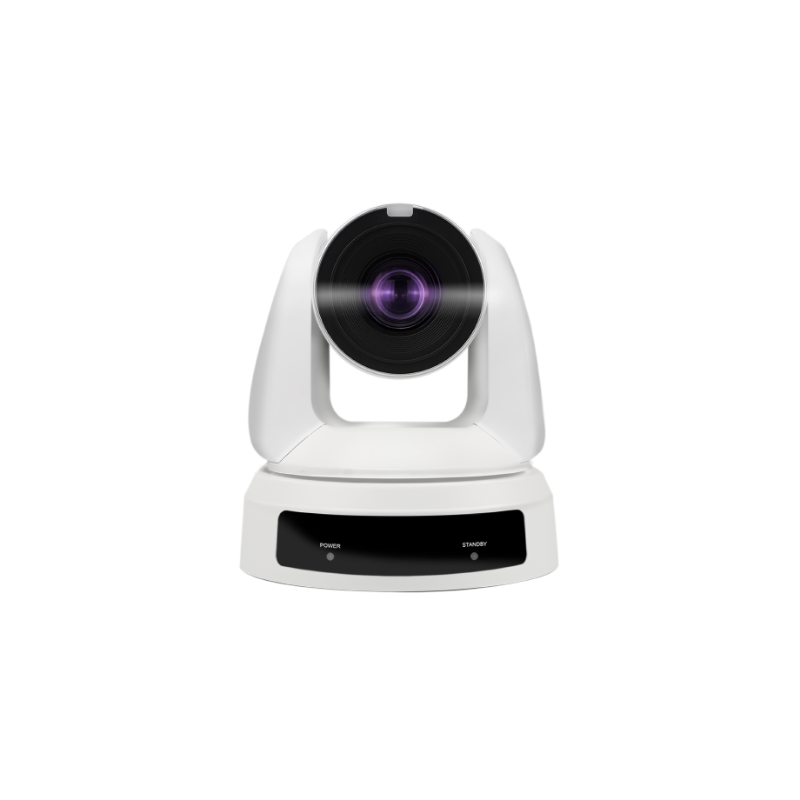

| Color Options | Available in Black and White |
| Dimensions (W × H × D) | Approx. 170 × 190 × 170 mm |
| Weight | Approx. 1.6 kg |
| Warranty | 3-year limited hardware warranty |
