Complete Media Platform

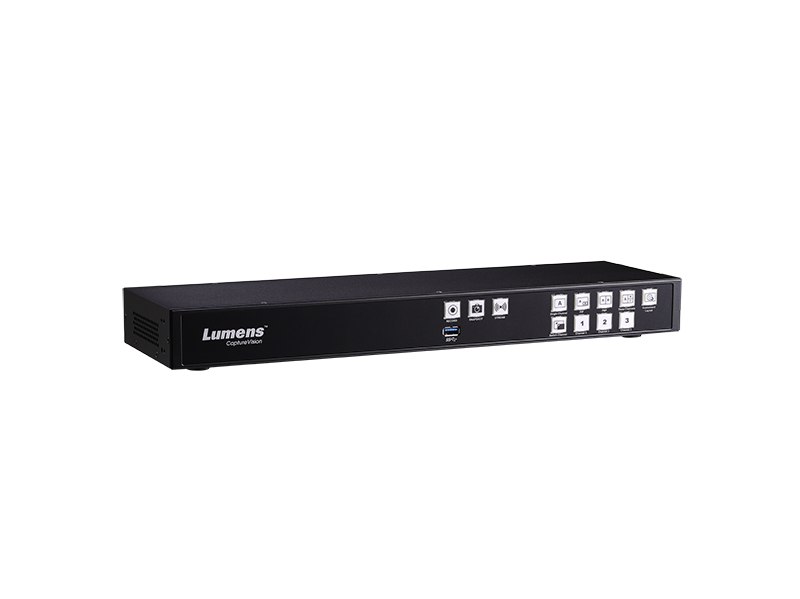

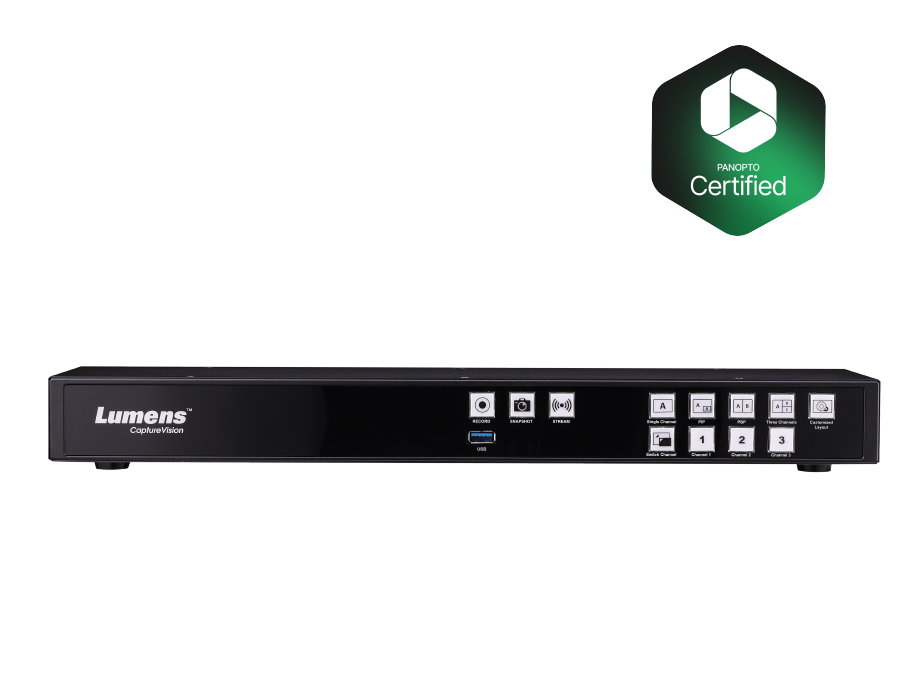

Lumens LC200 CaptureVision is an all-in-one media station. Very simple to operate, it’s a video switcher, recorder, and streaming device. LC200 allows you to mix four video and computer sources to create engaging and attractive presentations and productions, complete with logo overlay, optional timestamp, and your choice of background. The system records each HD input independently (plus the program output) and uploads events, lectures, and conferences to your organization’s Kaltura, Opencase, Panopto, or Wowza platform. It also streams live to users local and global over your preferred CDN, including YouTube, Twitch, Facebook, and Livestream. LC200 also integrates with applications such as Wirecast, vMix, and OBS Broadcast.
4-Input HD Video Switcher and Audio Mixer
LC200 captures video from HDMI sources such as professional cameras, presentation laptops, decoders, and visualizers. The unit can also ingest video from standard IP cameras that support RTSP streams. HD-quality videos can be laid out dynamically with shots arranged side-by-side, picture-in-picture, or overlaid – the choice is yours. Layouts can be saved as templates, giving each production consistency and simplifying the production process for the operator. Audio embedded in video inputs can be mixed with the line-in jacks to provide you an excellent level of audio control.
Record Everything
The LC200 records not just the processed program but also four independent video inputs. Having access to each track is ideal for customers who wish to share an edited version of an event. Videos are recorded in high quality at up to 10Mb/s. Files are compliant with standard editing systems for fast turnaround post-production. Recordings are stored on-board (to the unit’s HDD) locally (to a USB drive), to network storage (NAS), or uploaded to a remote server by FTP. This flexibility will meet the needs of users in AV, the public sector, justice, education, worship, and conferencing.
Stream Everywhere
LC200 has independent encoders to give you complete control over bitrates, streaming protocol, and destination. In a typical setup, recording can be set at the highest quality for archiving and sharing over local networks. The data rate of the streaming output can be reduced if necessary to adjust for Internet upload speeds. Even at lower bitrates, LC200 still delivers an excellent user experience for YouTube and Facebook audiences.
It supports multiple input types including HDMI, IP streams, and USB cameras. Users can create dynamic layouts with picture-in-picture (PiP), split screen, and custom graphics overlays. With built-in 1TB storage, real-time scheduling, and integration with content management systems, the LC-200 streamlines video production and delivery in any AV-over-IP setup.
| Feature | Specification |
|---|---|
| Model / Part Number | LC-200 |
| Functionality | Recording, Streaming, Live Switching, and Mixing |
| Video Input Channels | Up to 4 (HDMI / IP / USB) |
| Recording Resolution | Up to 1080p60 Full HD |
| Streaming Protocols | RTMP, RTMPS, MPEG-TS, HLS, SRT |
| Video Outputs | 1 × HDMI Program Out, 1 × HDMI Multiview Out |
| Audio I/O | 2 × 3.5mm mic in, 1 × line in, 1 × line out |
| Internal Storage | 1TB HDD built-in |
| External Storage | 1 × USB 3.0 port |
| Video Layouts | Picture-in-Picture, side-by-side, quad view, custom overlays |
| Scheduling Features | Web-based scheduler, calendar integration (ICS support) |
| Control Interfaces | Web GUI, RS-232, Telnet, USB mouse/keyboard |
| Network Interface | 1 × RJ45 (Gigabit LAN) |
| Compatible Sources | HDMI cameras, USB webcams, NDI/IP streams |
| Power Supply | DC 12V |
| Dimensions (W × H × D) | Approx. 205 × 54 × 181 mm |
| Weight | Approx. 1.5 kg |
| Warranty | 3-year limited hardware warranty |
