Onboard GUI Director
Live control is incorporated into the device. Connect an HDMI screen to the LC100 to access the intuitive GUI. Sessions can be produced live or scheduled in advance.
Live Pre-defined Scenes for Switching
Build layout scenes that incorporate a variety of visual elements including split screen video, picture-in-picture, title/logo overlays, and background images. Activate and change layouts with the click of a mouse.
Program & ISO Recording
The LC100 records the mixed program-out video and captures two video inputs with independent audio. This simplifies media archiving and post-production.

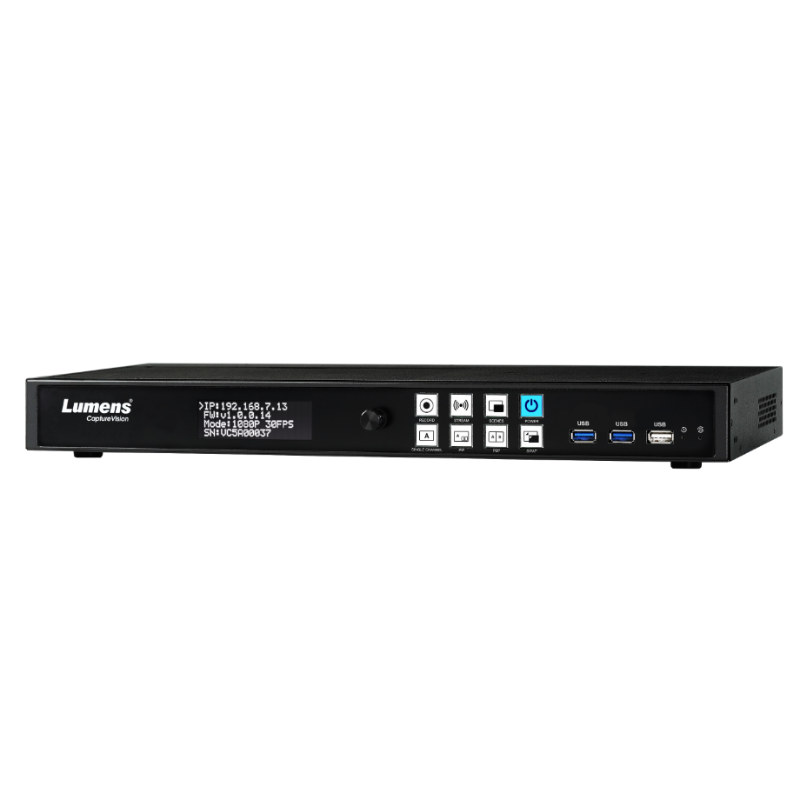

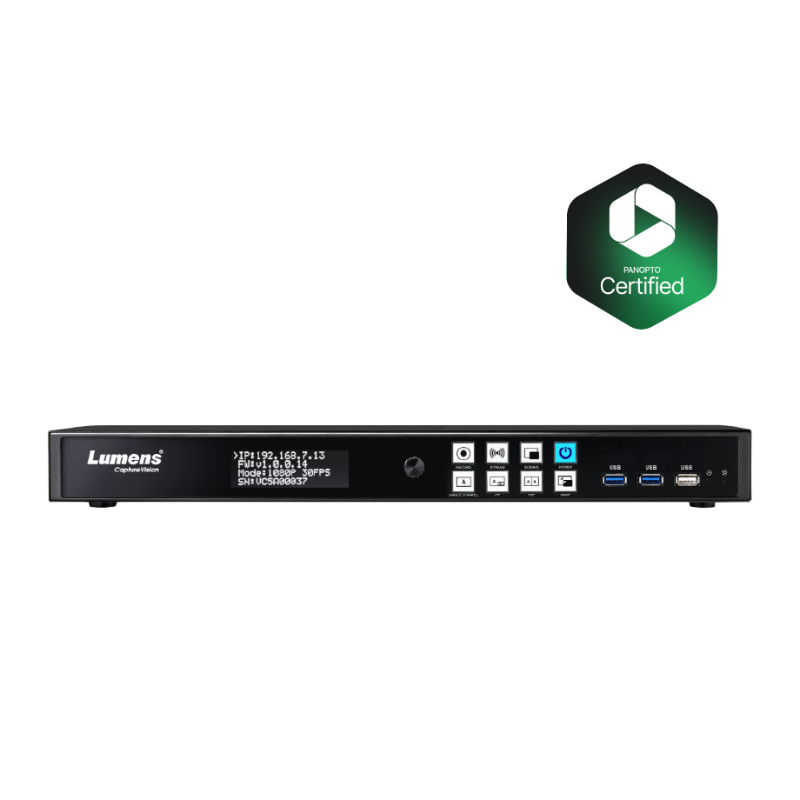

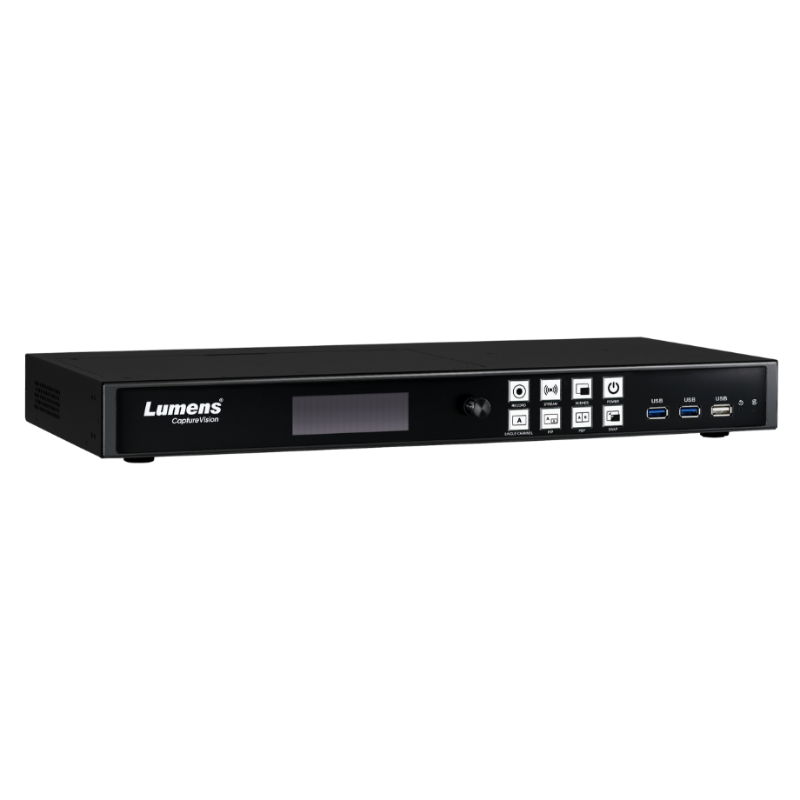

The Lumens LC-100 is a powerful 2-channel media processor that enables professional recording, streaming, and live production from a single compact device. It supports Full HD 1080p video recording from up to two sources simultaneously and allows live streaming to popular platforms or custom RTMP servers.
Designed for education, corporate training, government, and event broadcasting, the LC-100 supports multiple video input formats including HDMI and IP streams. It offers built-in storage, USB backup, and advanced features like scheduling, overlay graphics, picture-in-picture (PiP), and scene switching. With an intuitive user interface and remote management, it simplifies media capture and distribution in both standalone and networked environments.
| Feature | Specification |
|---|---|
| Model / Part Number | LC-100 |
| Functionality | Video Recording, Streaming, and Live Switching |
| Video Input Channels | 2 × HDMI / IP inputs (simultaneous) |
| Recording Resolution | Up to Full HD 1080p60 |
| Streaming Protocols | RTMP, RTMPS, MPEG-TS, HLS, SRT |

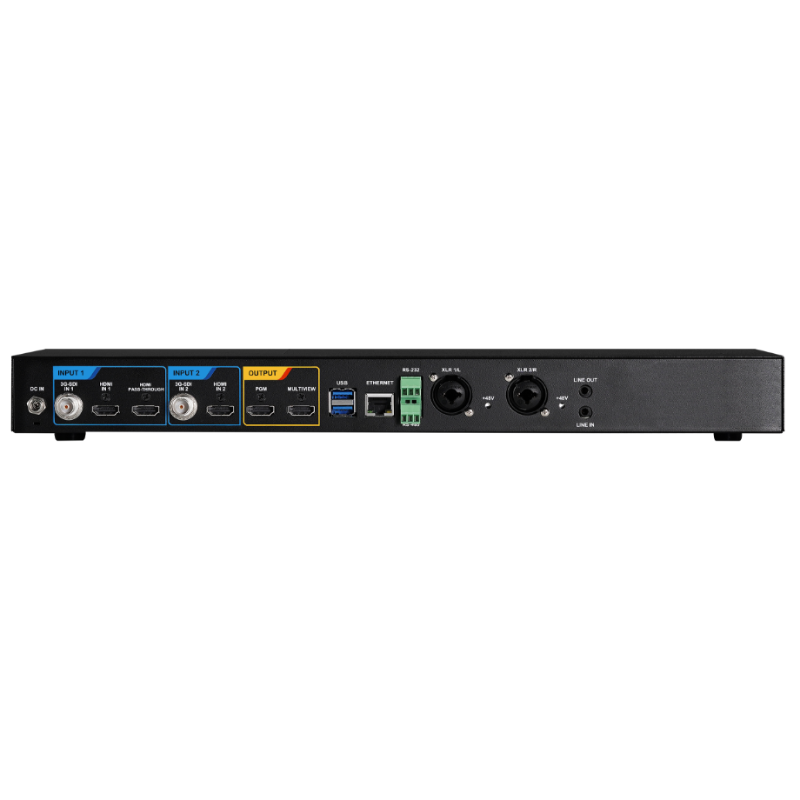

| Video Output | 1 × HDMI (Program Out), 1 × HDMI (Multiview) |
| Audio Input/Output | 1 × 3.5mm mic in, 1 × line in, 1 × line out |
| Internal Storage | Built-in 1TB HDD |
| External Storage | 1 × USB 3.0 for external drive or backup |
| Network Interface | Gigabit Ethernet, Web UI for management |
| Graphic Overlays | Supports logos, titles, and backgrounds |
| Video Layouts | PiP, side-by-side, split screen |
| Scheduling Support | Automated recording/streaming schedules via calendar sync |
| Control Interfaces | Web GUI, RS-232, Telnet |
| Power Supply | 12V DC |
| Dimensions (W × H × D) | Approx. 205 × 54 × 181 mm |
| Weight | Approx. 1.5 kg |
| Warranty | 3-year limited hardware warranty |
