LUMENS Full HD USB PTZ Camera VC-B30U

Focus on Your Meeting

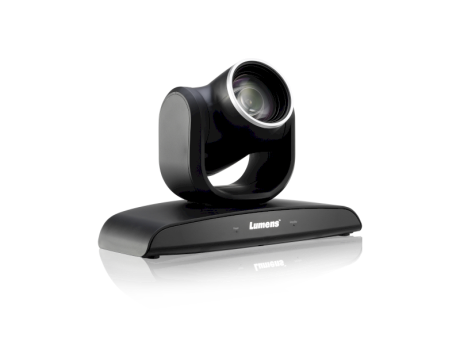

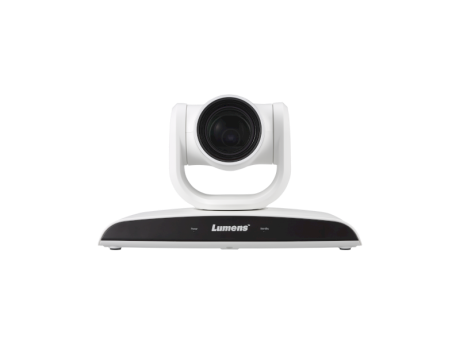

The VC-B30U’s optical zoom lens and robotic pan and tilt mechanism means that it can adapt to each meeting you hold. The panoramic 72°(H) 80°(D) viewing angle can be adjusted thanks to the 12x optical zoom lens that helps users capture all guests in the frame. To shoot the correct angle, the camera quickly pans from -100° to +100° and tilts from -30° to +30°. Whether the room is hosting a single attendee or round table discussion, the camera will meet your needs.

Fingertip Control

Control the VC-B30U with Lumens’ USB PTZ Camera Control Software for Mac and PC. Alternatively, use the included infrared control or an RS-232 controller (not supplied). The camera supports 128 preset positions. With this fantastic feature, users can quickly switch camera settings for different types of meetings and room layouts. The VC-B30U can pan, tilt and zoom to a preset position of your choice, whether to zoom in on a single presenter or to capture guests on a particular side of a meeting table.

Dual Connectivity

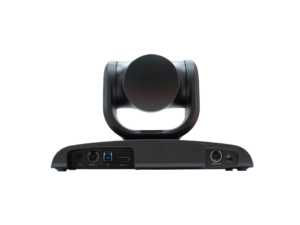

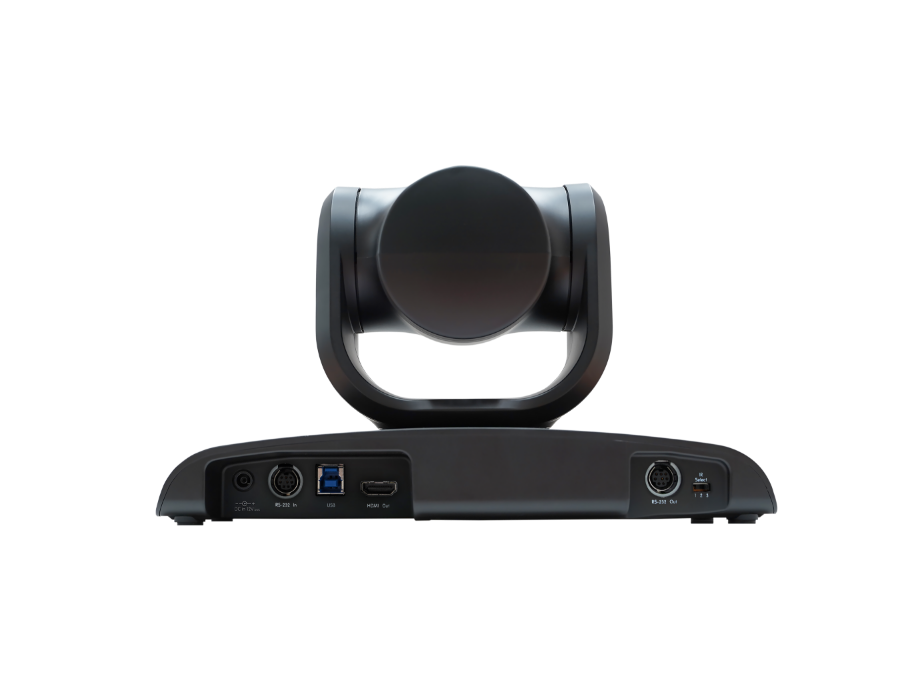

The VC-B30U connects to the host PC or Mac via USB running popular video conferencing applications such as Teams, WebEx, Skype, and Zoom. The HDMI port can be used to route the camera’s output simultaneously to a large format display in the room. The HDMI output can also be connected to a video processor for streaming and recording, or distribution over the local IP network.

Applications

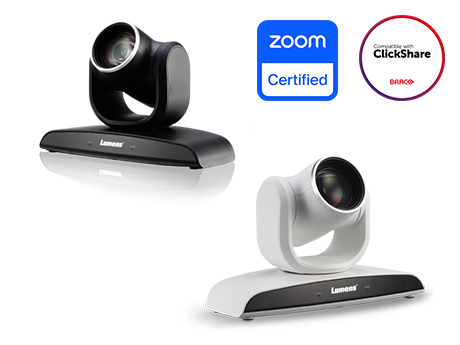

•   Unified Collaboration: Compliant with Barco ClickShare and all popular UC applications, VC-B30U is the ideal camera for interactive meetings of 1-10 guests.

•   Telemedicine and Online Education: The ability of the camera to pan, tilt, and zoom makes it a great option for eLearning and distance education. The VC-B30U can capture a presentation, demonstration and experiment, switching quickly between presets, lens settings, and camera positions.

•   Internal Communications: The dual HDMI/USB outputs of the camera mean that the VC-B30U can be used to communicate with remote attendees using a video conferencing app at the same time as internal guests watch live via their organization’s IPTV platform.

Specification

Sensor	1/2.8″ 2.41MP CMOS
Video Format	HDMI: 1080p 60/50 fps; 720p 60/50 fps<br>USB: 1080p 30/25 fps; 720p 30/25 fps
Video Output (HD) Interface	HDMI, USB 3.0
Optical Zoom	12x
Digital Zoom	12x (HDMI Only)
Horizontal Viewing Angle	72°
Vertical Viewing Angle	43°
Diagonal Viewing Angle	80°
Panning Angle	+100° ~ -100°
Panning Speed	100°/Sec
Tilting Angle	+30° ~ -30°
Tilting Speed	100°/Sec
Aperture	F1.6 ~ 2.8
Focal Length	f = 3.92 ~ 47.32 mm
Shutter Speed	1/1 ~ 1/10,000 sec
Minimum Object Distance	500 (Wide) ~ 1500 (Tele) mm
Video S/N Ratio	> 50dB
Minimum Illumination	1.6 lux (F1.8, 50IRE, 60fps)
Focus System	Auto / Manual
Gain Control	Auto / Manual
White Balance	Auto / one-push / manual
Exposure Control	Auto / manual
WDR	Yes
3D NR	Yes
Image Flip	Yes
Preset Positions	128
Camera Control Interface	RS-232 In and Out / USB
Camera Control Protocol	VISCA / UVC
Video Stream	YUV422 / MJPEG
IR Pass-through	Yes
IR Receiver	Yes
IR Remote Control	Yes
Power Consumption	< 13W
Weight	2.9 lbs (1.3 kg)
Dimensions (W x D x H)	10.6” x 4.8” x 6.2” (267.8 x 123 x 156.1 mm)
Package Contents	Instruction for installation<br>Remote Control<br>Power Cord<br>Power Adapter<br>USB 3.0 cable<br>HDMI cable
