Studio Quality Video
Equipped with a professional 1/2.8 inch image sensor, the VC-R30 provides great output in all lighting conditions. The sharp lens, intelligent white balance, and auto-exposure mode combine to deliver clear pictures. The camera handles skin tones, high contrast, low and mixed lighting conditions extremely well.
Ideal for Video Conferences
Covering a wide 72.5° horizontal FoV and with plug and play USB, the camera is a great option for video conferencing. The versatile zoom lens can capture everyone in a medium-sized conference room. VC-R30 connects to the host computer via USB running popular video conferencing applications such as Teams, WebEx, Skype, and Zoom.
Smooth Motion PTZ
The 12x optical zoom offers fantastic flexibility making the camera suitable for positioning anywhere from the back of an auditorium to an interactive training room. Whenever the operator needs a panning movement across a stage, a close-up focus on the presenter, or a wide-angle shot, it maintains a steady image while the camera moves. Lumens’ autofocus system enables the VC-R30 to deliver sharp pictures even while the camera is in motion or when the zoom angle changes.
Live Streaming and Virtual Meetings

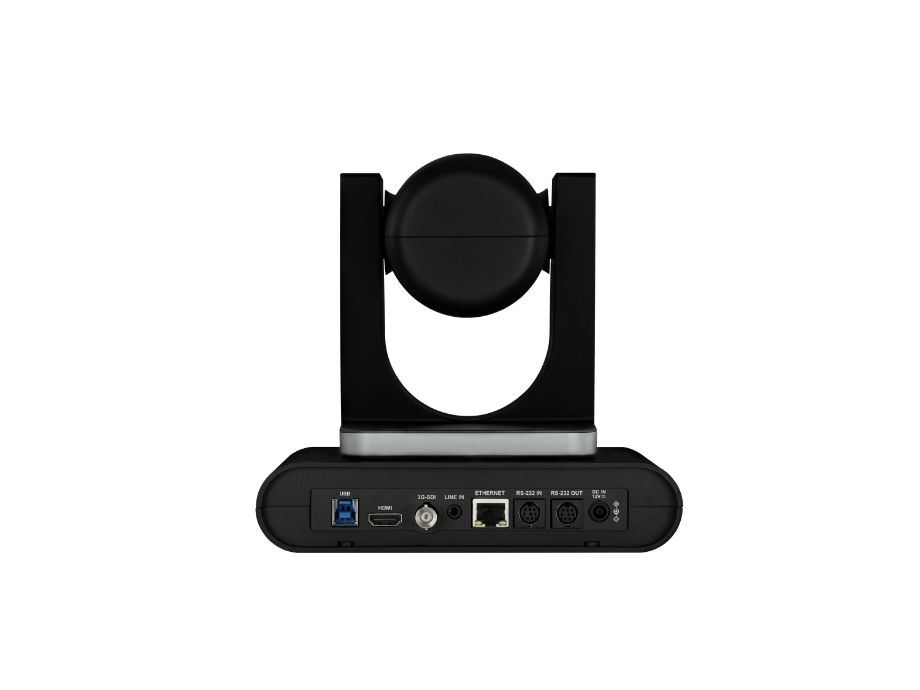

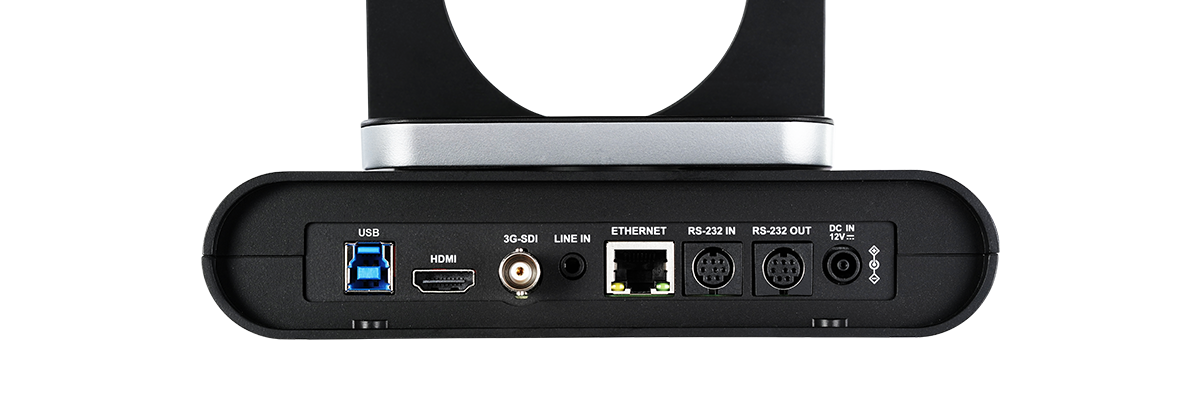

Video output is via USB 3.0, HDMI, 3G-SDI, and Ethernet simultaneously, giving users great workflow options. The camera can be controlled and monitored locally or remotely over an IP network. It’s suitable for hosting a live and virtual conference at the same time, tackling the issue of space and engaging with audiences both local and remote. Compliant with most video production, video conference, and streaming applications, including Zoom, Skype, WebEx, Teams, Google Meet, Wowza, YouTube, OBS, and Wirecast.
v
Specifications
| Sensor | 1/2.8″ 2.16M |
| Video Format | 1080p: 60 / 50 / 30 / 25<br>720p: 60 / 50 / 30 / 25 |
| Video Output (HD) Interface | HDMI / Ethernet / 3G-SDI / USB 3.0 |
| Optical Zoom | 12x |
| Digital Zoom | 12x |
| Viewing Angle | 72.5° (H) / 40.8° (V) / 83.2° (D) |
| Aperture | F1.6 ~ F2.8 |
| Focal Length | 3.9mm ~ 46.8mm |
| Shutter Speed | 1/1 ~ 1/10,000 sec |
| Minimum Object Distance | 1000 / 1500mm (Wide / Tele) |
| Video S/N Ratio | > 50dB |
| Minimum Illumination | 1.0 lux (F1.6, 50IRE, 30fps) |
| Focus System | Auto / Manual |
| Gain Control | Auto / Manual |
| White Balance | Auto / Manual |
| Exposure Control | Auto / Manual |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| Auto Framing | Yes |
| Panning Angle | +170° ~ -170° |
| Panning Speed | 0.2° ~ 120°/sec |
| Tilting Angle | +90° ~ -30° |
| Tilting Speed | 0.2° ~ 80°/sec |
| Preset Positions | 256 |
| HDMI / 3G-SDI | 1080p60 |
| IP Stream | Triple Streaming Structure:<br>First: H.264 1080p60<br>Second: H.264 720p30<br>Webpage: H.264 720p30 |
| IP Compression | H.264 |
| USB Output | 1080p60 |
| USB Compression | MJPEG |
| IP Protocol | RTSP / RTMP / RTMPS / SRT |
| PoE | Yes (IEEE802.3af) |
| Audio Input | Line In / Mic In |
| Audio Output | Ethernet / USB 3.0 / HDMI / SDI |
| Audio Compression Format | USB: PCM |
| Control Interface | RS-232 / Ethernet / USB 3.0 |
| Control Protocol | VISCA / VISCAIP / ONVIF |
| UVC | 1.1 |
| UAC | Yes |
| DC In | 12V +/- 20% |
| Power Consumption | PoE: 9W<br>DC In: 8W |
| Body Color | Black / White |
| Weight | 3.1 lbs (1.4 kg) |
| Dimensions (W x H x D) | 7.5″ x 7.3″ x 5.4″ (190 x 185 x 138 mm) |
