Stage Tracking and Everywhere Tracking Mode
In Stage Tracking mode, the VC-TR40 will pan left and right to follow a presenter within a defined area. In the Everywhere Tracking mode, the camera will continuously track the presenter’s movement left and right, forwards and backward.
Partition Tracking Mode
When the presenter moves inside a user-defined Partition Area, the camera switches to a preset angle and zoom. When outside a Partition Area, the camera autonomously follows the presenter.
Gesture Control Tracking Method
The VC-TR40 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.
Auto-Framing and Partition Framing Mode
With the Auto-framing function, the VC-TR40 will dynamically adjust to capture all delegates, re-framing the view if participants join or leave during the session. In Partition-Framing mode, the camera will go to a preset position when the presenter walks in. When the presenter walks out the area, the camera will go back to the Auto-Framing mode.
Flexible Mounting

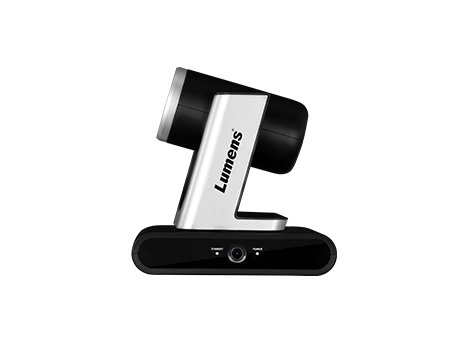

The VC-TR40 can be positioned upright or suspended from the ceiling installation. When inverted, the camera can re-orient the image and flip the camera controls.
Specifications
| PTZ Sensor | 1/2.8″ 2.16M |
| PTZ Video Format | 1080p: 60 / 50 / 30 / 25<br>720p: 60 / 50 |
| Video Output (HD) Interface | HDMI / Ethernet / 3G-SDI / USB 3.0 |
| Optical Zoom | 20x |
| Digital Zoom | 12x |
| PTZ Viewing Angle | 58.7° (H) / 33° (V) / 67.3° (D) |
| PTZ Aperture | F1.6 ~ F2.8 |
| PTZ Focal Length | 4.9mm ~ 94mm |
| Shutter Speed | 1/25 ~ 1/10,000 sec |
| Minimum Object Distance | 500mm |
| Video S/N Ratio | > 50dB |
| Minimum Illumination | 1.0 lux (F1.6, 50IRE, 30fps) |
| Focus System | Auto / Manual |
| Gain Control | Auto / Manual |
| White Balance | Auto / Manual |
| Exposure Control | Auto / Manual |
| WDR | Yes |
| 3D NR | Yes |
| Image Flip | Yes |
| Auto-Tracking | Everywhere / Stage / Partition |
| Auto Framing | Everywhere / Partition |
| Gesture Control | Yes |
| Panoramic Sensor | 1/2.8″ 2MP CMOS |
| Panoramic Video Format | 720p30 |
| Panoramic Viewing Angle | 111° (H) / 62° (V) |
| Panoramic Aperture | F2.4 |
| Panoramic Focal Length | 3.1mm |
| Panning Angle | +170° ~ -170° |
| Panning Speed | 0.2° ~ 120°/sec |
| Tilting Angle | +90° ~ -30° |
| Tilting Speed | 0.2° ~ 80°/sec |
| Preset Positions | 256 |
| HDMI / 3G-SDI | 1080p60 |
| IP Stream | PTZ Camera:<br>Main: 1080p60<br>Second: 720p30<br>Panoramic Camera: 720p30 |
| IP Compression | H.264 |
| USB Output | 1080p30 |
| USB Compression | MJPEG |
| IP Protocol | HTTP / RTSP / RTMP / RTMPS / SRT |
| PoE | PoE (IEEE802.3af) |
| Audio Input | Line In / MIC In |
| Audio Output | Ethernet / USB 3.0 / HDMI / SDI |
| Audio Compression Format | AAC / PCM |

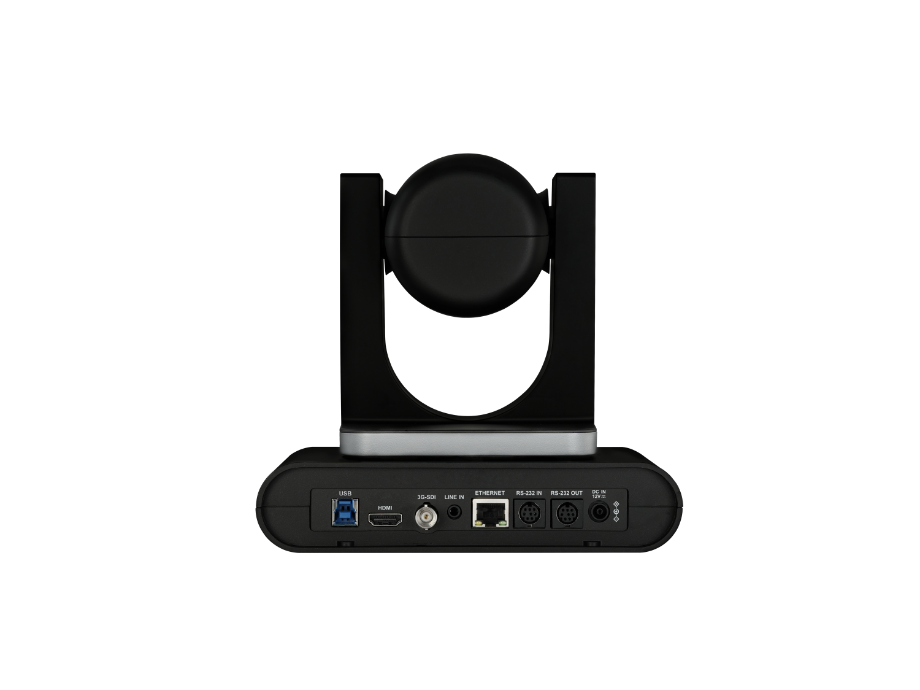

| Interface | RS-232 / Ethernet / USB 3.0 |
| Protocol | VISCA / ONVIF |
| UVC | 1.1 |
| UAC | Yes |
| DC In | 12V +/- 20% |
| Power Consumption | PoE: 11W<br>DC In: 10W |
| Body Color | Black / White |
| Weight | 3.3 lbs (1.5 kg) |
| Dimension | 7.5″ x 7.3″ x 5.4″ (190 x 185 x 138 mm) |
