Logitech Tap Touch Controller + Cat5e Kit
Logitech Tap Touch Controller + Cat5e Kit - Image 2
Logitech Tap Touch Controller + Cat5e Kit - Image 3
Logitech Tap Touch Controller + Cat5e Kit - Image 4
Logitech Tap Touch Controller + Cat5e Kit - Image 5

Logitech Tap Touch Controller + Cat5e Kit

•Install Logitech Tap anywhere in meeting rooms with extended connectivity up to 40 meters.
•Connect Tap with power and data over category cable, eliminating the need for outlets.
•Use included 10 meters or your own cabling for runs up to 40 meters.
•Cat5e enables precise lengths, minimizing clutter beneath tables in meeting room

Just the Right Presence

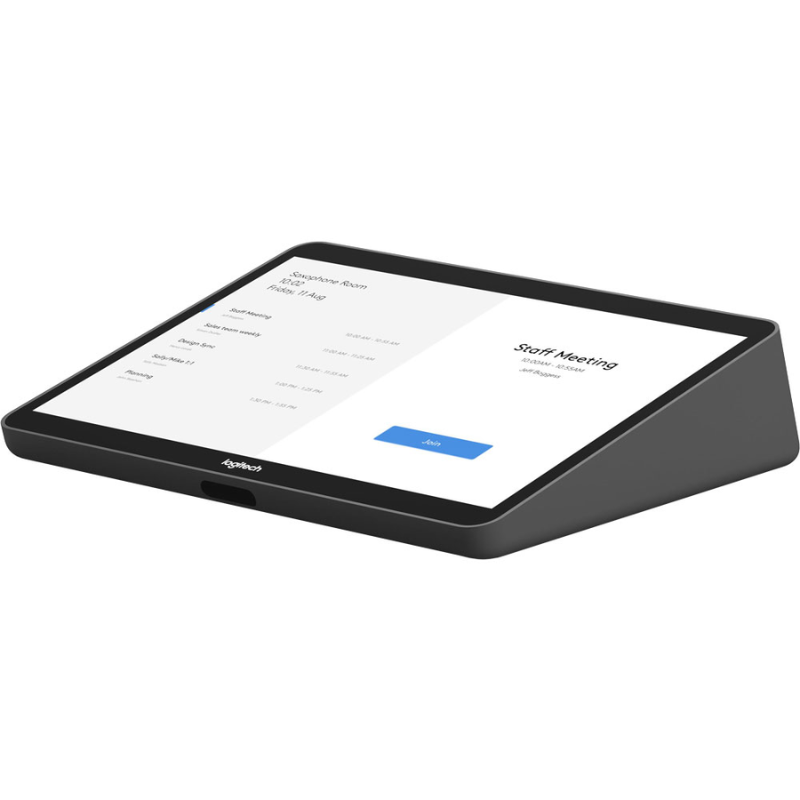

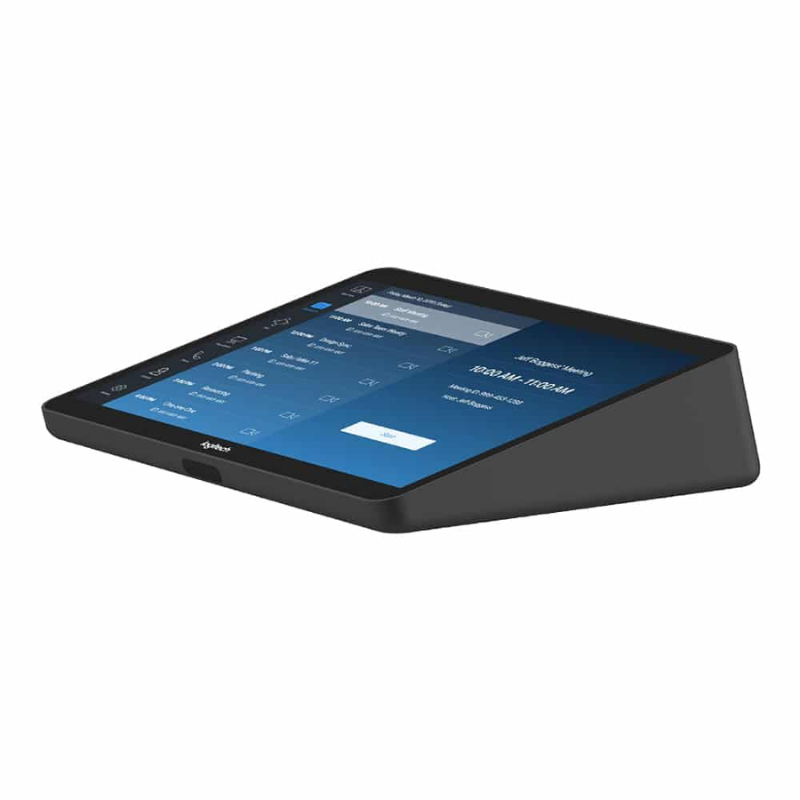

With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap has a sleek and unobtrusive presence in the room.

Simple and Secure Cabling

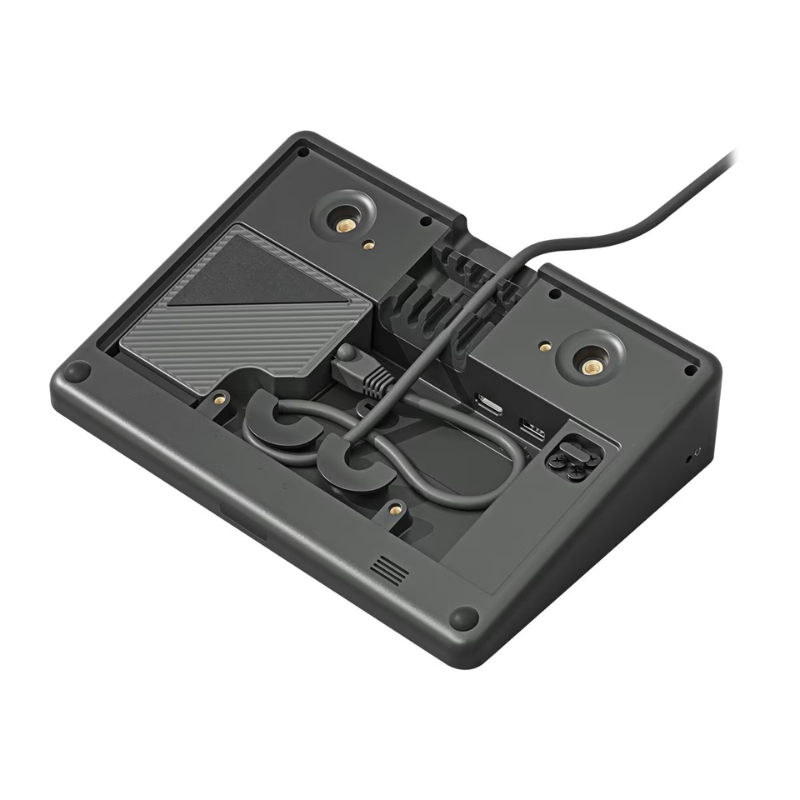

Route cables out the back or through the bottom. Keep connections tight with built-in strain relief and retention mechanisms.



Multiple Mounting Options

Install Tap almost anywhere in the room with Table and Riser Mounts that fit standard grommets and rotate 180° for visibility and convenience, or save table space in small rooms with the Wall Mount.



CLEAN INSTALLATION

Flexible cabling lets you locate Tap near participants for convenient operation while installing the host computer in a cabinet, beneath a table, or behind a display.

Shown with Tap, PC, and Logitech Rally Bar (USB mode).

Simple To Manage

With Logitech Sync, you can monitor and manage Tap along with your other meeting room devices from one single platform.

Logitech Tap is a 10.1″ capacitive touchscreen controller that enables one‑touch join, calendar integration, content sharing, and motion‑activated wake. With the Cat5e Kit, it can be placed up to 40 meters (131 ft) from the host room computer—transmitting both power and data over Cat5e cable. Internal cable retention, USB strain relief, and mounting options (table, riser, wall) ensure a clean professional installation.
Certified for Microsoft Teams Rooms on Windows, Zoom Rooms, and Google Meet VTC solutions.

Specifications & Details

Part Number

939-001953

Dimensions

Height: 58 mm
Width: 244 mm
Depth: 179 mm
Weight: 1.25 kg
Touch Screen
  • 10.1” diagonal screen with 14° display angle
  • Oleophobic and anti-glare coating
  • 1280 x 800 resolution

Technical Specifications

General Specifications
  • Internal cable retention and strain relief system
  • Integrated ultrasonic speaker
  • Integrated PIR Motion Sensor
  • 100mm x 100mm VESA FDMI (Flat Display Mounting Interface)
  • Kensington Lock slots (2)
COMPATIBILITY AND CERTIFICATIONS
  • Logitech Tap is certified or compatible as a touch controller for video conferencing room solutions
    • Google Meet
    • Microsoft Teams Rooms on Windows
    • Zoom Rooms
  • For the latest compatibility information, see https://www.logitech.com/support/tap-compatibility
DisplayLink Plug and Display™
  • Tap connects via USB as an additional display for supported operating systems, including Windows 10 and ChromeOS
Optional Accessories
  • Table Mount
  • Riser Mount
  • Wall Mount

Warranty Information

Ensure peace of mind with an extended warranty for Tap, adding one additional year to the standard two-year limited hardware warranty.
Contact your reseller for availability.

Compatibility

System Requirements
  • Windows 10 and higher
  • ChromeOS™ 80 and higher
  • Logitech CollabOS
  • USB 2.0 or higher Type A port
PORTS AND INTERFACES
  • USB Type C (for Tap Receiver)
  • USB 2.0 Type A (for accessory connection)
  • HDMI input (for 1080p video + audio content sharing)
  • 3.5 mm 4 pole Headset Jack

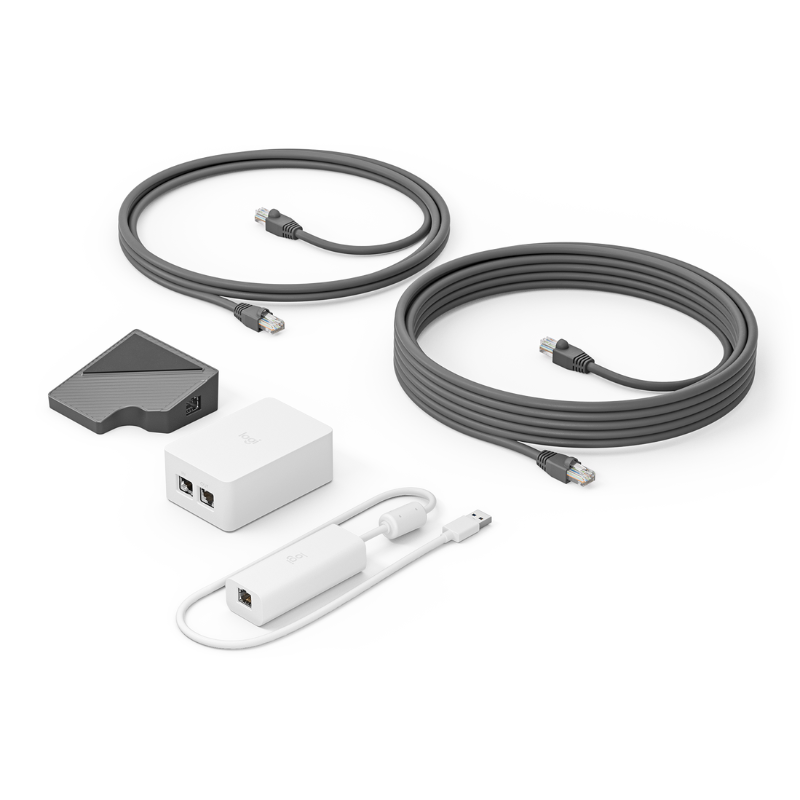

What’s in the Box ?

  • Tap Touch Controller
  • Cat5e Kit
  • - Logitech Tap Receiver
  • - Dongle Transceiver
  • - 100-240v Power Supply with International Adaptor Set
  • - 2.97 m Cat5e Cable
  • - 7.0 m Cat5e Cable
  • HDMI 1.4a cable 2.0 m
  • VESA Mounting Screws (4)
  • Microfiber Cloth
  • Documentation

Additional Resources

Data-Sheet :

Download
