Logitech Swytch – USB-C BYOD Switch Dock

Name: Logitech Swytch – USB-C BYOD Switch Dock
SKU: 6032
Availability: InStock

•BYOM Connectivity:Logitech Swytch links laptops (Windows® 10, MacBook®, Chromebook) to room AV equipment via USB Type A or C.
•Versatile Compatibility:Works with dedicated computers, appliance-based conference cameras, supporting Microsoft Teams Rooms and Zoom Rooms.
•Simple Setup, High Quality:Enjoy broadcast-quality video and content sharing up to 4K resolution with a single-cable laptop link for every meeting room.

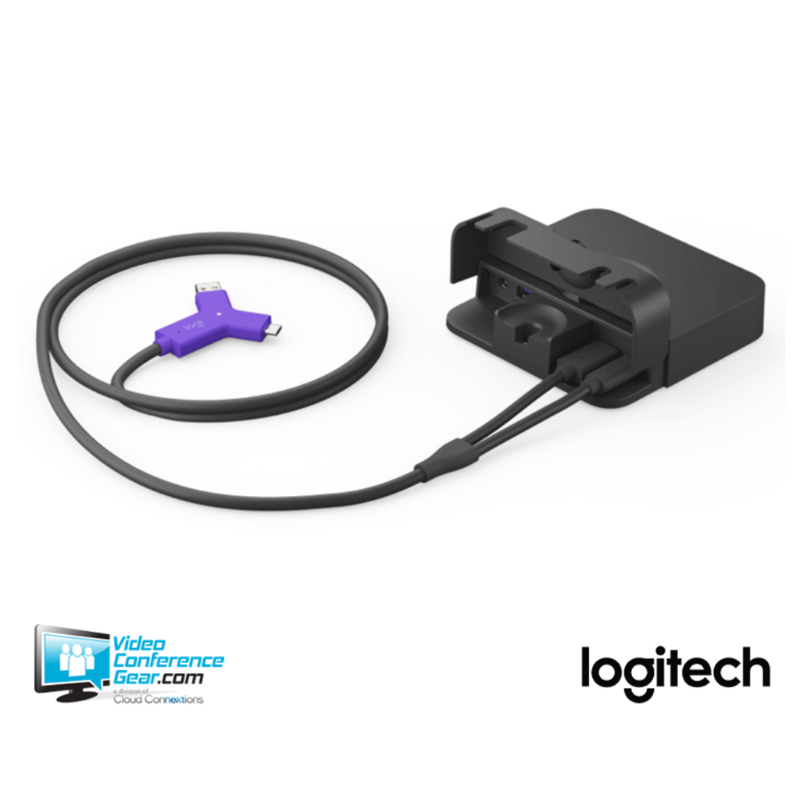

The Logitech Swytch (Model 952‑000011) is a compact and powerful BYOD (Bring Your Own Device) solution designed to simplify the connection between laptops and meeting room AV equipment. With a single USB-C cable, users can connect their own devices to the room’s display, camera, microphone, and speaker system—instantly transforming the room into their personal conferencing space.
Swytch makes it easy to join any video meeting from platforms like Zoom, Microsoft Teams, Google Meet, or Webex using your own laptop. It features clean cable management, compatibility with both USB-C and USB-A, and works with virtually any conferencing device. Ideal for hybrid workspaces and modern meeting rooms, Logitech Swytch offers flexibility, simplicity, and universal connectivity.

Specifications & Details

Part Number

952-000011

Dimensions

Swytch Hub

Height: 1.08 in (27.4 mm)
Width: 6.46 in (164 mm)
Depth: 3.54 in (90 mm)

Swytch Extender

Height: 1.08 in (27.4 mm)
Width: 4.72 in (120 mm)
Depth: 4.72 in (120 mm)

Technical Specifications

PORTS AND INTERFACES

Swytch Hub

Power
HDMI 2.0 to Display
HDMI 2.0 to Meeting Room Computer
USB 3.0 Type A to Conference Camera
USB 3.0 Type C to Meeting Room Computer
USB 3.0 Type C to Swytch Extender

Swytch Extender

Power
USB 3.0 Type A to Swytch Hub
USB 3.0 Type C to Swytch Connector
USB 3.0 Micro B to Swytch Connector

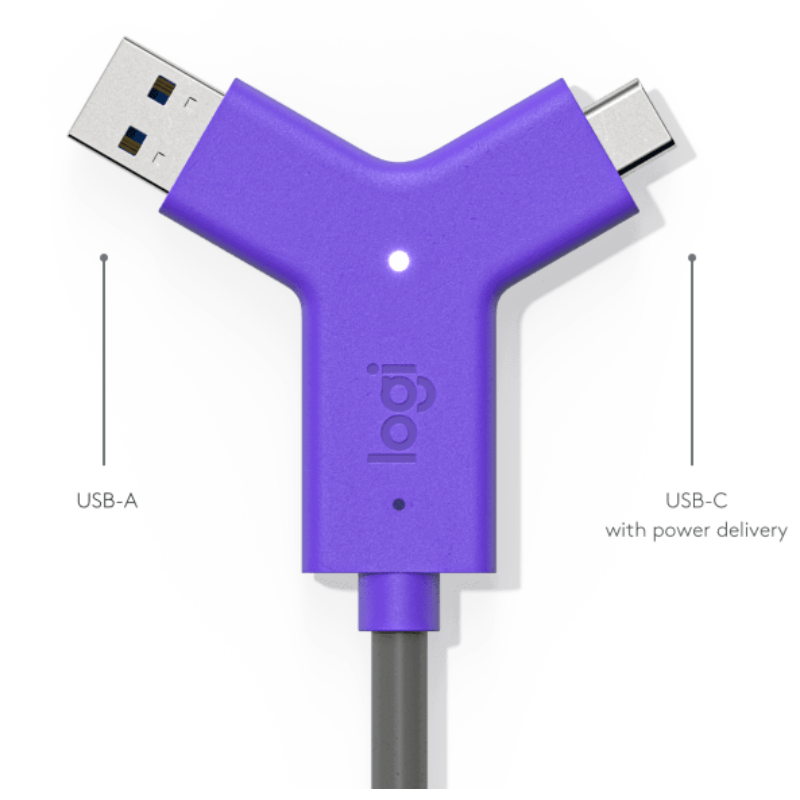

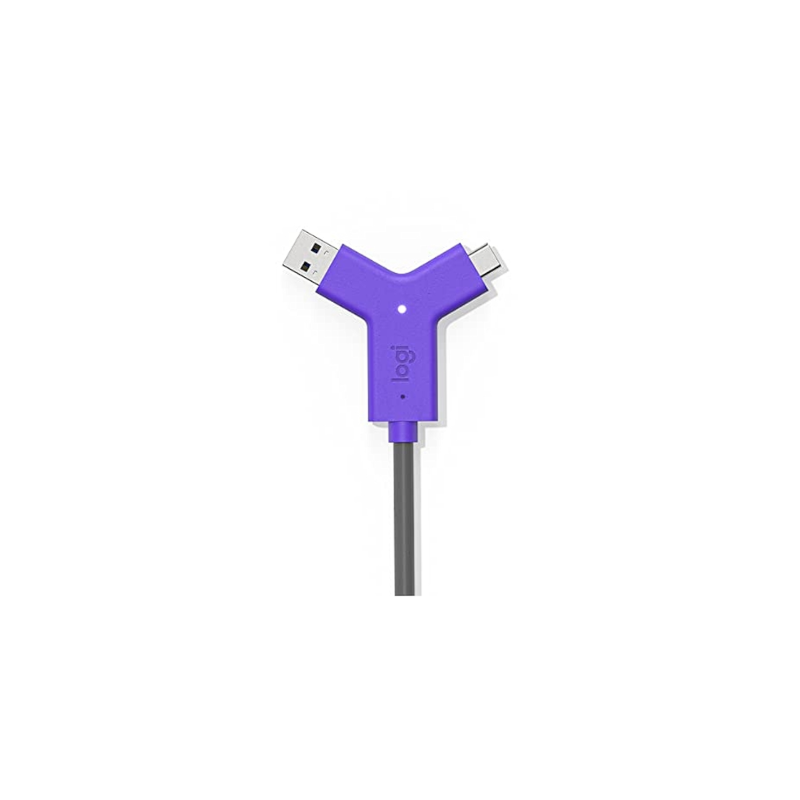

Swytch Connector

USB 3.0 Type A to laptops with Type A ports
USB 3.0 Type C to laptops with Type C ports

Mounts

Swytch Hub: Compatible with Logitech PC Mount (not included)
Swytch Extender: Mount through a 1 in (25 mm) grommet hole or attach below the table with included hardware
Swytch Connector: Magnetic dock included

General Specifications

Number of Meeting Room Displays: 1
Maximum Resolution and Frame Rate, Display: 4K/60 fps
Maximum Resolution and Frame Rate, Camera: 4K/30 fps
Laptop Audio for Local Sharing: Yes
Laptop Audio for Online Meetings: Yes (with services that support content sharing with system audio)
Device Management: Remote monitoring and management via Logitech Sync

Compatibility

Conference Cameras
- Works with Logitech Rally and Rally Plus, Rally Bar, Rally Bar Mini, MeetUp, GROUP, and other conference cameras that connect via USB
Room Solutions
- Microsoft Teams Rooms
- Zoom Rooms
- Also compatible with other room solutions that use USB-connected conference cameras and an HDMI-connected display.
Cabling
- Logitech Strong USB 10m
- Logitech Strong USB 25m

Warranty Information

2-Year Limited Hardware Warranty

Compatibility

Meeting Room Equipment

Display with HDMI input
USB conference cameras with speakerphone

Laptop Computers

USB 3.0 Port (Type A or Type C)
USB Power Delivery (Up to 60 watts) for compatible laptops that charge via USB Type C
Operating Systems with DisplayLink Plug and Display™ Drivers, including Windows 10, macOS® 10.15 and later, and ChromeOS™ 75 or later.

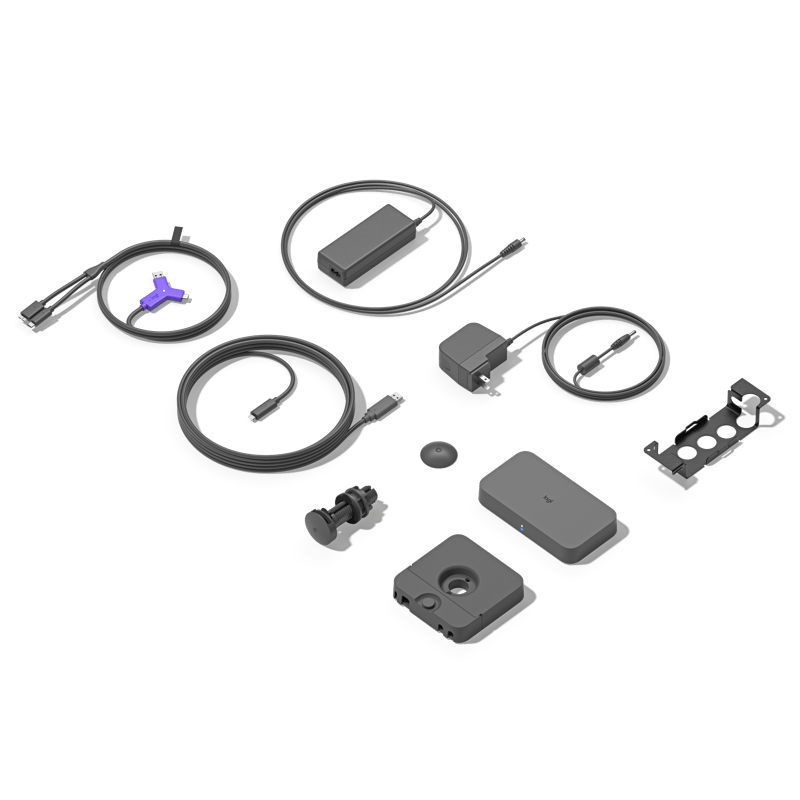

What’s in the Box ?

Swytch Hub
Swytch Extender
Swytch Connector with 4.9 ft / 1.5 m USB Cable
100-240v Swytch Hub Power Supply
100-240v Swytch Extender Power Supply
16.4ft/ 5 m USB 3.0 Cable
7.2 ft /2.2 m USB 3.0 Cable
6.5 ft / 2.0 m HDMI 2.0 Cable
Mounting accessories
Documentation
