Lightware UCX-4x3-TPX-TX20
Lightware UCX-4x3-TPX-TX20 - Image 2
Lightware UCX-4x3-TPX-TX20 - Image 3
Lightware UCX-4x3-TPX-TX20 - Image 4

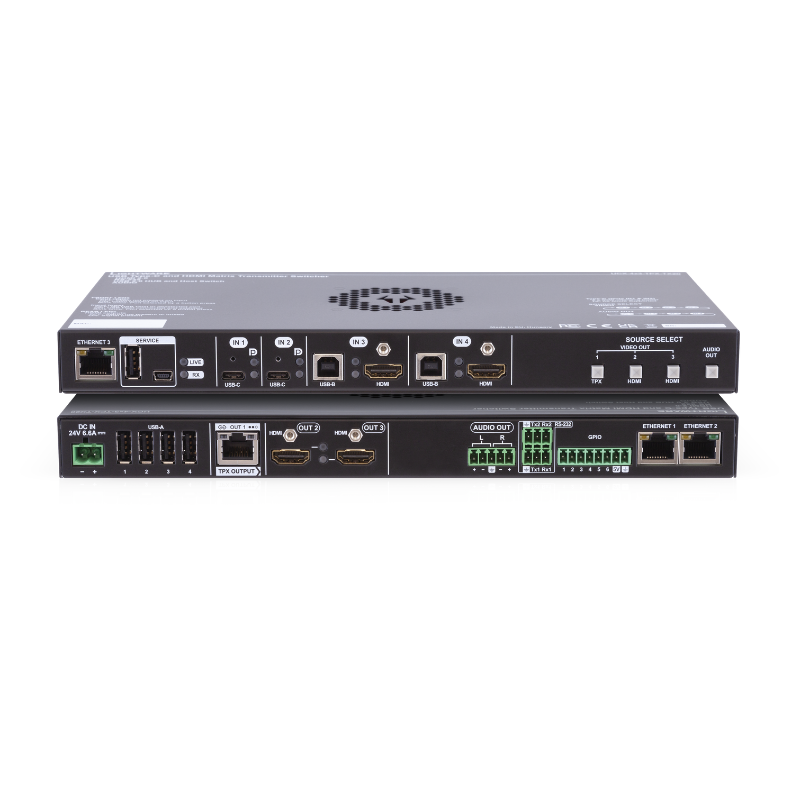

Lightware UCX-4×3-TPX-TX20

•18G 4×3 automatic switcher with HDMI and USB C inputs.
•Single CAT connectivity (up to 100m) between TX and RX devices, supporting power, video, USB 2.0, Ethernet, OCS, and serial.
•Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
•USB-C input for 4K video, audio, data, power, and charging up to 100W via one connection.
•Supports multiple USB 3.1 Gen 1 connections for cameras, speakerphones, touch monitors, and more.
•Separate USB 3.1 Host switching layer for multiple USB hosts and USB devices
•Dedicated secure corporate and room utility Ethernet connectivity
•Automate room control via GPIO, RS-232, and occupancy sensors. Includes analog audio de-embedding for enhanced audio performance.

The Lightware UCX-4×3-TPX-TX20 is a 4×3 KVM BYOD switcher transmitter, ideal for modern meeting rooms and collaborative AV environments. It supports four input sources (including HDMI and USB-C) and provides three outputs over TPX (HDBaseT-style) transmission for long-distance signal extension. This device enables users to easily connect their own devices (BYOD), switch between them, and share content in up to 4K@60Hz resolution while simultaneously controlling USB peripherals such as webcams, keyboards, and speakerphones. The UCX-4×3-TPX-TX20 ensures simple integration, smooth operation, and professional-grade AV switching with USB 2.0 routing and plug-and-play functionality.

Specifications

Category Parameter Details
General Compliance CE; UKCA
  Electrical Safety IEC 61000-3-3:2013+AMD1:2017
  EMC (Emission) IEC/EN 55032:2015
  EMC (Immunity) IEC/EN 55035:2017
  RoHS EN 63000:2018
  Warranty 3 years
  Operating Temperature 0° to +50°C (32° to 122°F)
  Operating Humidity 10% to 90%, non-condensing
  Cooling Cooling fan
  Power Supply Option External 220W Power Supply (for remote powering UCX-TPX-RX)
  Supported Power Source 100–240 V AC, 50/60 Hz
  AC Power Plug Interchangeable (EU, UK, JP/US, AUS/NZ)
  Battery Cell Type BR1632A
Enclosure Material 1 mm steel
  Dimensions (mm) 271 W x 140.3 D x 26 H
  Dimensions (inch) 10.7 W x 5.57 D x 1.01 H
  Weight 900 g (to be confirmed)
Video Inputs USB-C Input 24-pole USB Type-C receptacle
  A/V Standard DP 1.2a
  HDCP Compliance HDCP 1.4, HDCP 2.2
  Color Space RGB, YCbCr
  Video Delay 0 frame
  Max Video Resolution 4096x2160@60Hz RGB 4:4:4 (600 MHz); 1920x1080@120 Hz, 36-bit
  Audio Formats All formats per HDMI 2.0
  3D Support Yes
HDMI Input Connector Type 19-pole HDMI Type A (screw locking)
  A/V Standard DVI 1.0, HDMI 1.4, HDMI 2.0
  Max Data Rate 18 Gbps
  Max Pixel Clock 597 MHz
  HDCP Compliance HDCP 1.4, HDCP 2.2
  Color Space RGB, YCbCr
  Video Delay 0 frame
  Max Resolution 4096x2160@60Hz RGB 4:4:4; 1920x1080@120 Hz, 36-bit
  HDMI Cable Length (4K60 4:4:4) Up to 5m (Premium Certified)
  Re-clocking Pixel Accurate Re-clocking
  3D Support Yes
Audio Mode Simultaneous pass-through and de-embedding
  Pass-through Formats All HDMI 2.0 formats
  De-embedding Formats Uncompressed, Dolby Digital, DTS, Dolby TrueHD, DTS-HD
Video Outputs HDMI Output 19-pole HDMI Type A
  A/V Standard DVI 1.0, HDMI 1.4, HDMI 2.0
  HDCP Compliance HDCP 1.4, HDCP 2.2
  Color Space RGB, YCbCr
  Resolutions Up to UHD/4K@60Hz 4:4:4
  Audio Formats 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1
TPX Output Connector Type RJ45
  Power over Ethernet PoE PD (IEEE 802.3af)
  Data Rate 10GBase-T
  Compliance AVXT
  HDCP Compliance HDCP 2.3
  Transferred Signals Video, Audio, USB 2.0, RS-232, OCS, Ethernet
  Color Space RGB, YCbCr
  Supported Resolutions Up to 4096x2160@60Hz (8-bit, 4:4:4)
  Audio Formats 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1
Audio Ports Analog Output 5-pole Phoenix
  Format 2-channel PCM


Features

Universal Switcher Transmitter for Simple Signal Management

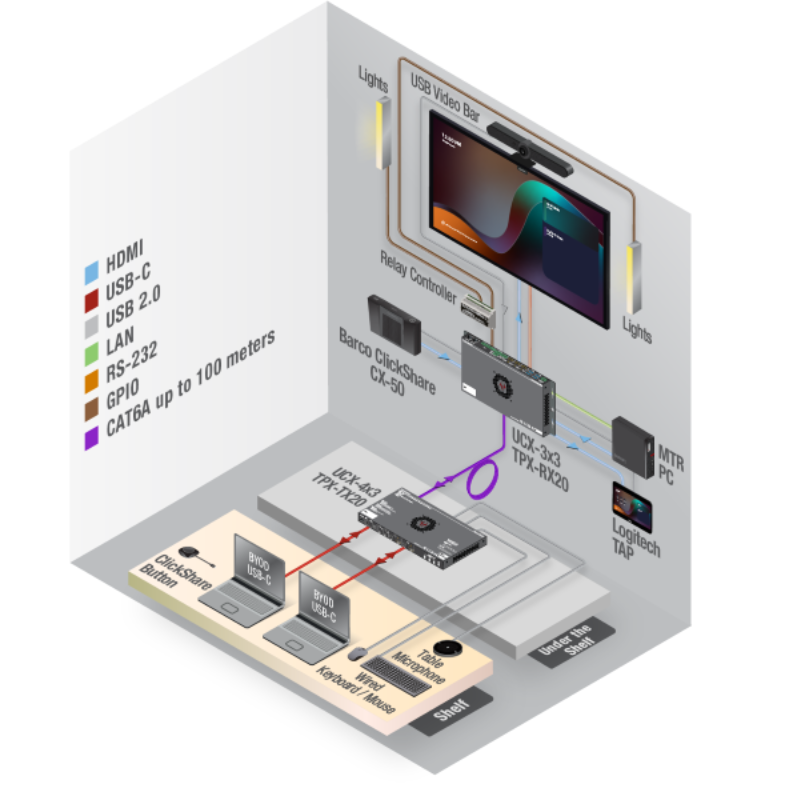

Lightware’s universal switcher transmitter is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management and connectivity. Such functionality includes video resolution up to 4K@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features. At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and USB 2.0 data in the other, up to a transmission distance of 100m.

Remote powering

Moreover, the transmitter can provide remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.

Also available with NIST FIPS 140-2 certified cryptography (SKU: 91360034)

Remote System Logging (Syslog)

Taurus devices now support remote system logging via industry-standard Syslog protocols (RFC3164 and RFC5424). This allows seamless integration with external SIEM and log monitoring systems.

  • Forward logs via TCP, UDP, TLS
  • Choose between human-readable and structured formats
  • Easy configuration via LW3 protocol
  • Local journald logging remains unaffected

What’s in the Box ?

  • UCX‑4×3‑TPX‑TX20 transmitter unit

  • Power adapter (12 V DC) with interchangeable AC plugs (EU, UK, US, JP/AUS/NZ) for global compatibility

  • Phoenix connectors:

    • 3‑pole (RS‑232)

    • 3‑pole (occupancy sensor OCS)

    • 5‑pole (balanced analog audio output)

  • M3×4 mm screws for rack or shelf mounting

  • USB‑A downstream ports pre-installed for connecting peripherals

  • Quick Start Guide and Safety & Warranty documentation

Additional Resources

User-Manual :

Download
