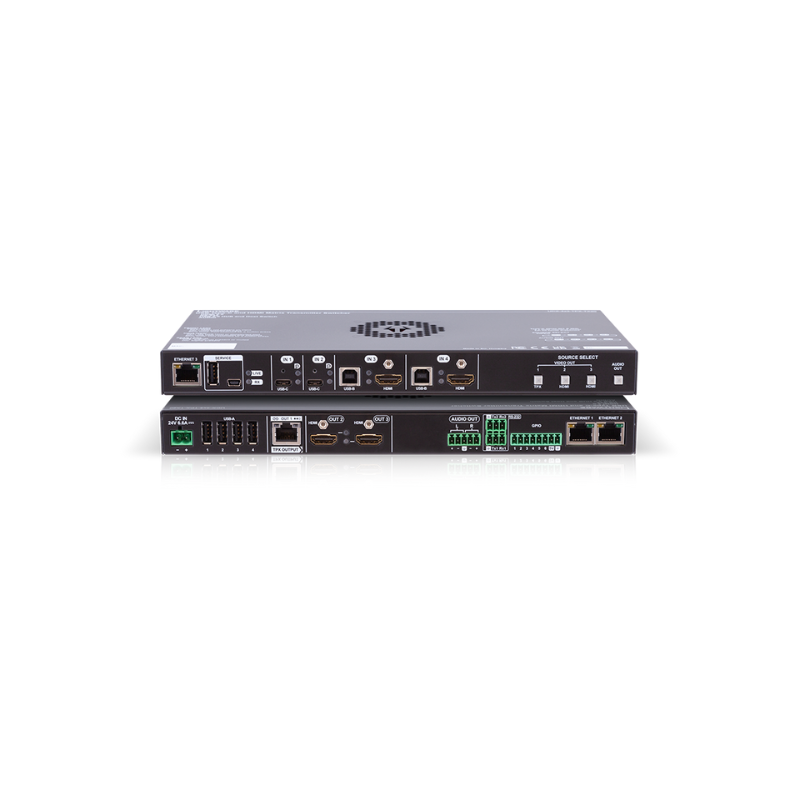

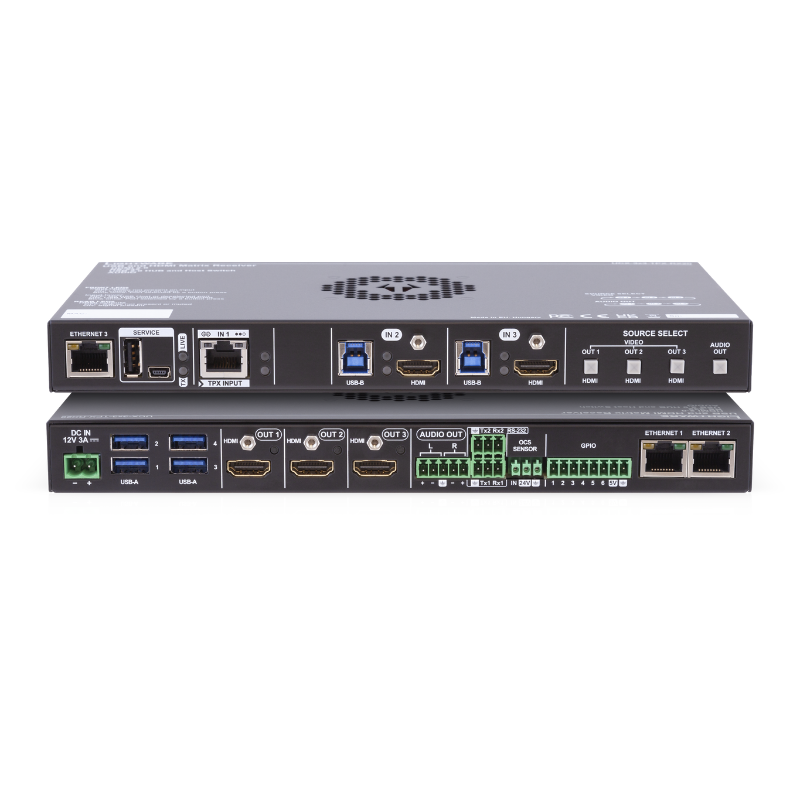

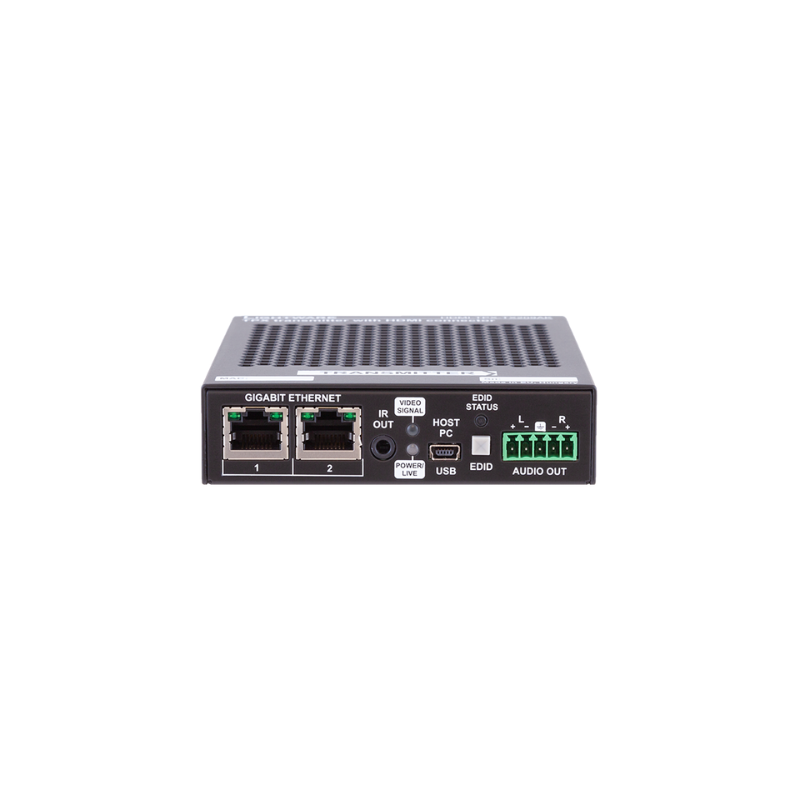

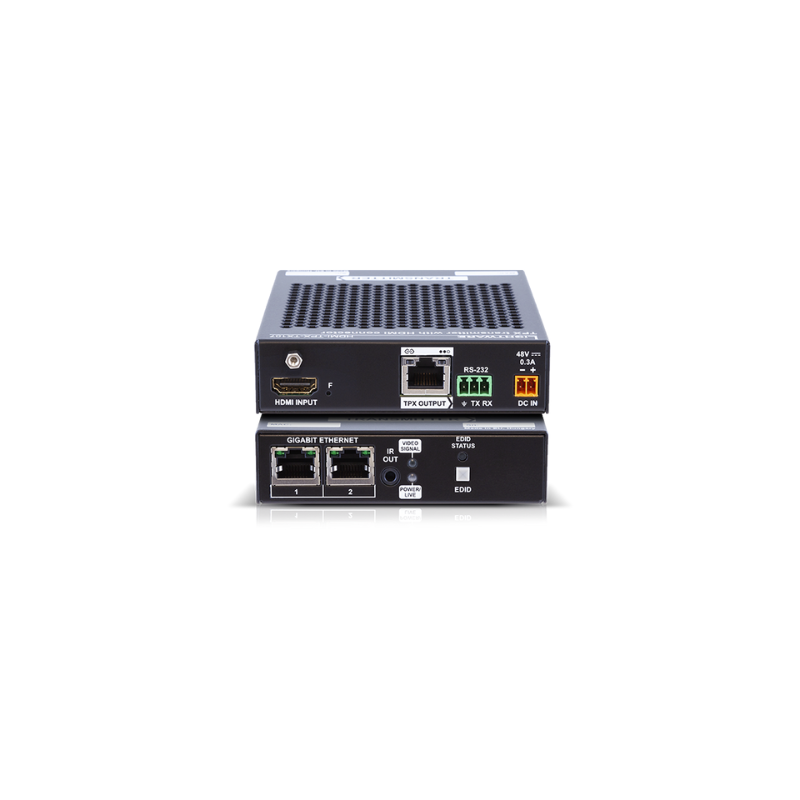

Lightware UCX-3×3-TPX-RX20

Name: Lightware UCX-3x3-TPX-RX20
SKU: 5421
Availability: InStock

•18G 3×3 automatic switcher with 2 HDMI USB & 1 TPX Input.
•Independent USB host switching for up to 8 devices (4 at TX, 4 at RX) for seamless connectivity.
•Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
•Supports multiple USB connections for various devices, including cameras, speakerphones, touch monitors, and USB-HID devices.

The Lightware UCX-3×3-TPX-RX20 is a high-performance 3×3 KVM BYOD switcher system with integrated transmitter (TX) and receiver (RX) components, designed for modern hybrid meeting rooms and collaboration spaces. Supporting three inputs and three outputs across HDMI, USB-C, and USB peripherals, this system allows seamless control and switching between multiple user devices. With advanced USB 2.0 routing, 4K@60Hz video support, and long-distance signal transmission via Lightware’s TPX (extender) technology, the UCX-3×3-TPX-RX20 provides unmatched flexibility and reliability for BYOD environments. It enables users to connect laptops and control shared peripherals like webcams, microphones, keyboards, and displays—all with simple plug-and-play functionality.

Specifications

General Information :

Parameter	Details
Compliance	CE; UKCA
Electrical Safety	EN 62368-1:2014
EMC (Emission)	EN 55032:2015
EMC (Immunity)	EN 55035:2017
RoHS	EN 63000:2018
Warranty	3 Years
Operating Temperature	0° to +50°C (+32° to +122°F)
Operating Humidity	10% to 90% (non-condensing)
Cooling	Passive
Enclosure Material	1 mm Steel
Rack Mountable	Yes, with mounting accessories
Dimensions (W x D x H)	246 x 140.3 x 26 mm
Weight	936 g

Power Specifications :

Parameter	Details
Power Supply Option	External 80W Power Supply
Supported Power Source	100–240 V AC, 50/60 Hz
Power Consumption	9W
Supplied Power Adaptor	12V DC, 2A
AC Power Plug	Interchangeable (EU, UK, JP/US, AUS/NZ)
DC Power Plug	Locking DC connector (2.1/5.5 mm pin)

Video Ports (HDMI Output) :

Parameter	Details
Connector Type	3x HDMI Type A with screw locking option
AV Standard	DVI 1.0, HDMI 2.0
HDCP Compliance	HDCP 2.3
Color Space	RGB, YCbCr
Supported Resolutions (8 bits/color)	Up to 4096x2160 @ 60Hz (4:4:4)
Audio Formats	8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1

HDMI Input :

Parameter	Details
Connector Type	2x HDMI Type A with screw locking option

TPX Input :

Parameter	Details
Connector Type	RJ45
Power over Ethernet	PoE PD (IEEE802.3af)
Data Rate	10GBase-T
Compliance	AVXT
HDCP Compliance	HDCP 2.3
Transferred Signals	Video, Audio, USB 2.0, RS-232, OCS, Ethernet
Color Space	RGB, YCbCr
Supported Resolutions (8 bits/color)	Up to 4096x2160 @ 60Hz (4:4:4)
Audio Formats	8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1

Audio Ports :

Parameter	Details
Analog Audio Output	5-pole Phoenix connector
Audio Format	2-channel PCM
Sampling Frequency	48 kHz
Signal Transmission	Balanced Signals

Control Ports :

Parameter	Details
Ethernet Port (Connector)	RJ45 Female
Number of Ethernet Ports	3
Ethernet Data Rate	1GBase-T, full duplex with auto-detect
RS-232 Serial Port	3-Pin Phoenix
RS-232 Default Settings	9600 Baud, 8N1

USB Ports :

Parameter	Details
USB Type B (Service)	1x Mini USB Type B (Reserved for service)
USB Type A (Future Use)	1x USB Type A
USB Type B (Host Devices)	2x USB Type B (USB 3.1)
USB Type A (Peripherals)	4x USB Type A (USB 3.1)

Sensors & GPIO :

Parameter	Details
Room Occupancy Sensor	3-Pin Phoenix connector
GPIO	8-Pin Phoenix connector

Features

Exploit the Possibilities of USB connectivity

Lightware’s UCX Smart Matrix Switcher receiver is part of a transmitter-receiver configuration that provides the same functionality as the UCX product range in terms of signal management adding extra connectivity on the receiver side. Next to the TPX input the device also has 2 local HDMI 2.0 and USB3.1 Gen1 connectors for Room PC and other room equipment (e.g. webcamera, speakerphone, multitouch display, etc.).

Its functionality includes video resolution up to 4K@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features. At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and USB 2.0 and control data in the other, up to a transmission distance of 100m.

Also available with NIST FIPS 140-2 certified cryptography (SKU: 91360036).

Remote System Logging (Syslog)

Taurus devices now support remote system logging via industry-standard Syslog protocols (RFC3164 and RFC5424). This allows seamless integration with external SIEM and log monitoring systems.

Forward logs via TCP, UDP, TLS

Choose between human-readable and structured formats

Easy configuration via LW3 protocol

Local journald logging remains unaffected

What’s in the Box ?

UCX‑3x3‑TPX‑RX20 receiver unit
Assorted Phoenix connectors (3‑pole, 8‑pole) for RS‑232, GPIO, and OCS
External power supply (12 V DC, 2 A)
Quick Start Guide, Safety and Warranty documentation
Rack-mounting hardware (mounting accessories included)
