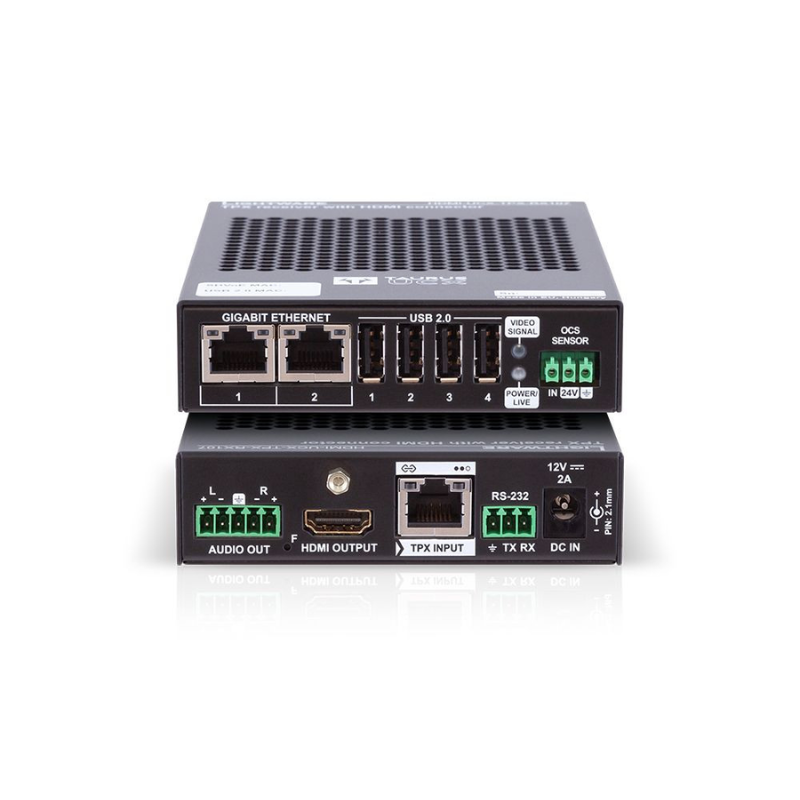

Lightware TPX-4x3-TX20-RX107 bundle

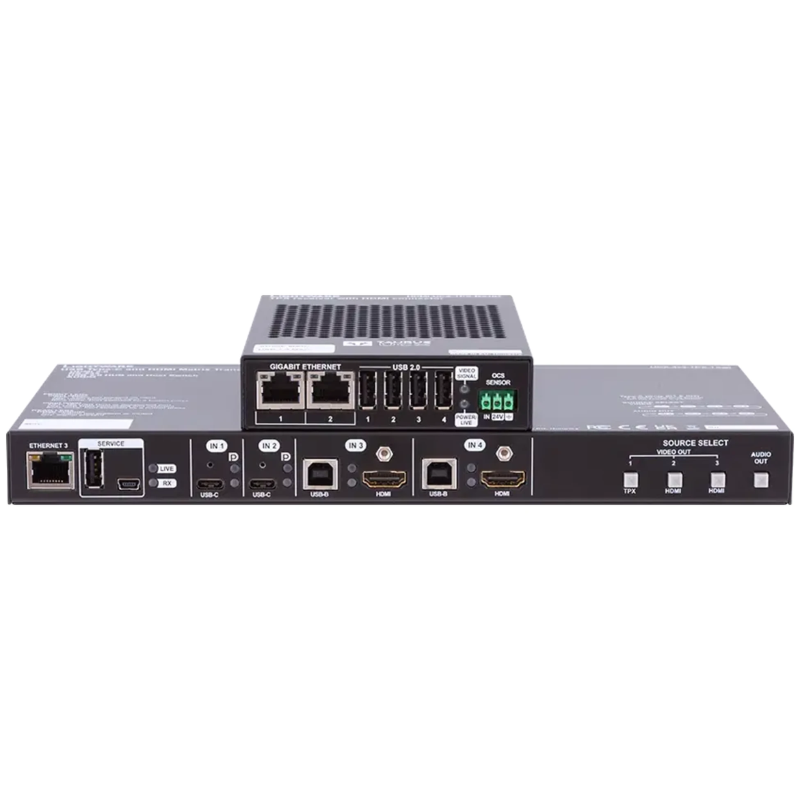

Lightware TPX-4x3-TX20-RX107 bundle - Image 2

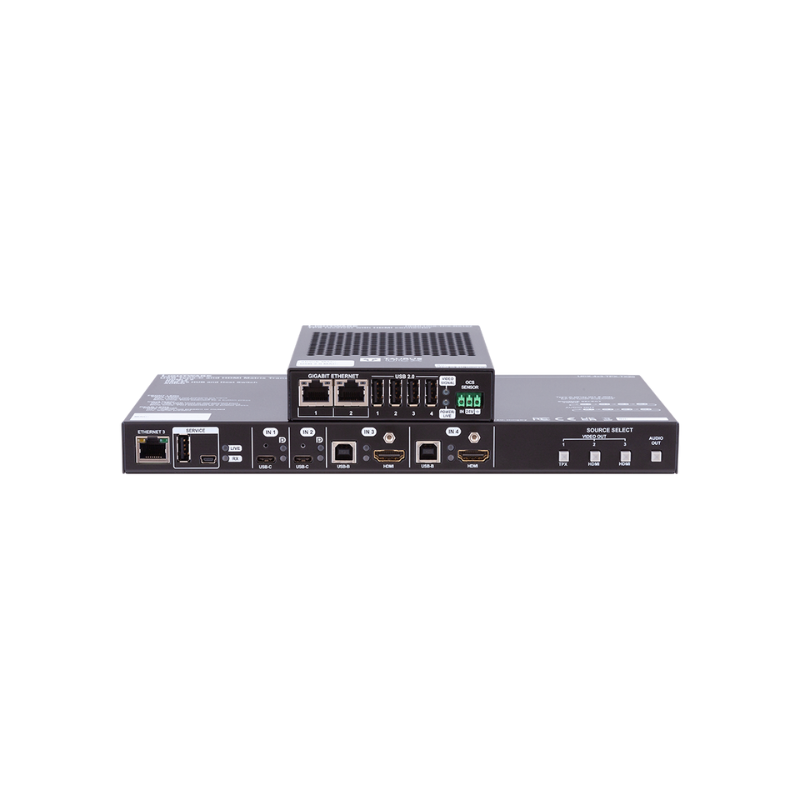

Lightware TPX-4x3-TX20-RX107 bundle - Image 3

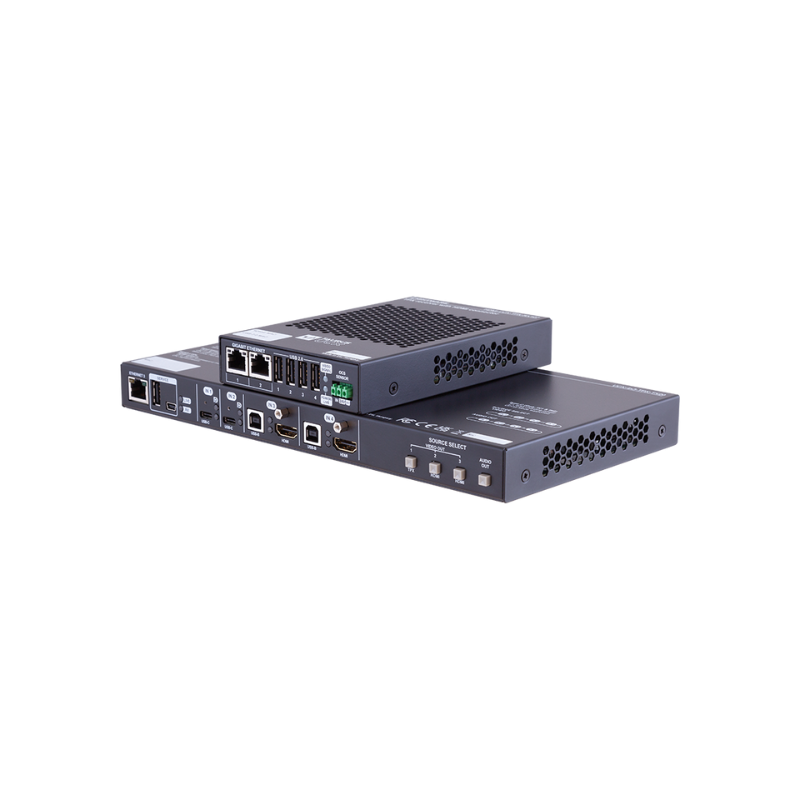

Lightware TPX-4x3-TX20-RX107 bundle - Image 4

Lightware TPX-4×3-TX20-RX107 bundle

•18G 4×3 automatic switcher with HDMI and USB C inputs with Receiver.
•Single CAT connectivity (up to 100m) between TX and RX devices, supporting power, video, USB 2.0, Ethernet, OCS, and serial.
•Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
•USB-C input for 4K video, audio, data, power, and charging up to 100W via one connection.
•Supports multiple USB 3.1 Gen 1 connections for cameras, speakerphones, touch monitors, and more.
•Separate USB 3.1 Host switching layer for multiple USB hosts and USB devices
•Dedicated secure corporate and room utility Ethernet connectivity
•Automate room control via GPIO, RS-232, and occupancy sensors. Includes analog audio de-embedding for enhanced audio performance.

The Lightware TPX-4×3-TX20-RX107 is a complete 4×3 KVM BYOD switcher bundle, combining the TX20 transmitter and RX107 receiver for a seamless AV extension and switching solution. Designed for hybrid meeting rooms and collaborative spaces, this bundle supports up to 4 inputs (HDMI/USB-C) and 3 extended outputs via TPX long-distance CAT cabling. It delivers 4K@60Hz video quality with USB 2.0 peripheral routing for easy control of connected devices like webcams, keyboards, and speakerphones. With auto-switching, intuitive controls, and plug-and-play compatibility, the TPX-4×3-TX20-RX107 bundle ensures professional-grade AV performance and integration.





Specifications

Category Parameter Details
Video Resolution Up to UHD/4K@60Hz 4:4:4
  Signal Type DP Alt Mode, HDMI 2.0, HDMI 1.x, DVI
  Maximum Data Rate 18 Gbps
  Maximum Pixel Clock 600 MHz
  Content Protections HDCP 1.x, HDCP 2.2
  Connector Type (Input) 2x HDMI Type-A with screw locking, 2x USB-C with screw locking
  Connector Type (Output) 3x HDMI Type-A with screw locking
  Video Processing Signal parameter measurement
Audio Audio Mode Simultaneous pass-through and de-embedding to audio layer
  Supported Audio Formats (Pass-through) All HDMI 2.0 audio formats
  Supported Audio Formats (De-embedding) Uncompressed HDMI Stereo can be de-embedded to 2-channel Dante/AES67 streams
Control Ethernet - Control 1x 100Base-T via RJ-45 (Secure Control)
  Ethernet - User Data 2x 100Base-T via RJ-45 (Configurable Ethernet)
  RS232 Connector 2x 3-pin Phoenix
  RS232 Symbol Rate 9600 to 115200 baud
  RS232 Configuration Parity: none, odd or even; Stopbits: 1 or 2
  USB Connectors 2x USB Type-C with charging (up to 100W, 120W total), 1x Mini USB Type-B (service), 1x USB Type-A (future use), 1x USB Type-B (Host PC), 1x USB Type-C (Host PC), 4x USB Type-A (Peripherals)
  Room Occupancy Sensor 1x 3-pin Phoenix
  GPIO Connector 1x 8-pin Phoenix
General Powering External 160W power supply
  Dimensions (W x H x D) 246 mm x 26 mm x 150 mm
  Operating Temp. 0–50°C
  Operating Humidity 0–90% (non-condensing)
  Transport Temp. -20–70°C
  Transport Humidity 0–95% (non-condensing)
  Compliance EN 55032:2015, IEC 61000-3-3:2013+AMD1:2017, FCC CFR Title 47, Part 15, Subpart B
  Warranty 3 Years

Features

Lightware’s universal transmitter-receiver configuration provides the same functionality as the UCX product range in terms of signal management and connectivity. (Such functionality includes video resolution up to 4K@60Hz 4:4:4 through the USB-C and HDMI inputs, easy USB host switching, and advanced security features). At the same time, the bundle overcomes the limitations imposed by the USB and HDMI cables and allows for the extension of video, audio, and control signals in one direction and the USB 2.0 data in the other up to a transmission distance of 100m.

Moreover, the transmitter can provide remote power to the connected receiver up to the power limit of 25.4W of the PoE+ specification.

TX also available with NIST FIPS 140-2 certified cryptography (SKU: 91360034)

What’s in the Box ?

  • UCX‑4×3‑TPX‑TX20 transmitter unit

  • HDMI‑UCX‑TPX‑RX107 receiver unit

  • External power adapter (typically 220 W) with global interchangeable AC plugs and IEC cable

  • Phoenix plug connectors for RS‑232, GPIO, occupancy sensor, and analog audio de‑embed (5‑pole)

  • Quick Start Guide, Safety & Warranty pamphlets

  • Mounting screws and accessories for installation
