MMX8x8-HDMI-4K-A-USB20

Name: MMX8x8-HDMI-4K-A-USB20
SKU: 5417
Availability: InStock

•8×8 automatic switcher with HDMI inputs.
•Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4)
•Balanced analog audio output for audio de-embedding
•Built-in Event Manager control automation feature

The Lightware MMX8x8-HDMI-4K-A is a professional 8×8 HDMI matrix switcher designed for high-performance AV systems that demand flexibility, clarity, and audio integration. It allows switching of up to 8 HDMI input sources to any of the 8 HDMI outputs independently. With support for resolutions up to 4K and HDCP 2.2 compliance, this device is ideal for complex installations such as corporate AV, digital signage, control rooms, and multi-display presentations. Built-in audio de-embedding and advanced EDID management make it a complete solution for modern signal distribution systems.

Specifications

Specification	Details
Product Type	HDMI Matrix Switcher
Brand	Lightware
Model	MMX8x8-HDMI-4K-A
Input Ports	8 x HDMI
Output Ports	8 x HDMI
Max Resolution Support	4K@30Hz (depends on exact model variant)
HDMI Version	HDMI 1.4 / 2.0 (Confirm per specific model)
HDCP Support	HDCP 2.2 Compliant
Audio Support	Embedded Audio + De-Embedded Analog Audio Outputs
EDID Management	Advanced EDID Handling
Control Options	Front Panel, RS-232, TCP/IP, Web UI
Switching Mode	Matrix Routing (Any Input to Any Output)
Use Case	AV Integration, Command Centers, Digital Signage
Power Supply	Internal or External (Check with supplier)
Mounting Type	Rack Mountable
Warranty (if applicable)	Typically 1–3 Years (Verify with Manufacturer)

Features

Keep everything under control

MMX8x8-HDMI-4K-A-USB20 is an integrator-friendly, 8x8 matrix switcher for HDMI video and USB2.0 peripherals.

It has eight HDMI inputs and eight independent HDMI outputs, as well as a USB 2.0 layer that provides the switching of four external USB peripherals (such as webcamera, speakerphone, multitouch display, etc.) to four independent computers or laptops. As an additional benefit, the device offers full 480Mbps data speed over USB 2.0.

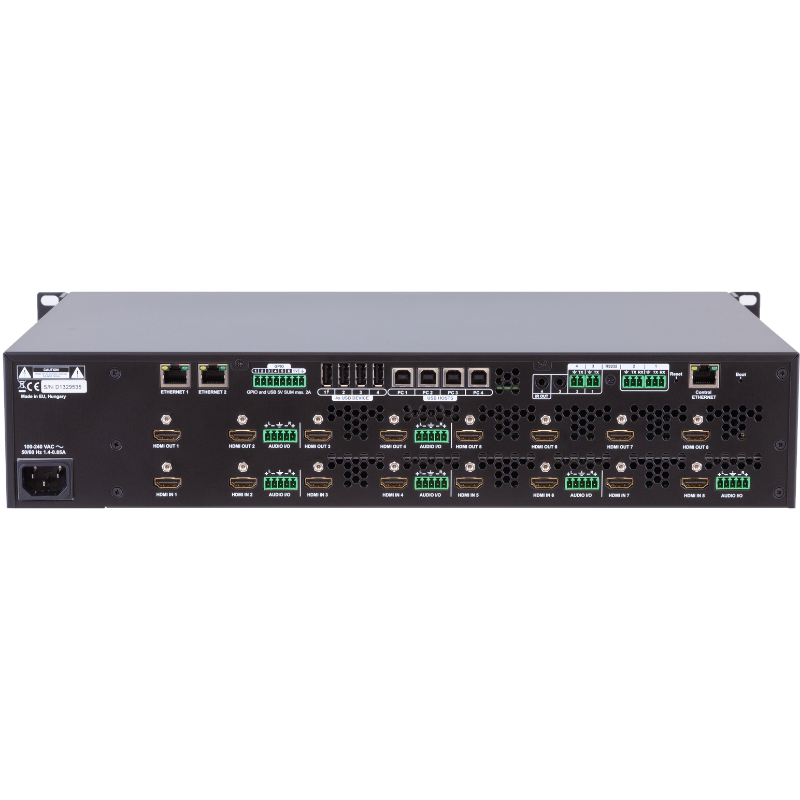

The MMX8x8-HDMI-4K-A-USB20 offers 4+2 balanced, bi-directional, 5-pole Phoenix audio ports for embedding and de-embedding audio signals.

Bespoke USB functionality

Unique USB functions allow seamless integration in Unified Communication and small Video Conference rooms. The ”USB 5V Host Detect” function recognizes when a USB cable is connected and performs condition triggering for the Event Manager. For example, switch USB devices to the last connected USB laptop if configured accordingly. The ”USB 5V PWR Switch” turns ON or OFF peripherals’ 5Volt over the USB cable.

”USB Disconnect” helps Cisco Room Kit Mini and Touch 10 control unit to switch between Webcam and Webex video conferencing operation modes. It also solves the problem when Cisco Touch 10 gets locked in USB webcam operation and touch buttons become unavailable.

Enhanced Room Control

MMX8x8-HDMI-4K-A-USB20 and built-in Event Manager automation makes the meeting room easy, intuitive and hassle-free: it detects powered computers, turns on the screen and camera, and prepares for the next call. Based on the specific configuration it allows auto-switch for USB and video signals. In other cases USB may not follow video, according to the application.

Easy Cisco Integration

MMX8x8-HDMI-4K-A-USB20 seamlessly integrates with Cisco Rooms, and also offers users unprecedented flexibility to utilize the Cisco Webex Room kits as a USB camera if they prefer to use a 3rd party video conference platform.

What’s in the Box ?

MMX8x8-HDMI-4K-A-USB20 Main Unit
Power Adapter with Cable
Rack Mount Kit (Ears + Screws)
Phoenix Connectors (for audio)
USB Cable (Mini-B)
User Manual / Quick Start Guide
IR Remote (if included)
Ethernet Cable (optional)
