Lightware MMX2‑4×3‑H20 HDMI 2.0 Matrix Switcher

Name: Lightware MMX2‑4x3‑H20 HDMI 2.0 Matrix Switcher
SKU: 5415
Availability: InStock

•4×3 automatic switcher with HDMI inputs.
•Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
•Occupancy sensor connection (with 24V power supply)
•Includes automated room control via GPIO, RS-232, and occupancy sensor connectivity.
•The switcher supports analog audio de-embedding for enhanced audio capabilities.

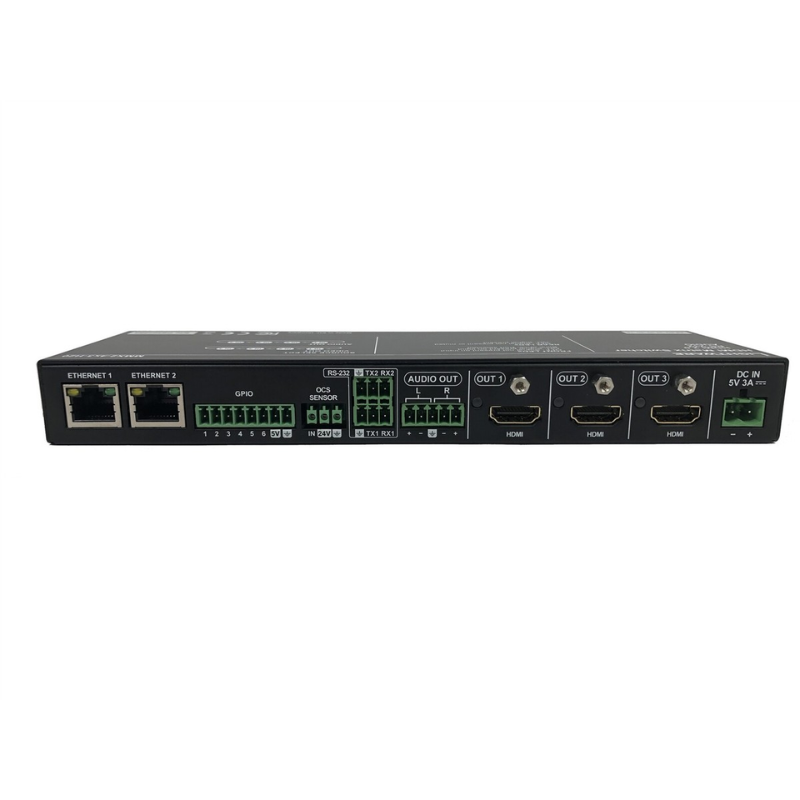

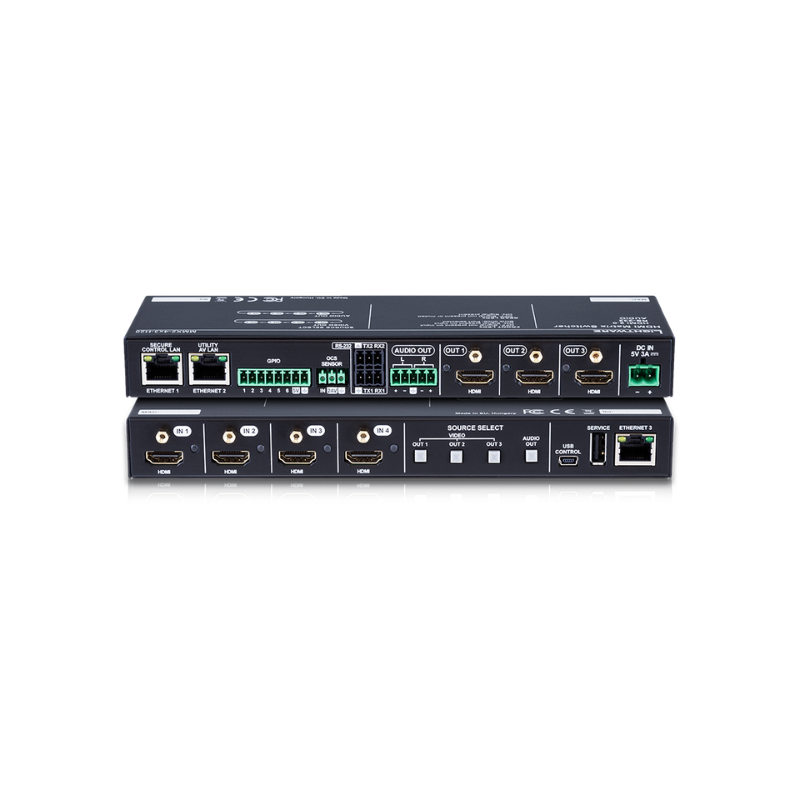

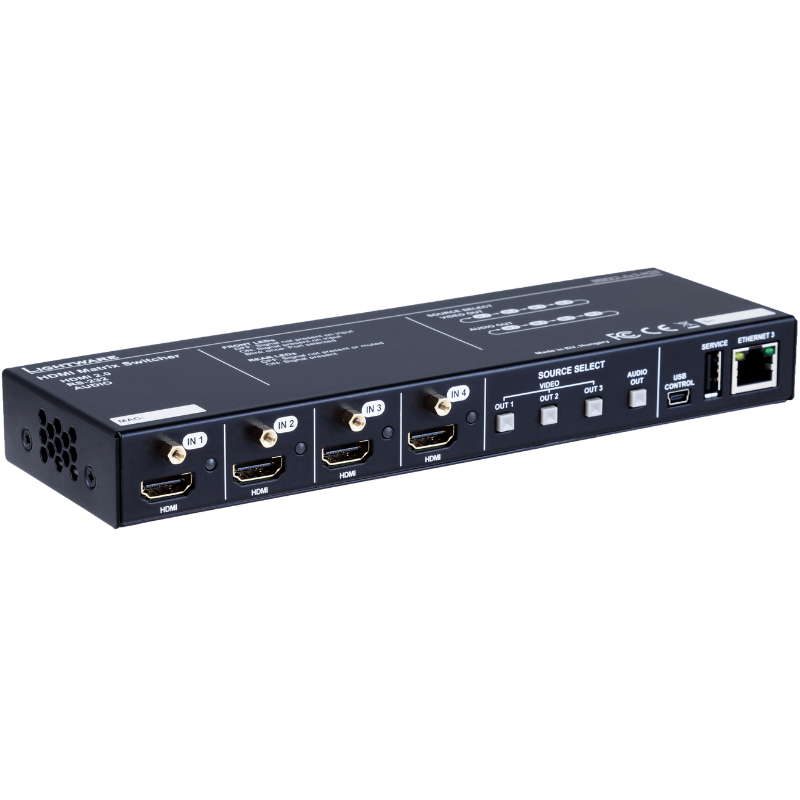

The Lightware MMX2-4×3-H20 is a high-performance 4×3 HDMI 2.0 matrix switcher designed for advanced AV environments where multiple input sources need to be routed to multiple displays. Supporting up to four HDMI inputs and three independent HDMI outputs, this matrix switcher delivers ultra-clear 4K@60Hz video with full 4:4:4 color sampling and HDCP 2.2 compliance. Ideal for conference rooms, classrooms, control centers, and digital signage systems, the MMX2-4×3-H20 offers flexible switching, reliable signal management, and intuitive control options. Its compact size and robust build make it suitable for both standalone and integrated installations.

Specifications

Specification	Details
Product Type	HDMI Matrix Switcher
Brand	Lightware
Model	MMX2-4x3-H20
Input Ports	4 x HDMI
Output Ports	3 x HDMI
HDMI Version	HDMI 2.0
Max Resolution Support	4K@60Hz (4:4:4)
HDCP Support	HDCP 2.2 Compliant
Switching Mode	Matrix Routing (Any Input to Any Output)
EDID Management	Yes
Control Options	RS-232, TCP/IP, Front Panel
Audio Support	HDMI Embedded Audio Pass-Through
Use Case	Corporate AV, Classrooms, Control Rooms, Signage
Power Supply	External Adapter
Mounting Type	Surface or Rack Mountable
Warranty	Typically 1–3 Years (Confirm with Vendor)
