Sale!
Lightware MMX2‑4x1‑H20

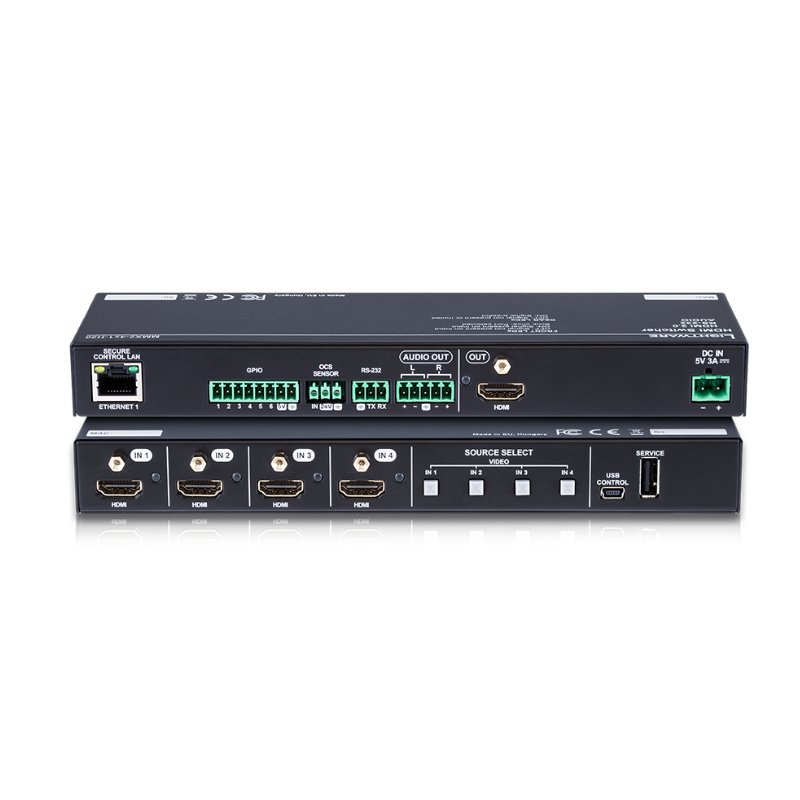

Lightware MMX2‑4x1‑H20 - Image 2

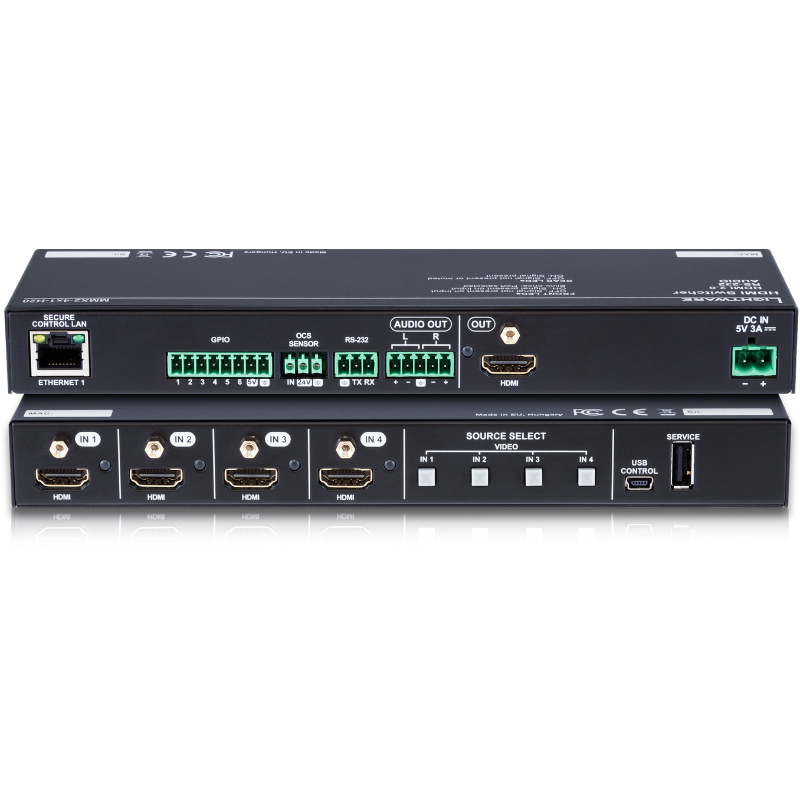

Lightware MMX2‑4x1‑H20 - Image 3
Lightware MMX2‑4x1‑H20 - Image 4

Lightware MMX2‑4×1‑H20

•4×1 automatic switcher with HDMI inputs.
•Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
•Occupancy sensor connection (with 24V power supply)
•Includes automated room control via GPIO, RS-232, and occupancy sensor connectivity.
•The switcher supports analog audio de-embedding for enhanced audio capabilities.

The Lightware MMX2-4×1-H20 is a professional-grade 4×1 HDMI 2.0 matrix switcher that allows seamless switching between four HDMI input sources to a single output. Supporting resolutions up to 4K@60Hz with full 4:4:4 color sampling, this device is ideal for high-performance AV installations in conference rooms, control centers, classrooms, and live event setups. It offers advanced EDID management, HDCP 2.2 compliance, and low-latency switching. The MMX2-4×1-H20 ensures signal integrity and reliability, making it a perfect fit for demanding video environments.



Specifications

Specification Details
Product Type HDMI Matrix Switcher
Brand Lightware
Model MMX2-4x1-H20
Input Ports 4 x HDMI
Output Ports 1 x HDMI
HDMI Version HDMI 2.0
Max Resolution Support 4K@60Hz (4:4:4)
HDCP Support HDCP 2.2 Compliant
EDID Management Yes
Control Options Front Panel, RS-232, TCP/IP
Switching Mode Manual & Auto
Audio Support Embedded HDMI Audio Pass-Through
Use Case Conference Rooms, AV Racks, Control Centers
Power Supply External Power Adapter
Mounting Type Surface/Rack Mountable
Warranty Usually 1–3 Years (Check with Manufacturer)

Features

  • 4×1 HDMI switching: Seamlessly select among four HDMI/DP devices in meeting rooms

  • True 4K 60 Hz 4:4:4 with HDCP 2.2 support

  • Audio de-embedding: Balanced analog audio output for room sound systems

  • Multimodal control: via Ethernet, RS-232, GPIO, occupancy sensors, and physical buttons

  • Secure & silent: Fanless passively cooled, SSL/HTTPS secure network control

  • Compact: Slim 1U height, flexible for both rack and tabletop installations

What’s in the Box ?

  • 1 × Lightware MMX2‑4x1‑H20 switcher unit

  • 1 × 5 V / 3 A external power adapter

  • 1 × HDMI matrix switcher accessories kit:

    • Phoenix male connectors (3‑, 5‑, 8‑pin) + screws

  • 1 × Quick‑Start Guide & warranty leaflet

Additional Resources

Quick-Start :

Download
