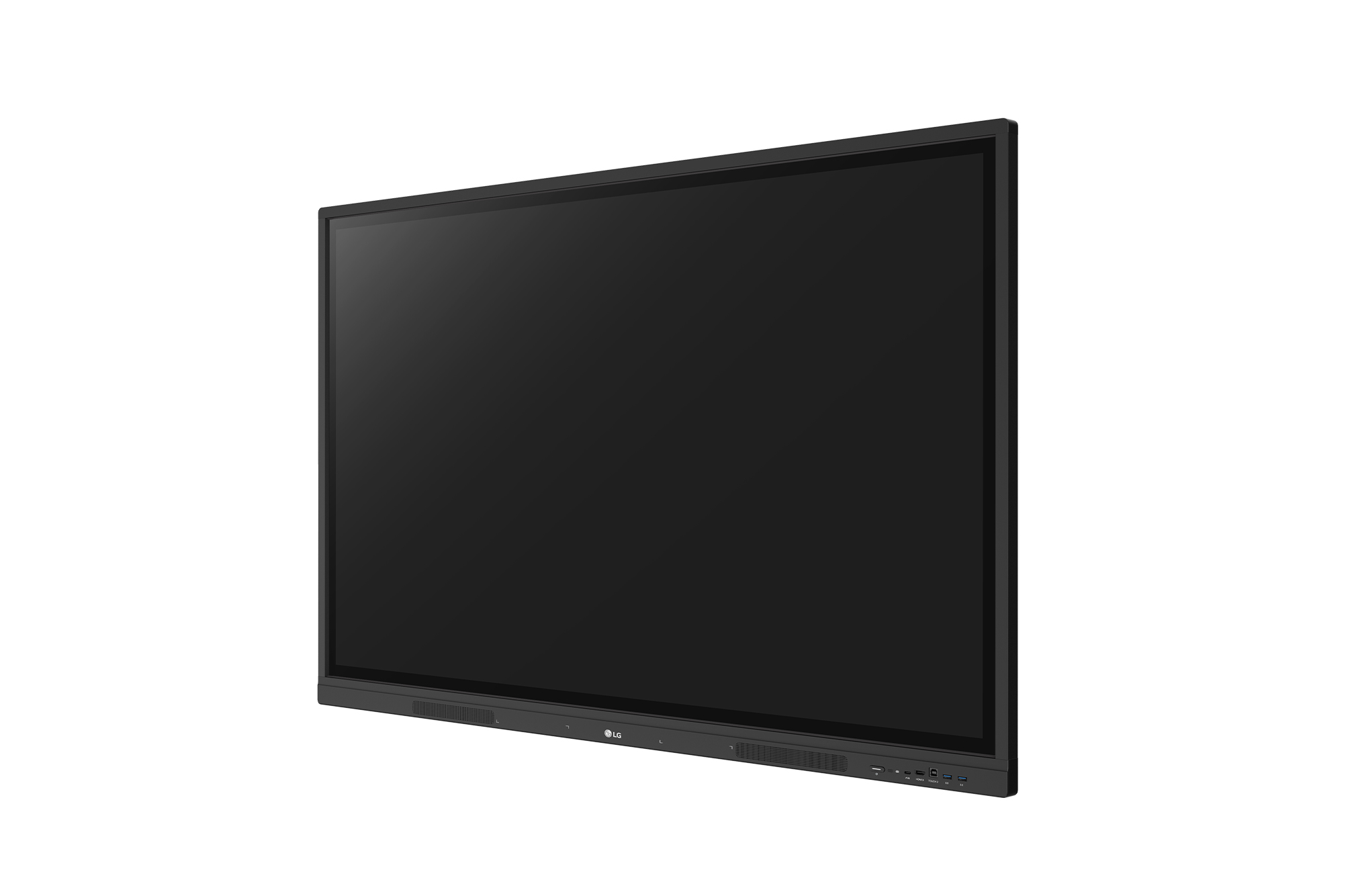

LG INTERACTIVE DISPLAY-TR3DK

Resolution: 3,840 × 2,160 (4K UHD)
Internal Memory : 32GB (Storage) / 4GB (RAM)
Multi-Touch Point : 40 Points (Max.)
Brightness :- 390 nit
Versatile connectivity options include HDMI (3 with HDCP 2.2), RGB (VGA), Audio In, RS-232C In, LAN, USB 3.0/2.0, and USB Type C.”
Response Time :- 8ms
Operation Hours :- 16/7

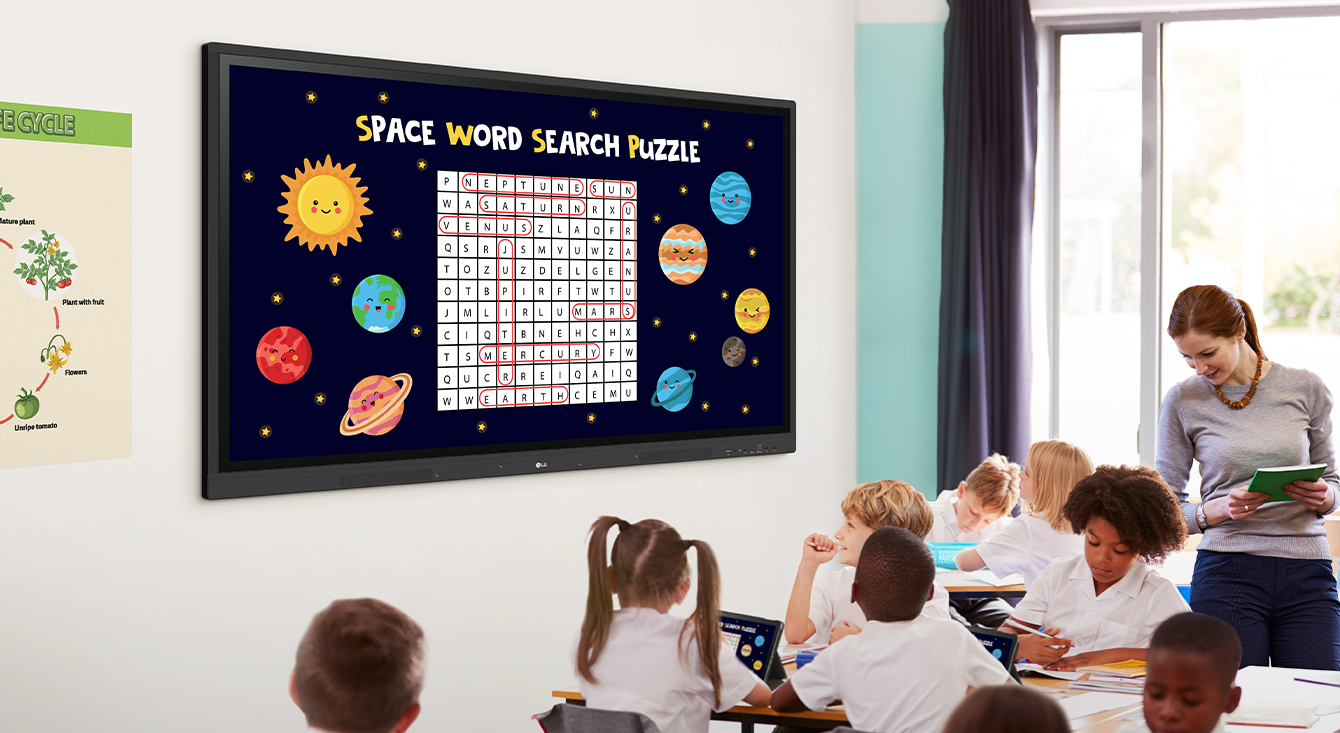

A New Level of Classroom with LG CreateBoard

Various Teaching Templates

LG CreateBoard offers a variety of educational templates and teaching tools such as a ruler, table, and sticky notes, allowing for active engagement by students and enabling intuitive classes.
Editing images and videos becomes easy with LG CreateBoard, and created resources can be easily shared with others through QR codes.

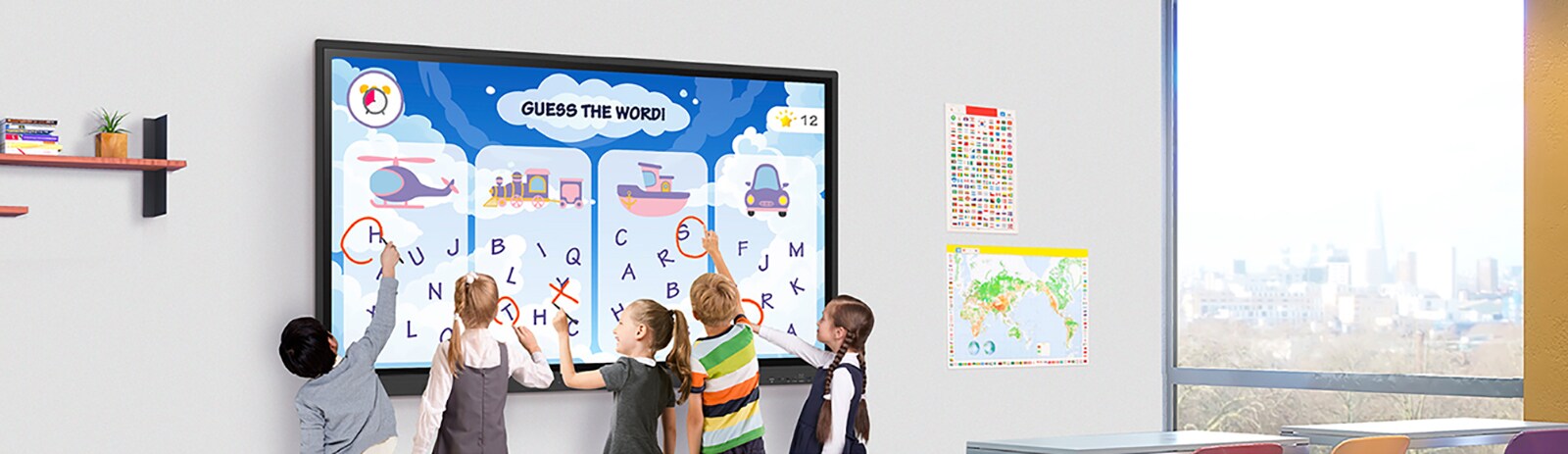

Multi-touch

LG CreateBoard can simultaneously detect up to 40 points for multi-touch functionality. This creates a lifelike board touch experience, helping students easily become accustomed and truly engage in classes. This leads to the maximum concentration and organic engagement of students.

*A max of 32 points are recognized in the Android environment, and a max of 40 points are detected in the Windows environment.

*Up to 10 points can be recognized in the writing app.

Easy to Save / Import / Export

LG CreateBoard includes simple import and export functionality.
Resources can be saved and imported directly to and from Google Drive or OneDrive, and files can be imported from a USB drive (Users can browse resources saved on USB storage)

LG ConnectedCare DMS

LG ConnectedCare DMS is a cloud solution for remotely monitoring, controlling, and managing the status of LG CreateBoard installed in educational environments. This feature enables IT managers to operate and manage important resources on operating devices without physically visiting sites.

*’LG ConnectedCare DMS’ needs to be purchased separately.
*The availability of the ‘LG ConnectedCare DMS’ service differs by region,
so please contact the LG sales representative in your region for more details.

Wireless ScreenShare

LG CreateBoard Share enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard Share app is installed on the device.
Also, files from the host can be easily sent to any devices connected to the LG CreateBoard Share app, and several quick controls by the host are available.

*LG CreateBoard also supports app-less sharing for PC (via website) and mobile devices within the same network.
*For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard Share).

Bluetooth Connectivity

LG CreateBoard supports wireless Bluetooth connections to various devices such as a speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline classes can proceed smoothly.

C-type Connection

SB-C connectivity simplifies connections
which enables charging and sending data simultaneously over just one single cable.

*USB Type-C cables are sold separately.

QR Login for Easy Cloud Access

The QR code on the home screen reduces preparation time for class by enabling personal device verification. Users can sign up for a variety of apps on the LG CreateBoard including Google Drive and OneDrive with just one QR verification without any additional login process. Once a lesson is finished, users can simply click the Logout button to disconnect, thus the risk of a personal information leak is reduced.

Advanced Eye-Care

LG CreateBoard has introduced a flicker-free function. With the reduced flickering of the monitor’s backlight, users can use the device with more comfort even when using it for a long time.

Front Connectivity Design

LG CreateBoard features front display ports and speakers which are ideal for both teachers and students, enabling content to be delivered easier with more immersive sound.

Built-in OPS Slot

LG CreateBoard supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the LG CreateBoard without the hassle of connecting to an external desktop, offering you more expanded functions.

Smart Viewing

The Smart Viewing feature of LG CreateBoard enables efficient teaching. Two or more materials can be displayed on the same screen simultaneously without having to repeat Alt-tab, making teaching more convenient and efficient. Two materials can be displayed side by side (multi window mode), or one material can be overlaid on the other one (picture-in-picture mode).

Power Saving

When a device doesn’t receive an external input signal for a specific amount of time set by the user, the device goes into standby mode. Devices can also be automatically turned on or off at specific time or day set by the user, which contributes to save energy.

Size Comparison

Category	Feature	55-inch Display	65-inch Display	75-inch Display	86-inch Display
PANEL	Screen Size (Inch)	55	65	75	86
	Panel Technology	IPS	IPS	IPS	IPS
	Back Light Type	Direct	Direct	Direct	Direct
	Aspect Ratio	16:9	16:9	16:9	16:9
	Native Resolution	3840 x 2160 (UHD)	3840 x 2160 (UHD)	3840 x 2160 (UHD)	3840 x 2160 (UHD)
	Refresh Rate	60Hz	60Hz	60Hz	60Hz
	Brightness	440 nits	440 nits	440 nits	440 nits
	Dynamic CR	5,000:1	5,000:1	5,000:1	5,000:1
	Color Gamut	NTSC 72%	NTSC 72%	NTSC 72%	NTSC 68%
	Viewing Angle (H x V)	178º x 178º	178º x 178º	178º x 178º	178º x 178º
	Color Depth	16.7 Million colors	16.7 Million colors	16.7 Million colors	1.07 Billion colors
	Response Time	8ms (G to G)	8ms (G to G)	8ms (G to G)	8ms (G to G)
	Surface Treatment (Haze)	Haze 25%	Haze 25%	Haze 25%	Haze 28%
	Operation Hours (Hours/Day)	16/7	16/7	16/7	16/7
	Portrait / Landscape	NO / YES	NO / YES	NO / YES	NO / YES
CONNECTIVITY	HDMI In	YES (3ea)	YES (3ea)	YES (3ea)	YES (3ea)
	HDMI In (HDCP Ver.)	2.2	2.2	2.2	2.2
	DP In	NO	NO	NO	NO
	DVI-D In	NO	NO	NO	NO
	RGB In	YES	YES	YES	YES
	Audio In	YES	YES	YES	YES
	RS232C In	YES	YES	YES	YES
	RJ45 (LAN) In	YES (1ea)	YES (1ea)	YES (1ea)	YES (1ea)
	IR In	NO	NO	NO	NO
	USB In	USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)	USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)	USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)	USB3.0 Type A (4ea), USB2.0 Type A (1ea), USB Type C (1ea)
	HDMI Out	YES	YES	YES	YES
	DP Out	NO	NO	NO	NO
	Audio Out	YES	YES	YES	YES
	Touch USB	USB2.0 Type B (2ea)	USB2.0 Type B (2ea)	USB2.0 Type B (2ea)	USB2.0 Type B (2ea)
	External Speaker Out	NO	NO	NO	NO
	RJ45 (LAN) Out	YES	YES	YES	YES
MECHANICAL SPECIFICATION	Bezel Color	Black	Black	Black	Black
	Bezel Width	T/R/L/B: 18/18/18/45mm	T/R/L/B: 15/15/15/44mm	T/R/L/B: 15/15/15/44mm	T/R/L/B: 15/15/15/44mm
	Weight (Head)	26.1Kg	35.0Kg	47.3Kg	58.6Kg
	Packed Weight	34.5Kg	44.7Kg	60.6Kg	75.9Kg
	Monitor Dimensions (W x H x D)	1271 × 774 × 87mm	1488.4 × 896.6 × 87.2mm	1709 × 1020 × 88mm	1957 × 1160 × 100mm
	Handle	NO	YES	NO	YES
	VESA Standard Mount Interface	400 x 200 mm	600 x 400 mm	800 x 400 mm	800 x 600 mm

Additional Resources

Data-Sheet :

Download

Size	55 Inch, 65 Inch, 75 Inch, 86 Inch
