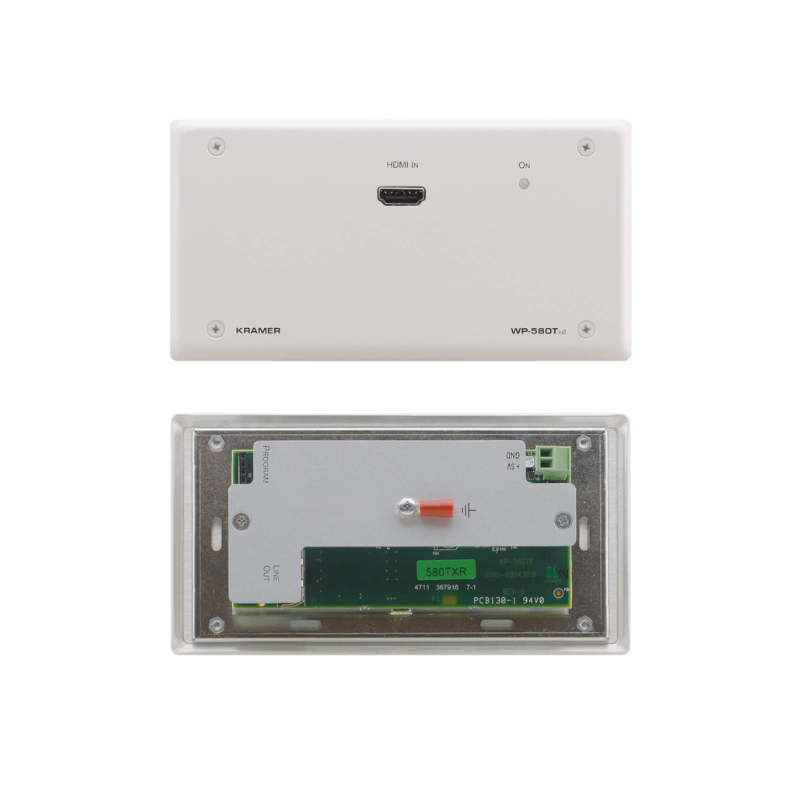

Kramer WP-580Txr 4K60 4:2:0 HDMI Wall–Plate Transmitter over Extended–Reach HDBaseT

HDMI | HDBaseT | 4K/60 UHD (4:2:0)

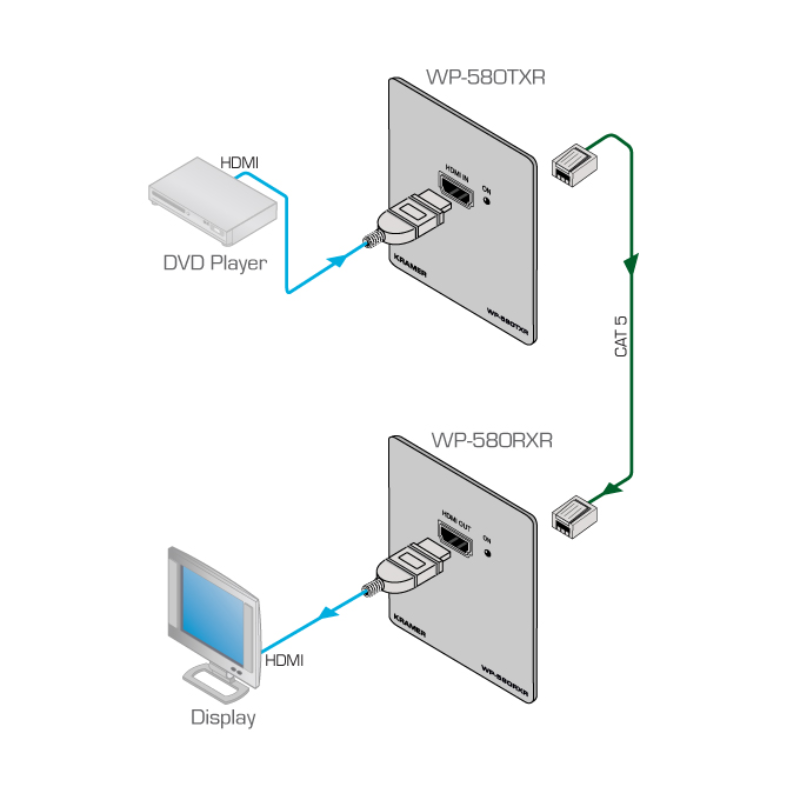

WP−580Txr is an extended range, HDBaseT wall plate transmitter for 4K@60Hz (4:2:0) HDMI signals over twisted pair. WP−580Txr inputs HDMI signals and converts them into an HDBaseT twisted pair signal that it transmits to a WP−580Rxr receiver. The WP–580Txr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
HDTV Compatible.
HDCP 2.2 Compliance.
HDBaseT™ Technology.
HDMI Support — Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS–HD.
3D Pass–Through.
EDID PassThru — Passes EDID signals between the source and display.
2K & 4K Support in Normal Mode.
System Range — Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using recommended Kramer cables (see CABLES).
Indicators — Status LEDs for input, output, link and power.

Specification

Specification	Details
Inputs	1 HDMI connector
Outputs	1 HDBaseT twisted pair RJ–45 connector
Max. Data Rate	10.2Gbps (3.4Gbps per graphic channel)
Standards Compliance	Supports HDMI and HDCP 2.2
Power Consumption	5V DC, 390mA
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	–40° to +70°C (–40° to 158°F)
Humidity	10% to 90%, RHL non–condensing
Included Accessories	Power supply
Product Dimensions (W x D x H)	US: 11.43cm x 2.86cm x 11.43cm (4.50" x 1.13" x 4.50")EU: 15.10cm x 3.00cm x 8.00cm (5.94" x 1.18" x 3.15")UK: 15.10cm x 3.00cm x 8.60cm (5.94" x 1.18" x 3.39")
Product Weight	US/EU/UK: 0.2kg (0.4lbs) approx.
Shipping Dimensions (W x D x H)	US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94")EU/UK: 25.60cm x 11.80cm x 11.40cm (10.08" x 4.65" x 4.49")
Shipping Weight	US/EU/UK: 0.7kg (1.5lbs) approx.
