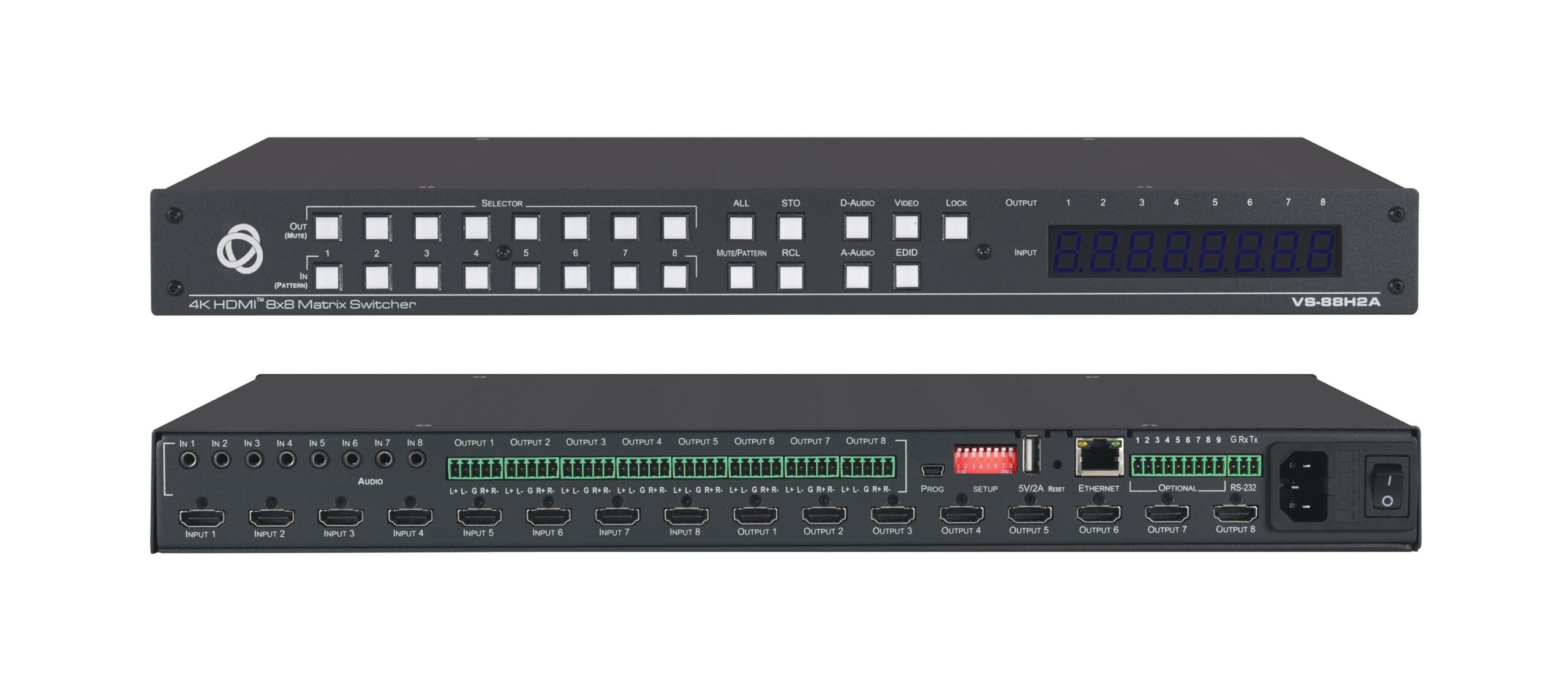

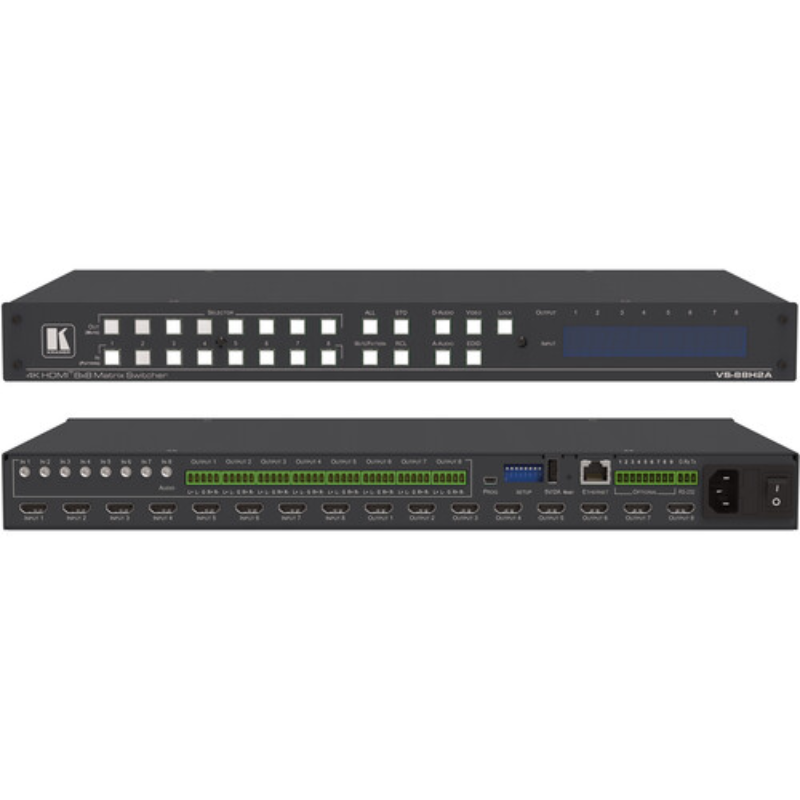

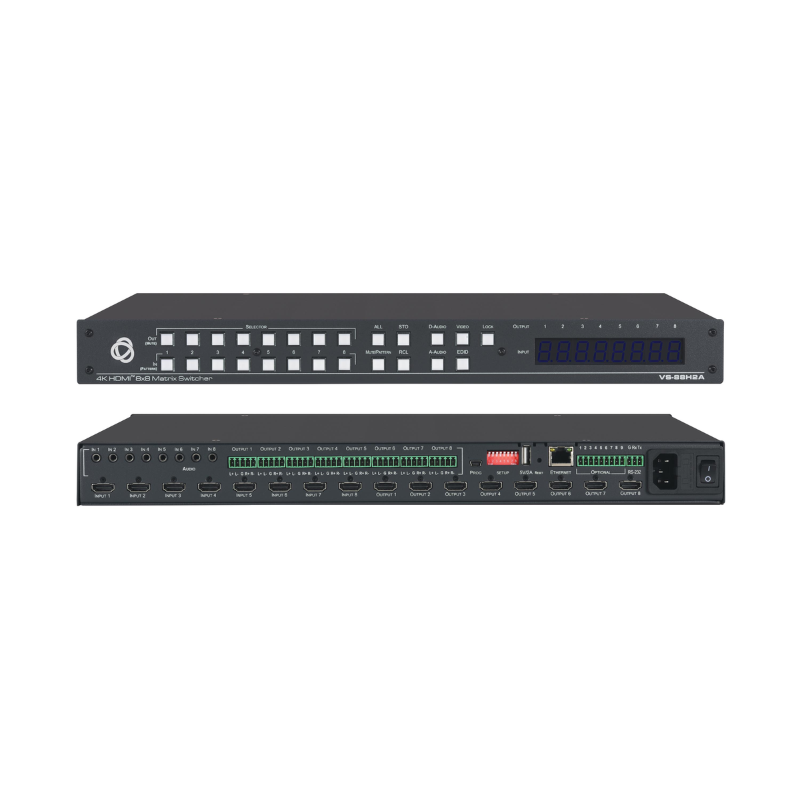

The Kramer VS-88H2A is a professional-grade 8×8 HDMI matrix switcher designed to route any of eight HDMI input sources to any of eight HDMI outputs simultaneously. Supporting resolutions up to 4K@60Hz (4:4:4) and HDCP 2.2 compliance, it ensures flawless video quality and reliable operation in demanding AV installations.
It features advanced audio management, including embedding and de-embedding of audio, making it ideal for conference rooms, control centers, live event setups, and digital signage systems. With intuitive front panel control, RS-232, Ethernet, and web-based GUI, the VS-88H2A offers flexible control and easy integration into any AV environment.
| Feature | Specification |
|---|---|
| Model | VS-88H2A |
| Product Type | HDMI Matrix Switcher |
| Inputs | 8 × HDMI |
| Outputs | 8 × HDMI |
| Resolution Support | Up to 4K@60Hz (4:4:4), HDR10, Deep Color |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Audio Support | HDMI audio embedding and de-embedding |
| Control Interfaces | Front panel, RS-232, Ethernet, Web GUI |
| Switching Mode | Seamless or fast switching |
| EDID Management | Advanced EDID handling per input/output |
| Power Supply | 100–240V AC |
| Dimensions | Standard 19” rack-mountable, 1U height |

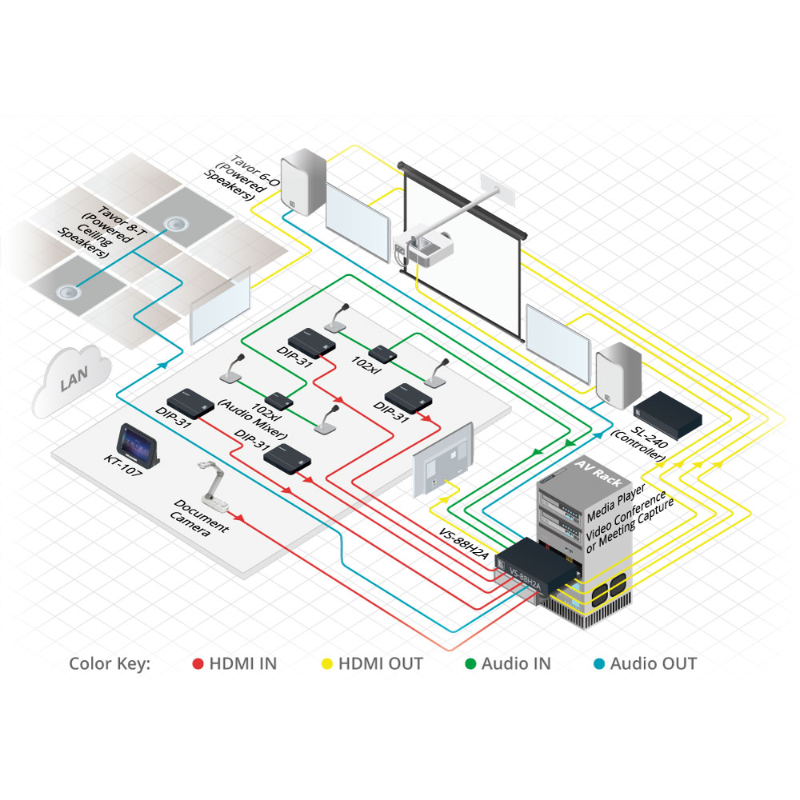

| Application Areas | Conference Rooms, Control Centers, Auditoriums, Digital Signage |
