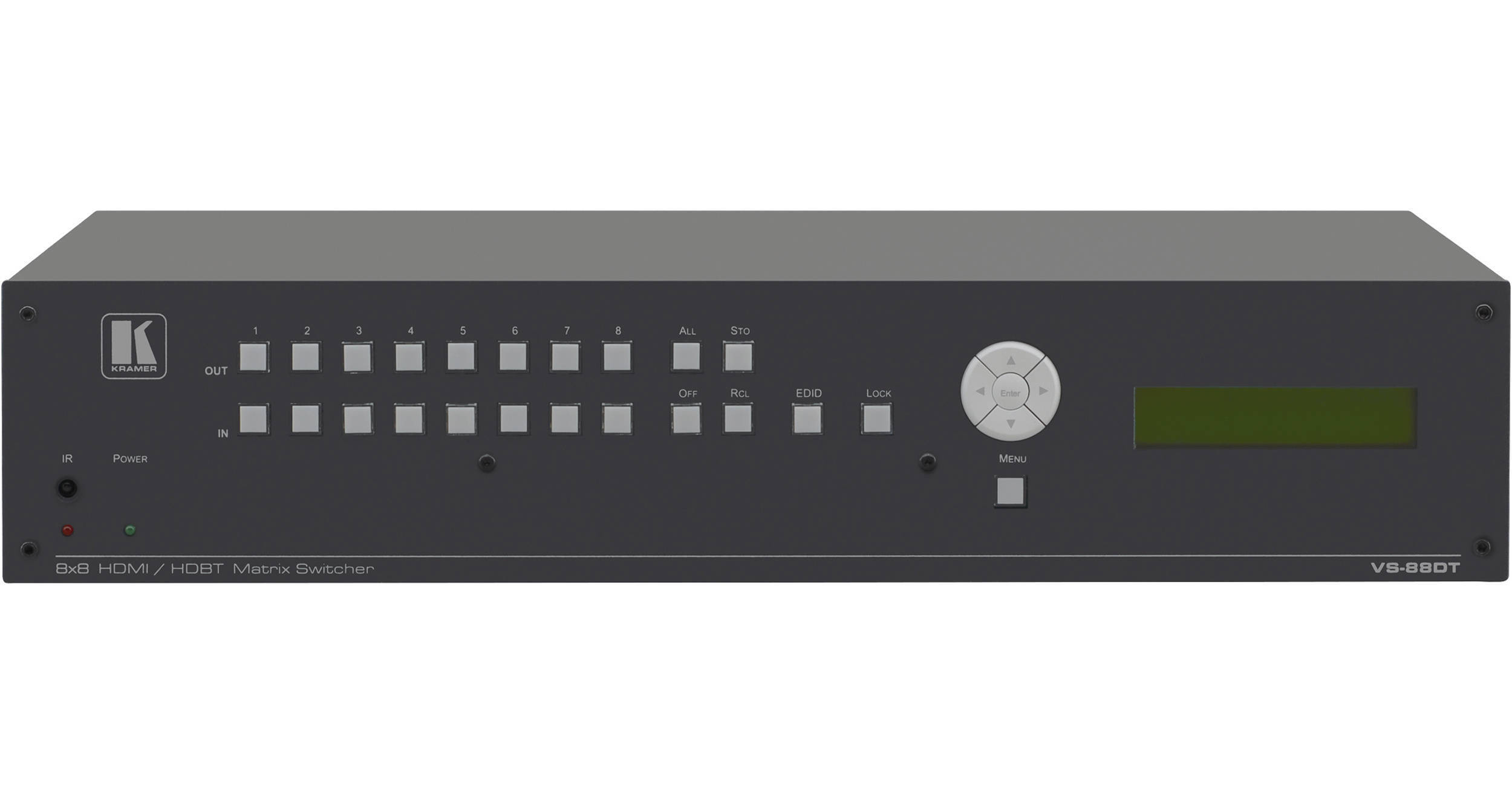

The Kramer VS-88DT is a high-performance 8×8 HDMI/HDBaseT matrix switcher designed for professional AV environments where long-distance signal distribution and centralized control are required. It allows switching of any of eight HDMI inputs to any combination of eight outputs — six HDBaseT and two HDMI.
The HDBaseT outputs extend video, audio, Ethernet, RS-232, and IR signals up to 100 meters over a single CATx cable. The switcher supports 4K@60Hz (4:2:0), HDCP 2.2, and includes advanced EDID management, audio de-embedding, and seamless integration with Kramer control systems. Ideal for use in conference rooms, training centers, and AV-over-IP infrastructures.
| Feature | Specification |
|---|---|
| Model | VS-88DT |
| Product Type | HDMI/HDBaseT Matrix Switcher (8×8) |
| Inputs | 8 × HDMI |
| Outputs | 6 × HDBaseT, 2 × HDMI |
| Max Resolution | 4K@60Hz (4:2:0), 1080p@60Hz |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Signal Extension | Up to 100m over CATx (via HDBaseT outputs) |
| Audio Support | Audio de-embedding and HDMI embedded audio |
| Control Interfaces | Ethernet, RS-232, IR, front panel, Web GUI |
| EDID Management | Per input/output with automatic and manual settings |
| PoE Support | Yes – for powering compatible HDBaseT receivers |
| Power Supply | 100–240V AC |
| Rack Mountable | Yes – 19″ rack mountable unit |
| Application Areas | Large Meeting Rooms, AV Control Rooms, Educational Institutions |
