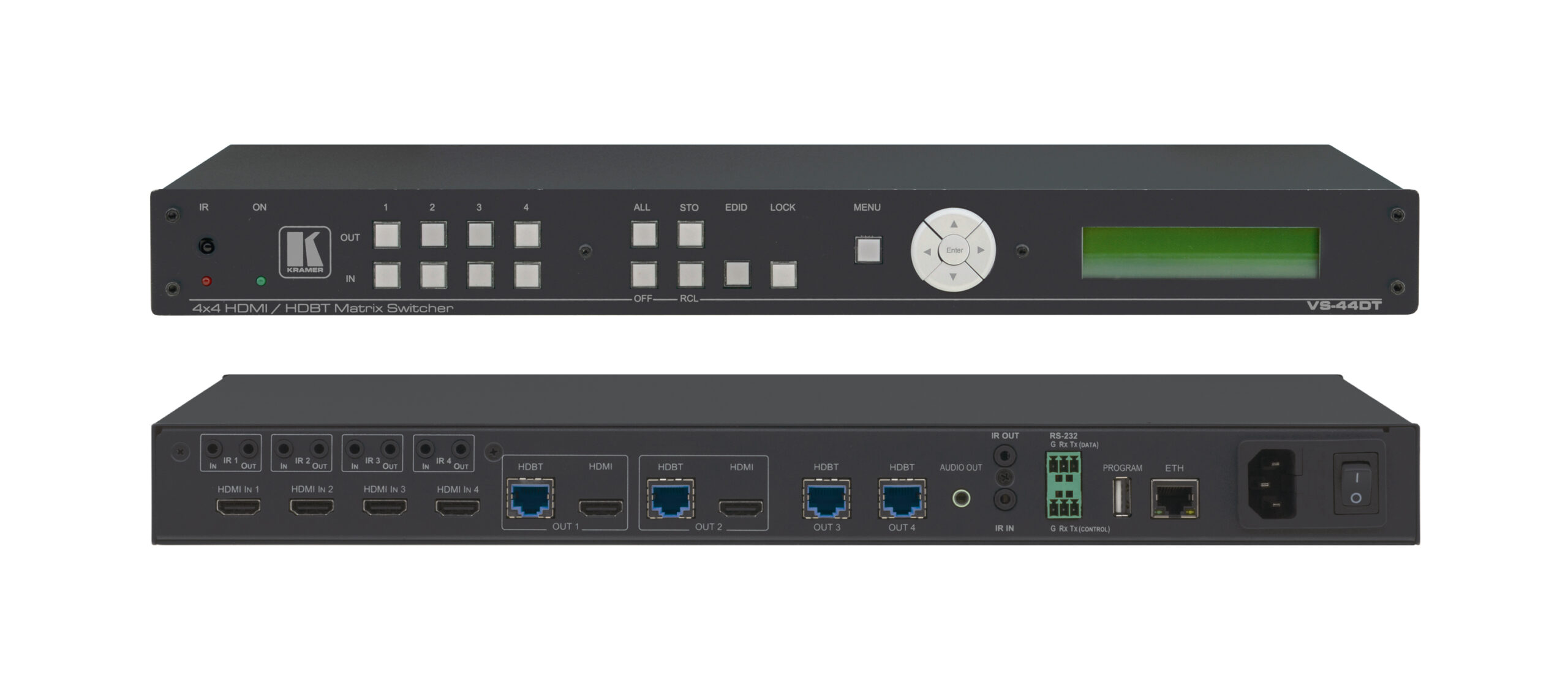

The Kramer VS-44DT is a 4×4 HDMI/HDBaseT matrix switcher that routes any of four HDMI input sources to any combination of four outputs — two HDMI and two HDBaseT — making it ideal for environments requiring long-distance signal distribution.
It supports resolutions up to 4K@60Hz (4:2:0), HDCP 2.2, and features audio embedding/de-embedding, bidirectional IR and RS-232 pass-through, and signal extension up to 100 meters over a single CATx cable.
This matrix switcher is perfect for classrooms, boardrooms, and control centers, offering reliable switching performance, PoE support for receivers, and convenient control options through RS-232, Ethernet, and web interface.
| Feature | Specification |
|---|---|
| Model | VS-44DT |
| Product Type | 4×4 HDMI / HDBaseT Matrix Switcher |
| Inputs | 4 × HDMI |
| Outputs | 2 × HDMI, 2 × HDBaseT |
| Max Resolution | Up to 4K@60Hz (4:2:0), 1080p@60Hz |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Signal Extension | Up to 100m over CATx (HDBaseT outputs) |
| Audio Features | Audio embedding & de-embedding |
| Control Interfaces | RS-232, Ethernet, Web GUI, IR |
| EDID Management | Advanced per input/output configuration |
| PoE Support | Yes – for compatible HDBaseT receivers |
| Power Supply | 100–240V AC |
| Mounting | 19″ rack-mountable, 1U height |
| Application Areas | Meeting Rooms, Classrooms, AV Control Rooms, Digital Signage |
