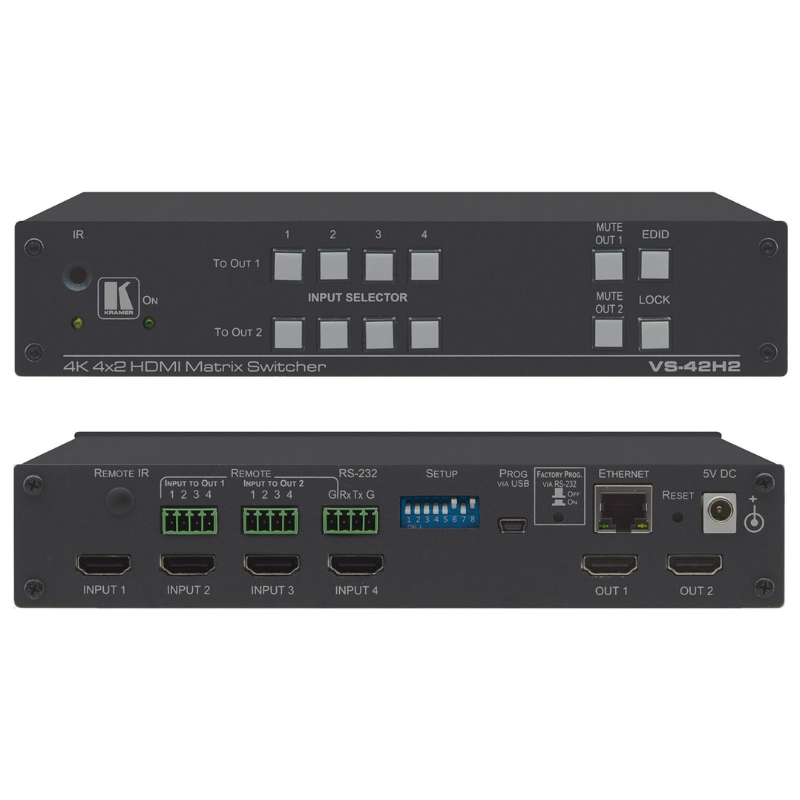

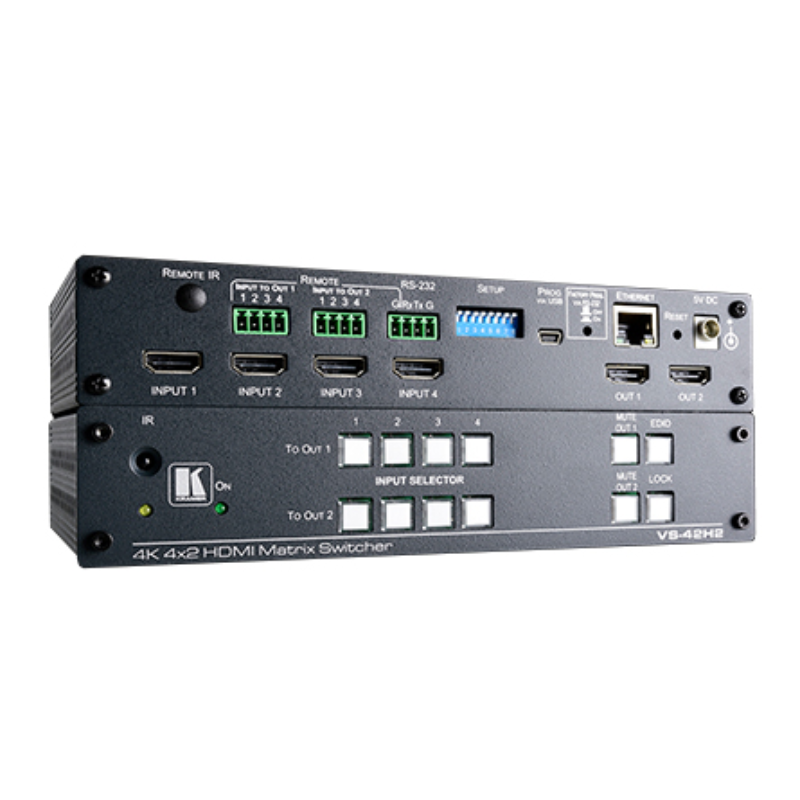

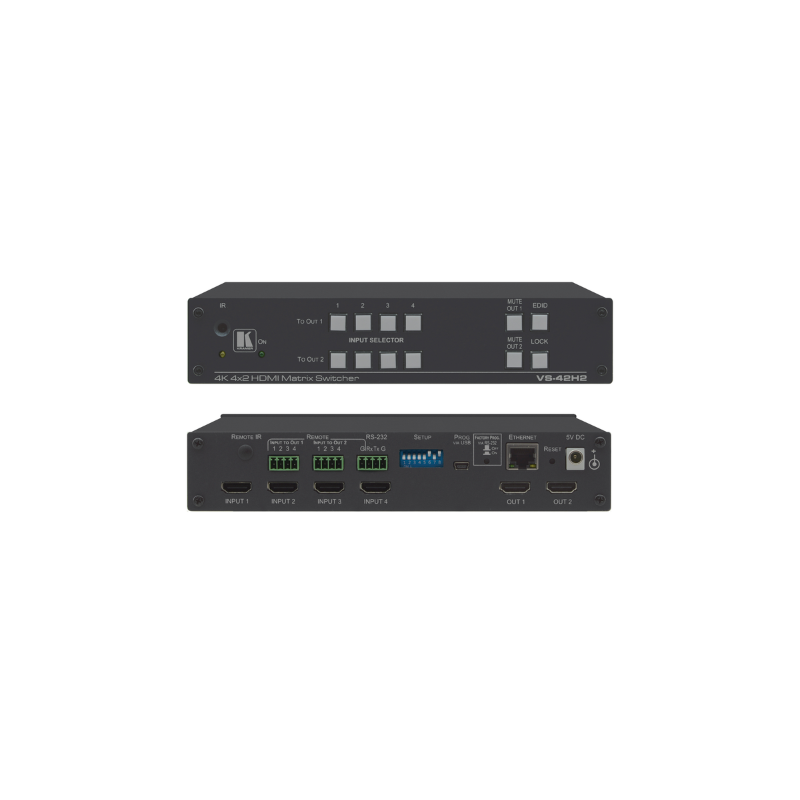

The Kramer VS-42H2 is a high-performance 4×2 HDMI matrix switcher that allows you to route any of four HDMI input sources to any combination of two HDMI outputs. Supporting ultra-high resolutions up to 4K@60Hz (4:4:4), it ensures premium video quality and full HDCP 2.2 compliance, making it ideal for professional AV applications.
This compact switcher is suitable for environments like meeting rooms, classrooms, and control centers, offering advanced EDID management and fast, seamless switching. It supports deep color, 3D pass-through, and multi-channel audio formats. Control is accessible via front panel buttons, RS-232, Ethernet, and a web-based interface.
| Feature | Specification |
|---|---|
| Model | VS-42H2 |
| Product Type | 4×2 HDMI Matrix Switcher |
| Inputs | 4 × HDMI |
| Outputs | 2 × HDMI |
| Max Resolution | 4K@60Hz (4:4:4), HDR10 |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| EDID Management | Per input with manual/auto configuration |
| Audio Support | Supports multi-channel HDMI audio |
| Control Options | Front panel, RS-232, Ethernet, Web GUI |
| Power Supply | 100–240V AC |
| Mounting | Desktop or rack-mountable |
| Application Areas | Meeting Rooms, Classrooms, Small AV Systems, Digital Signage |
