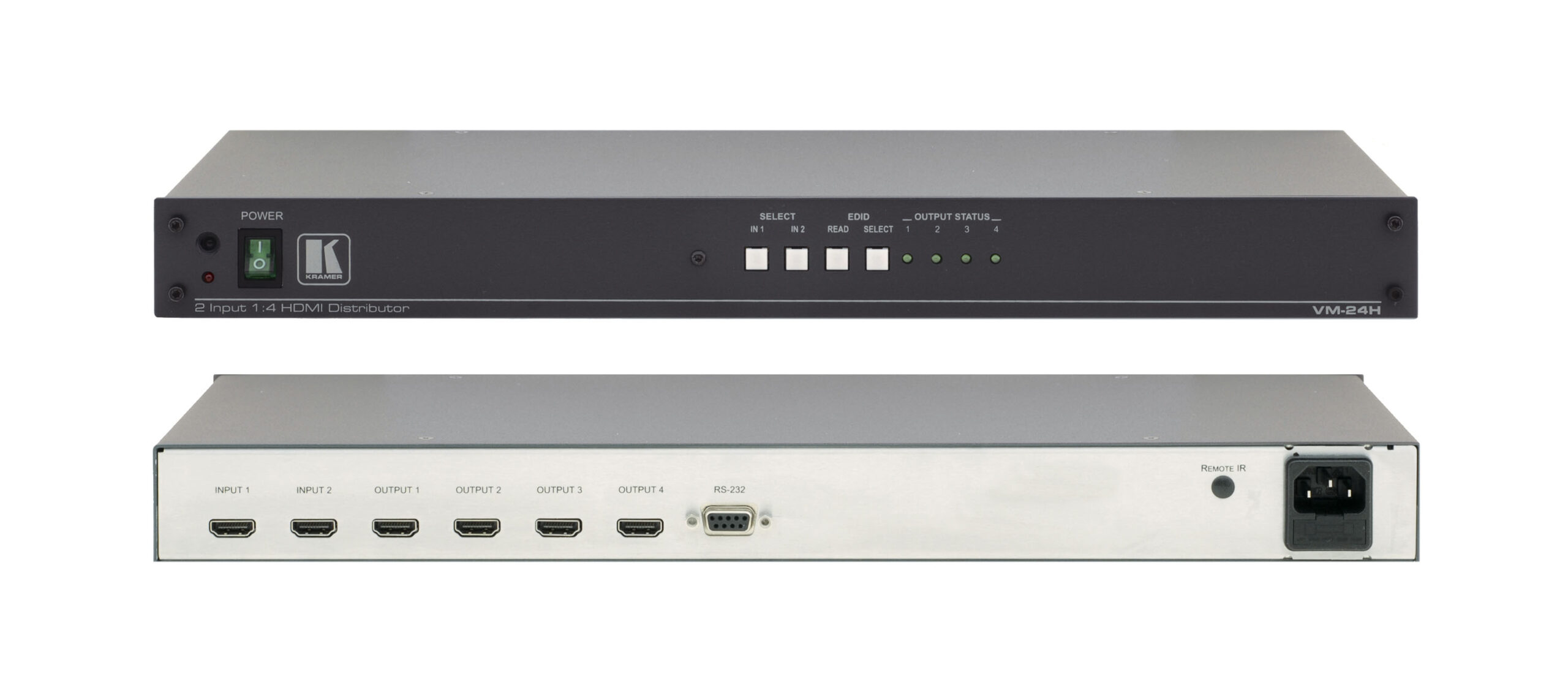

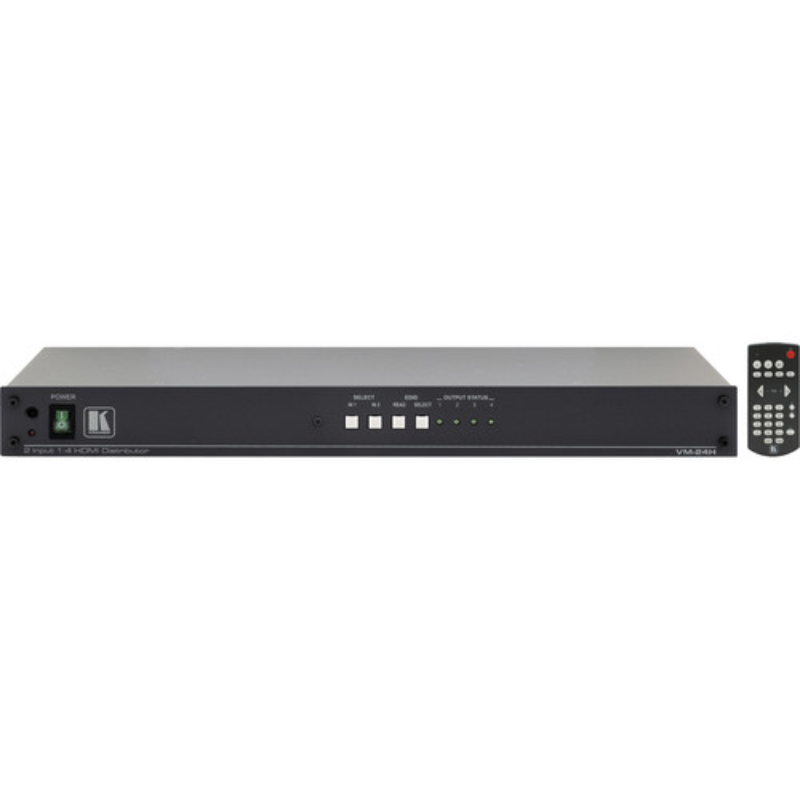

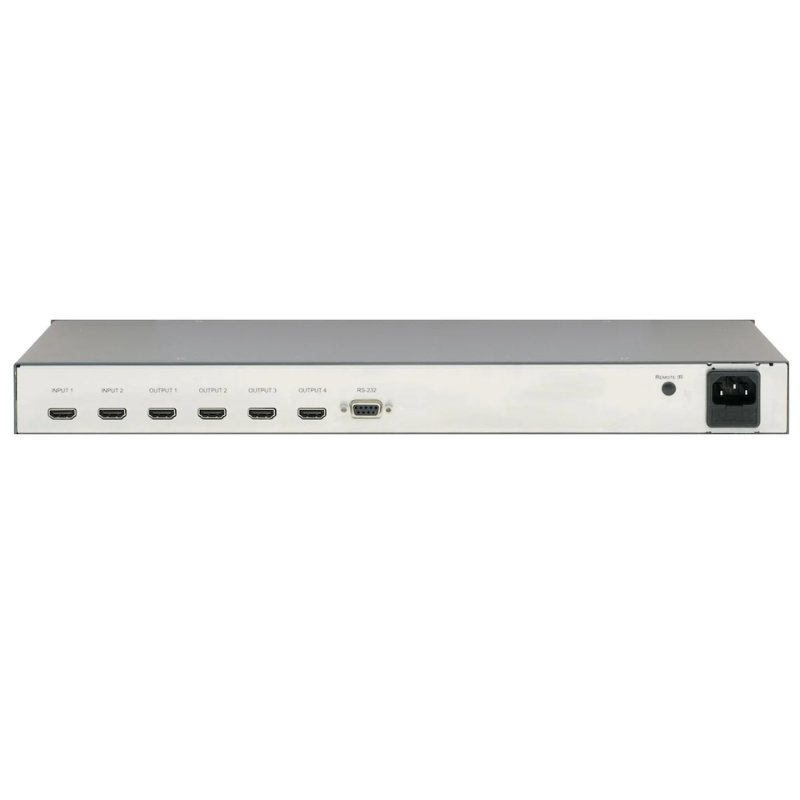

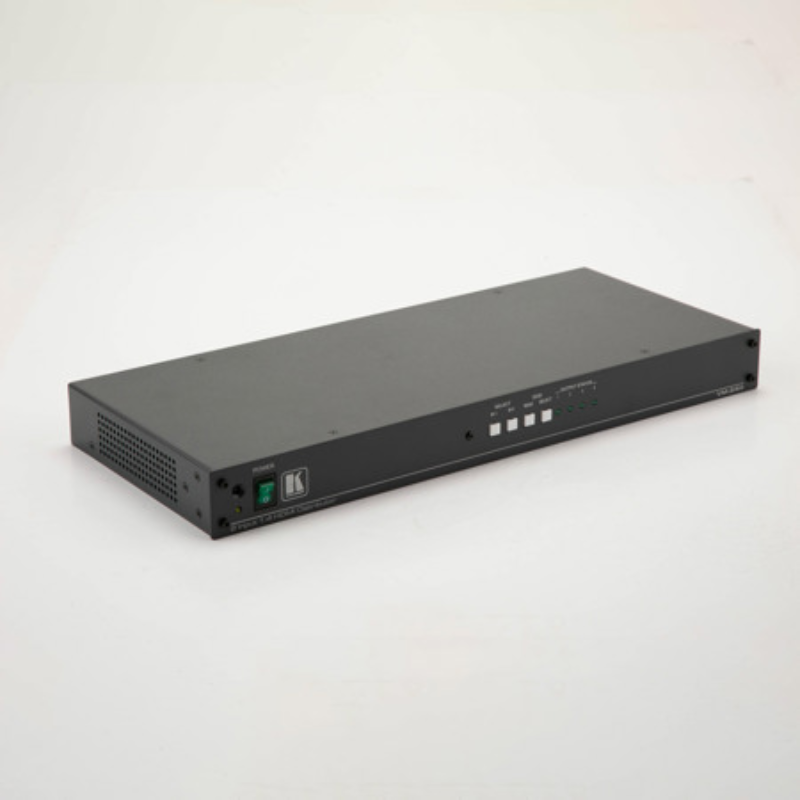

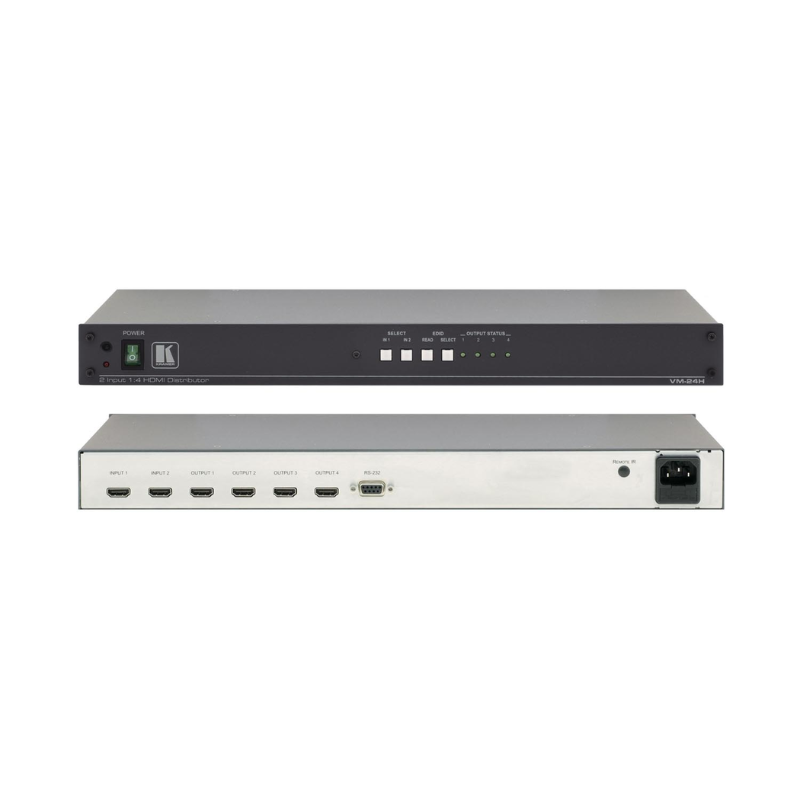

The Kramer VM-24H is a high-quality 2×4 HDMI splitter designed to distribute either of two HDMI inputs to four identical outputs, allowing you to broadcast the same signal to multiple displays. It supports HDMI 1.4, HDCP 1.4, and resolutions up to 1080p and 4K@30Hz (4:4:4), making it suitable for professional AV installations in classrooms, showrooms, conference halls, or control rooms.
Each input can be switched to any of the four outputs, ensuring flexibility and convenience in signal routing. The unit also includes EDID management, supports deep color and 3D pass-through, and ensures crystal-clear video and audio distribution with low latency and signal integrity.
| Feature | Specification |
|---|---|
| Model | VM-24H |
| Product Type | 2×4 HDMI Splitter / Distribution Amplifier |
| Inputs | 2 × HDMI |
| Outputs | 4 × HDMI |
| Max Resolution | Up to 4K@30Hz (4:4:4), 1080p@60Hz |
| HDCP Compliance | HDCP 1.4 |
| HDMI Version | HDMI 1.4 |
| Switching | Manual switching between two input sources |
| EDID Management | Internal handling or capture from connected displays |
| Audio Support | Multi-channel HDMI embedded audio |
| Control Options | Front panel buttons |
| Power Supply | 100–240V AC |
| Mounting | Desktop or rack-mountable (with optional brackets) |
| Application Areas | Classrooms, Retail Displays, Conference Rooms, Digital Signage |
