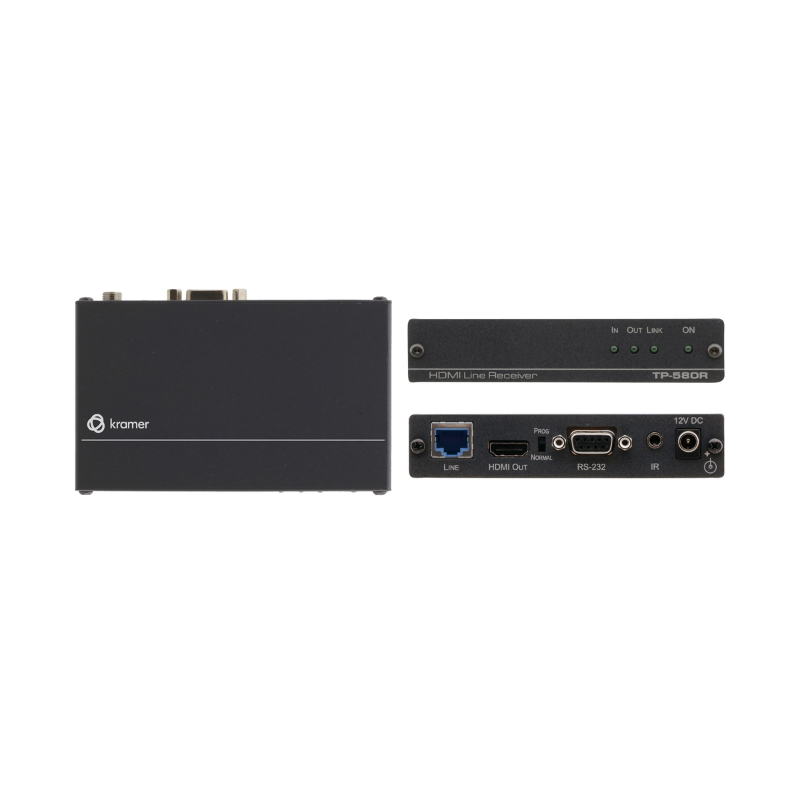

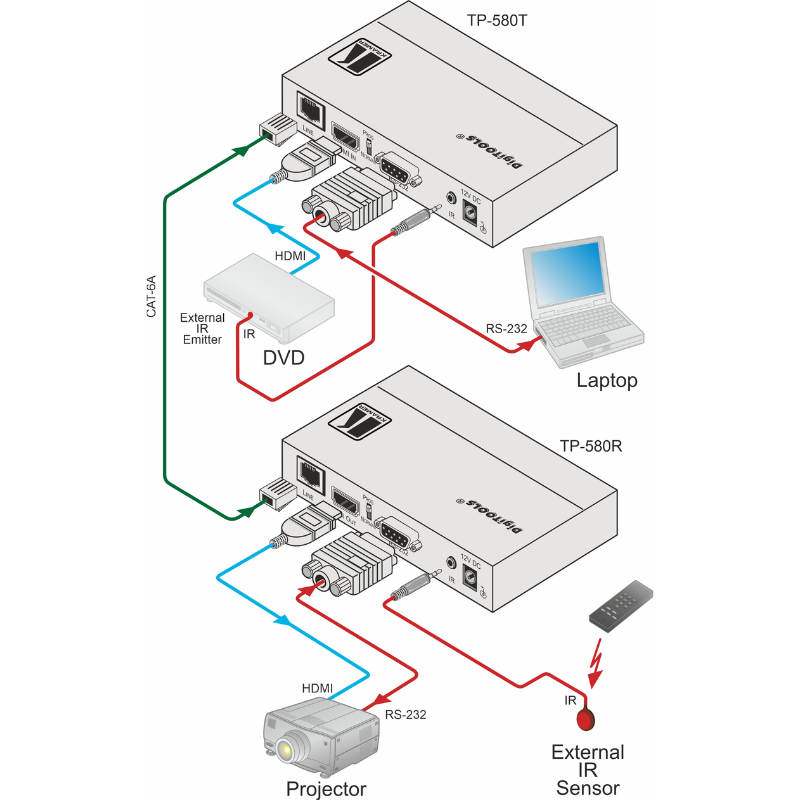

The Kramer TP-580R is a compact, high-performance HDMI receiver that receives HDMI signals over twisted pair (HDBaseT) from a compatible transmitter such as the WP-580Txr. It supports resolutions up to 4K@60Hz (4:2:0) and transmits video, audio, RS-232, and IR control signals over a single CATx cable for up to 70 meters at 1080p or 40 meters at 4K.
This receiver is ideal for professional AV installations in boardrooms, classrooms, and lecture halls. It features HDCP compliance, plug-and-play operation, and is often powered via PoE from a connected transmitter or external power supply. Its small form factor allows it to be installed discreetly behind displays or in equipment racks.
| Feature | Specification |
|---|---|
| Model | TP-580R |
| Product Type | HDMI Receiver over HDBaseT |
| Video Input | 1 × HDBaseT RJ-45 (from transmitter) |
| Video Output | 1 × HDMI |
| Maximum Resolution | 4K@60Hz (4:2:0), 1080p@60Hz |
| Transmission Distance | Up to 70m at 1080p, 40m at 4K over CATx cable |
| Control Pass-through | Bidirectional RS-232 and IR |
| HDCP Support | Yes |
| Power Supply | PoE from transmitter or 12V DC external adapter |
| Mounting | Compact design, can be hidden behind displays |
| Application Areas | Classrooms, Boardrooms, Auditoriums, Digital Signage Systems |
