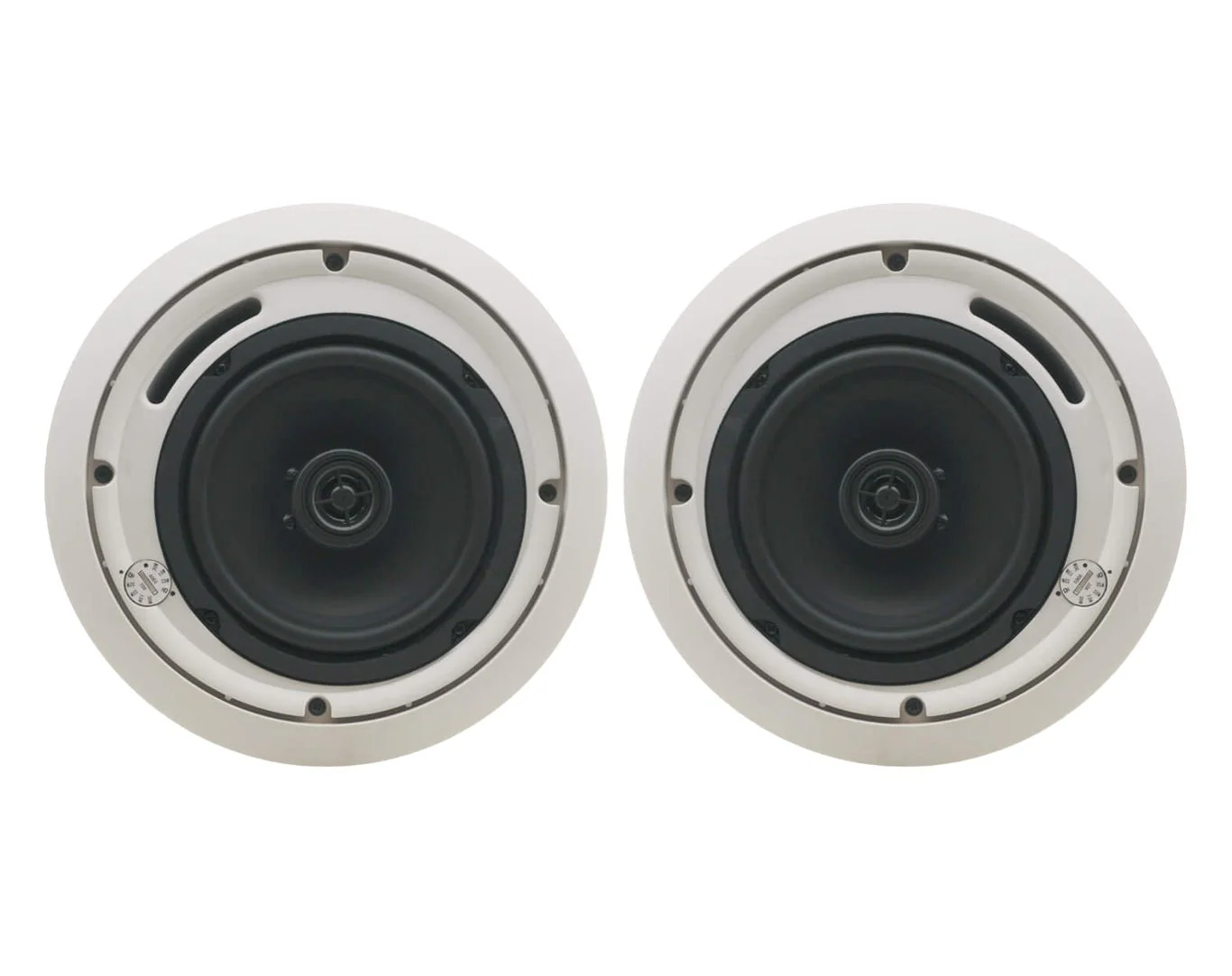

Kramer Galil 6-C 6.5–Inch 2–Way Closed–Back Ceiling Speakers

Speakers

The Galil 6−C (formerly SPK−C612) Closed−back Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.

Type — 2–way coaxial speaker.
Woofer — 6.5” polypropylene cone.
Tweeter — 0.5” Mylar dome.
Impedance — 8Ω.
Power Handling — 30W RMS, 80W continuous program.
Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).
UL 1480 & 2043 Listed
Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.

Specification

Feature	Specification
Description	2–way closed–back ceiling speaker
Frequency Response	80Hz to 20kHz @ –10dB, 95Hz to 20kHz @ ±3dB
Woofer	6.5” (165mm) polypropylene with rubber surround
Tweeter	0.5” (13mm) Mylar dome
Impedance	8Ω (transformer tap in off position)
Transformer Taps	70V — 3.7W / 7.5W / 15W / 30W / Off (Lo–Z), 100V — 7.5W / 15W / 30W / Off (Lo–Z)
Sensitivity	87dB SPL, 1W @ 1m
Max SPL	Continuous: 100.7dB, Peak: 103.7dB
Power Handling	30W RMS, 80W continuous program
Crossover Frequency	9.2kHz
Coverage Angle	101°
Directivity Factor (Q)	7.5 (averaged 1kHz to 10kHz)
Directivity Index (DI)	8.6dB (averaged 1kHz to 10kHz)
Input Connector	Terminal block
Materials	ABS bezel, aluminum grill, metal back can
Operating Temperature	0° to +40°C (32° to 104°F)
Storage Temperature	–40° to +70°C (–40° to 158°F)
Humidity	10% to 90%, RHL non–condensing
Weight per Speaker	2.85kg (6.28lbs) approx
Shipping Weight (Pair)	8kg (17.64lbs) approx
Installation Dimensions	Mounting depth: 19.6cm (7.72"), Cutout diameter: 22.4cm (8.82")
Accessories	Installation bracket, safety cord attached to grill, ceiling mounting kit
Colors	White
