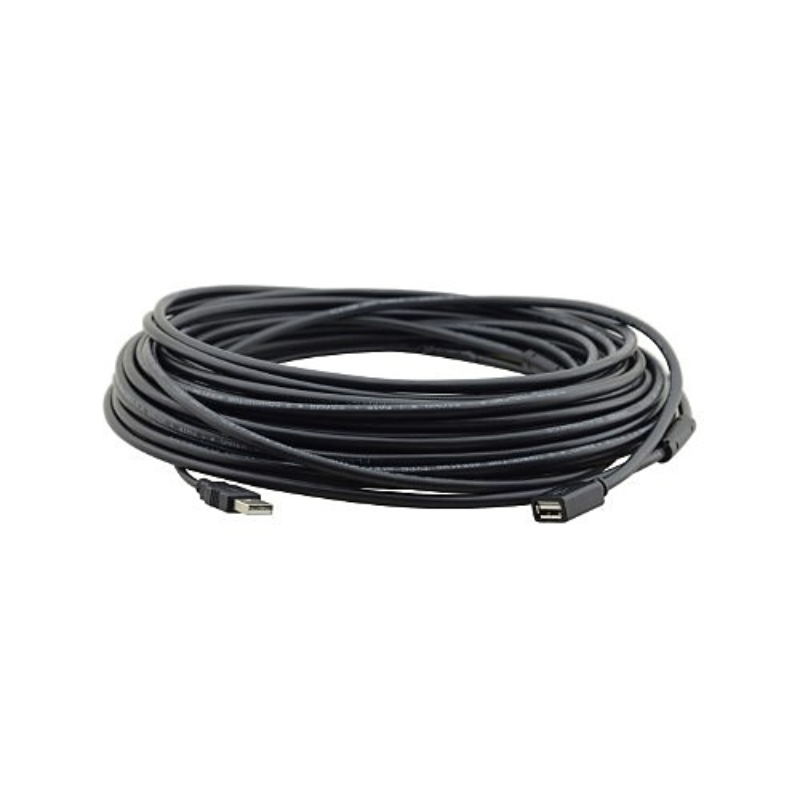

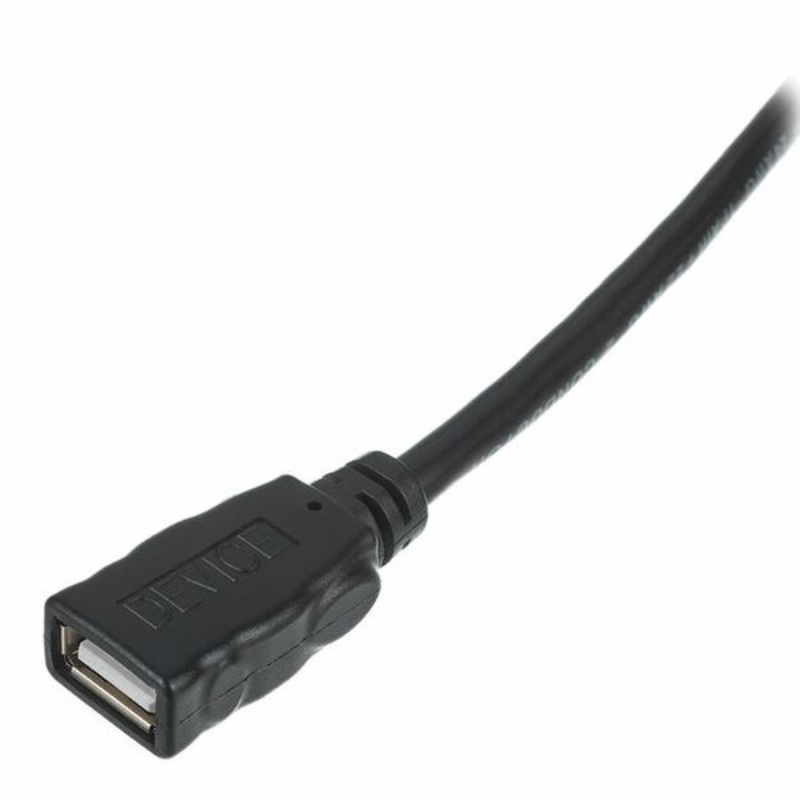

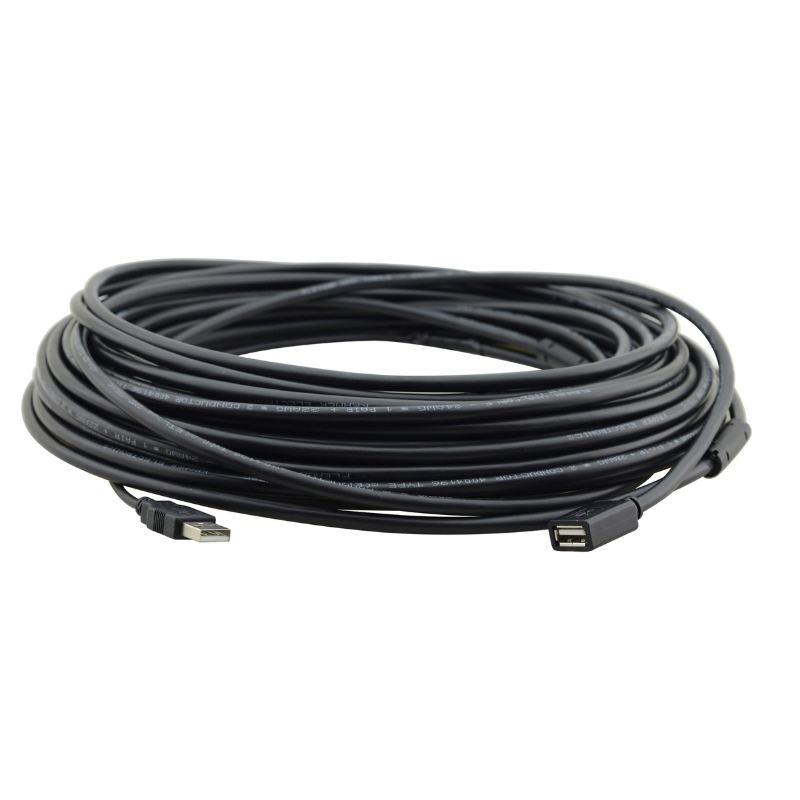

Kramer CA-UAM/UAFUSB Active Extender Cable

  • USB Active 2.0 High Speed (480Mbps),Extender Cable
  • A Male/A-Female 7.6m (25ft)
  • Lengths — 15–65ft

Due to its design, USB cable has a normal maximum length of about 5 meters (16.4 feet), but you can get longer distances by using the CA−UAM/UAF active USB extension cable from Kramer!
This is a bus−powered extension cable that can be used to increase the length of a device without any signal loss or potential performance problems. It contains active electronics, which boost the USB signal for maximum reliability and performance over extended distances. The cable operates as a self−powered extender, for use with USB cameras‚ printers‚ webcams‚ keyboard/mouse, etc.

  •  True Plug–and–Play — No additional drivers needed.
  •  USB 2.0 High Speed (480Mbps) Standard.
  •  Construction — 1 pair 24AWG + 2 pair 22AWG + drain wire 24AWG, tinned copper braid.
  •  No External Power — Pulls power from source.
  •  Data Transfer Only — Not for charging.
  •  Buffers Incoming & Outgoing Signal.
  •  Compliant with USB 2.0.
  •  CM–c(ETL) Rated.
  •  Varied Selection of Lengths — Available in versions of 15 to 65ft (4.6 to 19.5m).

Specification

USB Features :

Configurations

Model Description Feet
CA–UAM/UAF–15 USB Active Extender Cable 4.60m (15ft)
CA–UAM/UAF–25 USB Active Extender Cable 7.60m (25ft)
CA–UAM/UAF–35 USB Active Extender Cable 10.70m (35ft)
CA–UAM/UAF–50 USB Active Extender Cable 15.20m (50ft)
CA–UAM/UAF–65 USB Active Extender Cable 19.50m (65ft)

Additional Resources

Data-Sheet :

Download
