Audio Products, Wall Speaker

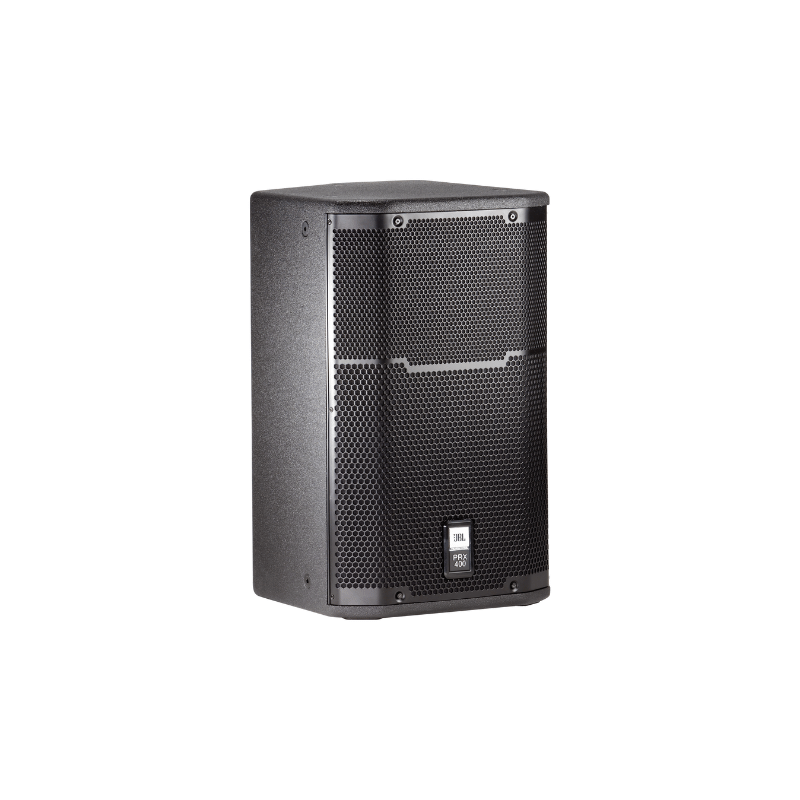

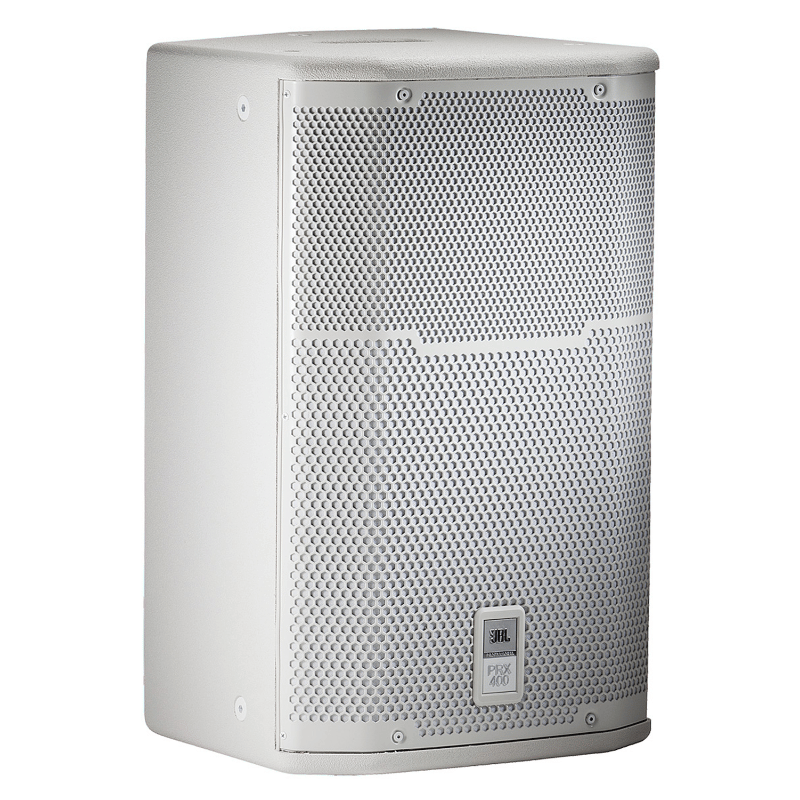

JBL PRX412M Wall/Stage Speaker – 600 Watt, 12-Inch Passive Two-Way Speaker
•600 Program Watts at 8Ω nominal setting
•12″ Two-Way Stage Monitor and Loudspeaker System
•Frequency Range (-10 dB) 50 Hz – 20 kHz
•Nominal Sensitivity 95 dB 1w@1m
•90° x 50° coverage for even and smooth response on and off axis
The JBL PRX412M is a high-power passive two-way speaker engineered for both fixed installation and portable sound reinforcement. Rated at 600 watts program power and 2400 watts peak, it delivers robust, clear, and punchy audio, making it ideal for auditoriums, performance venues, houses of worship, and large indoor spaces.

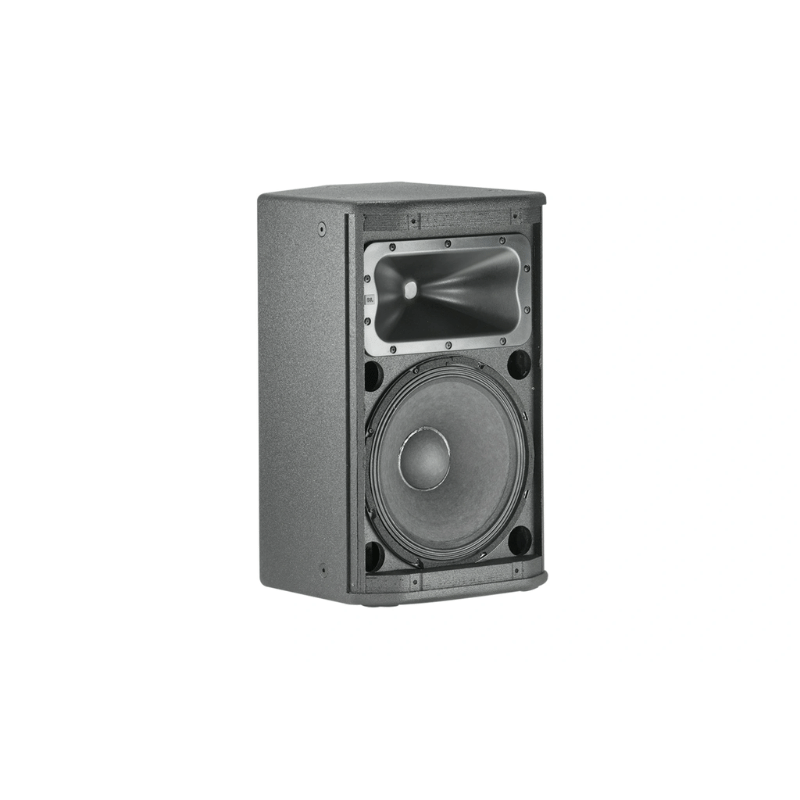

This versatile speaker features a 12-inch woofer for deep lows and a 1-inch polymer diaphragm compression driver for clean highs. The two-way design ensures accurate sound reproduction with minimal distortion across a wide frequency range.
While primarily designed for floor monitor or pole mount use, the PRX412M can also be securely wall-mounted in custom installations using appropriate brackets (sold separately). Its durable enclosure, made from high-quality plywood and covered in rugged textured coating, ensures long-term reliability under demanding conditions.
Whether you’re amplifying speech, vocals, or instruments, the JBL PRX412M provides professional-grade audio performance that meets the needs of sound engineers and venue operators alike.
Specifications
Tech Specs :
| Feature | Details |
|---|---|
| Powered | No |
| Power Configuration | 2-way |
| LF Driver Size | 1 x 12" |
| HF Driver Size | 1" |
| Impedance | 8 ohms |
| Power Rating | 600W Program |
| Total Power | 1200W Peak |
| Inputs | 2 x 1/4" (Combo), 1 x Neutrik speakON (Parallel) |
| Frequency Range | 55Hz – 19kHz |
| Crossover Frequency | 2kHz |
| Maximum Peak SPL | 126dB |
| Horizontal Coverage Angle | 90° |
| Vertical Coverage Angle | 50° |
| Enclosure Material | 18mm Birch/Poplar Multi-laminate Hardwood |
| Mounting Options | 35mm Pole Mount, 12 x M10 Suspension Points |
| Height | 22.7" |
| Width | 13.9" |
| Depth | 15.75" |
| Weight | 38 lbs |
| Manufacturer Part Number | PRX412M |
JBL PRX412M Passive Loudspeaker at a Glance:
- Designed for powerful performance in any setting
- Road-ready construction
- Heavily tested for your assurance
Designed for powerful performance :
JBL's PRX425 passive loudspeaker packs a 12" driver in a 2-way design for maximum sonic quality. High frequencies sound clear and true too, and the SonicGuard high-frequency driver protection ensures it's protected from drawing too much power. And because the PRX412M handles 600 watts RMS, you'll be able to put out a lot of sound. But they're not just great at getting loud - the high power rating gives the PRX412M the needed headroom to reproduce the spoken word with exceptional clarity and presence, even at low volumes.
Road-ready construction :
If you need high-quality portable loudspeakers that can take abuse, you'll appreciate the PRX412M's design. You get 18mm birch/poplar construction, coated with DuraFlex for maximum protection. The hardwood cabinet isn't just strong, it reduces resonance for cleaner sound quality. And with a rugged 16-gauge steel grill protecting the drivers, you can be sure your PRX412M is ready for virtually anything.
JBL PRX412M Passive Loudspeaker Features :
- Passive 12" loudspeaker with 600 watt power rating at 8 ohms
- High frequency dispersion is 90 x 50 degrees, ideal for L/R speaker configurations
- Peak SPL of 126dB
- Designed for use as either a floor monitor or as a pole-mounted main speaker
- DuraFlex enclosure finish protects the cabinet
- 16 gauge steel grill protects the drivers
- SonicGuard technology protects the HF driver from excessive power
- 12 x M10 suspension points
- 38 lbs.
