JBL CSA2300Z Mixer Amplifier – 2 Channel, 2 × 300W

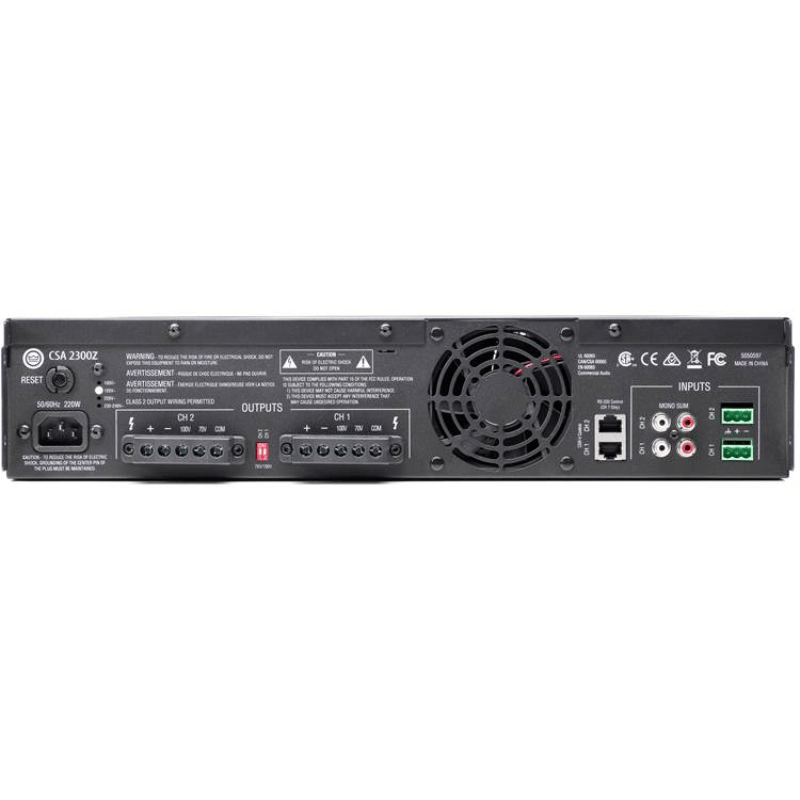

JBL CSA2300Z Mixer Amplifier – 2 Channel, 2 × 300W - Image 2

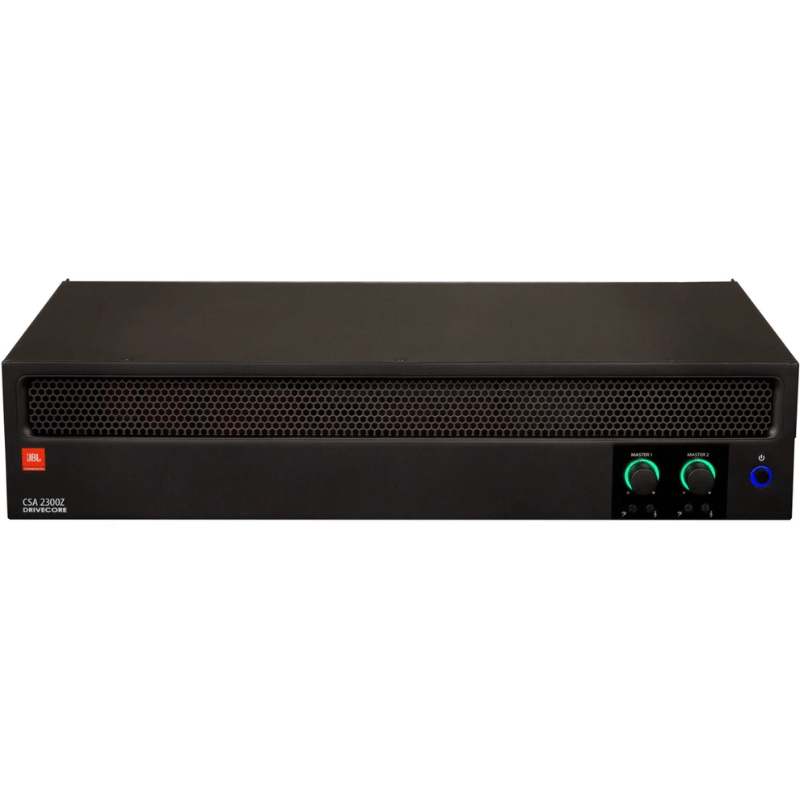

JBL CSA2300Z Mixer Amplifier – 2 Channel, 2 × 300W - Image 3

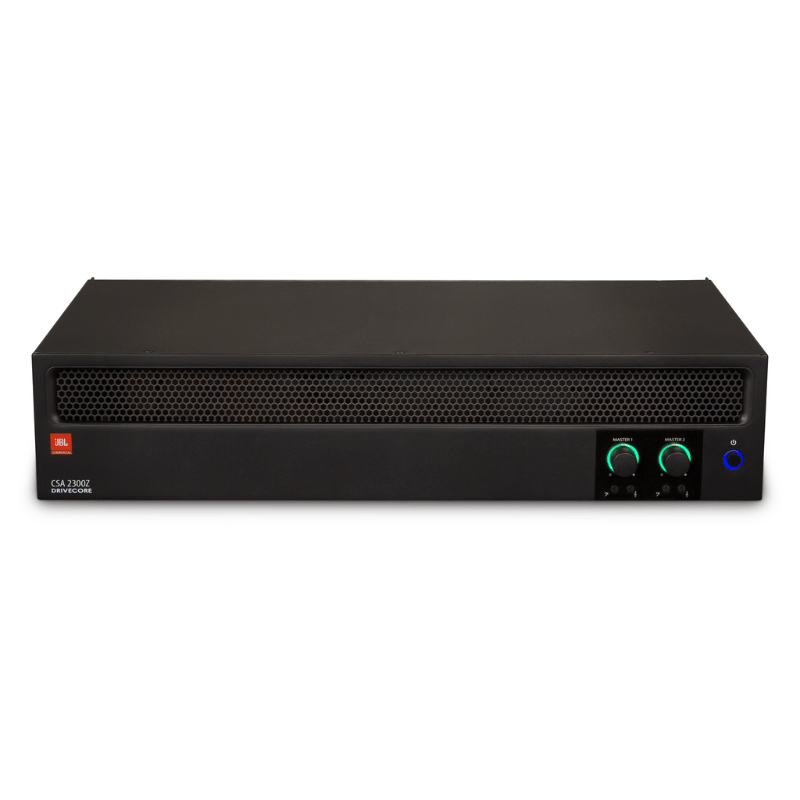

JBL CSA2300Z Mixer Amplifier – 2 Channel, 2 × 300W - Image 4
,

JBL CSA2300Z Mixer Amplifier – 2 Channel, 2 × 300W

•Two input channels and two output channels,Power of each channel: 300W
•Built-in 70V and 100V
•Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
• High power output, compact size, light weight
• Over heat auto protection/ Low voltage auto protection
• Accurate, uncoloured sound with very low distortion for the best in music and voice

JBL 2300Z Overview :

Built for installed sound applications, the CSA 2300Z Dual-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL’s CSR-V control module.

  • Two channels with 300W output each
  • Integrated output transformer to drive 70V or 100V speaker systems
  • Ideal for commercial and industrial use
  • Euroblock style input connectors
  • Barrier strip output connectors
  • Independent bass and treble controls for each output channel
  • Remote volume control capability using JBL’s CSR-V module and standard Ethernet cable (sold separately)
  • Space-saving 2 RU design



Specifications

Key Specs :

Number of Channels
2
Amplifier Power Rating
4 Ohms / 8 Ohms:
300 W (1 kHz, 0.5% THD)
Load Impedance / Voltage
4 Ohms (Minimum)
70 / 100 V
DSP
Yes
Analog Audio I/O
2x Block 3-Pin Balanced/Unbalanced Input
2x 2RCA TS Unbalanced Summed-Mono Input
2x Barrier Strip 5-Pin Output

Amplifier :

Number of Channels
2
Amplifier Power Rating
4 Ohms / 8 Ohms:
300 W (1 kHz, 0.5% THD)
Load Impedance / Voltage
4 Ohms (Minimum)
70 / 100 V

Performance :

Frequency Response
20 Hz to 20 kHz ±1 dB (8 Ohms)
Input Sensitivity
Line:
775 mVrms (Balanced, at 8 Ohms)
RCA:
300 mV (at 8 Ohms)
Input Impedance
Block:
20 Kilohms (Balanced)
RCA:
10 Kilohms
SNR
> 97 dBA
THD
< 0.5% (Full Range, at Rated Power)
Crosstalk
< -70 dBA (1 kHz)

Signal Processing :

DSP
Yes
Crossover
Yes
EQ
2-Band
Compressor
Yes
Limiting
Yes

Connectivity :

Analog Audio I/O
2x Block 3-Pin Balanced/Unbalanced Input
2x 2RCA TS Unbalanced Summed-Mono Input
2x Barrier Strip 5-Pin Output
Phantom Power
Yes

Power :

AC Input Power
100 to 240 VAC, 50 / 60 Hz

Physical :

Operating Conditions
32 to 95°F / 0 to 35°C up to 95% Humidity
Storage Conditions
-4 to 185°F / -20 to 85°C
Dimensions
17.0 x 11.0 x 3.5" / 43.0 x 27.0 x 8.9 cm
Weight
17.8 lb / 8.1 kg

Packaging Info :

Package Weight
20 lb
Box Dimensions (LxWxH)
22 x 15 x 6"



Additional Resources

Usermanual : https://www.bhphotovideo.com/lit_files/862209.pdf
