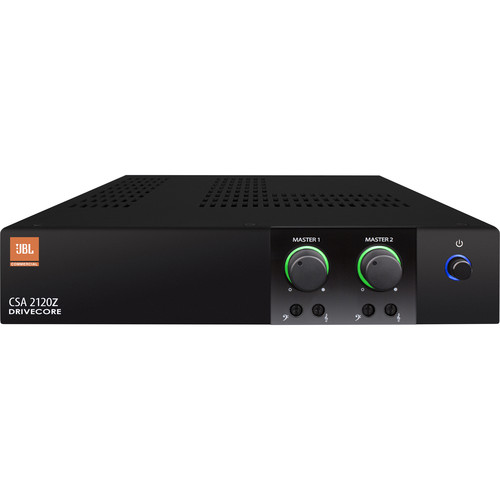

JBL CSA2120Z Mixer Amplifier – 2 Channel, 2 × 120W
JBL CSA2120Z Mixer Amplifier – 2 Channel, 2 × 120W - Image 2
JBL CSA2120Z Mixer Amplifier – 2 Channel, 2 × 120W - Image 3
JBL CSA2120Z Mixer Amplifier – 2 Channel, 2 × 120W - Image 4
,

JBL CSA2120Z Mixer Amplifier – 2 Channel, 2 × 120W

•Two input channels and two output channels,Power of each channel: 120W
•Built-in 70V and 100V
•Fanless, space-saving 1U design
•Sleek industrial look with illuminated rings making knobs easy to see and use
•Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors

JBL 2120Z Overview :

The JBL CSA 2120Z Audio Amplifier (2x 120W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown’s DriveCore technology to deliver reliable and efficient sound amplification.

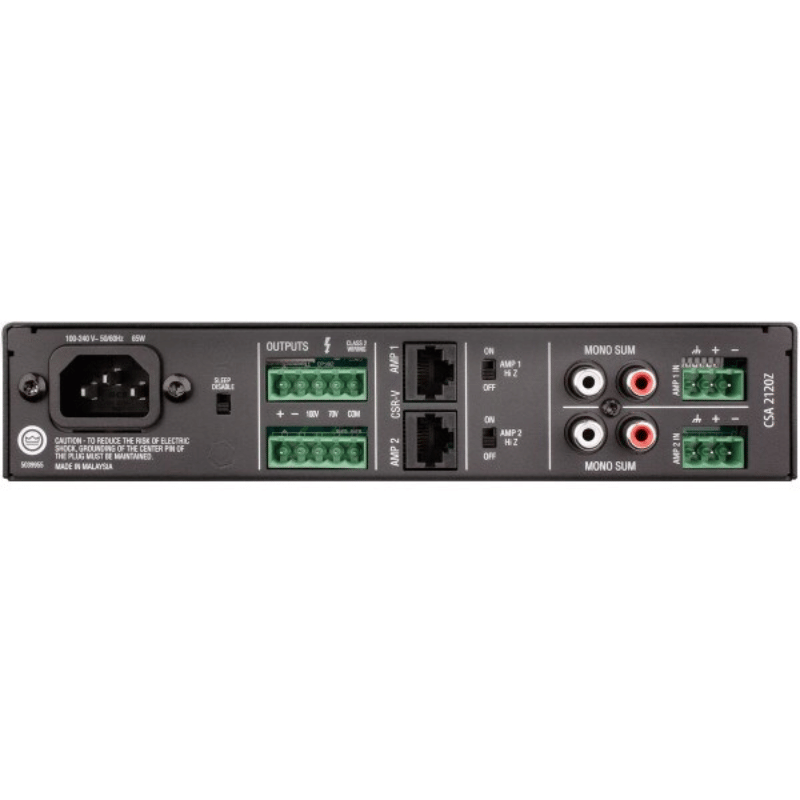

The unit supports both 70 and 100V installations out of the box. It includes 2 x RJ45 connectors for use with the company’s CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN’s GreenEdge environmental initiative.

  • 2 output channels with 120W per channel
  • Built-in 70V and 100V
  • Fanless, space-saving 1U design
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek industrial look with illuminated rings making knobs easy to see and use
  • Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors
  • Universal power supply
  • Energy Star Certified



Specifications

Key Specs :

Number of Channels 2
Amplifier Power Rating 4 Ohms / 8 Ohms:
120 W (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum)
70 / 100 V
DSP Yes
Analog Audio I/O 1x 2RCA TS Summed-Mono Input
2x Block 3-Pin Input
2x Block 5-Pin 70/100 V Output
Digital I/O 2x RJ45 (Control)

Amplifier :

Number of Channels 2
Amplifier Power Rating 4 Ohms / 8 Ohms:
120 W (1 kHz, 0.5% THD)
Load Impedance / Voltage 4 Ohms (Minimum)
70 / 100 V

Performance :

Frequency Response 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity 1.4 Vrms
Input Impedance Block:
20 Kilohms (Balanced)
RCA:
50 Kilohms
SNR > 100 dB
THD < 0.5%
Crosstalk > 70 dB

Signal Processing :

DSP Yes
Crossover Yes
EQ 2-Band
Compressor Yes
Limiting Yes

Connectivity :

Analog Audio I/O 1x 2RCA TS Summed-Mono Input
2x Block 3-Pin Input
2x Block 5-Pin 70/100 V Output
Digital I/O 2x RJ45 (Control)
Phantom Power Yes

Power :

AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1x IEC 15 A / NEMA 5-15

Physical :

Certifications ENERGY STAR
Operating Conditions 32 to 95°F / 0 to 35°C
Storage Conditions -4 to 185°F / -20 to 85°C
Dimensions 8.6 x 11.9 x 1.7" / 218.5 x 303.4 x 43.3 mm
Weight 8.8 lb / 4 kg

Packaging Info :

Package Weight 12.015 lb
Box Dimensions (LxWxH) 16.45 x 12.15 x 4.9"



Additional Information

User-Manual - https://jblpro.com/en/product_documents/csa_5040963_en_140120pdf
