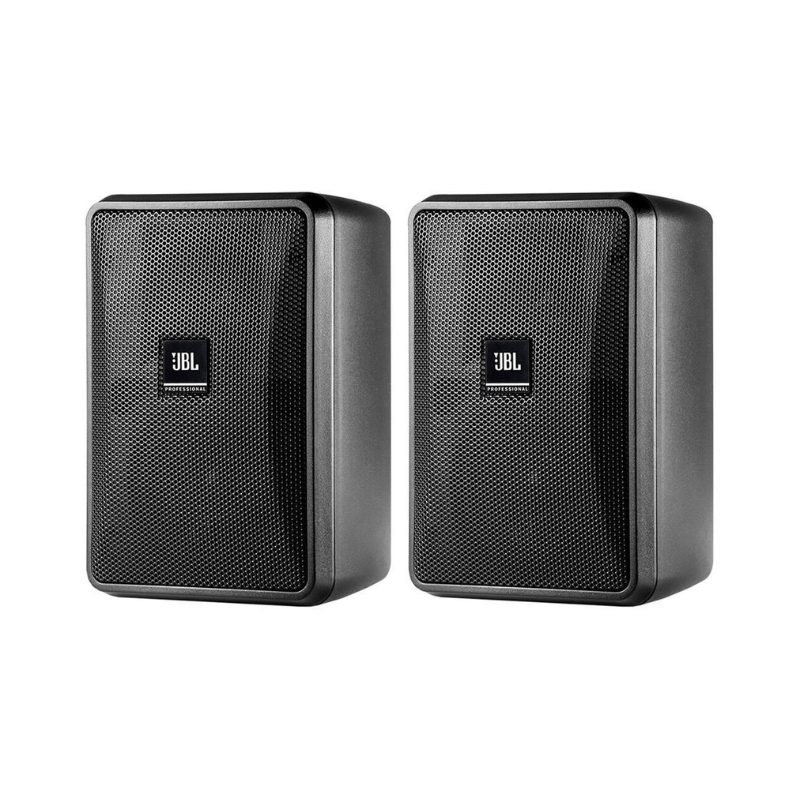

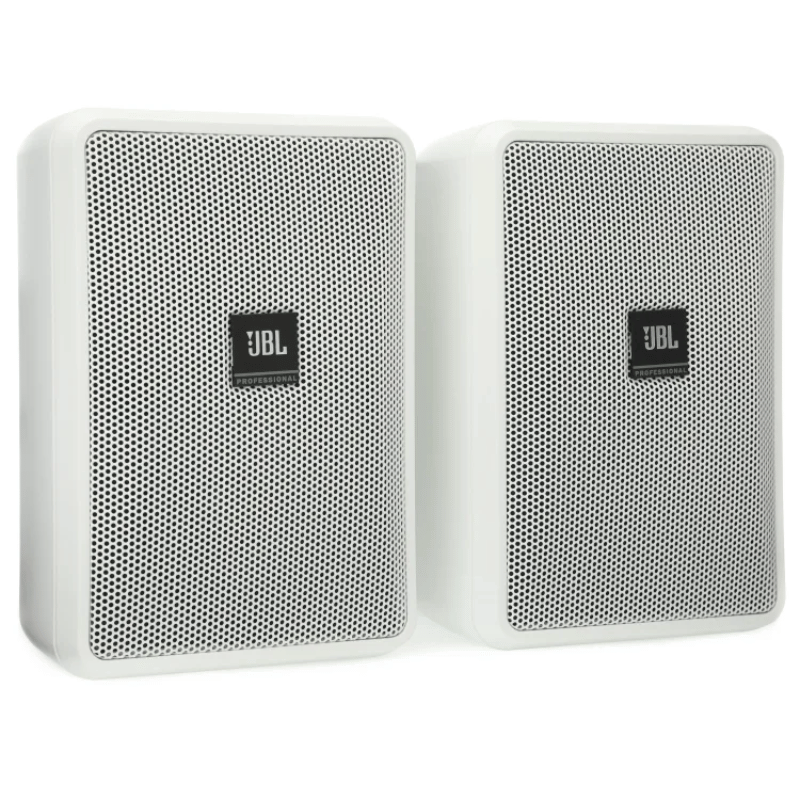

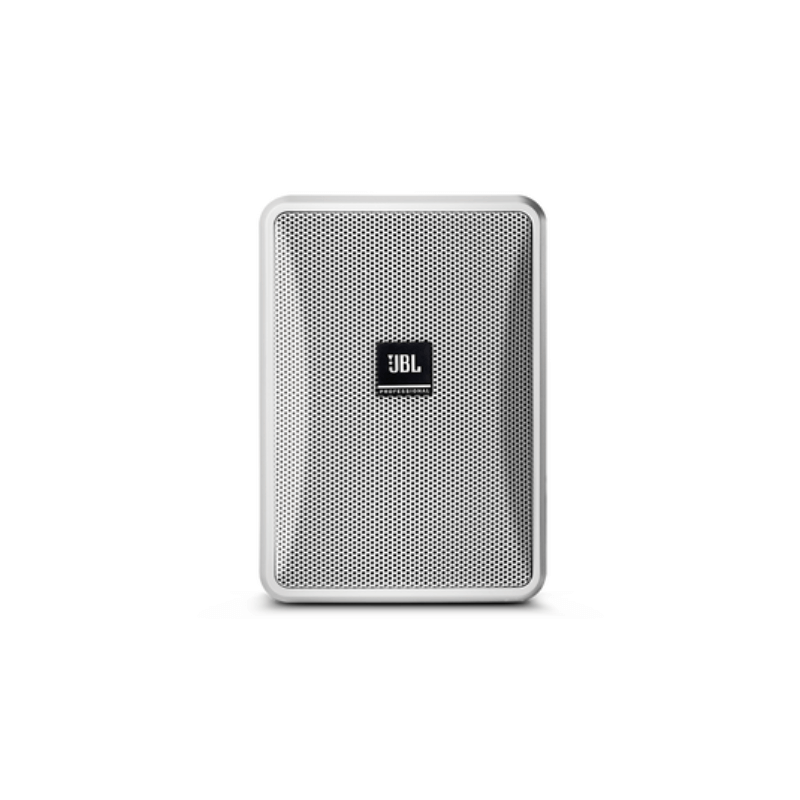

JBL Control 23-1 Wall Speaker – 40/15 Watt, Compact Indoor/Outdoor Speaker

Name: JBL Control 23-1 Wall Speaker – 40/15 Watt, Compact Indoor/Outdoor Speaker
SKU: 4896
Availability: InStock

•50 W (100watt programe)at 8Ω nominal setting, 15W, 7.5W, 3.7W, multi-tap at 70V/100V
•Extremely wide 120° coverage
•Frequency Range (-10 dB)1 74 Hz – 20 kHz
•Nominal Sensitivity: 87 dB SPL @ 1 m (3.3 ft)
•Rated Maximum SPL 102 dB @ 1 m (3.3 ft), 25W tap

The JBL Control 23-1 is a versatile and compact wall-mount speaker, designed for both indoor and outdoor environments. With a 3-inch woofer and 0.5-inch tweeter, it offers crystal-clear sound and broad frequency response, ideal for background music and paging in commercial and professional settings.

This speaker supports 70V/100V distributed audio systems with multiple tap settings, including 40W and 15W, making it adaptable to a wide variety of installations. Its InvisiBall® mounting system allows for secure and flexible positioning, while the weather-resistant enclosure ensures reliable performance in challenging conditions.

Perfect for restaurants, cafes, retail stores, hotels, and educational facilities, the Control 23-1 delivers high-quality audio in a discreet form factor. Its sleek, modern design blends seamlessly into any décor, while the rugged construction ensures long-term durability.

Whether indoors or outdoors, this speaker is engineered to provide consistent, professional sound coverage with minimal installation effort.

Specifications

Features :

Components:
• 3” woofer with woven fiberglass cone
• 1/2” PEI diaphragm tweeter with fluid cooling
Contemporary, high-design appearance

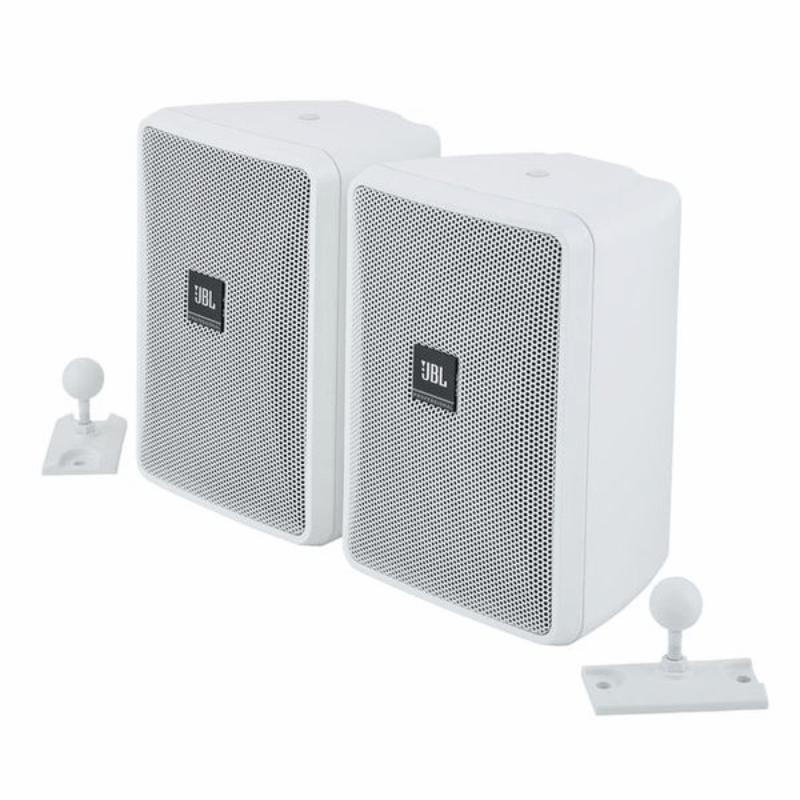

Built-in InvisiBall® mounting hardware*, plus available U-bracket
Weather resistant enclosure and transducers
Wide 100° x 100° coverage
50 Watt power handling (100 Watt program) in direct 8Ω setting, plus built-in 15 Watt 70V/100V multi-tap transformer.
High fidelity sound character with broad frequency response of 70 Hz – 20 kHz.

Speaker :

Active/Passive	Passive
Number of Included Speakers	2
Speaker Configuration	2-Way
Power Handling	For 100 Hours: 40 W RMS 160 W Peak For 2 Hours: 100 W Program 50 W RMS 200 W Peak

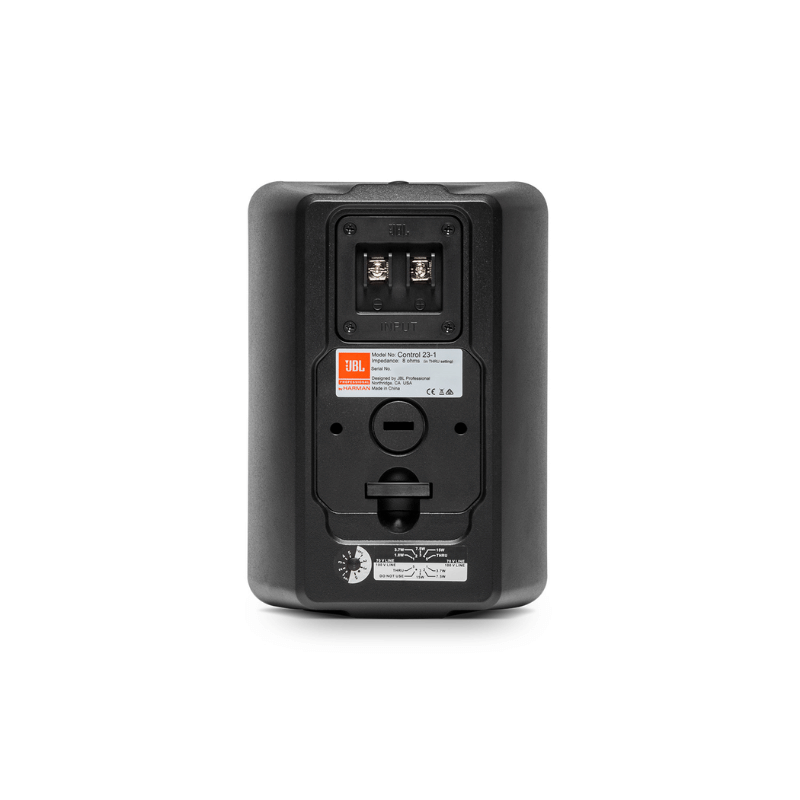

Constant Voltage / Transformer Taps	100 V 15 / 7.5 / 3.7 W or 8 Ohms Bypass 70 V 15 / 7.5 / 3.7 / 1.8 W or 8 Ohms Bypass
Impedance	8 Ohms (Thru Setting)

Drivers :

HF Driver	0.5" / 13 mm PEI Tweeter
LF Driver	3" / 76 mm Fiberglass Woofer

Performance :

Frequency Response	70 Hz to 20 kHz ±10 dB 95 Hz to 19 kHz ±3 dB
Sensitivity	86 dB
Coverage Angle	100° H x 100° V
Directivity	5.8 (Directivity/Q Factor) 7.2 dB (Directivity Index)
Crossover	Low-Pass: 12 dB/Octave High-Pass: 12 dB/Octave
Recommended High-Pass Filter	70 Hz, 24 dB/Octave
Maximum Input Voltage	17.2 V RMS 34.4 V Peak
Transformer Insertion Loss	<0.43 dB

Physical :

Certifications	RoHS, UL
Environmental Resistance	Dust/Water-Resistant (IP44)
Color	Black
Construction Material	High-Impact Polystyrene, Metal Grille
Dimensions	7.9 x 5.6 x 4.4" / 200 x 141 x 111 mm
Weight	4 lb / 1.8 kg
