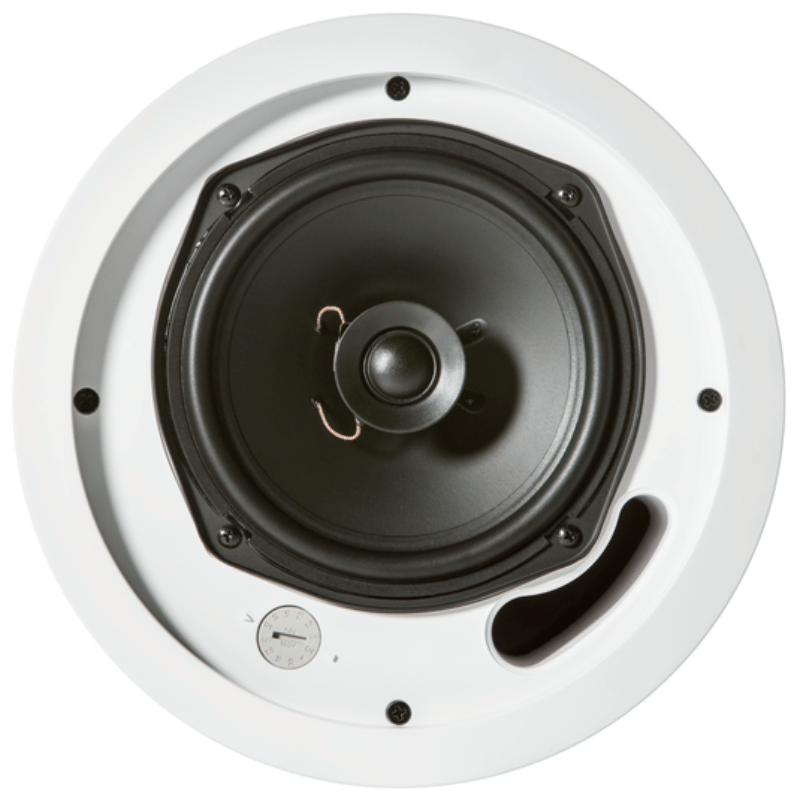

JBL Control 16CT Ceiling Speaker – 50/30 Watt, High-Output

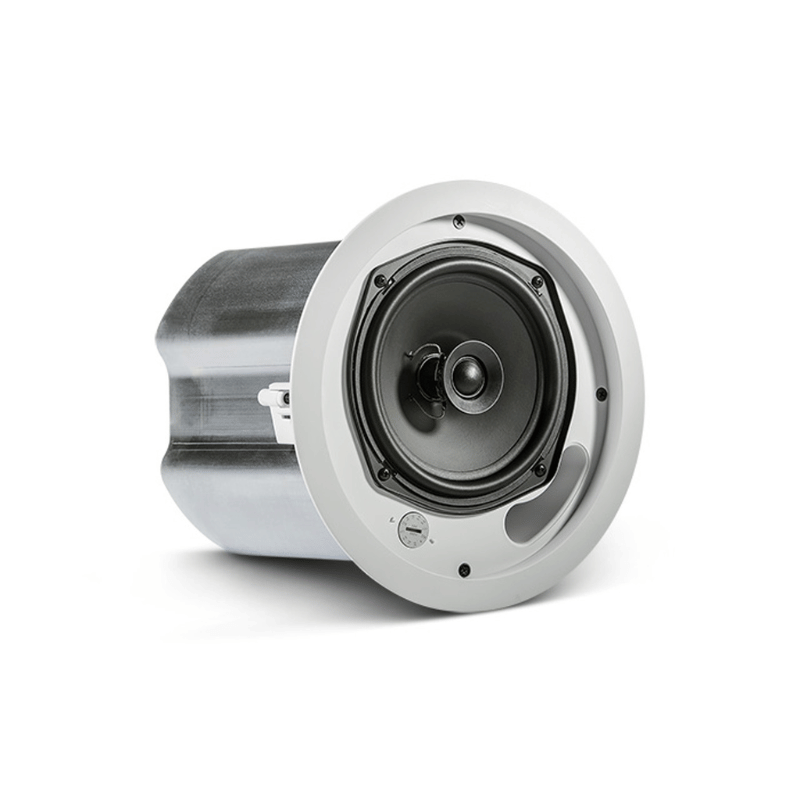

JBL Control 16CT Ceiling Speaker – 50/30 Watt, High-Output - Image 2

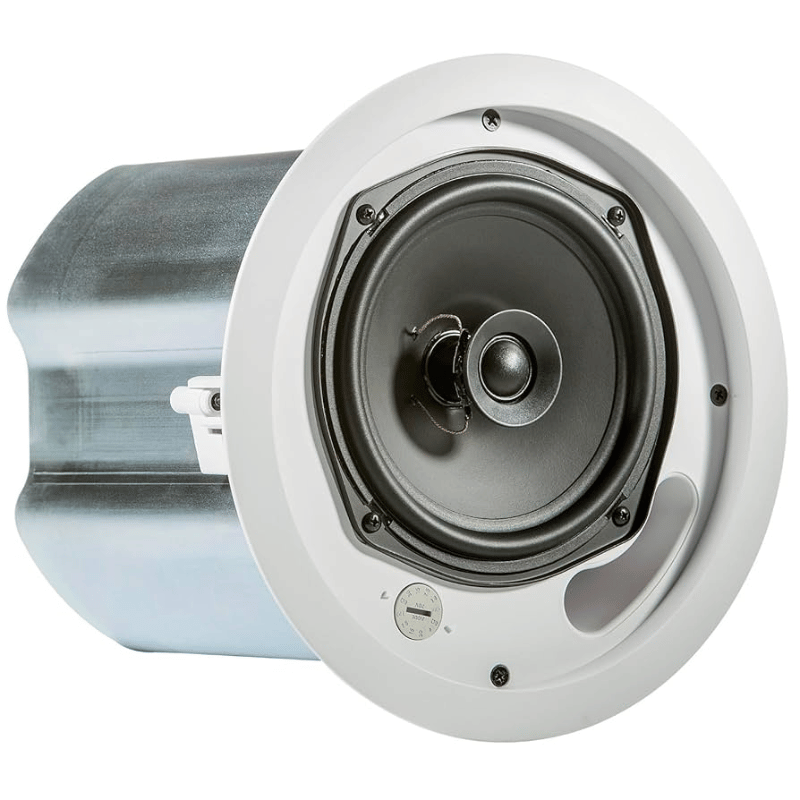

JBL Control 16CT Ceiling Speaker – 50/30 Watt, High-Output - Image 3

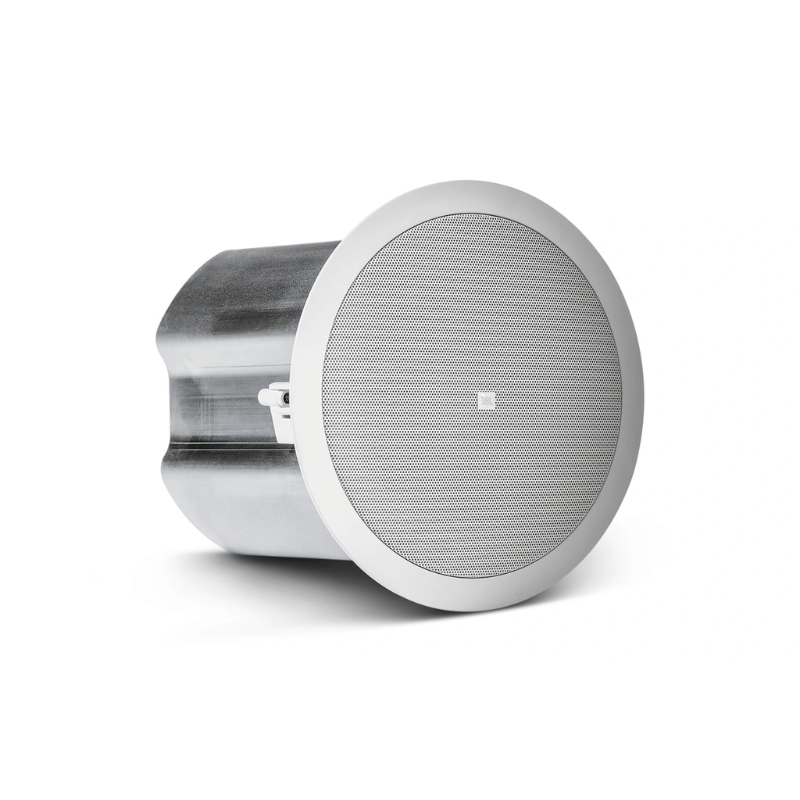

JBL Control 16CT Ceiling Speaker – 50/30 Watt, High-Output - Image 4
,

JBL Control 16CT Ceiling Speaker – 50/30 Watt, High-Output

•50 Watts at 8Ω nominal setting, 30/15/7.5 multi-tap 70V or 100V
•Extremely wide 110° coverage
•Frequency Range (-10 dB) 62 Hz – 20 kHz
•Nominal Sensitivity: 91 dB SPL @ 1 m (3.3 ft)
•Rated Maximum SPL 106 dB @ 1 m (3.3 ft), 30W tap

JBL Control 16C/T Overview :

Styled in White,   JBL Control 16C/T Speakers are designed to suit a variety of spaces, such as cafes, places of business, airport lounges, reception areas, court rooms, and more. They feature a 2-way coaxial design, giving you a 6.5″ cone driver and a 0.75″ soft-dome, liquid-cooled tweeter. With their coaxial construction, these speakers deliver a more consistent sound off-axis, which is a benefit for environments in which indirect listening takes place.

The drivers themselves are designed using a high-temperature anodized aluminum voice coil former and high-temperature voice coil to ensure a reliable performance throughout years of continuous use. Butyl rubber encloses the drivers, offering further durability, as well as sonic damping. The cone itself is resistant to both water and humidity. Thanks to a FEA-optimized motor construction, the Control 16C/T achieves a smooth frequency response.

Installation is made possible via the removable locking connector, within which you’ll find screw terminals for wire termination, as well as loop-thru points for furthering signal to more speakers. Dual conduit clamps employed to provide strain relief to both the input and loop-output cables. You can use the speaker to handle 8-Ohm loads, or as part of a 70V / 100V distributed loudspeaker system with a 30W multi-tap transformer.

These speakers ship with two tile rail supports, as well as a C-ring support backing plate, cutout template, paint shield, and grille. On the top of the speaker you’ll find a safety seismic attachment ring.

  • 100W continuous program power rating
  • Components: 6.5″ / 165.1mm high-output driver with polypropylene cone and butyl rubber surround, and 0.75″ / 19mm soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit cable clamps
  • Combined 70V/100V and low impedance direct operation
  • 62 Hz to 20 kHz bandwidth with 110° conical coverage
  • High 91 dB sensitivity
  • Suitable for use in air handling spaces and as signaling speakers



Specifications

JBL Control 16C/T Specs :

Frequency Range
62 Hz to 20 kHz at -10 dB
Frequency Response
96 Hz to 15 kHz at ±3 dB
Power Capacity
At Lo-Z:
100 W continuous program power
50 W continuous pink noiseNote: Continuous Pink Noise Rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous Program Power is a conservative expression of the system's ability to handle normal speech and music program material, and is defined as 3 dB above the Continuous Pink Noise Rating.
Nominal Sensitivity
91 dB
Nominal Coverage Angle
110° conical coverage
Directivity
Directivity Factor (Q): 7.8
Directivity Index (DI): 8.2 dB
Maximum SPL
Rated: 108 dB @ 3.3' / 1.0 m average, 116 dB peak
Nominal Impedance
8 Ohms (in direct/bypass 8-Ohm setting)
Transformer Taps
30 W, 15 W, 7.5 W @ 70 or 100 V (plus 3.8 W @ 70 V only)
Crossover
Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
Transducer

LF Driver: 6.5" / 165.1 mm with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high-temperature voice coil

HF Driver: 0.75" / 19.00 mm, highly damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide
Input Connector
Removable locking 4-pin connector with screw-down terminals.
Maximum wire size 12 AWG (2.5 mm2)
Wiring
Connector:
Pin 1 = + In
Pin 2 = - In
Pin 3 = + Loop Thru
Pin 4 = - Loop Thru
Strain Relief
For 2 cables or 2 flex conduits via coupled clamping mechanism
Materials
ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
Zinc-plated steel backcan
Safety Agency Approvals
UL1480, UL2043, NFPA90, and NFPA70; S7232/UL Listed
Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant
Baffle meets UL94-V0 and UL94-5VB flammability rating
In accordance with IEC60849/EN60849 systems
Attachment
Safety Seismic: One point, top surface
Ceiling Cutout Size
Circular cutout with 8.8" / 223.5 mm diameter (cardboard cutout template included)
Ceiling Thickness
Up to 1.5" / 38.1 mm with stock dog-ears
MTC-TCD thick-ceiling dog-ears sold separately for up to 2.4" / 60.9 mm ceiling thicknesses
Dimensions
Each Speaker: 10.0 x 8.8" / 253 x 225.0 mm
Depth measured from back of the baffle
Weight
Each Speaker: 7.4 lb / 3.4 kg

Packaging Info :



Package Weight
24.3 lb
Box Dimensions (LxWxH)
26.8 x 14.1 x 12"

Items Included :

  • JBL Control 16C/T 2-Way 6.5" Coaxial Ceiling Loudspeakers
  • 2 x C-Ring Support Backing Plates
  • 4 x Tile Support Rails for 2' or 600mm Tile Spans
  • 2 x Cardboard Cutout Templates
  • 2 x Paint Shields
  • 2 x Removable Locking Multi-Pin Connectors
  • 2 x Grilles
  • Limited 5-Year Manufacturer Warranty



Additional Resources

Usermanual:

https://jblcommercialproducts.com/en/product_documents/c10_owners_manual_reva_130529pdf
