JBL C64P/T Pendant Speaker – 30 Watt, Full-Range Hanging Speaker

•30 Watts at 16Ω nominal setting, 30/15/7.5 multi-tap 70V or 100V
•Extremely wide 120° coverage
•Frequency Range (-10 dB) 85 Hz – 14 kHz
•Nominal Sensitivity: 88 dB SPL @ 1 m (3.3 ft)
•Rated Maximum SPL 105 dB @ 1 m (3.3 ft), 60W tap

JBL Control 64P/T Overview :

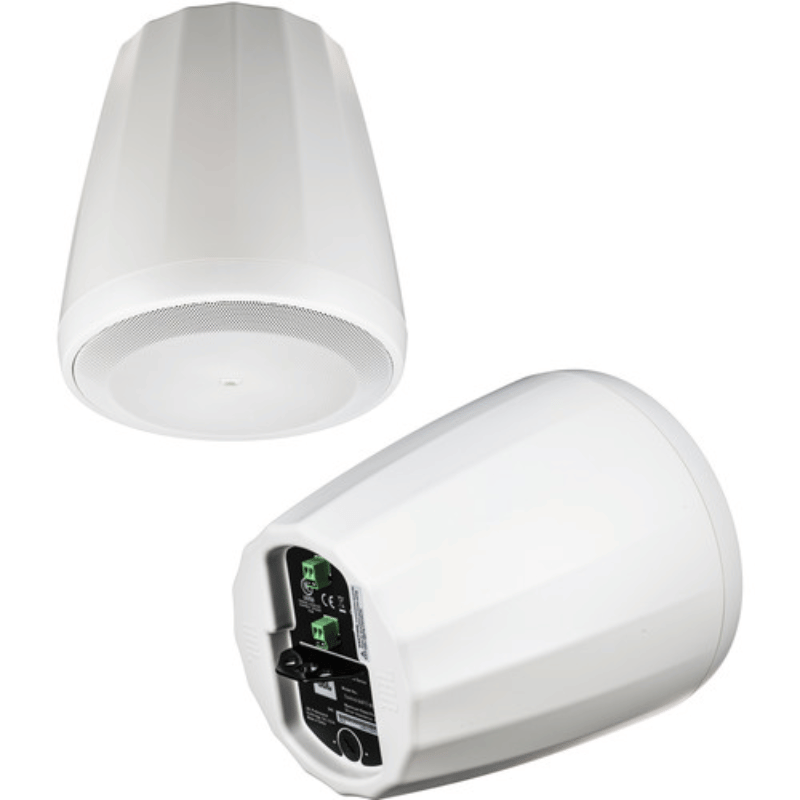

The white Control 64P/T from JBL is a pendant loudspeaker that provides full-range audio in a compact design well suited for retail, restaurants, hotels, casinos, fitness centers and more. It features a 4.0″ full-range driver that delivers high-quality audio with a wide frequency response, ideal for music or speech applications. A full grille protects the drivers and offers a sleek look. The 8-Ohm speaker provides 120° of consistent conical coverage, offers a 100W (continuous) power handling capability, and is compatible with a variety of installation sound systems. The unit also has a 30W multi-tap transformer for professional installs. The Control 64P/T ships with two suspension cables systems, two 2-pin removable locking Euro-block connectors, and two rubber covers for Euro-block connectors.

  • 4.0″ / 100 mm full-range driver with polypropylene-coated cone and 0.8″ / 20 mm high temperature voice coil
  • Hanging hardware with 15′ / 4.5 m galvanized steel cable and easy to adjust clamp
  • Stylish design
  • UL listed (speaker and hanging cable system)
  • 8 Ohms and 70V/100V operation





Specifications

JBL Control 64P/T Specs:

Key Specs :

Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
For 100 Hours:
40 W RMS
160 W Peak
For 2 Hours:
100 W Program
50 W RMS
200 W Peak

Speaker :

Active/Passive
Passive
Number of Included Speakers
1
Speaker Configuration
Full-Range
Power Handling
For 100 Hours:
40 W RMS
160 W Peak
For 2 Hours:
100 W Program
50 W RMS
200 W Peak
Constant Voltage / Transformer Taps
100 V
30 / 15 / 7.5 W
70 V
30 / 15 / 7.5 / 3.7 W
Impedance
8 Ohms

Drivers :

Full-Range Driver
4" / 101.6 mm Polypropylene-Coated Paper
Full-Range Voice Coil
0.8" / 20 mm

Performance :

Frequency Range
85 Hz to 14 kHz ±3 dB
Frequency Response
65 Hz to 15 kHz -10 dB
Maximum SPL
105 dB (Continuous)
111 dB (Peak)
Sensitivity
88 dB
Coverage Angle
120° H x 120° V
Coverage Angle
120° at 4 kHz (Conical)
Directivity
6.2 (Directivity/Q Factor)
7.3 dB (Directivity Index)
Maximum Input Voltage
18.2 V RMS
36.4 V Peak
Transformer Insertion Loss
0.94 dB at 3.7 W
0.89 dB at 7.5 W
0.83 dB at 15 W
0.94 dB at 30 W

Connectivity :

Inputs/Outputs
2x Block 2-Pin
Screw Terminal
Maximum Wire Gauge
12 AWG / 2.5 mm

Physical :

Certifications
UL
Environmental Resistance
Dust/Water-Resistant (IP44)
Color
White
Mounting
Suspension
Construction Material
High-Impact Polystyrene, Metal Grille
Dimensions
10.2 x 9.3" / 259.1 x 236.2 mm
Weight
5.2 lb / 2.4 kg

Packaging Info :

Package Weight
14.1 lb
Box Dimensions (LxWxH)
20.7 x 13.2 x 10.8"
