The iPort Tablet Docking System combines model numbers 72300, 72350, and 72109 to create a complete, flexible docking solution for tablets. Designed for commercial and residential environments, this system allows you to securely mount, charge, and use your tablet seamlessly. Ideal for conference rooms, retail spaces, or smart home control, the iPort docking system offers reliable power delivery, sleek design, and easy installation, helping you keep your tablet ready and accessible at all times.
Fix Wall Mount, Mounts
iPort Tablet Docking System

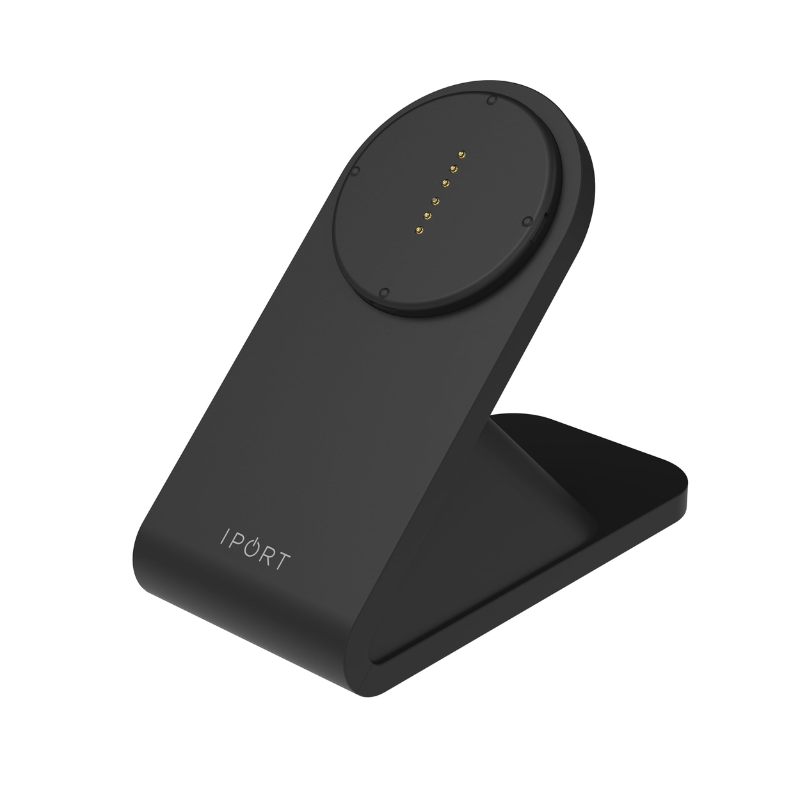

CONNECT PRO is the completely redesigned system for holding, charging, and protecting iPad. This direct replacement for IPORT LAUNCH includes the familiar components: BaseStation, WallStation, and Case, now with an optional CONNECT PoE+ Upgrade. The electrical charging enhancements and a uniquely modular design provide a powerful and more flexible charging capability that supports all iPad
models, including iPad Pro.
Specifications

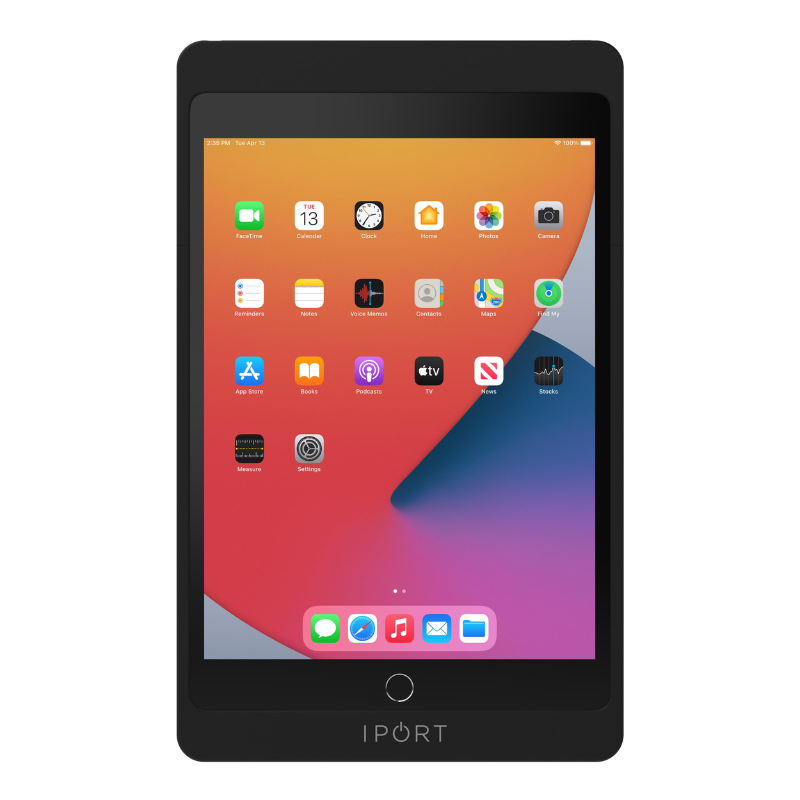

CONNECT PRO Case (Model 72300) :
| Feature | Specification |
|---|---|
| Compatible Devices | iPad 10.2″ (7th–10th Gen), iPad Air/Pro/mini variants |
| Charging & Docking | Contactless charging pads; dual docking interfaces (Station & Dock) |
| Protection | Drop‑rated up to 2 m; lockable case |
| Controls Access | All buttons, mic, speakers remain fully usable |
| Finish & Weight | Soft-touch shell; approx. 0.27 kg |

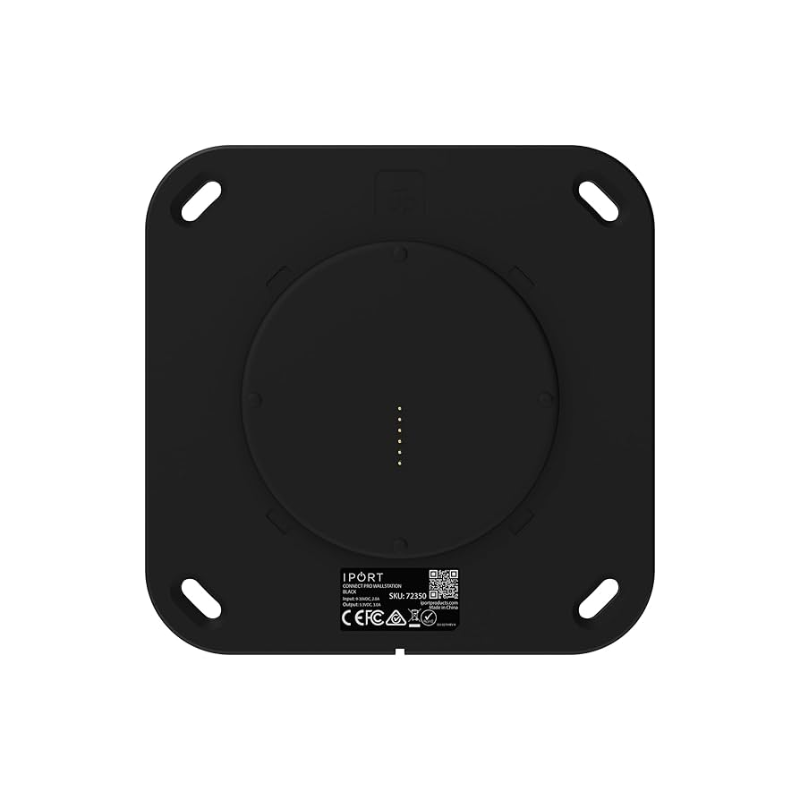

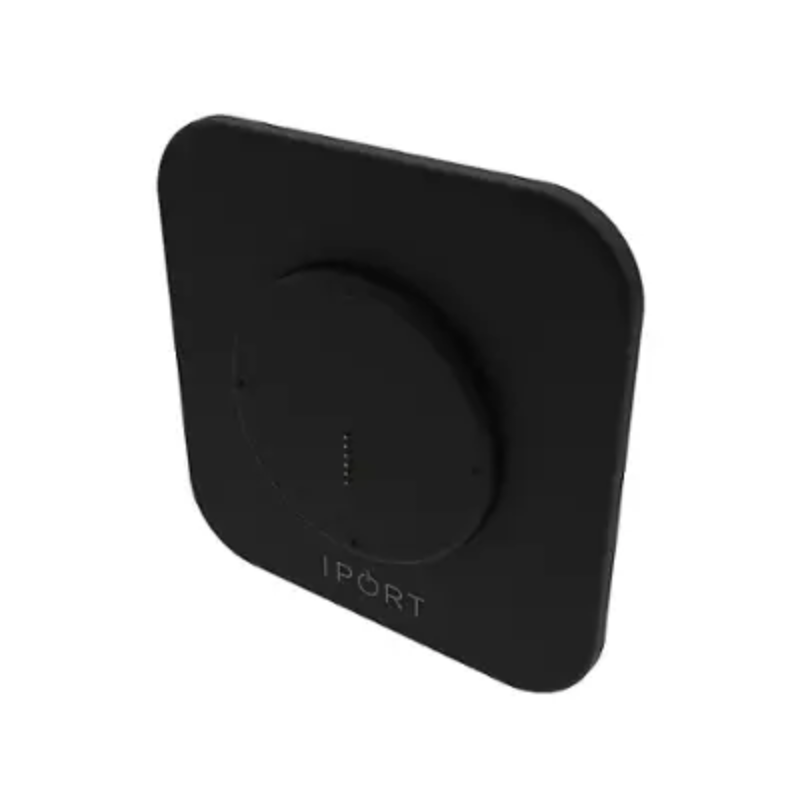

CONNECT PRO WallStation (Model 72350) :
| Feature | Specification |
|---|---|
| Mounting | Magnetic mount on wall, glass, or any solid surface; fits a 1‑gang box |
| Power Output | 5 V / 3 A via DC or PoE+ (with upgrade) |
| Power Input | 9–30 VDC (adapter) or PoE+ (72109) |
| Certifications | FCC, CE, AS/NZS EMC compliant |
CONNECT PRO PoE+ Upgrade (Model 72109) :
-
Enables Power‑over‑Ethernet for WallStation or BaseStation via Cat‑5/6 cables.
Features
-
Magnetic, contactless design: Snap‑on docking and 360° rotation with secure magnetic hold
-
Modular flexibility: Case works with WallStation, BaseStation, or standalone via multi‑station ecosystem
-
Secure & durable: Lockable case, 2 m drop protection, clean cable‑managed install
-
Robust charging: 5 V/3 A output via DC or PoE+, compatible with any Ethernet infrastructure
-
Professional compliance: Global EMC certifications for enterprise deployment
-
Versatile mounting: Magnetic docking on glass, drywall, wall boxes, or counters
What’s in the Box ?
-
72300 CONNECT PRO Case for iPad
-
72350 WallStation dock + power adapter, cables, screws
-
72109 PoE+ Upgrade kit
-
Security (1.5 mm hex key), info card, warranty documentation
Additional Resources
