MPTP-T60S-H2 is a cost effective point to point extender set for HDMI 2.0 and IR signals. This kit supports 4K/UHD video @ 60 Hz with 4:4:4 Chroma sampling, as well as HDMI data rates up to 18 Gbps, HDCP 2.2 compliant. It provides HDMI transmission up to 230 feet (70 meters) for 4K @60Hz 4:4:4 or 1080p, over single CAT5e/6 cable. It supports video resolution down scaling, the 4K input can be automatically downscale to 1080p output for compatibility with 1080p display.

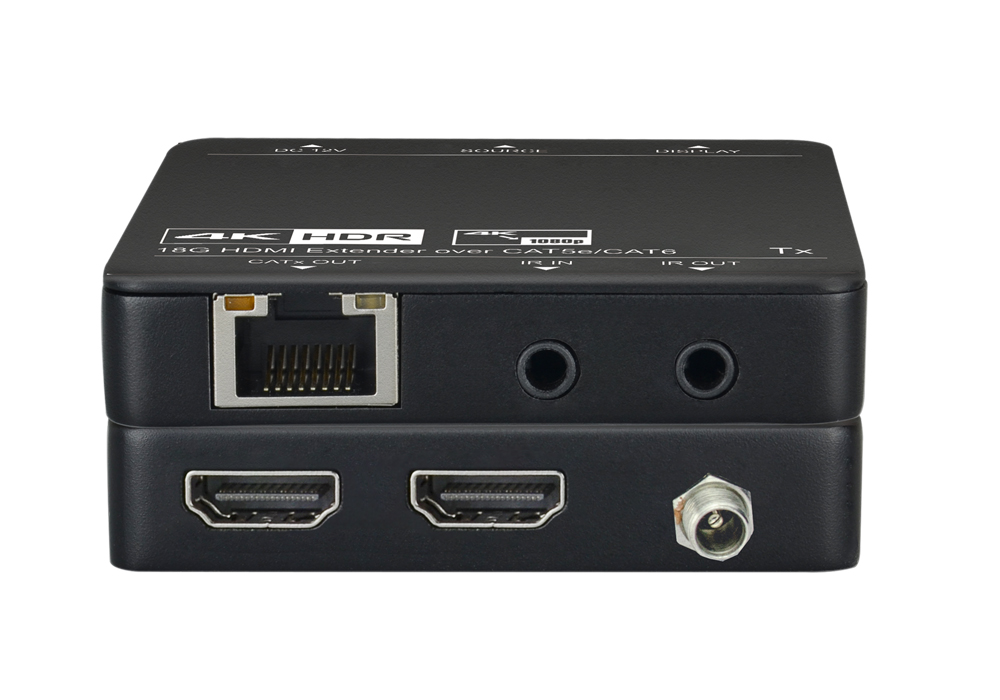

| Transmitter | |
| Input | (1) SOURCE |
| Input Connector | (1) 19 pin type A female HDMI |
| Output | (1) DISPLAY, (1) CATx OUT |
| Output Connector | (1) 19 pin type A female HDMI, (1) RJ45 |
| Control | (1) IR IN, (1) IR OUT |
| Control Connector | (2) 3.5mm mini jacks |
| Receiver | |
| Input | (1) CATx IN |
| Input Connector | (1) RJ45 |
| Output | (1) DISPLAY |
| Output Connector | (1) 19 pin type A female HDMI |
| Control | (1) IR IN, (1) IR OUT |
| Control Connector | (2) 3.5mm mini jacks |
| General | |
| Video Resolution | Up to 4K@60Hz 4:4:4, HDR10, up to 12bit |
| HDMI Audio Format | Supports LPCM 2ch, LPCM 5.1ch, LPCM 7.1ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, DTS 5.1ch, DTS 96/24 5.1ch. |
| Audio Sampling Rate(kHz) | Supports 32, 44.1, 48, 88.2, 96 |
| Transmission Distance | 4K/1080p ≤ 70 meters (230ft) Note that the CATx cable length should not be less than 15 meters for best video output. |
| HDMI Version | Up to HDMI 2.0 |
| HDCP Version | Up to HDCP 2.2. The HDCP of output follows the HDCP version of display device. |
| EDID | EDID Management |
| Power Supply | Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC 1A |
| Power Consumption | 4W (Max) |
| Operation Temperature | -5~55 degree Celcius |
| Storage Temperature | -25~70 degree Celcius |
| Relative Humility | 10%-90% |
| Dimensions (W*H*D) | 80mm x 16.8mm x 80mm |
| Net Weight | Tx/Rx: 70g |
