Sale!

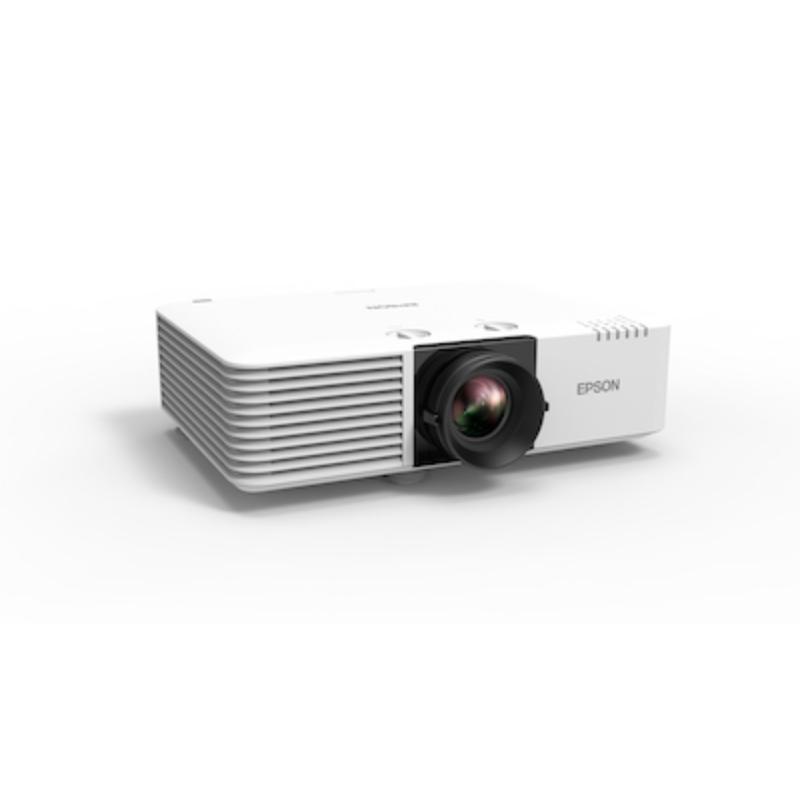

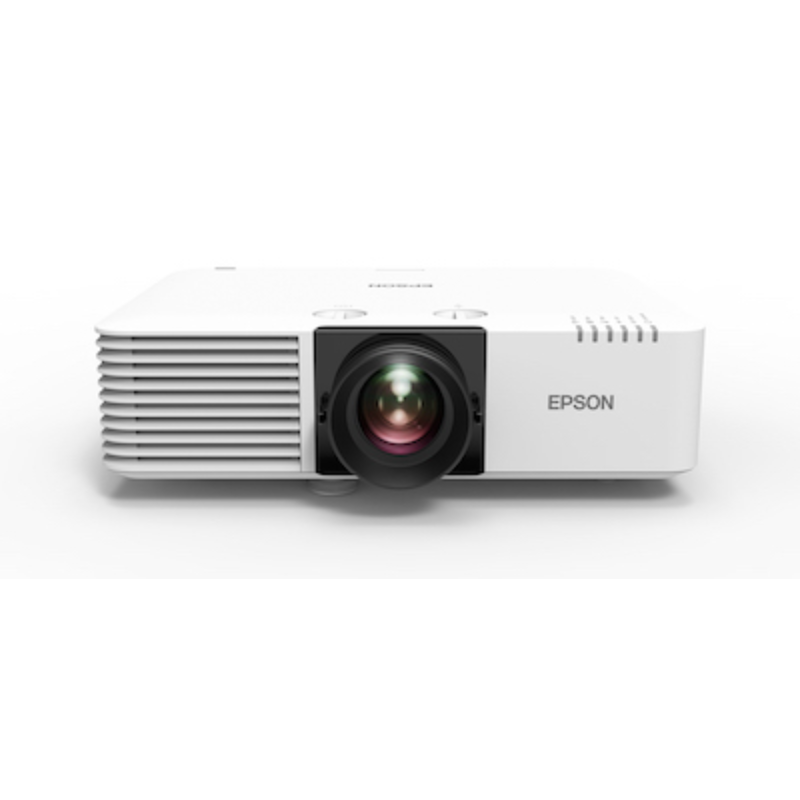

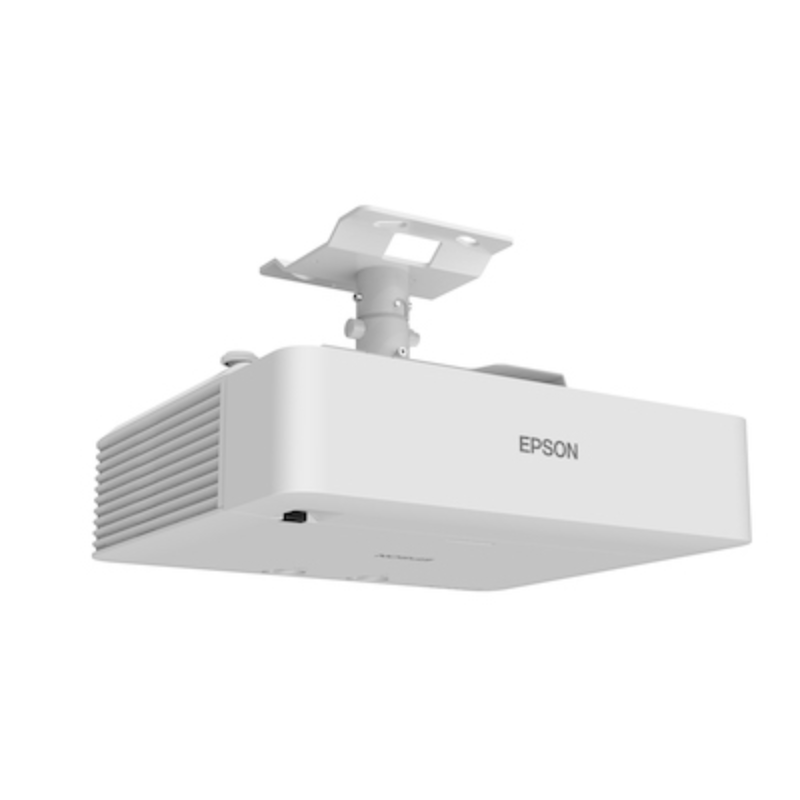

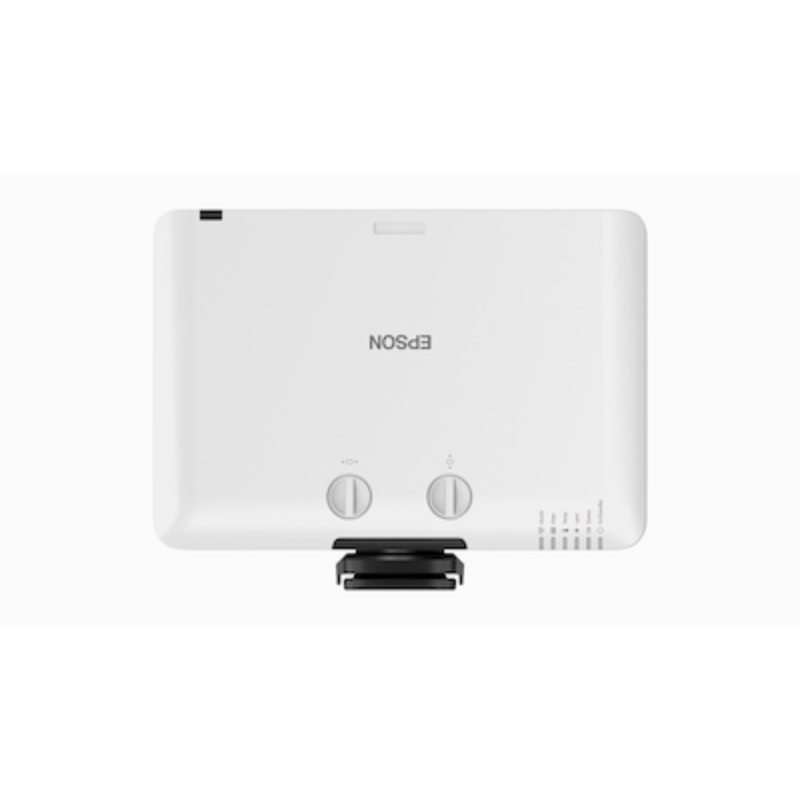

EB-L570U 3LCD Laser Projector with 4K Enhancement

•WUXGA 4K(3840 x 2160) Resolution Aspect Raio:-16:10
•Light Source Type:- Laser Diode
•5200 ANSI lumens
•Up to 20000 lamp hour (SuperEco+mode)
•Dynamic Contrast Ratio with SuperEco Mode: 25,00,000:1

Ultra bright, detailed images with 4K Enhancement

Delivers 4.6 million pixels on screen for a visibly smoother and sharper display, even at close viewing distances; accepts 4K content

Power up your processes with attachable ELPEC01 camera

Simplify multi-projector functions** with optional attachable ELPEC01 camera.
** Simple stacking, screen matching and simple blending without PC or Geometry Correction Assist for Stacking, Blending and Screen Matching using PC with Epson Professional Tool software.

Ideal for Hybrid Corporate Environments, Educational Spaces, and Immersive Environment Applications

Elevate entertainment and educational spaces. Facilitate more equitable and collaborative meeting experiences with easy operation from start to finish.

The versatile EB-L570U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement1 and 5,200 lumens of brightness2, providing smooth, detailed images—even up close. The flexible display can switch between a variety of aspect ratios, including standard 16:10 up to 1270cm (500”), plus ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution. Simple to install, the EB-L570U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000 hour virtually maintenance-free laser light source and air filter3. Plus, simplify complex multi-projector applications with the optional attachable ELPEC01 camera.
      • 5,200 lumens of colour and white brightness2
      • WUXGA with 4K Enhancement1 for clear, detailed images
      • 20,000 hour, virtually maintenance-free laser light source and air filter3
      • Project up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9


Specification

Category Specification
Projection Technology RGB liquid crystal shutter projection system (3LCD)
Brightness
– White Light Output (Normal/Eco) 5,200 lm / 3,640 lm
– Colour Light Output 5,200 lm
– Light Output (Center) 5,500 lm*
Contrast Ratio Over 5,000,000 : 1
Aspect Ratio 16:10
Main Parts Specification
– Light Source Laser Diode
Projection Lens
– Type Optical Zoom (Manual) / Focus (Manual)
– Zoom Ratio 1 – 1.6 (Manual)
– Focal Length 20 mm – 31.8 mm
– F-number 1.50 – 1.70
– Throw Ratio Range 1.35 – 2.20 (Wide to Tele)
– Screen Size (Zoom Wide) 50” – 500” [1.44 – 14.76 m]
– Screen Size (Zoom Tele) 50” – 500” [2.35 – 23.84 m]
– Lens Shift ManualVertical: -50% to +50%Horizontal: -20% to +20%
Connectivity
– Digital Input HDMI: 2 (HDCP 2.3), HDBaseT: 1 (HDCP 2.3)
– Digital Video Output HDMI: 1 (HDCP 2.3)
– Audio Out Stereo Mini Jack: 1
– Control I/O RS-232C: 1 (D-sub 9-pin)
– USB Input USB Type A: 2• Port 1: PC Free, Firmware Update, Wireless LAN, Document Camera, OSD Copy, Playback, External Camera• Port 2: 5V/2A power only (no USB function)
– USB Type B 1 (Firmware Update, Copy OSD Settings)
– Network I/O Wired LAN: RJ45 x 1Wireless LAN: Optional (ELPAP11)
Direct Power On/Off Yes
Dimension (Excluding Feet) 304 x 440 x 122 mm (D x W x H)

Features

  • High Brightness & Clarity: Delivers vivid visuals with 5,200 lumens and 4K-like sharpness via pixel shift.

  • Long Life with Laser Source: Efficient, low-maintenance operation with up to 30,000 hours lifespan.

  • Versatile Installation: Wide lens shift and optical zoom enable flexible placement.

  • Supports Massive Displays: Suitable for screens up to 500″, including ultra-wide formats.

  • Advanced Setup Tools: Seamless multi-projector blending with the optional PixAlign camera.

  • Robust I/O Options: Includes HDBaseT and network control, ideal for modern classrooms and boardrooms.

What’s in the Box ?

  • EB-L570U Projector
  • Power Cable
  • Computer Cable (HDMI)
  • Projector Remote Control with Batteries
  • Quick Setup Sheet
  • Cable Cover

Additional Resources

Product-brochure :
Download
